Multi-Drop SATA Power & Signal Wire Harness Connector Assembly for HDD/SSD, 4P to Multi-SATA Cable

Multi-Drop SATA Power & Signal Wire Harness Connector Assembly for HDD/SSD, 4P to Multi-SATA Cable

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA 7 +15P Fx5 TO SATA 7P Fx5 +PH4.2x20P.HSG

Contact Us
Request A Quote
Multi-Drop SATA Power & Signal Wire Harness Connector Assembly for HDD/SSD, 4P to Multi-SATA Cable Multi-Drop SATA Power & Signal Wire Harness Connector Assembly for HDD/SSD, 4P to Multi-SATA Cable Multi-Drop SATA Power & Signal Wire Harness Connector Assembly for HDD/SSD, 4P to Multi-SATA Cable Multi-Drop SATA Power & Signal Wire Harness Connector Assembly for HDD/SSD, 4P to Multi-SATA Cable Multi-Drop SATA Power & Signal Wire Harness Connector Assembly for HDD/SSD, 4P to Multi-SATA Cable Multi-Drop SATA Power & Signal Wire Harness Connector Assembly for HDD/SSD, 4P to Multi-SATA Cable
Product Details
Product Type:
Electrical Power Cable Connector Harness
Connector Style:
Male Power Connector To Female Power Connector
Cable Type:
16AWG / 18AWG Tinned Copper Wire
Cable Length:
Customizable (Standard 30cm / 50cm / 60cm)
Conductor Material:
Tinned Oxygen-free Copper For Low-loss Power And Signal Transmission
Rated Current:
8A–10A Per Pin
Rated Voltage:
300 V AC/DC
Contact Resistance:
≤10mΩ
Insulation Resistance:
≥1000MΩ
Insulation:
PVC Electronic Wire, 300 V / 80 °C
Housing Material:
UL94V-0 Rated PA / PBT
Compliance:
RoHS / REACH Compliant
Application:
GPU / PSU / Server / Industrial Power System
Payment & Shipping Terms
Minimum Order Quantity
1000
Price
$1.44-2.21 PCS FOB
Packaging Details
Tape and Reel, 1500 per case, 10KG
Delivery Time
8-15 working days
Payment Terms
T/T
Supply Ability
500000 pcs per month
RELATED PRODUCTS
Good price Mini SAS HD SFF-8643 to SFF-8643 High-Speed Cable Connector Assembly 1m | Internal Server Storage Signal & Power Wire Harness online

Mini SAS HD SFF-8643 to SFF-8643 High-Speed Cable Connector Assembly 1m | Internal Server Storage Signal & Power Wire Harness

Get Best Price
Good price PCI-E 8Pin Male to 6+2Pin GPU Power Cable Connector – Braided Wire Harness for Modular PSU / Server online

PCI-E 8Pin Male to 6+2Pin GPU Power Cable Connector – Braided Wire Harness for Modular PSU / Server

Get Best Price
Good price Mini SAS HD to U.2 NVMe SSD Connector Cable – SFF-8643 to SFF-8639 Braided Wire Harness for Server Storage online

Mini SAS HD to U.2 NVMe SSD Connector Cable – SFF-8643 to SFF-8639 Braided Wire Harness for Server Storage

Get Best Price
Good price Braided SATA 7Pin Data Cable Connector – Right Angle to Right Angle Shielded Wire for HDD / SSD / Gaming PC / Server online

Braided SATA 7Pin Data Cable Connector – Right Angle to Right Angle Shielded Wire for HDD / SSD / Gaming PC / Server

Get Best Price
Contact Us
Contact Now
Product Description

Product Description

This multi-drop SATA wire harness connector assembly combines power and high-speed signal transmission in one compact cable set. A standard 4-pin power connector on the host side fans out to several SATA 7+15-pin cable connectors, allowing you to power and connect multiple 2.5"/3.5" HDDs or SSDs from a single power source.

The assembly uses oxygen-free copper electrical wire and shielded flat SATA cable to provide stable 5V/12V power and reliable 6Gb/s SATA data transmission. Gold-plated terminals reduce contact resistance and improve long-term corrosion resistance, while the molded housings enhance strain relief and mechanical strength. The harness is ideal for applications requiring neat wiring and quick installation in limited space.

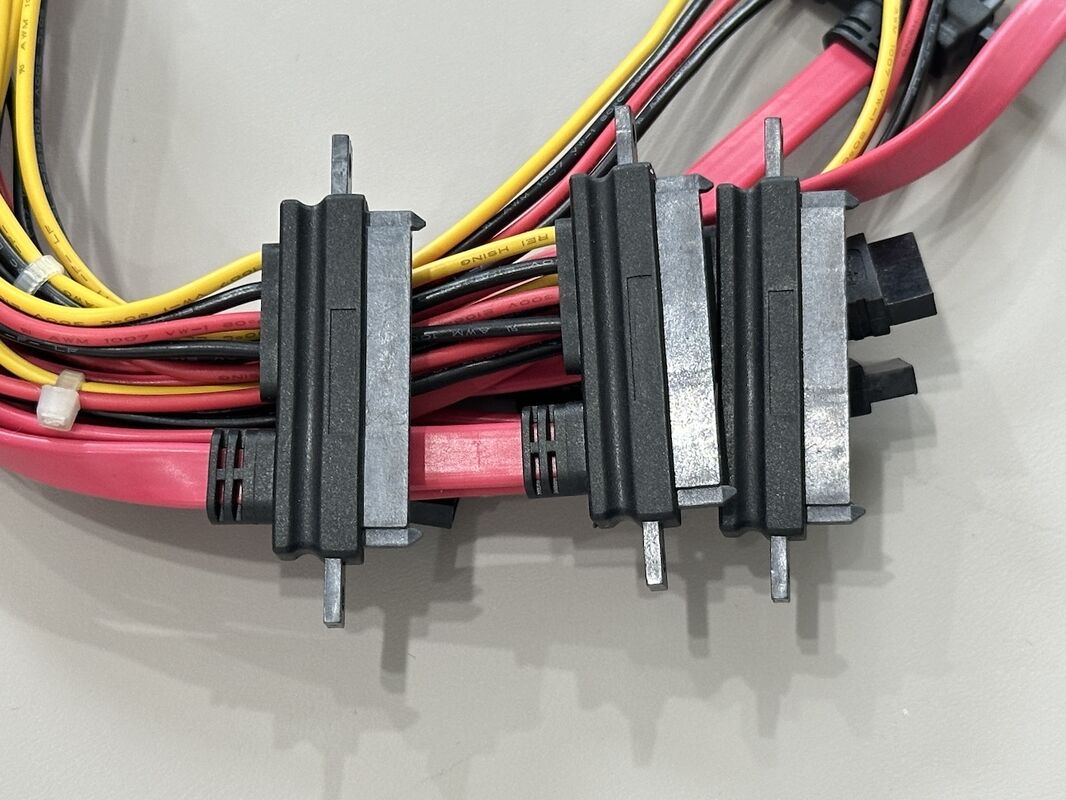

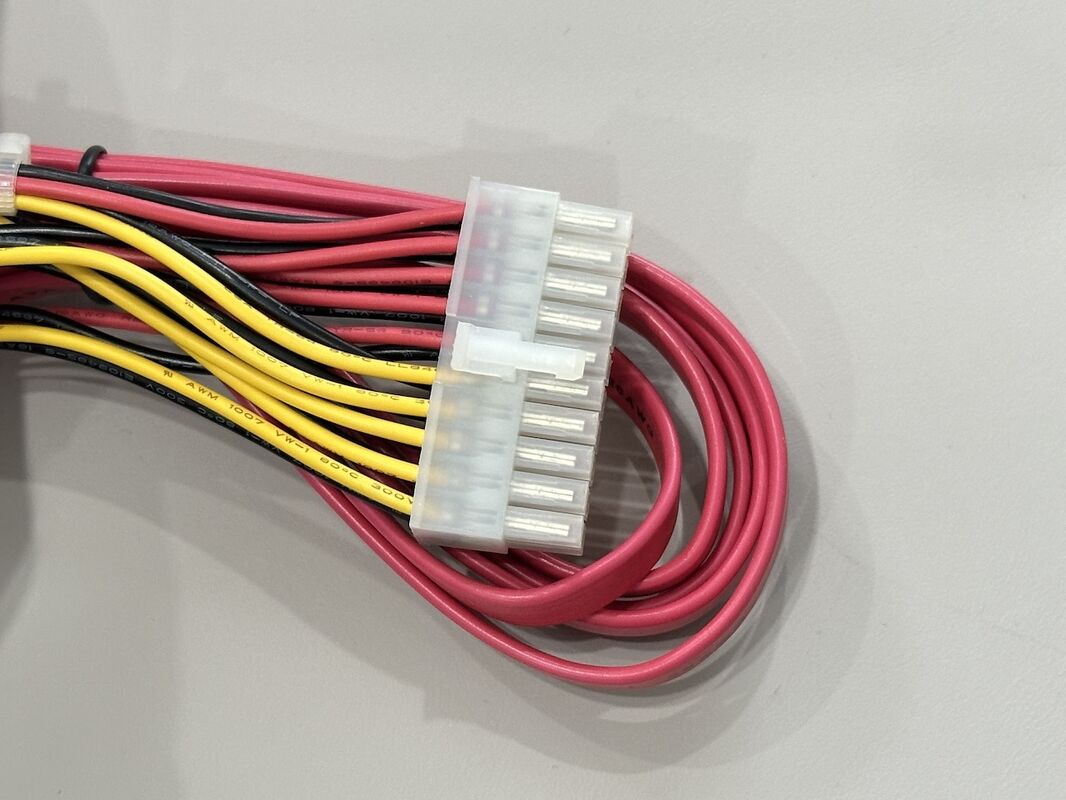

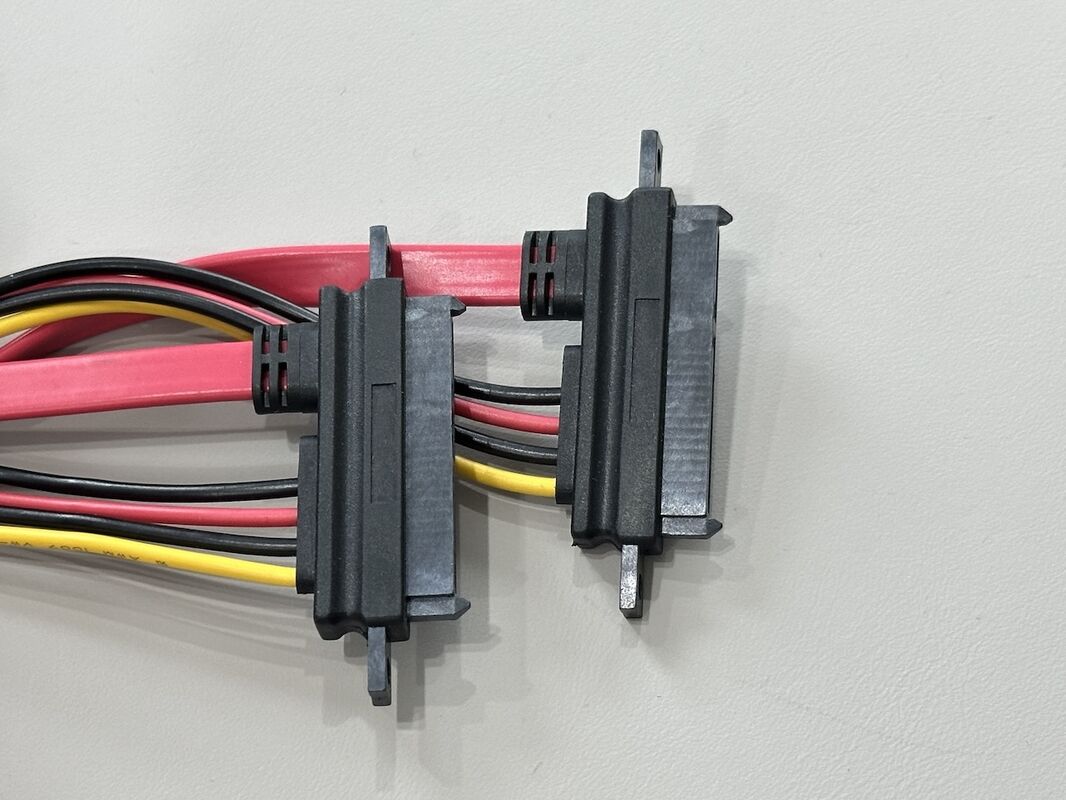

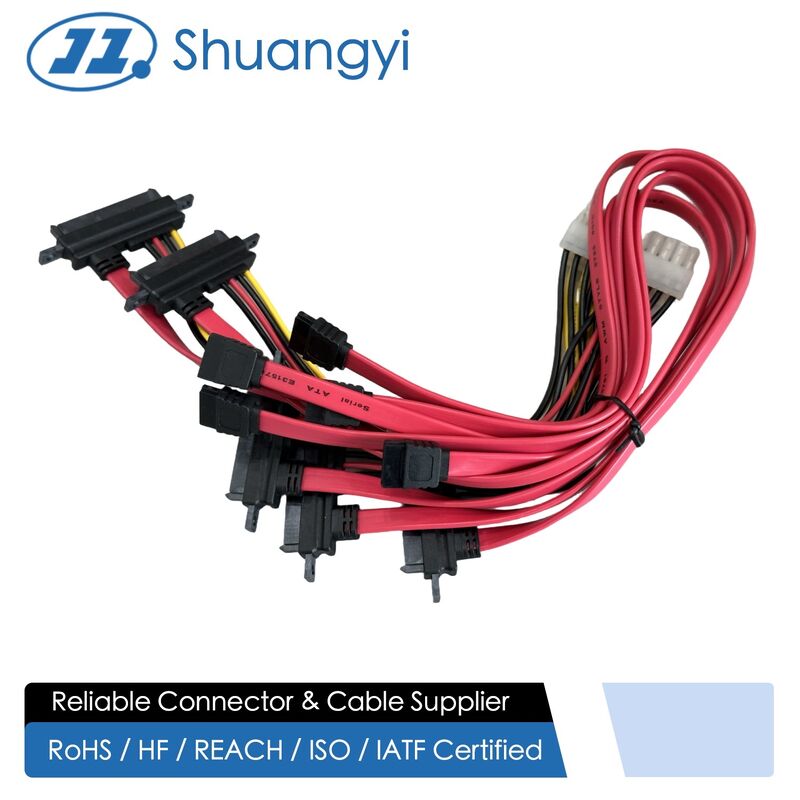

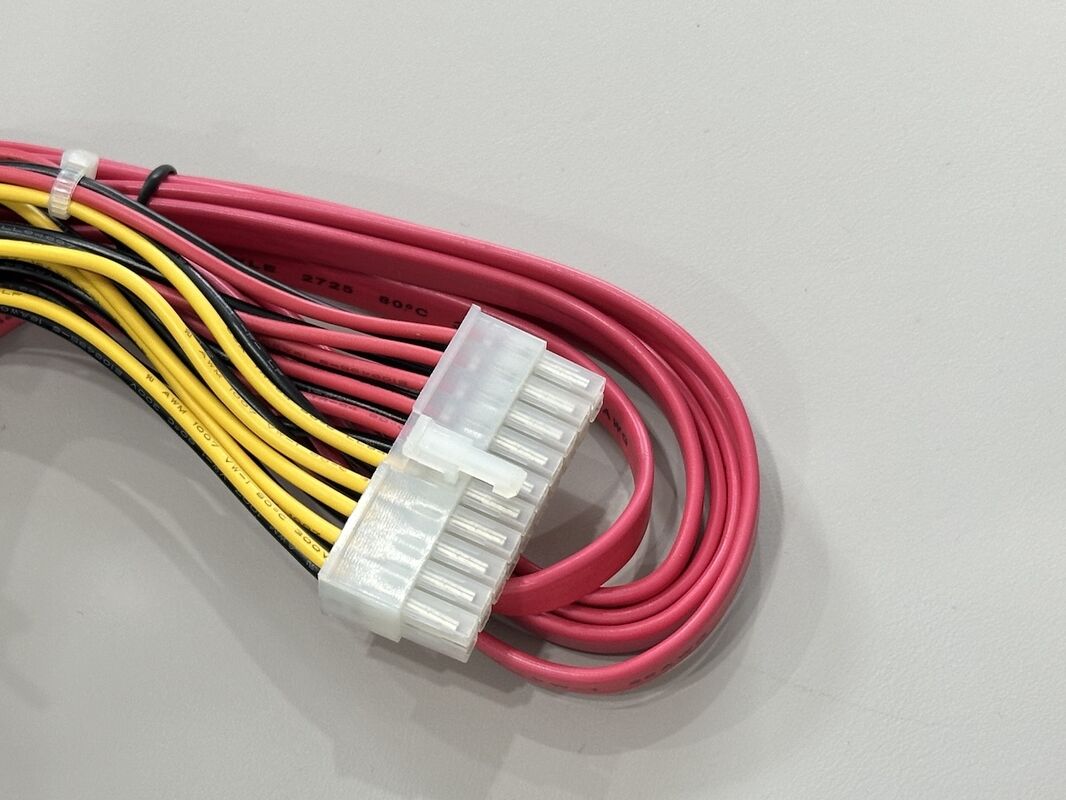

Multi-Drop SATA Power & Signal Wire Harness Connector Assembly for HDD/SSD, 4P to Multi-SATA Cable 0Multi-Drop SATA Power & Signal Wire Harness Connector Assembly for HDD/SSD, 4P to Multi-SATA Cable 1Multi-Drop SATA Power & Signal Wire Harness Connector Assembly for HDD/SSD, 4P to Multi-SATA Cable 2



Connector type 4-pin peripheral power connector to multiple SATA 7+15-pin combined connectors
Interface Serial ATA power and data connector
Number of SATA connectors 4–6 positions (customizable)
Power wires Black / yellow / red electrical wire, 18–20AWG copper
Signal cable Flat SATA data cable, 26–28AWG, shielded
Rated voltage 5V / 12V DC power supply
Rated current Up to 1.5–2.0A per power pin (configuration dependent)
Cable length Typical 0.5–1.0 m, custom length available
Outer jacket PVC insulation, bundled with black braided sleeve or tie
Color Red SATA cable + black/yellow/red power wires
Connector gender Male plug SATA connector to drive side, female 4-pin power input
Pitch SATA 7-pin signal + 15-pin power standard pitch
Operating temperature -20℃ to +80℃ (depending on wire spec)
Application HDD/SSD storage expansion, server & PC power distribution, industrial control cabinets
Customization Pin-out, cable length, wire gauge, label and over-molding available
Compliance RoHS-compliant electronic connector and cable materials



Applications

Storage backplanes in servers, workstations, NAS and RAID arrays

Multi-drive upgrade kits for desktop PCs and industrial PCs

Power and signal distribution for DVR/NVR, medical equipment and test instruments

Custom OEM/ODM wiring harness solutions for chassis, enclosures and storage modules

Precautions

Confirm that the total current of all connected drives does not exceed the power rating of the 4-pin input and system power supply.

Avoid excessive bending or twisting of the flat SATA cables and bundled harness to maintain signal integrity and mechanical life.

Ensure connectors are fully inserted and latched before powering on to prevent intermittent contact or data errors.

Do not route the cable near sharp edges, high-temperature components or strong electromagnetic sources; use proper cable management clips or ties.

For special environments (high temperature, vibration, automotive or industrial use), consult for customized wire gauge, jacket material and additional shielding.
