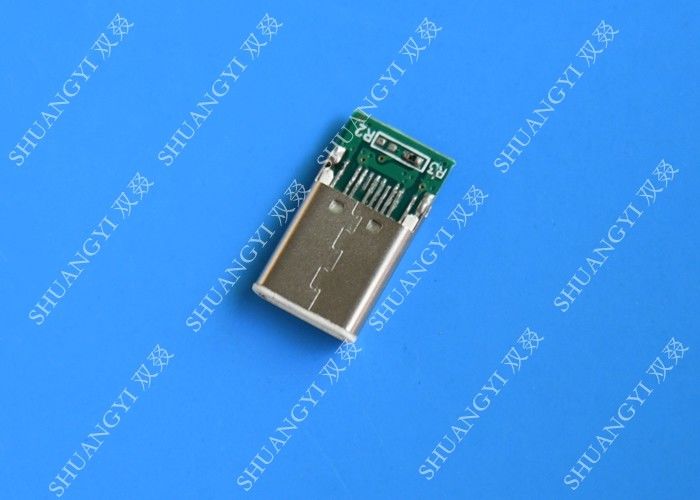

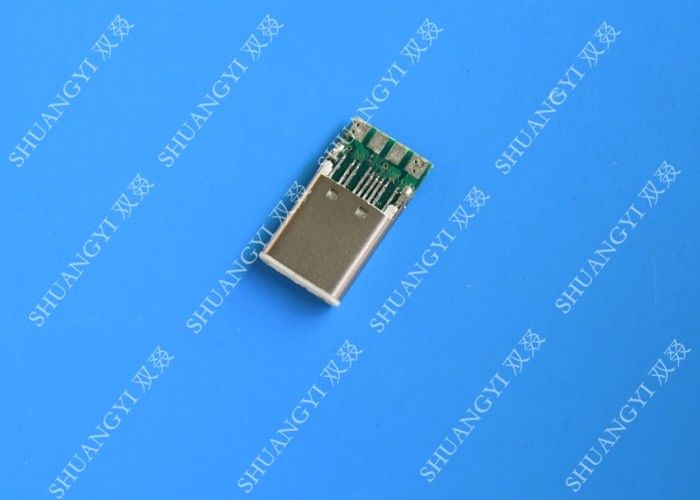

Male Mobile Phone USB Connector Type C USB 3.1 With Copper Alloy Contact

Male Mobile Phone USB Connector Type C USB 3.1 With Copper Alloy Contact

usb waterproof connector

waterproof usb connector

Place of Origin:

Guangdong, China (Mainland)

Brand Name:

SHUANG YI

Certification:

ISO9001/SGS/UL/RoHS/Reach

Model Number:

Type-C USB 3.1

Contact Us
Request A Quote
Male Mobile Phone USB Connector Type C USB 3.1 With Copper Alloy Contact Male Mobile Phone USB Connector Type C USB 3.1 With Copper Alloy Contact
Product Details
Application:
Microwave
Gender:
Male
Material:
Copper Alloy
Pin:
5Pin
Plating:
Goldplated
Mating Force:
3.50kg(7.71Lb)Max
Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
1.Polybay 2.1000pcs of a tray 3.According to client's request
Delivery Time
7~10 Work Days
Payment Terms
T/T, L/C
Supply Ability
100000 Piece/Pieces Per Month
RELATED PRODUCTS
Good price 5 Pin Mobile Phone Waterproof Micro USB Connector , Male Type A USB Connector online

5 Pin Mobile Phone Waterproof Micro USB Connector , Male Type A USB Connector

Get Best Price
Good price On The Go OTG Waterproof Micro USB Connector 24 Pin Stainless Steel Color online

On The Go OTG Waterproof Micro USB Connector 24 Pin Stainless Steel Color

Get Best Price
Good price Type C USB 3.1 Waterproof Micro USB Connector Metal For Mobile Phone online

Type C USB 3.1 Waterproof Micro USB Connector Metal For Mobile Phone

Get Best Price
Good price PCB SMT Mini Cell Phone USB Connector Type B 5 Pin Female Socket Adapter Jack online

PCB SMT Mini Cell Phone USB Connector Type B 5 Pin Female Socket Adapter Jack

Get Best Price
Contact Us
86-769-28825589
Contact Now
Product Description

Male Mobile Phone USB Connector Type C USB 3.1 With Copper Alloy Contact ​





Type-C Connector Specification:

Mechanical:

Mating Force: 3.50kg(7.71Lb)Max
Unmating Force: 1.00kg(2.20Lb)
Durability: 1000 Cycles


Electrical:
Current Rating: Signal(Pins 2,3,4):1.0A
Power(Pins 1,5): 1.8A
Contact Resistance: 30M ohm Max
Dielectric Withstanding Voltage: 100V AC/1min Min
Insulation Resistance: 1000M ohm Min


Physical:
Housing: Thermoplastic,UL 94V-0 rated
Contact: Copper Alloy
Shell: Stainless Steel
Plating: See Lable
Reflow Solder Capable to 260 degree
Wave Solder Capable to 265 degree
