Product Description

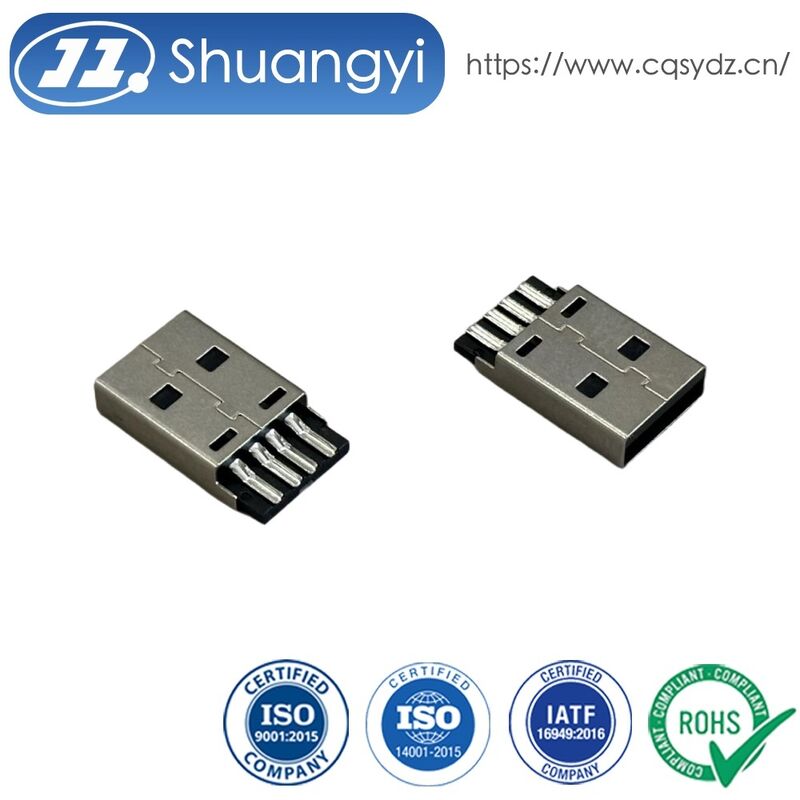

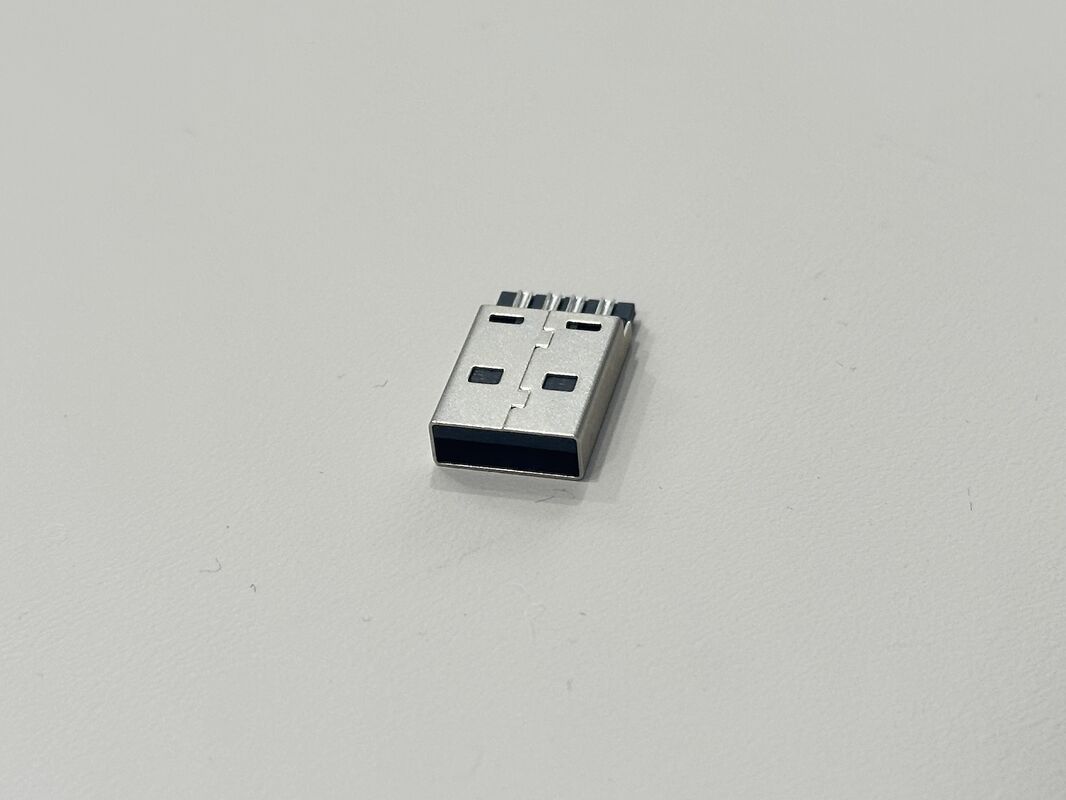

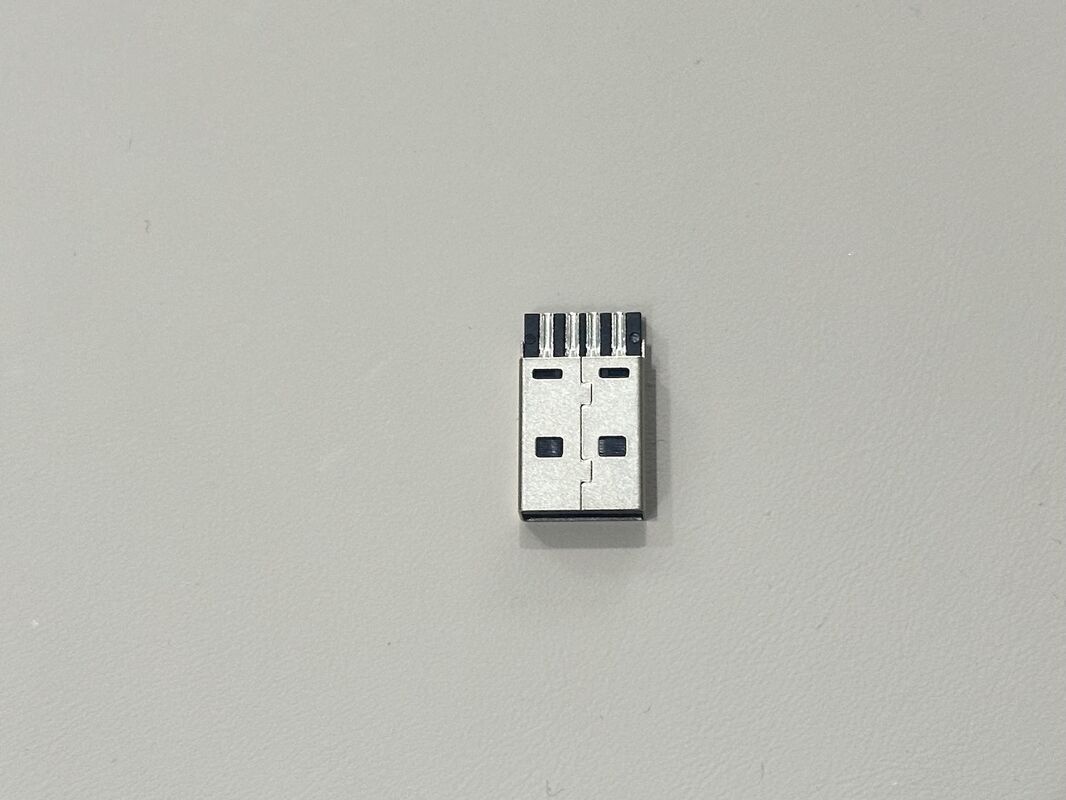

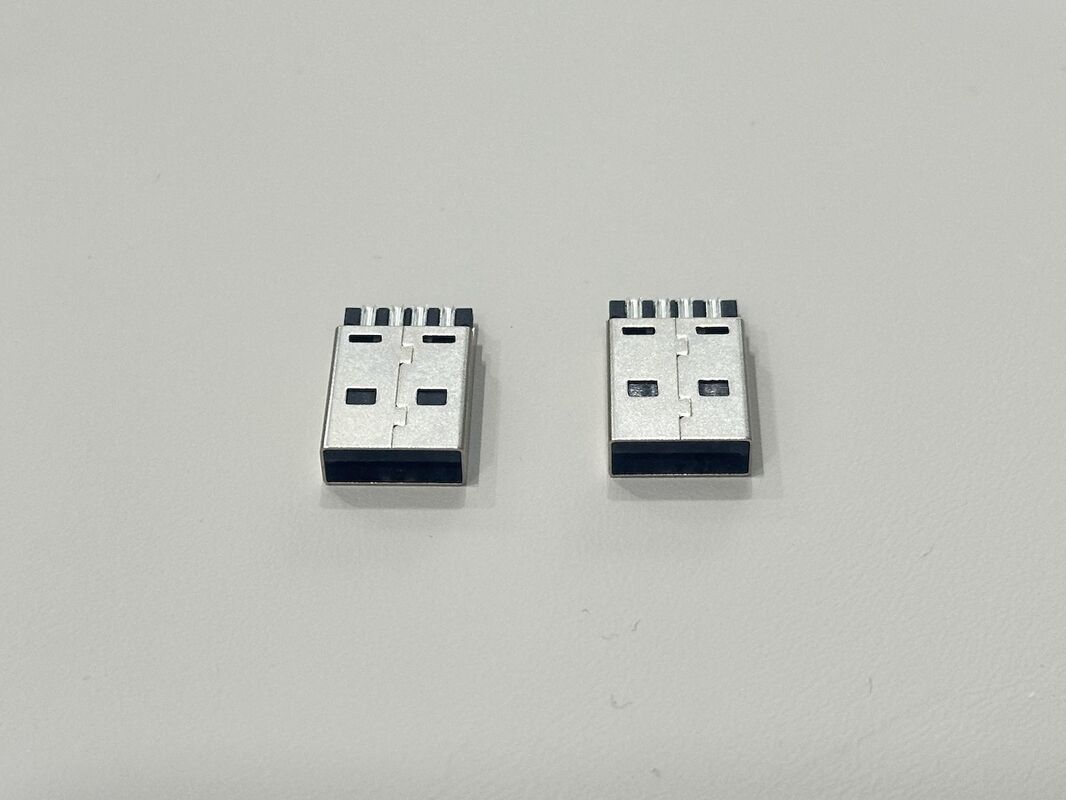

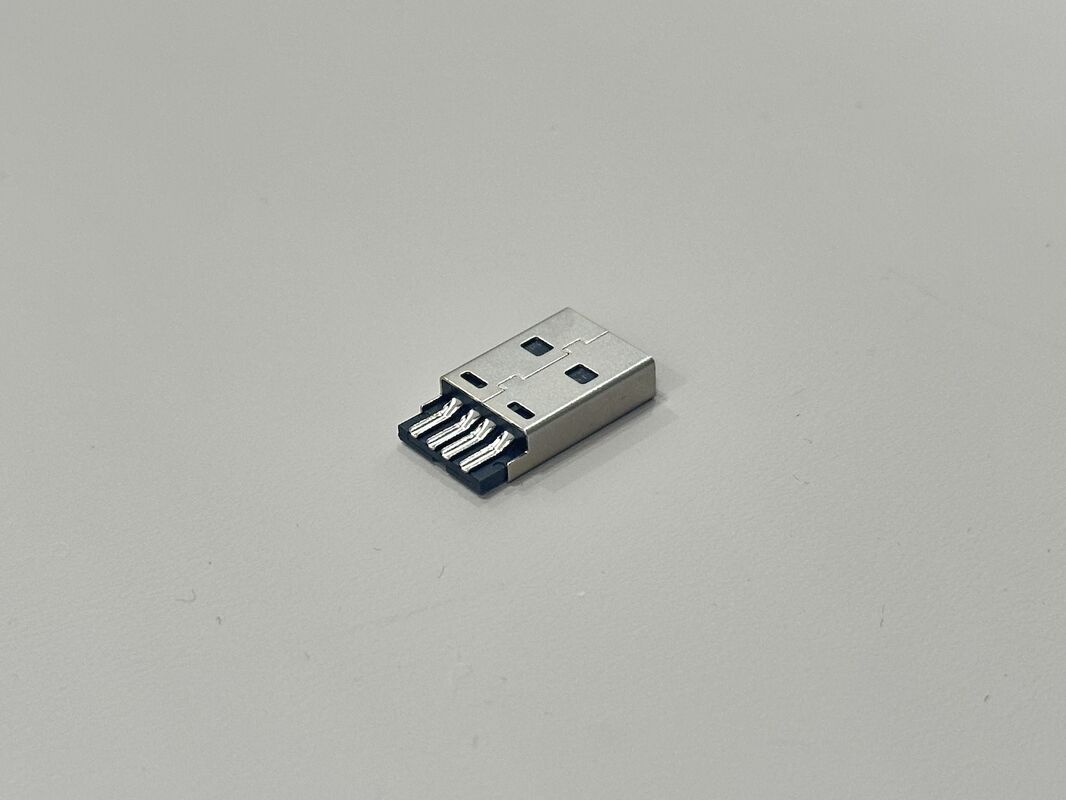

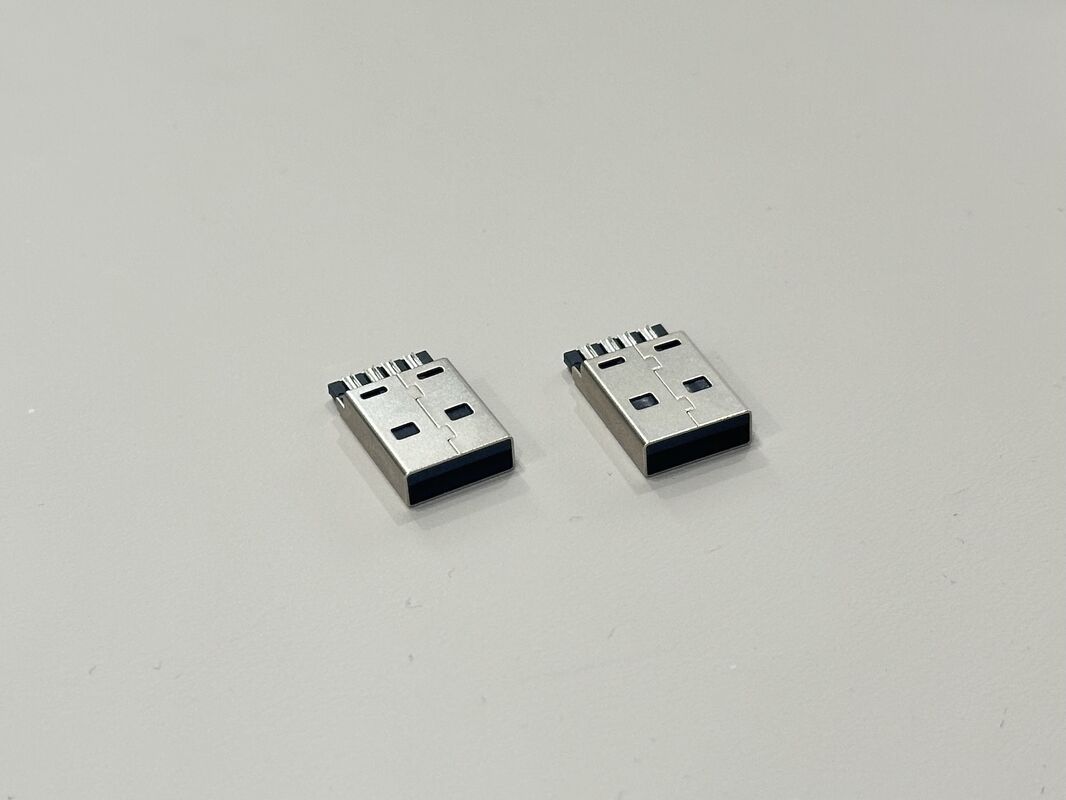

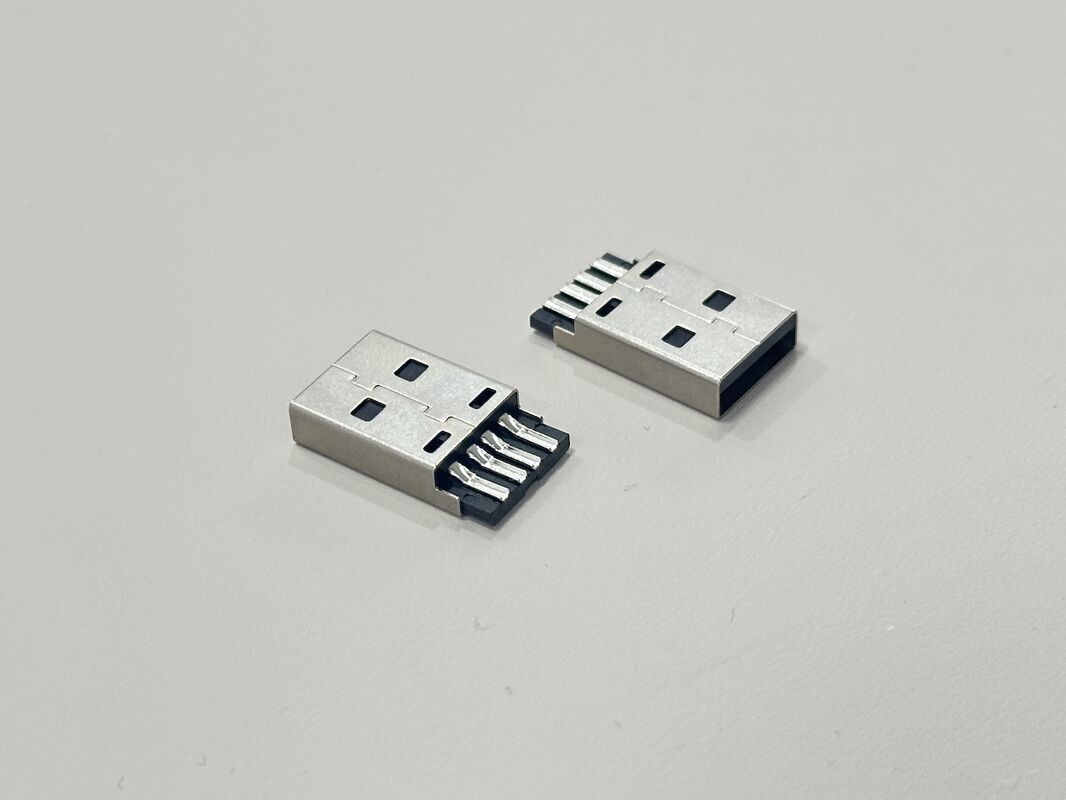

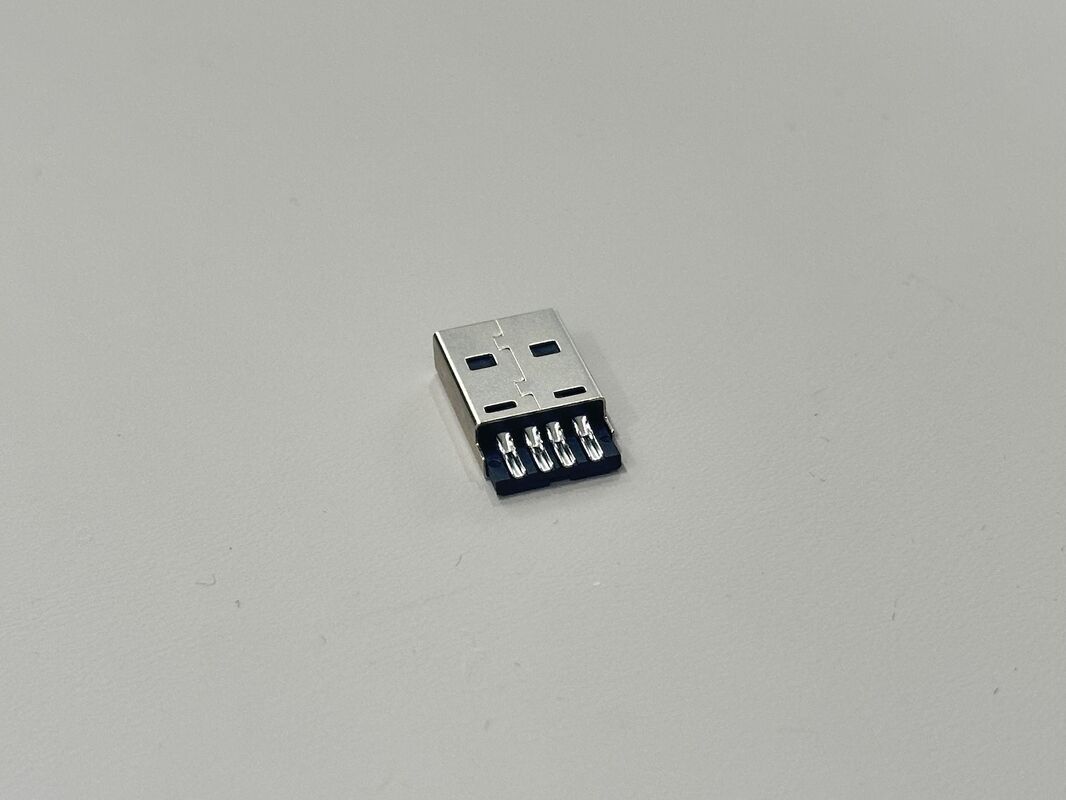

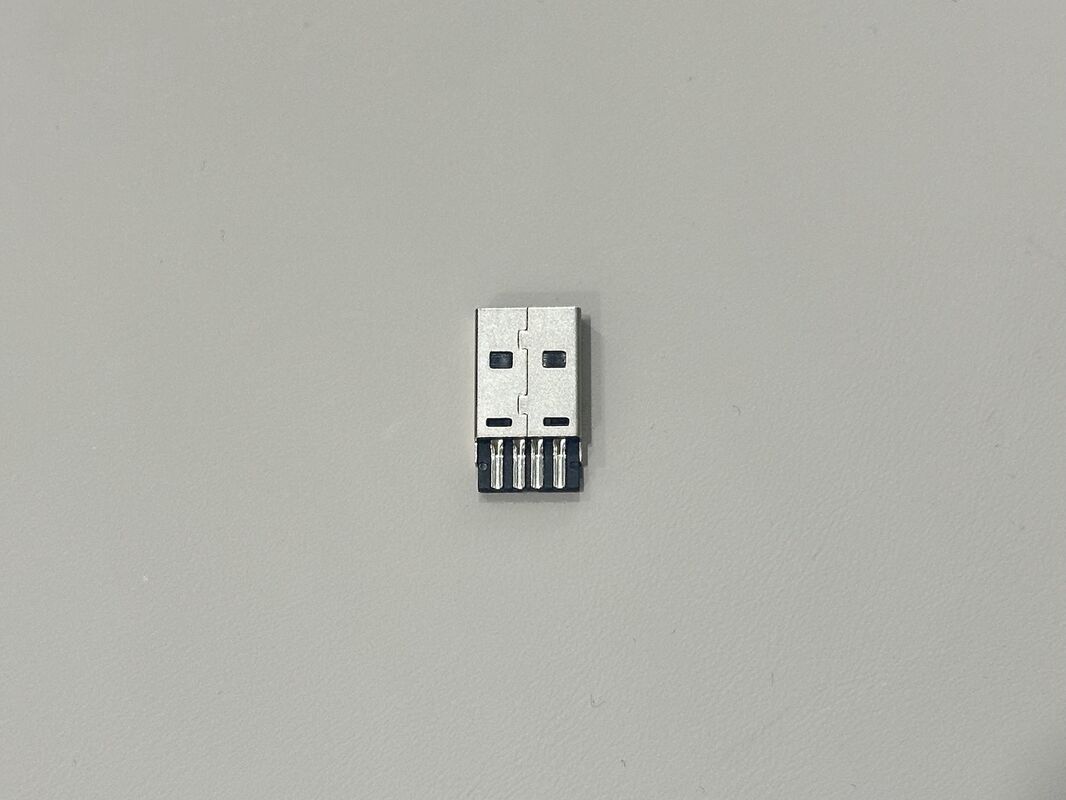

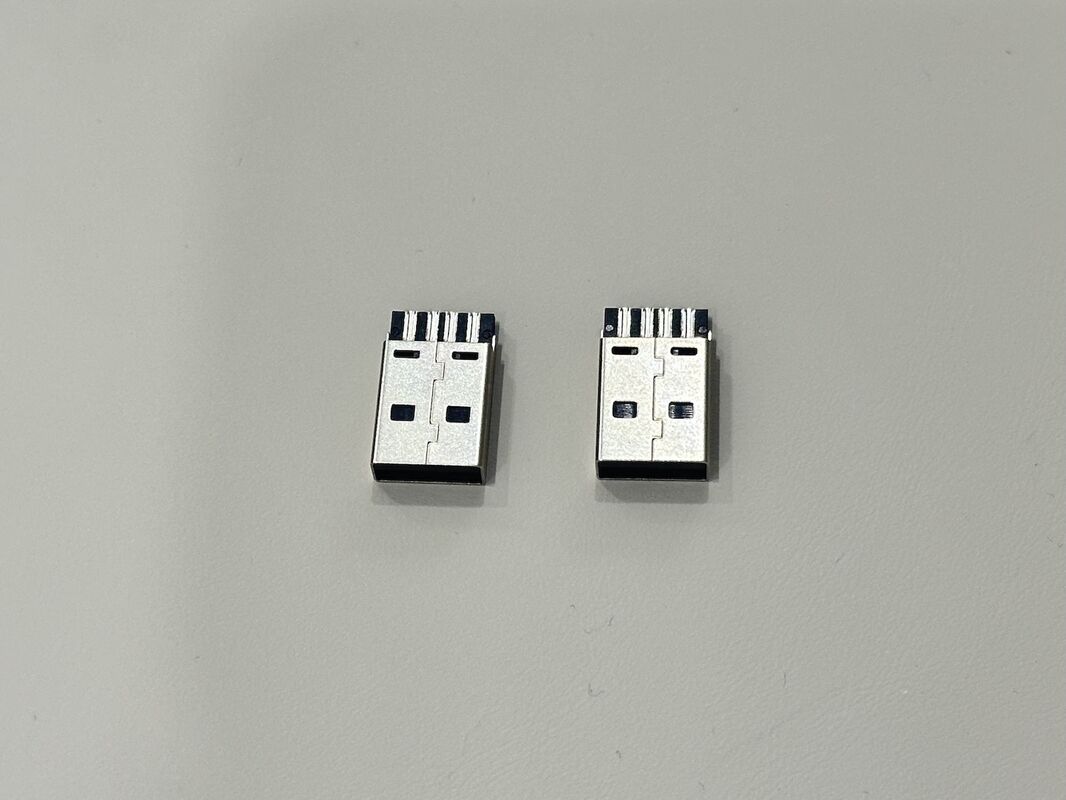

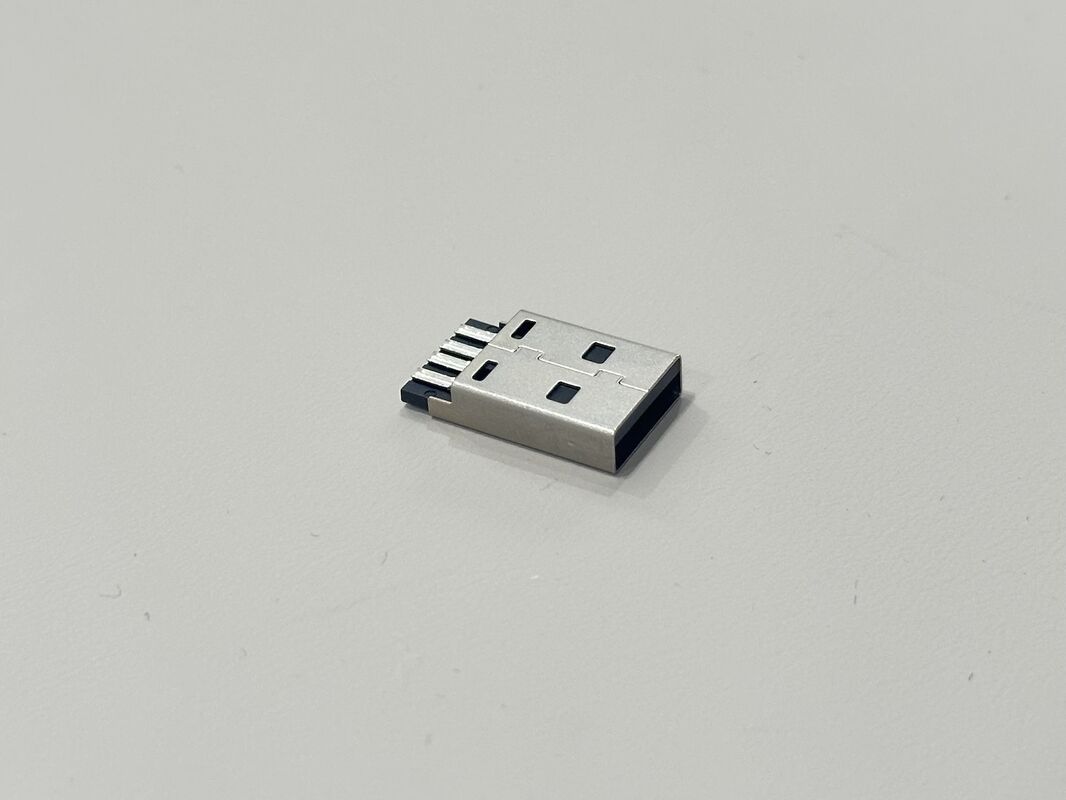

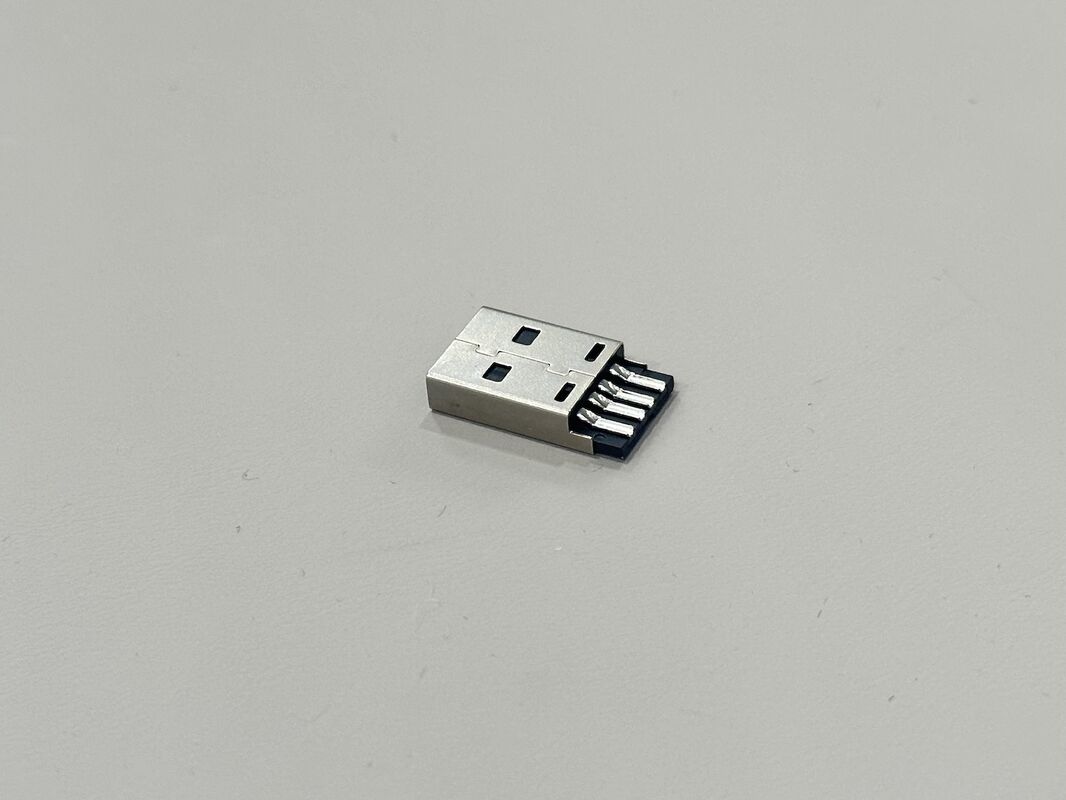

This USB 2.0 A male plug metal shell connector is designed for reliable high-speed data and power transmission in USB cable assemblies. The connector uses precision copper-alloy terminals with nickel under-plating and gold-flash contact areas to ensure low contact resistance and stable signal integrity. The solder/crimp region is bright-tin plated for secure termination to stranded wires, while the fully nickel-plated metal shell enhances EMI shielding and long-term corrosion resistance.
With a rated current of 1.5 A per pin, 500 VAC dielectric strength and ≥1000 MΩ insulation resistance, the connector provides safe and stable performance in a wide range of electronic products. The compact plug design is suitable for automatic or manual cable processing, overmolding, and customized wire harness production.
| Connector type |
USB 2.0 Type-A male plug connector |
| Function |
Wire-to-cable electrical connector for USB data and power transmission |
| Positions |
4 pins |
| Contact material |
Copper alloy terminals |
| Contact plating |
Ni 50 µ" min overall, Au flash plated on contact area, bright tin ≥80 µ" on solder/crimp area |
| Shell material |
Steel metal shell, Ni ≥80 µ" fully plated for EMI shielding and corrosion resistance |
| Current rating |
1.5 A max per pin |
| Contact resistance |
≤30 mΩ (initial) |
| Insulation resistance |
≥1000 MΩ at 500 VDC |
| Dielectric withstand voltage |
500 VAC / 1 minute between contacts and shell |
| Mating force |
≤35 N at 12.5 mm/minute |
| Un-mating force |
≥10 N at 12.5 mm/minute |
| Mechanical life |
1500 mating cycles (≈200 cycles/hour durability test) |
| Termination style |
Solder-type / crimp-type terminals for USB cable assembly |
| Mounting style |
In-line plug for overmolded cable or open-ended wire harness |
| Color |
Metal shell with black insulator (other colors customizable) |
| Compliance |
RoHS-compliant, halogen-free options available |
| Typical cable |
Multi-core USB data/power cable, PVC or TPE jacket, customized length |
Applications
USB charging and data cables for mobile phones, tablets and smart devices
Power and signal wire harnesses for consumer electronics, set-top boxes, game consoles and media players
PC and laptop peripherals, USB hubs, docking stations and external storage devices
Automotive and industrial control equipment requiring USB interface connectivity
Custom PCB-to-cable or device-to-device connections in embedded systems and IoT terminals
Precautions
Ensure correct cable construction and wire gauge selection to meet current-carrying requirements and temperature rise limits.
When soldering, control heating time and temperature to avoid damaging the plastic insulator or degrading plating on the terminals.
Avoid excessive insertion/withdrawal force beyond the specified mechanical limits to maintain contact normal force and connector life.
Protect open connectors from dust, moisture and chemical contamination during storage and assembly; store in a dry, clean environment.
For high-volume or harsh-environment applications (automotive, outdoor, high-humidity), contact us for enhanced plating thickness, sealing or overmolded strain-relief designs.
