Name: Female USB 3.1 Type C USB Connector SMT DIP 24 Pin For Cell Phone
Brand: SHUANG YI
SKU: Type-C USB 3.1
Rating: 4.6 (101 reviews)

Home > products > Waterproof Micro USB Connector >

Female USB 3.1 Type C USB Connector SMT DIP 24 Pin For Cell Phone

waterproof micro usb socket

waterproof usb connector

Place of Origin:

Guangdong, China (Mainland)

Brand Name:

SHUANG YI

Certification:

ISO9001/SGS/UL/RoHS/Reach

Model Number:

Type-C USB 3.1

Request A Quote

Female USB 3.1 Type C USB Connector SMT DIP 24 Pin For Cell Phone

Product Details

Durability:

10000 Cycles

Shell:

50u'' Min. Nickel All Over

Contacts:

Alloy Copper

Connector Type:

C Type

Mating Force:

5-20N

Application:

PCB

Payment & Shipping Terms

Minimum Order Quantity

Negotiation

Price

Negotiation

Packaging Details

1.Polybay 2.1000pcs of a tray 3.According to client's request

Delivery Time

7~10 Work Days

Payment Terms

T/T, L/C

Supply Ability

100000 Piece/Pieces Per Month

5 Pin Mobile Phone Waterproof Micro USB Connector , Male Type A USB Connector

Get Best Price

On The Go OTG Waterproof Micro USB Connector 24 Pin Stainless Steel Color

Get Best Price

Type C USB 3.1 Waterproof Micro USB Connector Metal For Mobile Phone

Get Best Price

PCB SMT Mini Cell Phone USB Connector Type B 5 Pin Female Socket Adapter Jack

Get Best Price

86-769-28825589

Contact Now

Product Description

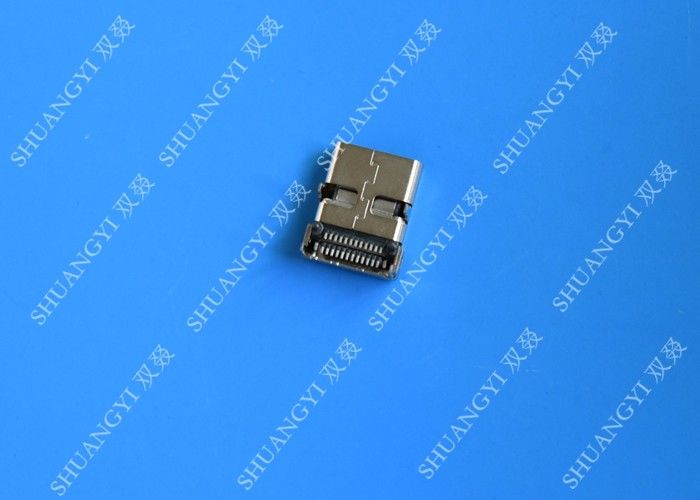

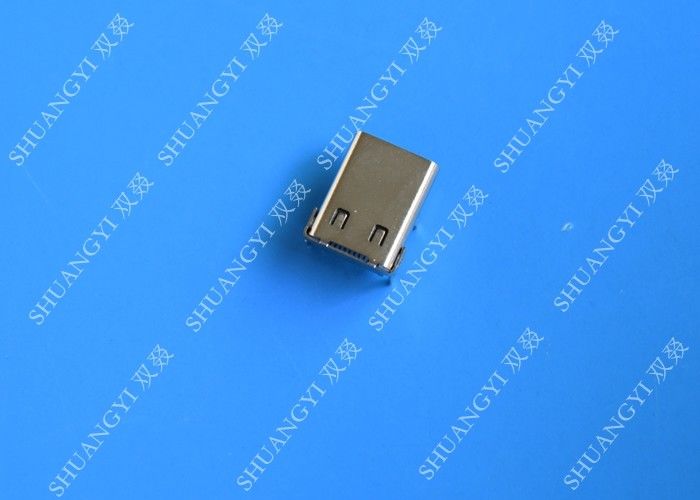

Female USB 3.1 Type C USB Connector SMT DIP 24 Pin For Cell Phone

Product Description:
Product Details:
Basic Info. USB TYPE C ,3.1
Interface Type:type c of usb
Connector:USB TYPE C
Universal:Universal
Cable Length:Connector only,Cable can be customized.
Data Transmission Function:Data ,SIGNAL Transmission Function
Surface:Smooth and light,can mating on each sides.
Charging Function:Not Only Charging Function
Customized:Tranditional ,can customized
Export Markets:Global
Additional Info.
Packing:Tray
Standard:RoHs
Origin:Kunshan, China
Production Capacity:10000PCS/M

SPECIFICATIONS
Current Rating:	5A for Pin (A4, A9 ,B4,B9),1.25A for other Pin.
Dielectric Withstanding Voltage:	AC100V R.M.S.
Insulation Resistance:	100MΩ Min at DC500V
Contact Resistance(Low Level):	40MΩ Max.
Operation Temperature:	-55°C~+85°C

Specification:
1.Material:

1.1 Housing:High temperature plastic UL94V-0;
1.2 Terminal:Copper Alloy,T=0.15mm
1.3 Shell: Steel,T=0.20MM

2.Electrical Characteristics:

2.1 Contact Resistance:40mΩ MAX for initial,10mΩ change after test measure at 20mV,100mA
2.2 Contact Current Rating: 5A for Bbus Pin;1.25A for Vconn Pin.
2.3 Dielectric Withstanding Voltage: 100V AC R.M.S.
2.4 Insulation Resistance:100MΩ MIN.
2.5 Working Temperature:-40℃~+85℃

3. Mechanical Characteristics:

3.1 Inserting Force: 5-20N
3.2 Pullout Force: 8-20N after test
3.3 Life Time:10000 cycles;

4.Plating:
4.1 Terminal contact:(see tab) gold plating, all over 50u Min Nickel and 80u matte tin all over 50u Min nickel on solder area
4.2 Shell: 80u Min. Nickel all over
