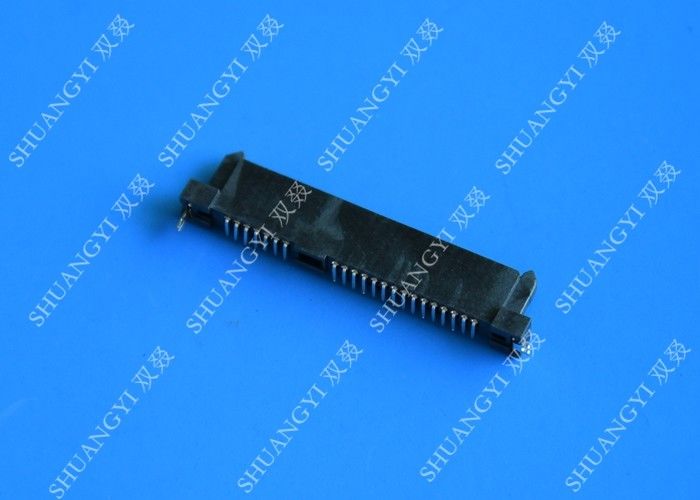

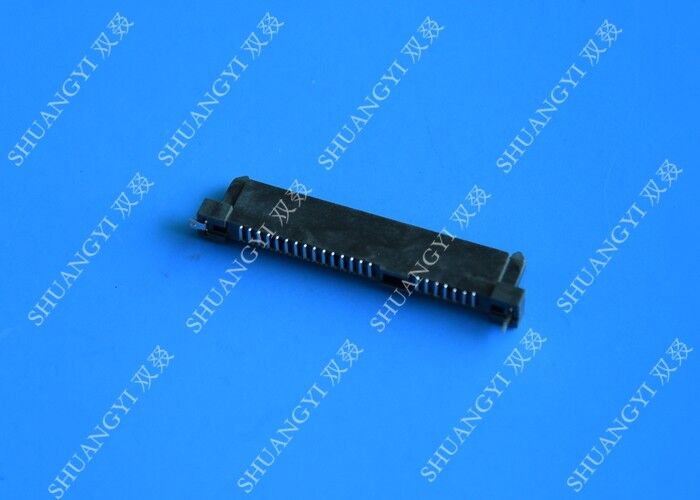

SFF8482/SAS 29P Connector
FEATURES & BENEFITS:
1. Typically used for storage backplane or HDD carrier applications
2. Options for through-hole solder, press fit, surface mount (SMT), or hybrid (combination of SMT and TM leads) termination allow engineers to select the termination technique best suited to their design
3. Wide-base housing options provide additional stability
4. For high-speed serial storage interfaces of up to 6Gb/s
5. 29-position SAS connectors enable SFF-8482 HDD interface
6. Provide dual signal ports (7 contacts/port) and 15 contacts for power
7. SAS receptacles also accept SATA drives
8. Designed to support hot-plugging and blind-mating of HDDs
9. Connector retainers provide additional mechanical strength after soldering
10. RoHS-compliant and compatible with lead-free processing temperatures
TARGET MARKETS/APPLICATIONS:
1. Data
2. Servers
3. Server and storage blades
4. External storage systems
5. HDDs
6. HDD carriers
7. Communications
8. Processor and storage blades
9. Mezzanine cards
10. Industrial, Instrumentation & Medical
11. Embedded system boards
TECHNICAL INFORMATION MATERIALS:
1. Contact base metal: Copper alloy
2. Contact area finish: Gold over nickel
3. Solder area finish: Tin over nickel
5. Retainer finish: Tin over nickel
6. Housing: High-temperature thermoplastic (UL 94V-0); color: black
ELECTRICAL PERFORMANCE:
1. Contact resistance: 30mΩ max. initial ; 15mΩ max. change after test
2. Current rating: 1.5A min. per contact with temperature rise not exceeding 30°C ENVIRONMENTAL
3. Humidity: 96 hours at 40°C with 90-95% relative humidity. Per EIA 364-31, Method II, test condition A
4. Temperature life: 85°C for 500 hours. Per EIA 364-17 test condition III, method A
5. Thermal shock: 10 cycles between -55°C and +85°C Per EIA 364-32, test condition I
6. Mixed flowing gas: Expose 1/2 samples unmated for 7 days and then mated for 7 additional days; the other 1/2 samples are exposed mated for 14 days. Per EIA 364-65, class II A *For higher durability cycling application, please contact FCI for alternatives. MECHANICAL PERFORMANCE
7. Durability: 500 mating cycles*
8. Mating force: 50 N max./45 N max. (32P-4lane SAS)
9. Unmating force: 5 N min./4.5 N min. (32P-4lane SAS) SPECIFICATIONS
10. FCI Product specification: GS-12-282 (29P SAS) GS-12-294 (32P-4lane SAS)
11. SFF-8482 Specification for Unshielded Dual Port Serial Attachment Connector APPROVALS AND CERTIFICATIONS
12. UL PACKAGING
13. Tray
14. Tube
15. Tape-on-reel (available upon request)
