SFF8482 SAS 29P Serial Attached SCSI Connector DIP SMT Solder Crimp Type For Computer

SFF8482 SAS 29P Serial Attached SCSI Connector DIP SMT Solder Crimp Type For Computer

sas scsi connector

sas power connector

Place of Origin:

Guangdong, China (Mainland)

Brand Name:

SHUANG YI

Certification:

ISO9001/SGS/UL/RoHS/Reach

Model Number:

SFF8482/SAS 29P Connector

Contact Us
Request A Quote
Product Details
Application:
Computers, Laptops,Mobile Phones
Color:
Black/Customized
Pitch:
1.27mm
Rated Voltage:
40VAC
Insulator:
LCP
Avaliable:
7Circuits
Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
1.Polybay 2.1000pcs of a tray 3.Or accroding to your request.
Delivery Time
7~10 Work days
Payment Terms
T/T, L/C
Supply Ability
10000 Piece/Pieces per Day
Product Description

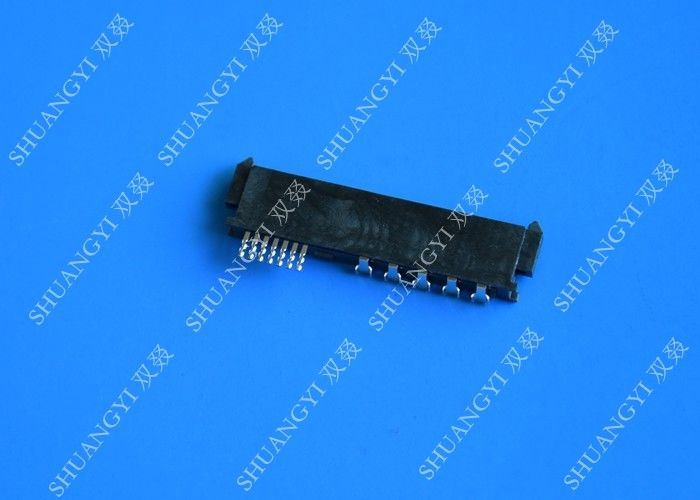

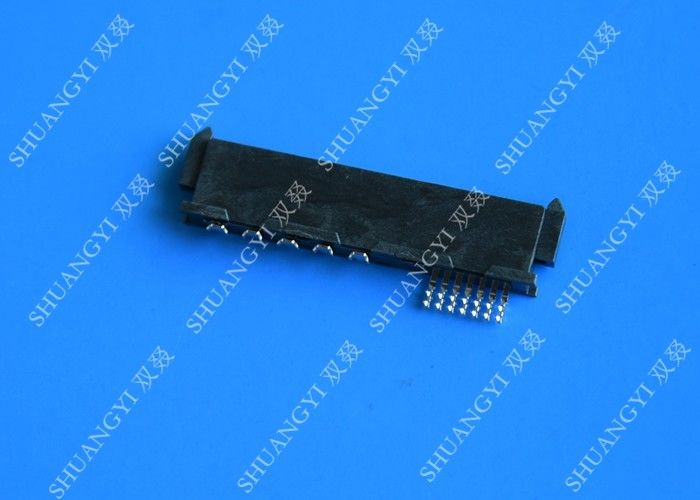

SFF8482 SAS 29P Serial Attached SCSI Connector DIP SMT Solder Crimp Type For Computer



Technical details:

The Serial Attached SCSI standard defines several layers (in order from highest to lowest): application, transport, port, link, PHY and physical. Serial Attached SCSI comprises three transport protocols:

  • Serial SCSI Protocol (SSP) – for command-level communication with SCSI devices.

  • Serial ATA Tunneling Protocol (STP) – for command-level communication with SATA devices.

  • Serial Management Protocol (SMP) – for managing the SAS fabric.

For the Link and PHY layers, SAS defines its own unique protocol.

At the physical layer, the SAS standard defines connectors and voltage levels. The physical characteristics of the SAS wiring and signaling are compatible with and have loosely tracked that of SATA up to the 6 Gbit/s rate, although SAS defines more rigorous physical signaling specifications as well as a wider allowable differential voltage swing intended to allow longer cabling. While SAS-1.0 and SAS-1.1 adopted the physical signaling characteristics of SATA at the 3 Gbit/s rate with 8b/10b encoding, SAS-2.0 development of a 6 Gbit/s physical rate led the development of an equivalent SATA speed. In 2013, 12 Gbit/s followed in the SAS-3 specification. SAS-4 is slated to introduce 22.5 Gbit/s signaling with a more efficient 128b/150b encoding scheme to realize a usable data rate of 2,400 MB/s while retaining compatibility with 6 and 12 Gbit/s.

Additionally, SCSI Express takes advantage of the PCI Express infrastructure to directly connect SCSI devices over a more universal interface.



Specification:

1. Poles: 29pin

2. Withstand Voltage: 500VAC/minute

3. Avaiable: 7Circuits

4. Contact Resistance: 30mΩ(MAX)

5. Pitch Between Poles:1.27mm

6. Insulation Resistance:1000MΩ(MAX)

7. Rated Voltage: 40VAC

8. Temperature Range: -20°--+85°

9. Rated Current:1.5A

10. Aplicable Wire Range: AWG #18-#30&#26-#30

11. Operating temp: -55~105



Material:

1. Terminal: Phosphor Bronze, Gold Plated

2. Housing: LCP+GF

3. Insulation:LCP/BPT G/F 94V-0

4. Termial:Copper Alloy

5. Ni 50u'' Min Plated over Terminal

6. Au Plated on contact Area

7. Tin 80u''Min Plated on solder&crimp Area

8. Shell: Copper Alloy

9. Plated Su 80 u on Contact Area

10: Ni 40u Plated over shell



Mechanical:

1. Insertion Force: 45N max

2. Withdrawal Force: 10N min



Applications:

Products are widely used in computers, laptops, mobile phones, communications, medical and electrical equipments.
