7 Circuits SFF 8482 SAS Hard Drive Connector For Laptop Rated Voltage 40V AC

China 7 Circuits SFF 8482 SAS Hard Drive Connector For Laptop Rated Voltage 40V AC supplier
7 Circuits SFF 8482 SAS Hard Drive Connector For Laptop Rated Voltage 40V AC supplier 7 Circuits SFF 8482 SAS Hard Drive Connector For Laptop Rated Voltage 40V AC supplier

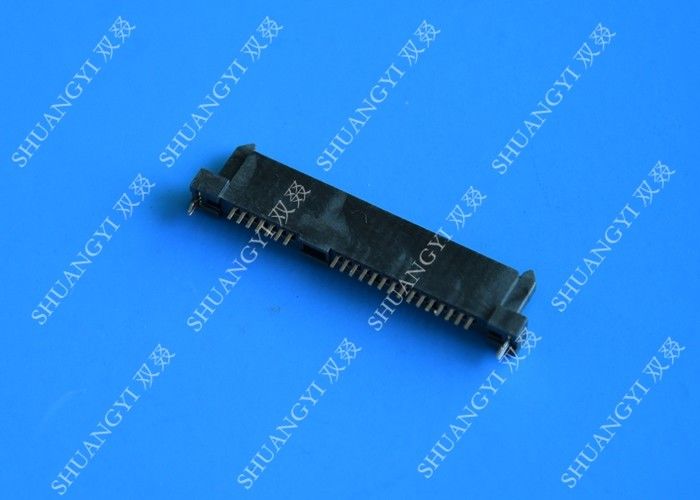

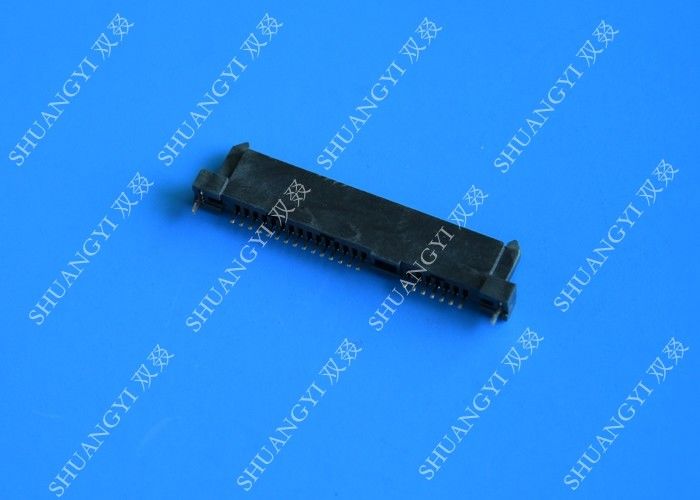

Large Image :  7 Circuits SFF 8482 SAS Hard Drive Connector For Laptop Rated Voltage 40V AC

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: SHUANG YI
Certification: ISO9001/SGS/UL/RoHS/Reach
Model Number: SFF8482/SAS 29P Connector

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 1.Polybay 2.1000pcs of a tray 3.Or accroding to your request.
Delivery Time: 7~10 Work days
Payment Terms: T/T, L/C
Supply Ability: 10000 Piece/Pieces per Day
Detailed Product Description
Application: Computers, Laptops,Mobile Phones Pole: 29Pin
Color: Black/Customized Gender: Female
Pitch: 1.27mm Rated Voltage: 40VAC
Insulator: LCP Avaliable: 7Circuits
High Light:

sas power connector

,

sas hd connector

7 Circuits SFF 8482 SAS Hard Drive Connector For Laptop Rated Voltage 40V AC



Technical details:

The Serial Attached SCSI standard defines several layers (in order from highest to lowest): application, transport, port, link, PHY and physical. Serial Attached SCSI comprises three transport protocols:

  • Serial SCSI Protocol (SSP) – for command-level communication with SCSI devices.

  • Serial ATA Tunneling Protocol (STP) – for command-level communication with SATA devices.

  • Serial Management Protocol (SMP) – for managing the SAS fabric.



For the Link and PHY layers, SAS defines its own unique protocol.

At the physical layer, the SAS standard defines connectors and voltage levels. The physical characteristics of the SAS wiring and signaling are compatible with and have loosely tracked that of SATA up to the 6 Gbit/s rate, although SAS defines more rigorous physical signaling specifications as well as a wider allowable differential voltage swing intended to allow longer cabling. While SAS-1.0 and SAS-1.1 adopted the physical signaling characteristics of SATA at the 3 Gbit/s rate with 8b/10b encoding, SAS-2.0 development of a 6 Gbit/s physical rate led the development of an equivalent SATA speed. In 2013, 12 Gbit/s followed in the SAS-3 specification. SAS-4 is slated to introduce 22.5 Gbit/s signaling with a more efficient 128b/150b encoding scheme to realize a usable data rate of 2,400 MB/s while retaining compatibility with 6 and 12 Gbit/s/.



Additionally, SCSI Express takes advantage of the PCI Express infrastructure to directly connect SCSI devices over a more universal interface.



Specification:

1. Poles: 29pin

2. Withstand Voltage: 500VAC/minute

3. Avaiable: 7Circuits

4. Contact Resistance: 30mΩ(MAX)

5. Pitch Between Poles:1.27mm

6. Insulation Resistance:1000MΩ(MAX)

7. Rated Voltage: 40VAC

8. Temperature Range: -20°--+85°

9. Rated Current:1.5A

10. Aplicable Wire Range: AWG #18-#30&#26-#30

11. Operating temp: -55~105



Material:

1. Terminal: Phosphor Bronze, Gold Plated

2. Housing: LCP+GF

3. Insulation:LCP/BPT G/F 94V-0

4. Termial:Copper Alloy

5. Ni 50u'' Min Plated over Terminal

6. Au Plated on contact Area

7. Tin 80u''Min Plated on solder&crimp Area

8. Shell: Copper Alloy

9. Plated Su 80 u on Contact Area

10: Ni 40u Plated over shell



Mechanical:

1. Insertion Force: 45N max

2. Withdrawal Force: 10N min



Applications:

Products are widely used in computers, laptops, mobile phones, communications, medical and electrical equipments.
