Product Details:
Payment & Shipping Terms:
|

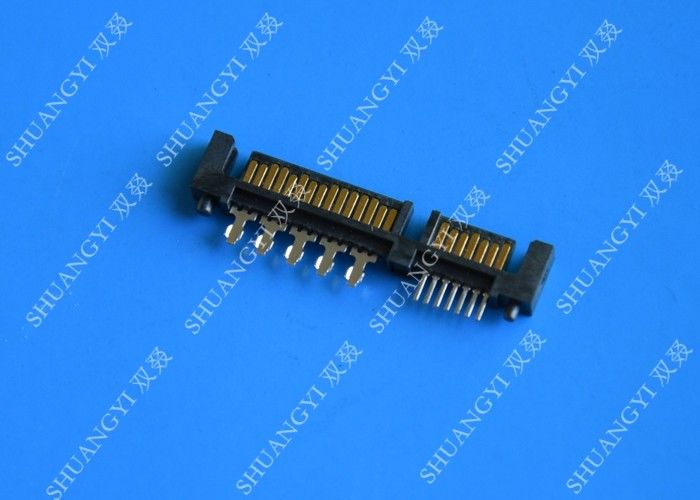

| Application: | Computers, Laptops,Mobile Phones | Pole: | 29Pin |
|---|---|---|---|
| Color: | Black/Customized | Gender: | Male |
| Pitch: | 1.27mm | Rated Voltage: | 40VAC |
| Insulator: | LCP | Avaliable: | 7Circuits |
| High Light: | sas scsi connector,sas power connector |
||
FEATURES & BENEFITS:
1. Address server blade, storage blade, embedded systems, or HDD carrier applications
2. Surface mount (SMT) termination
3. A receptacle with 7.07mm offset from the surface of the carrier board provides 4.7mm nominal clearance for components to be mounted beneath an installed 2.5” hard drive
4. For high-speed serial storage interfaces of up to 6Gb/s
5. 29-position SAS connectors enable SFF-8482 HDD interface
6. Provide dual signal ports (7 contacts/port) and 15 contacts for power
7. SAS receptacles also accept SATA drives
8. Designed to support hot-plugging and blind-mating of HDDs
9. Connector retainers provide additional mechanical strength after soldering
10. RoHS-compliant and compatible with lead-free processing temperatures
TARGET MARKETS/APPLICATIONS:
1. Data
2. Servers
3. Server and storage blades
4. External storage systems
5. HDDs
6. HDD carriers
7. Communications
8. Processor and storage blades
9. Mezzanine cards
10. Industrial, Instrumentation & Medical
11. Embedded system boards
TECHNICAL INFORMATION MATERIALS:
1. Contact base metal: Copper alloy
2. Contact area finish: Gold over nickel
3. Solder area finish: Tin over nickel
4. Retainer clip base metal: Copper alloy
5. Retainer finish: Tin over nickel
6. Housing: High-temperature thermoplastic (UL 94V-0); color: black
