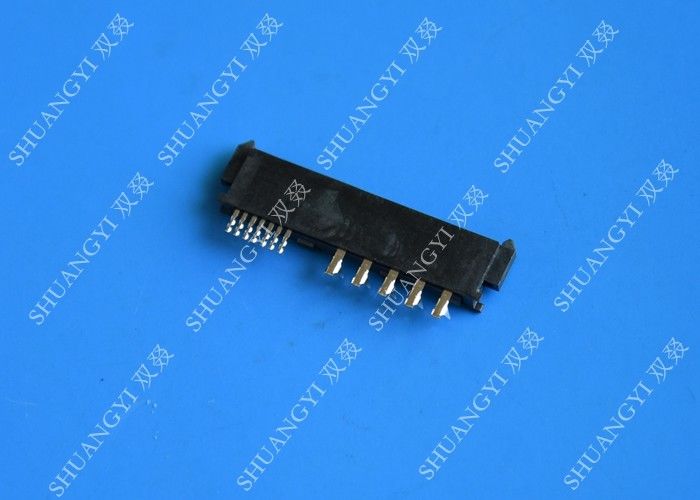

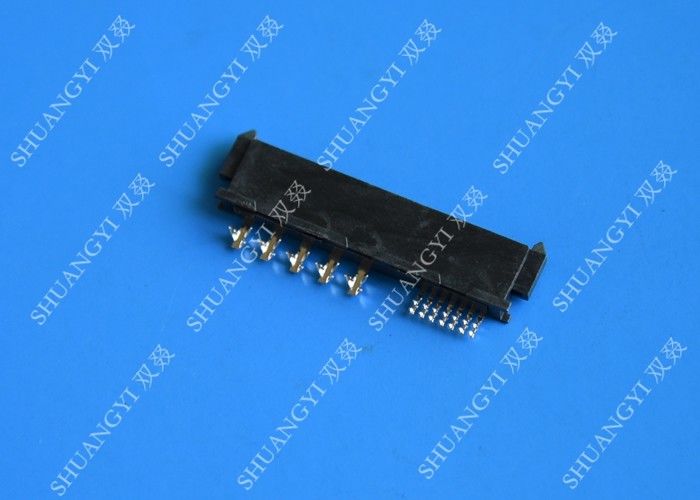

Customized SAS Serial Attached SCSI Connector SFF 8482 Pitch 1.27mm Environmental

Customized SAS Serial Attached SCSI Connector SFF 8482 Pitch 1.27mm Environmental

sas scsi connector

sas power connector

Place of Origin:

Guangdong, China (Mainland)

Brand Name:

SHUANG YI

Certification:

ISO9001/SGS/UL/RoHS/Reach

Model Number:

SFF8482/SAS 29P Connector

Contact Us
Request A Quote
Product Details
Application:
Computers, Laptops,Mobile Phones
Pole:
29Pin
Color:
Black/Customized
Gender:
Female
Pitch:
1.27mm
Rated Voltage:
40VAC
Insulator:
LCP
Avaliable:
7Circuits
Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
1.Polybay 2.1000pcs of a tray 3.Or accroding to your request.
Delivery Time
7~10 Work days
Payment Terms
T/T, L/C
Supply Ability
10000 Piece/Pieces per Day
Product Description

Customized SAS Serial Attached SCSI Connector SFF 8482 Pitch 1.27mm Environmental





SATA 7+15pin 6.35 on-board SMT



HomeSATA 22pin femaleSATA 7+15pin 6.35 on-board SMT

SATA 7+15pin 6.35 on-board SMT


Model No: G2STC0070

Product name SATA 7+15pin 6.35 on-board SMT
Material Housing: LCP+30% G/F, UL 94V-0; black
ContactC5191R-H, T=0.25+0.01mm
Nutbrass.
Mechanical Mating: 45N MAX
Withdrawal force: 10N min
Durability500cycles min
Electrical Current rating: 1.5A
contact resistance: 30 milliohms MAX
Insulation resistance: 1000 megohms MIN
Withstanding voltage: 500 VAC
Finish Contact:1 u‘’gold min. plating on contact area
100u'' min. matte tin plating on soldertails
50u'' min nickel underplating overall
Nut50u'' min nickel underplating overall
Environmental Operature range: -25°C to +85°C
