Custom ATX 24 Pin PSU Power Connector Cable, Braided Sleeved Wire Harness for Gaming PC Motherboard, High Current Electrical Transmission, OEM Server Power Supply Systems

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

24PIN Extension Cable for MB L=300MM

Request A Quote

Custom ATX 24 Pin PSU Power Connector Cable, Braided Sleeved Wire Harness for Gaming PC Motherboard, High Current Electrical Transmission, OEM Server Power Supply Systems

Product Details

Product Type:

24 Pin ATX Power Connector, Female To Male

Function:

Board-level Electrical / Electronic Signal Connection

Connector Style:

8-pin Power Connector, Latch Design, Keyed Housing

Mounting Type:

SMT To PCB With Mechanical Pegs

Housing Material:

Heat-resistant Thermoplastic

Contact Material:

Copper Alloy Terminals With Tin Or Selective Gold Plating

Contact Plating:

Gold Over Nickel On Mating Area, Tin Over Nickel On Solder Tails

Rated Current:

Up To 1.5 A Per Contact (reference, Application Dependent)

Rated Voltage:

Up To 30 V AC / DC (low-voltage Signal Use)

Insulation Resistance:

≥ 1,000 MΩ At 500 V DC

Contact Resistance:

≤ 30 MΩ (initial)

Dielectric Strength:

300 V AC / Minute

Mechanical Durability:

≥ 500 Mating Cycles

Operating Temperature:

−20 °C To +105 °C

PCB Thickness Reference:

Around 1.0 Mm Board Edge Design

RoHS/REACH:

Halogen-free, RoHS-compliant Materials

Customization Options:

Gold Thickness, Housing Color, Packaging, Harness Assembly

Environmental Compliance:

RoHS / HF / REACH Compliant

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$0.79-0.97 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

Custom ATX 24 Pin PSU Power Connector Cable, Braided Sleeved Wire Harness for Gaming PC Motherboard, High Current Electrical Transmission, OEM Server Power Supply Systems

Get Best Price

Custom PSU power connector cable, 8 pin male female wire harness, sleeved electrical terminals, server GPU transmission, high current electronic connector for modular power supply

Get Best Price

8 Pin PCIe power connector cable, sleeved PSU extension wire harness, electrical signal terminals customization for server GPU transmission male to female power connector applications

Get Best Price

8 Pin PCIe power connector cable, sleeved PSU extension wire harness, electrical signal terminals customization for server GPU transmission male to female power connector applications

Get Best Price

Contact Now

Product Description

Product Description

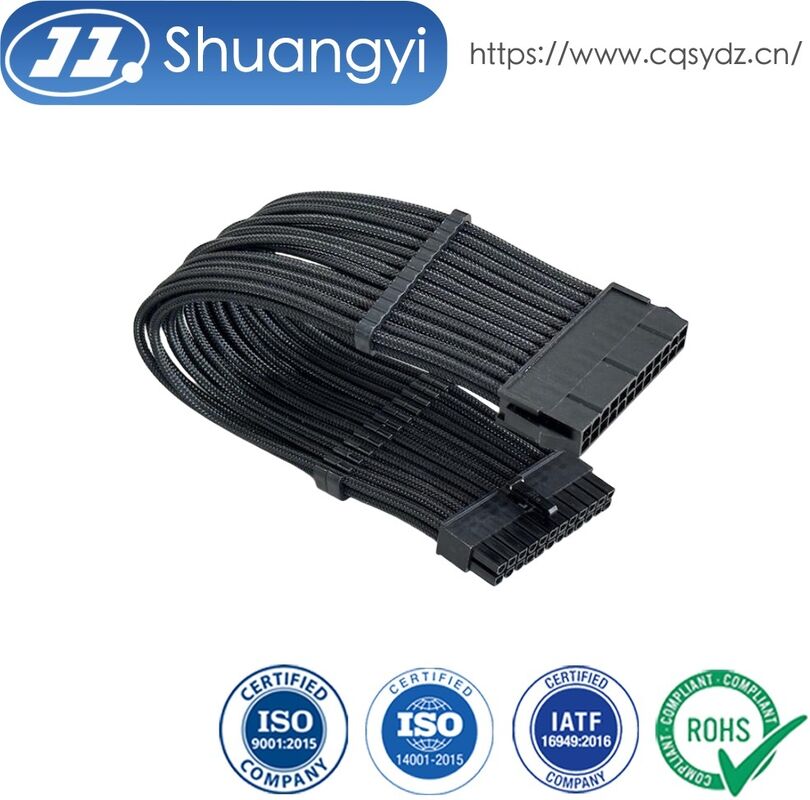

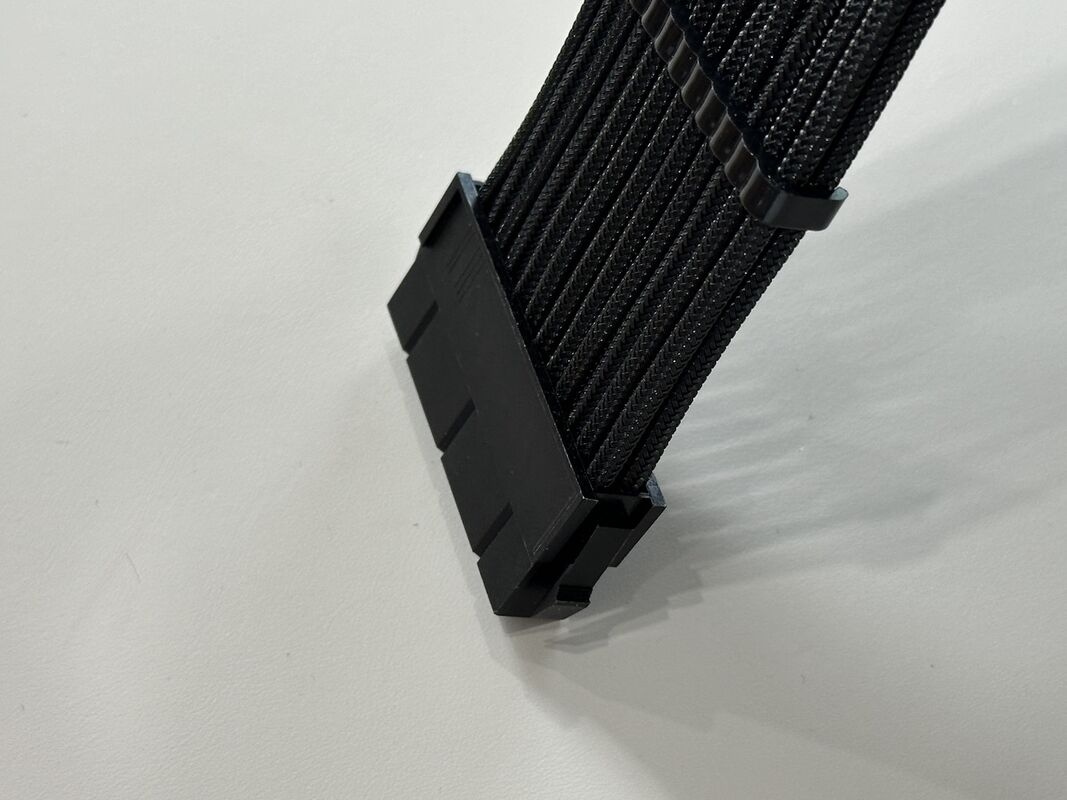

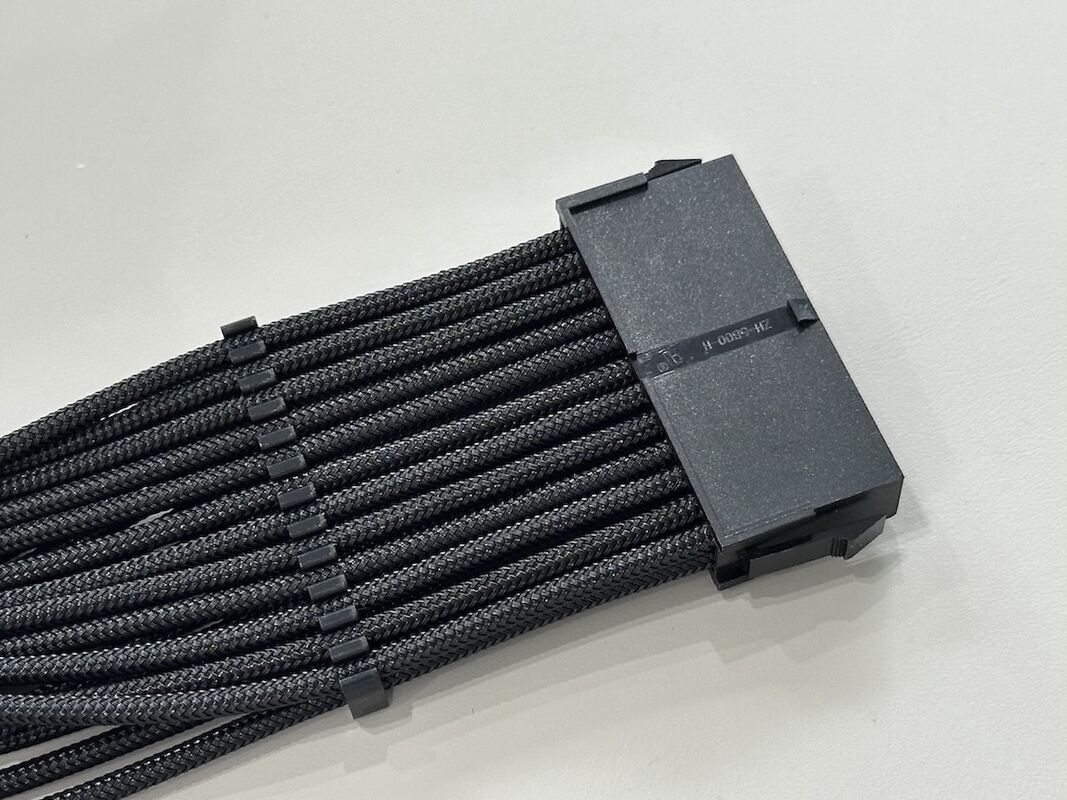

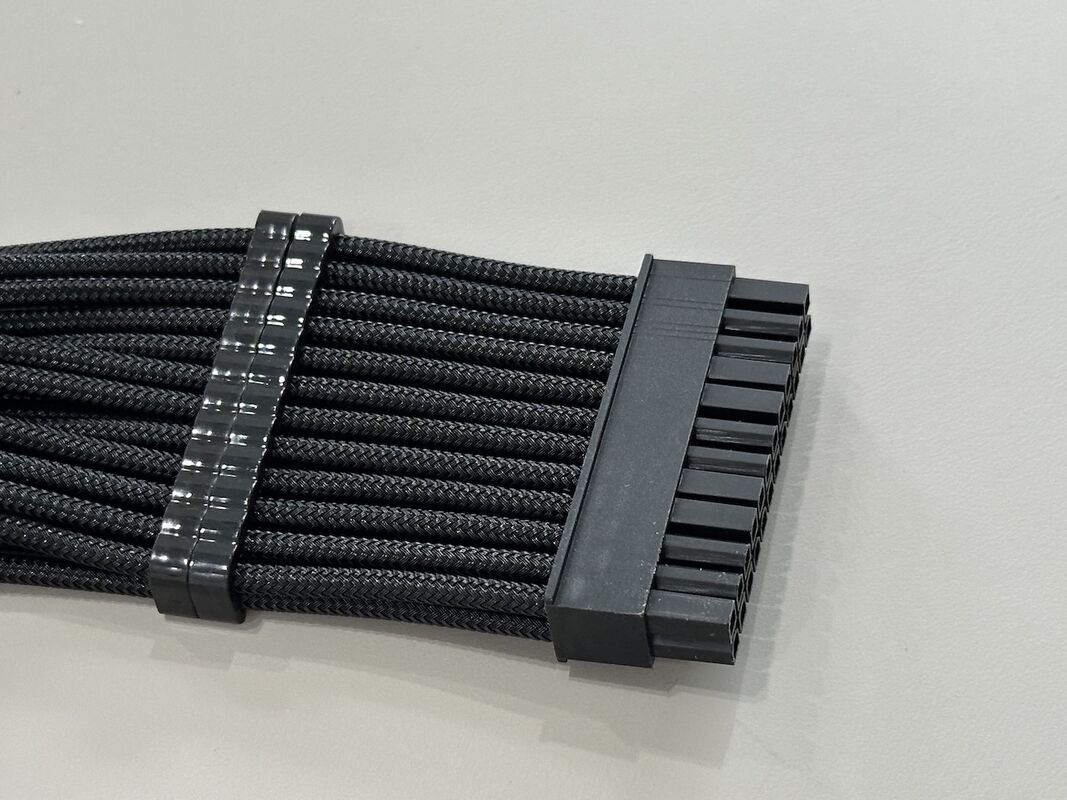

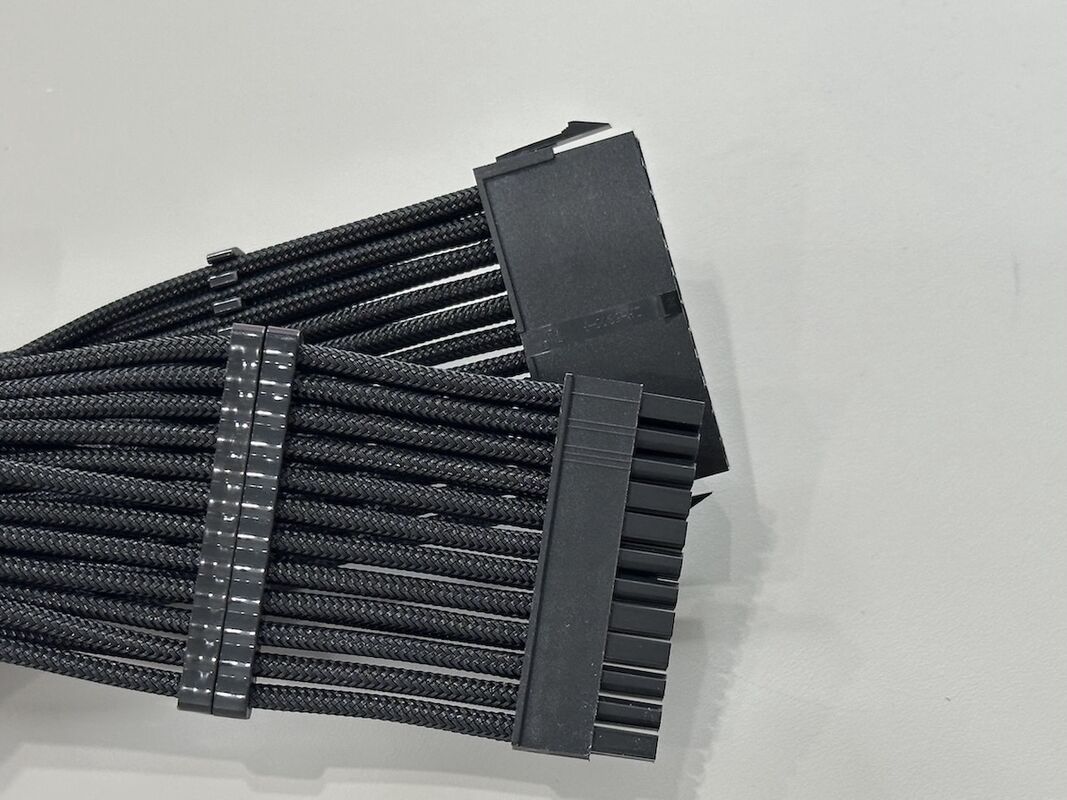

This ATX 24 pin PSU power connector cable is designed as a high-quality extension and adapter harness for desktop and server power supplies. Individually sleeved PET braided wires provide excellent wear resistance, neat cable routing and an upgraded appearance for gaming and workstation builds.

The cable uses 18AWG oxygen-free copper cores with low resistance to ensure stable power delivery from the PSU to the motherboard. Flame-retardant nylon housings, precise 24-pin terminals and secure latch structures reduce the risk of loose connections and overheating during long-term operation. OEM and custom pinouts are supported to match different power supply brands and modular systems.

Custom ATX 24 Pin PSU Power Connector Cable, Braided Sleeved Wire Harness for Gaming PC Motherboard, High Current Electrical Transmission, OEM Server Power Supply Systems 0

Connector type	24 pin ATX power connector, female to male
Wire gauge	18AWG tinned copper conductors
Cable length	30–60 cm (custom length on request)
Conductor material	Oxygen-free copper, low resistance
Insulation	PVC/XLPE insulated core wires
Outer jacket	High-density PET braided sleeving
Rated voltage	300 V
Rated current	Up to 7 A per pin (depending on system design)
Temperature range	−20 °C to +105 °C
Housing material	Nylon, UL94V-0 flame retardant
Pin plating	Tin or optional gold-flash contacts
Color	Black (other colors or mixed colors customizable)
Customization	Length, color, connector brand and pinout all available

Applications

Custom gaming PC builds requiring aesthetic, black-sleeved PSU cables

Workstations and servers needing extended 24 pin ATX power connectors

Replacement harness for modular power supply units and PCB power distribution boards

System integration, small-batch OEM chassis and industrial PCs

Precautions

Name: Custom ATX 24 Pin PSU Power Connector Cable, Braided Sleeved Wire Harness for Gaming PC Motherboard, High Current Electrical Transmission, OEM Server Power Supply Systems
Brand: ShuangYi Precision Electronics Co., LTD
SKU: 24PIN Extension Cable for MB L=300MM
Price: 0.79 USD
Availability: InStock
