Home > Products > Cables >

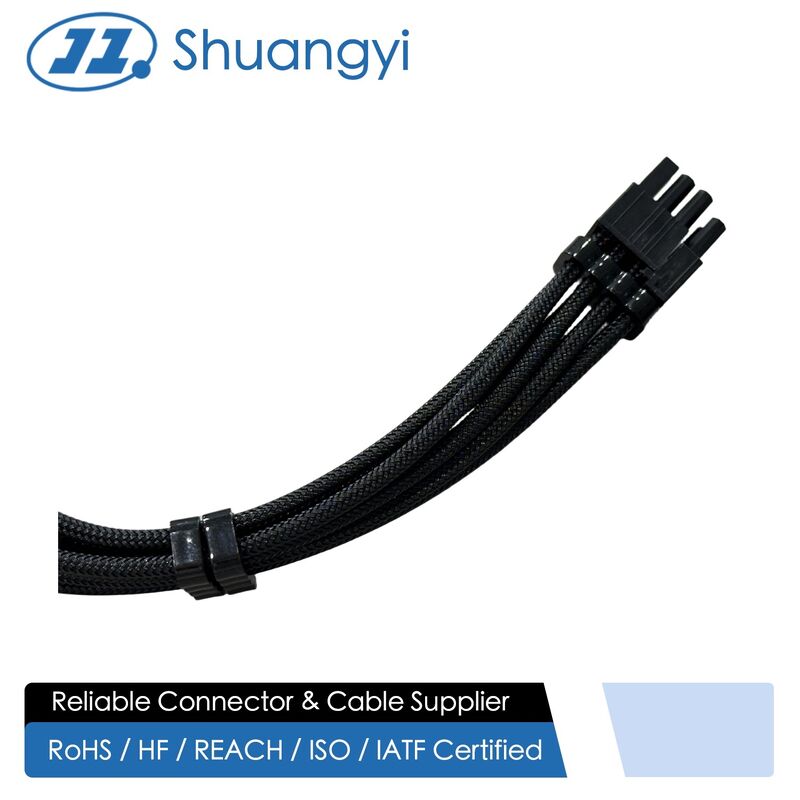

8 Pin PCIe power connector cable, sleeved PSU extension wire harness, electrical signal terminals customization for server GPU transmission male to female power connector applications

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

6+2PIN Extension Cable for GPU L=300MM

Request A Quote

8 Pin PCIe power connector cable, sleeved PSU extension wire harness, electrical signal terminals customization for server GPU transmission male to female power connector applications

Product Details

Product Type:

Wire To Wire Power Cable Harness With Dual 8-pin Connectors

Function:

Board-level Electrical / Electronic Signal Connection

Connector Style:

8-pin Power Connector, Latch Design, Keyed Housing

Mounting Type:

SMT To PCB With Mechanical Pegs

Housing Material:

Heat-resistant Thermoplastic

Contact Material:

Copper Alloy Terminals With Tin Or Selective Gold Plating

Contact Plating:

Gold Over Nickel On Mating Area, Tin Over Nickel On Solder Tails

Rated Current:

Up To 1.5 A Per Contact (reference, Application Dependent)

Rated Voltage:

Up To 30 V AC / DC (low-voltage Signal Use)

Insulation Resistance:

≥ 1,000 MΩ At 500 V DC

Contact Resistance:

≤ 30 MΩ (initial)

Dielectric Strength:

300 V AC / Minute

Mechanical Durability:

≥ 500 Mating Cycles

Operating Temperature:

−20 ℃ To +105 ℃

PCB Thickness Reference:

Around 1.0 Mm Board Edge Design

RoHS/REACH:

Halogen-free, RoHS-compliant Materials

Customization Options:

Gold Thickness, Housing Color, Packaging, Harness Assembly

Environmental Compliance:

RoHS / HF / REACH Compliant

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$0.79-0.97 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

Custom ATX 24 Pin PSU Power Connector Cable, Braided Sleeved Wire Harness for Gaming PC Motherboard, High Current Electrical Transmission, OEM Server Power Supply Systems

Get Best Price

Custom PSU power connector cable, 8 pin male female wire harness, sleeved electrical terminals, server GPU transmission, high current electronic connector for modular power supply

Get Best Price

8 Pin PCIe power connector cable, sleeved PSU extension wire harness, electrical signal terminals customization for server GPU transmission male to female power connector applications

Get Best Price

8 Pin PCIe power connector cable, sleeved PSU extension wire harness, electrical signal terminals customization for server GPU transmission male to female power connector applications

Get Best Price

Contact Now

Product Description

Product Description

This PSU power connector cable uses an 8 pin PCIe male to 8 pin PCIe female connector configuration, designed for high-reliability power transmission between power supplies and graphics cards or other add-in boards. Oxygen-free copper conductors and high-temperature insulation ensure low loss and stable current delivery. The braided outer sleeving improves abrasion resistance, cable management and aesthetics inside high-end PC or server chassis. Precision-molded housings and plated terminals provide secure mating, low contact resistance and long service life. Custom configurations are available for length, wire gauge, connector orientation and labeling to match different PSU and GPU layouts.

Connector type	8 Pin PCIe male to 8 Pin PCIe female power connector
Application category	PSU / GPU power connector cable for desktop, workstation and server
Number of conductors	8 wires, individual sleeved bundle
Wire gauge	AWG 18–16 tinned copper (customizable on request)
Cable length	30–100 cm typical, length and routing customizable
Conductor material	Oxygen-free copper, low resistance, stable power delivery
Insulation material	High-temperature PVC or XLPE, RoHS-compliant
Outer jacket	Braided sleeving, abrasion-resistant and flexible
Rated voltage	300 V AC/DC (typical PSU power cable rating)
Rated current	Up to 8–10 A per pin under proper derating
Operating temperature	−20 ℃ to +105 ℃
Flammability rating	UL94 V-0 housing optional
Connector housing	High-strength thermoplastic for electrical and mechanical protection
Contact plating	Nickel underlayer with selective gold-flash or tin plating
Customization options	Length, color, wire gauge, labeling and connector type can be tailored

Applications

Power connection between modular PSU and PCIe graphics card in gaming PCs and workstations

Power harness for GPU computing servers, mining rigs and AI accelerator cards

Customized power cables for industrial control computers or embedded computing systems

Replacement or upgrade PSU cables where improved routing and appearance are required

Precautions

Name: 8 Pin PCIe power connector cable, sleeved PSU extension wire harness, electrical signal terminals customization for server GPU transmission male to female power connector applications
Brand: ShuangYi Precision Electronics Co., LTD
SKU: 6+2PIN Extension Cable for GPU L=300MM
Price: 0.79 USD
Availability: InStock
