Custom Sleeved 8-Pin Power Cable Harness, wire to wire connector assembly for server GPU PSU power transmission, black braided cable, high-current electrical connector, OEM customization solution

Custom Sleeved 8-Pin Power Cable Harness, wire to wire connector assembly for server GPU PSU power transmission, black braided cable, high-current electrical connector, OEM customization solution

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA-C22F-86P19A2-13LH

Contact Us
Request A Quote
Custom Sleeved 8-Pin Power Cable Harness, wire to wire connector assembly for server GPU PSU power transmission, black braided cable, high-current electrical connector, OEM customization solution Custom Sleeved 8-Pin Power Cable Harness, wire to wire connector assembly for server GPU PSU power transmission, black braided cable, high-current electrical connector, OEM customization solution Custom Sleeved 8-Pin Power Cable Harness, wire to wire connector assembly for server GPU PSU power transmission, black braided cable, high-current electrical connector, OEM customization solution Custom Sleeved 8-Pin Power Cable Harness, wire to wire connector assembly for server GPU PSU power transmission, black braided cable, high-current electrical connector, OEM customization solution Custom Sleeved 8-Pin Power Cable Harness, wire to wire connector assembly for server GPU PSU power transmission, black braided cable, high-current electrical connector, OEM customization solution
Product Details
Product Type:
Wire To Wire Power Cable Harness With Dual 8-pin Connectors
Function:
Board-level Electrical / Electronic Signal Connection
Connector Style:
8-pin Power Connector, Latch Design, Keyed Housing
Mounting Type:
SMT To PCB With Mechanical Pegs
Housing Material:
Heat-resistant Thermoplastic
Contact Material:
Copper Alloy Terminals With Tin Or Selective Gold Plating
Contact Plating:
Gold Over Nickel On Mating Area, Tin Over Nickel On Solder Tails
Rated Current:
Up To 1.5 A Per Contact (reference, Application Dependent)
Rated Voltage:
Up To 30 V AC / DC (low-voltage Signal Use)
Insulation Resistance:
≥ 1,000 MΩ At 500 V DC
Contact Resistance:
≤ 30 MΩ (initial)
Dielectric Strength:
300 V AC / Minute
Mechanical Durability:
≥ 500 Mating Cycles
Operating Temperature:
−20 ℃ To +105 ℃
PCB Thickness Reference:
Around 1.0 Mm Board Edge Design
RoHS/REACH:
Halogen-free, RoHS-compliant Materials
Customization Options:
Gold Thickness, Housing Color, Packaging, Harness Assembly
Environmental Compliance:
RoHS / HF / REACH Compliant
Payment & Shipping Terms
Minimum Order Quantity
1000
Price
$0.79-0.97 PCS FOB
Packaging Details
Tape and Reel, 1500 per case, 10KG
Delivery Time
8-15 working days
Payment Terms
T/T
Supply Ability
500000 pcs per month
RELATED PRODUCTS
Good price Custom ATX 24 Pin PSU Power Connector Cable, Braided Sleeved Wire Harness for Gaming PC Motherboard, High Current Electrical Transmission, OEM Server Power Supply Systems online

Custom ATX 24 Pin PSU Power Connector Cable, Braided Sleeved Wire Harness for Gaming PC Motherboard, High Current Electrical Transmission, OEM Server Power Supply Systems

Get Best Price
Good price Custom PSU power connector cable, 8 pin male female wire harness, sleeved electrical terminals, server GPU transmission, high current electronic connector for modular power supply online

Custom PSU power connector cable, 8 pin male female wire harness, sleeved electrical terminals, server GPU transmission, high current electronic connector for modular power supply

Get Best Price
Good price 8 Pin PCIe power connector cable, sleeved PSU extension wire harness, electrical signal terminals customization for server GPU transmission male to female power connector applications online

8 Pin PCIe power connector cable, sleeved PSU extension wire harness, electrical signal terminals customization for server GPU transmission male to female power connector applications

Get Best Price
Good price 8 Pin PCIe power connector cable, sleeved PSU extension wire harness, electrical signal terminals customization for server GPU transmission male to female power connector applications online

8 Pin PCIe power connector cable, sleeved PSU extension wire harness, electrical signal terminals customization for server GPU transmission male to female power connector applications

Get Best Price
Contact Us
Contact Now
Product Description

Product Description

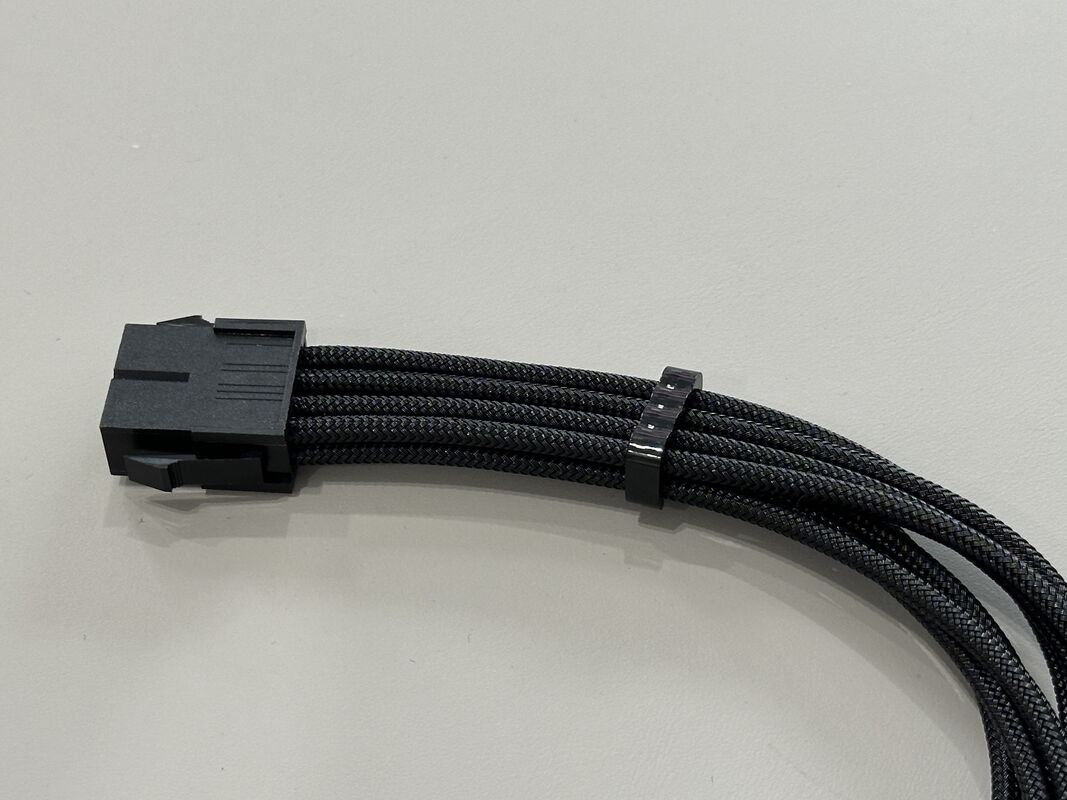

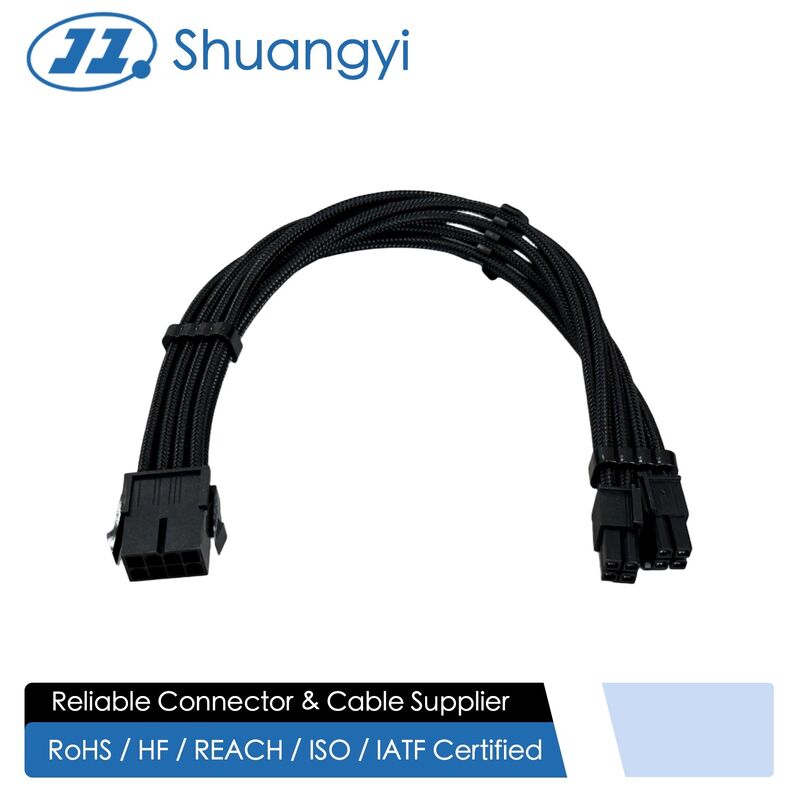

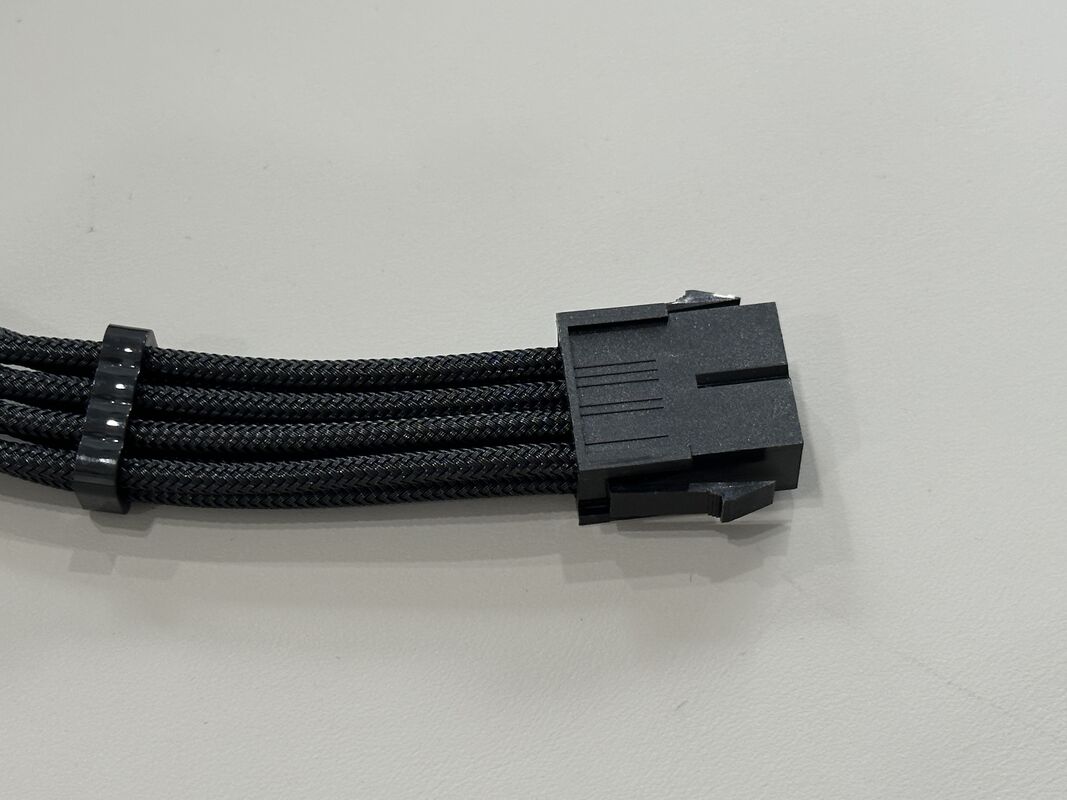

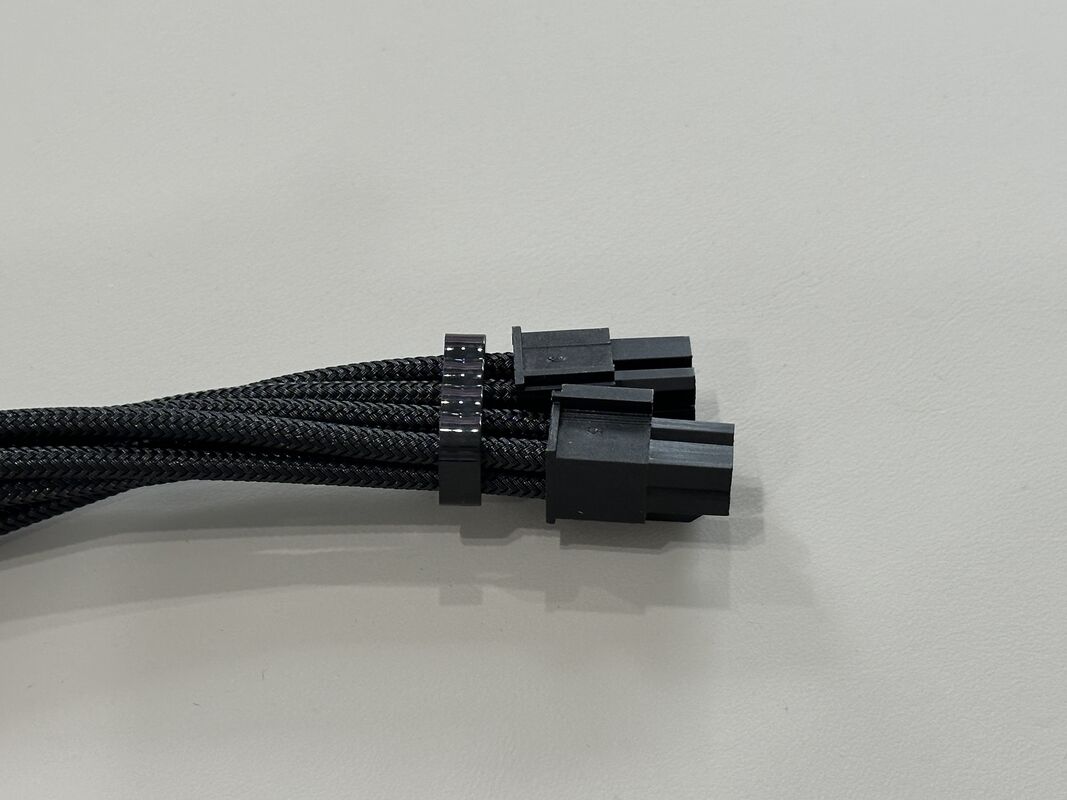

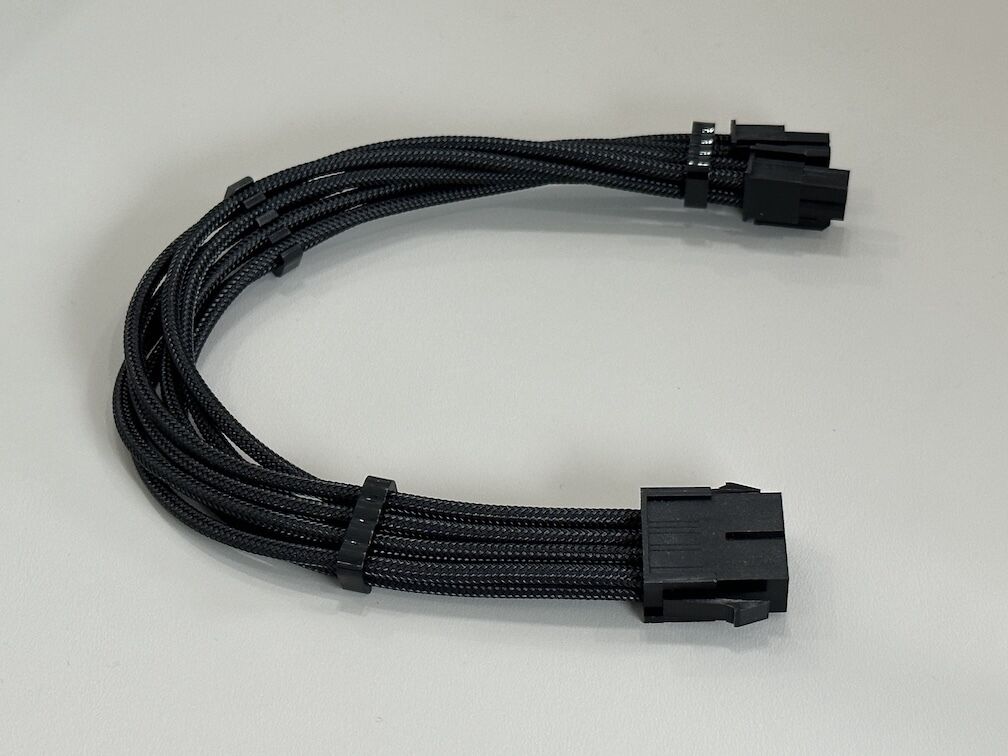

This sleeved power cable harness combines dual 8-pin power connectors with high-current copper wires and a black braided outer sleeve for neat routing and enhanced mechanical protection. The harness is designed for stable DC power delivery between a power supply and high-load devices such as GPUs, server boards or industrial control modules.

Each wire is individually insulated, then bundled in a tight PET braid to improve abrasion resistance and reduce cable clutter inside racks or enclosures. The keyed 8-pin connector housing and latch structure help prevent mis-mating and accidental disconnection. Length, wire gauge, connector series and pin definition can be customized to match different equipment and system layouts.



Custom Sleeved 8-Pin Power Cable Harness, wire to wire connector assembly for server GPU PSU power transmission, black braided cable, high-current electrical connector, OEM customization solution 0Custom Sleeved 8-Pin Power Cable Harness, wire to wire connector assembly for server GPU PSU power transmission, black braided cable, high-current electrical connector, OEM customization solution 1Custom Sleeved 8-Pin Power Cable Harness, wire to wire connector assembly for server GPU PSU power transmission, black braided cable, high-current electrical connector, OEM customization solution 2



Product type Wire to wire power cable harness with dual 8-pin connectors
Connector style 8-pin power connector, latch design, keyed housing
Conductor material Oxygen-free copper, tinned
Wire gauge 16–18 AWG options, customizable
Cable length Custom length on request (typical 300–1000 mm)
Insulation PVC inner insulation on each wire
Outer jacket High-density PET braided sleeving, black
Rated voltage Up to 300 V DC (low-voltage power systems)
Rated current Up to 8–10 A per contact, depending on wire gauge
Operating temperature −20 ℃ to +105 ℃
Flammability UL94 V-0 compatible insulation and housing material options
Housing material Heat-resistant thermoplastic
Contact material Copper alloy terminals with tin or selective gold plating
Compliance RoHS / REACH / halogen-free options available
Customization Connector type, pinout, length, color and labeling can be customized



Applications



Power connection between PSU and GPU in desktop, workstation or mining rigs

Server and storage systems power distribution harnesses

Industrial PCs, motion controllers, PLCs and other DC-powered equipment

Custom automotive or battery pack low-voltage harnesses (within rating)

Prototyping and small-batch OEM cable assemblies for electronics manufacturers

Precautions

Confirm the pinout and connector series against your equipment drawings before use to avoid reverse wiring or short circuits.

Do not exceed the rated current and voltage; select appropriate wire gauge and harness length according to the load requirements.

This harness is designed for low-voltage DC power and should not be used for mains AC applications.

When installing, push and pull on the connector housing, not on the wires or braid, to avoid damaging terminations.

Avoid sharp bends, crushing or continuous mechanical stress; maintain a reasonable bending radius to protect conductors and insulation.

If used in high-vibration environments, secure the harness with cable ties or clamps to reduce movement and strain on the terminals.





Custom Sleeved 8-Pin Power Cable Harness, wire to wire connector assembly for server GPU PSU power transmission, black braided cable, high-current electrical connector, OEM customization solution 3

Custom Sleeved 8-Pin Power Cable Harness, wire to wire connector assembly for server GPU PSU power transmission, black braided cable, high-current electrical connector, OEM customization solution 4
Custom Sleeved 8-Pin Power Cable Harness, wire to wire connector assembly for server GPU PSU power transmission, black braided cable, high-current electrical connector, OEM customization solution 5
Custom Sleeved 8-Pin Power Cable Harness, wire to wire connector assembly for server GPU PSU power transmission, black braided cable, high-current electrical connector, OEM customization solution 6
Custom Sleeved 8-Pin Power Cable Harness, wire to wire connector assembly for server GPU PSU power transmission, black braided cable, high-current electrical connector, OEM customization solution 7
Custom Sleeved 8-Pin Power Cable Harness, wire to wire connector assembly for server GPU PSU power transmission, black braided cable, high-current electrical connector, OEM customization solution 8
