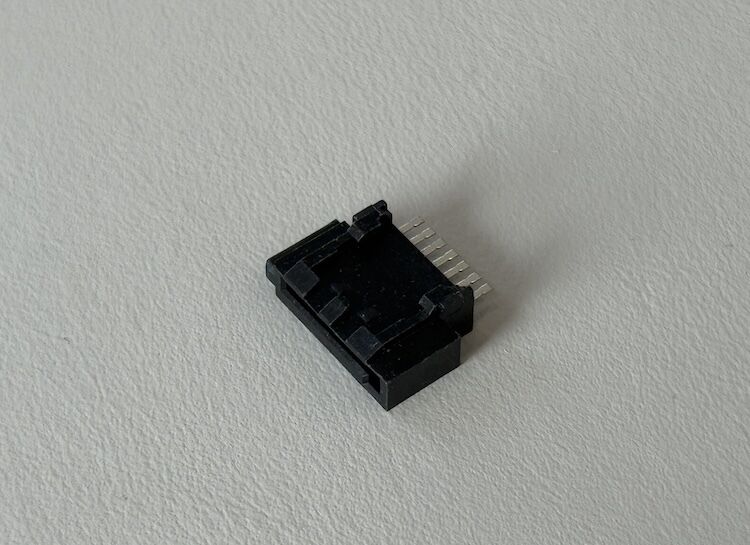

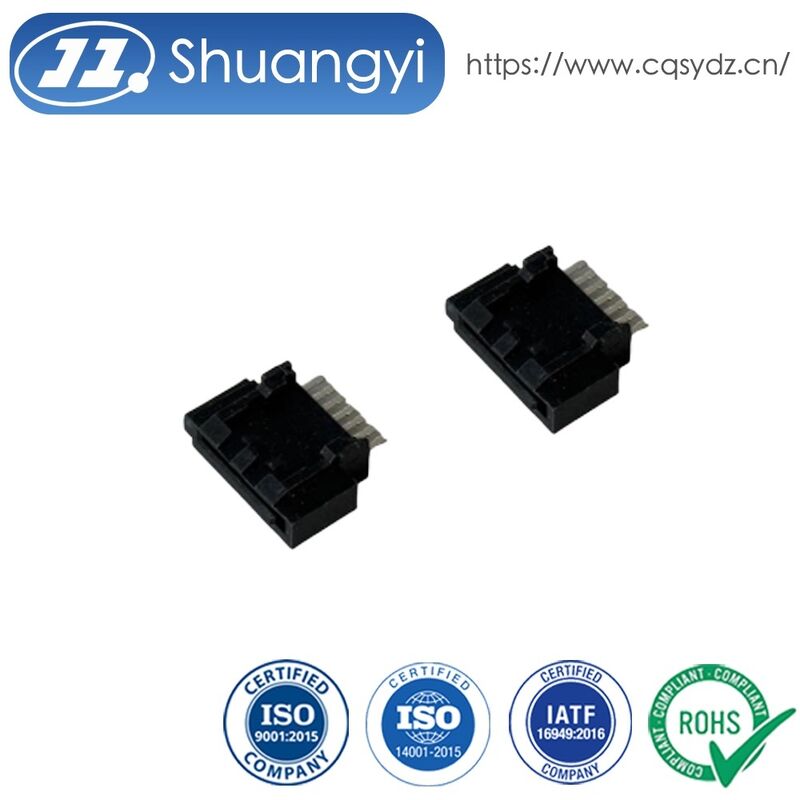

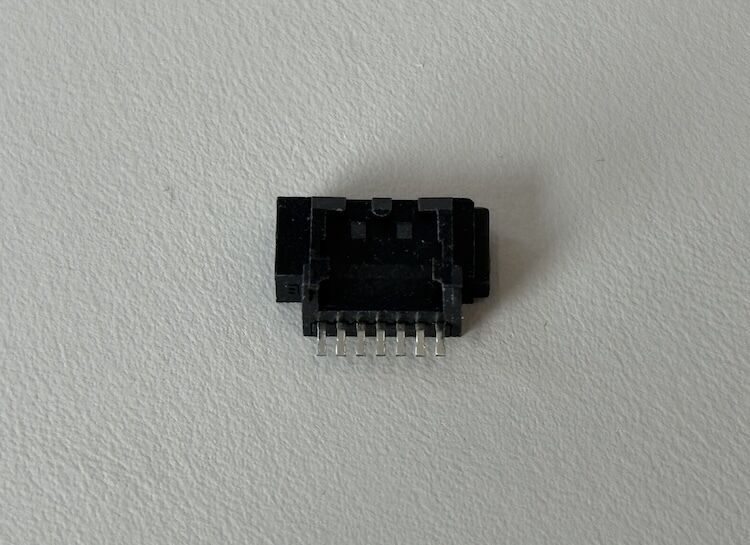

SATA 7 pin female PCB connector, 1.27mm pitch gold-plated electronic signal terminals for SSD/HDD data transmission in customized server, industrial, automotive and power backup systems

SATA 7 pin female PCB connector, 1.27mm pitch gold-plated electronic signal terminals for SSD/HDD data transmission in customized server, industrial, automotive and power backup systems

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA-C07F-B15S18A5-000H(SAS 3.0)

Contact Us
Request A Quote
SATA 7 pin female PCB connector, 1.27mm pitch gold-plated electronic signal terminals for SSD/HDD data transmission in customized server, industrial, automotive and power backup systems SATA 7 pin female PCB connector, 1.27mm pitch gold-plated electronic signal terminals for SSD/HDD data transmission in customized server, industrial, automotive and power backup systems SATA 7 pin female PCB connector, 1.27mm pitch gold-plated electronic signal terminals for SSD/HDD data transmission in customized server, industrial, automotive and power backup systems SATA 7 pin female PCB connector, 1.27mm pitch gold-plated electronic signal terminals for SSD/HDD data transmission in customized server, industrial, automotive and power backup systems SATA 7 pin female PCB connector, 1.27mm pitch gold-plated electronic signal terminals for SSD/HDD data transmission in customized server, industrial, automotive and power backup systems
Product Details
Product Type:
SATA 7-pin Female Right-angle Connector, Solder-type Terminal
Interface Standard:
Serial ATA 7-pin Data Connector
Pin Count:
7 Pins
Pitch:
1.27 Mm (typical SATA Pitch)
Mounting Type:
SMT, Right-angle, Edge-board Mounting
Contact Material:
Phosphor Bronze Or Equivalent High-strength Copper Alloy
Contact Plating:
Tin Or Selective Gold Over Nickel, Optimized For Low Contact Resistance
Housing Material:
High-temperature Thermoplastic, UL94V-0, Black
Rated Current:
Up To 1.5 A Per Contact (reference, Application Dependent)
Rated Voltage:
Up To 30 V AC / DC (low-voltage Signal Use)
Insulation Resistance:
≥ 1000 MΩ At 500 V DC
Contact Resistance:
≤ 30 MΩ (initial)
Dielectric Strength:
300 V AC / Minute
Mechanical Durability:
≥ 500 Mating Cycles
Operating Temperature:
−25 °C To +85 °C
PCB Thickness Reference:
Around 1.0 Mm Board Edge Design
RoHS/REACH:
Halogen-free, RoHS-compliant Materials
Customization Options:
Gold Thickness, Housing Color, Packaging, Harness Assembly
Payment & Shipping Terms
Minimum Order Quantity
1000
Price
$1.44-2.21 PCS FOB
Packaging Details
Tape and Reel, 1500 per case, 10KG
Delivery Time
8-15 working days
Payment Terms
T/T
Supply Ability
500000 pcs per month
RELATED PRODUCTS
Good price High board to board PCB connector 1.27mm pitch gold plated male terminals electrical signal connector for industrial control modules, server transmission, automotive electronics customization harness online

High board to board PCB connector 1.27mm pitch gold plated male terminals electrical signal connector for industrial control modules, server transmission, automotive electronics customization harness

Get Best Price
Good price 7 Pin 1.27mm PCB Female Socket Connector, Right Angle SMT Board Interface for High Speed Signal Transmission, Custom Wire Harness, Automotive and Industrial Electronic Power Systems online

7 Pin 1.27mm PCB Female Socket Connector, Right Angle SMT Board Interface for High Speed Signal Transmission, Custom Wire Harness, Automotive and Industrial Electronic Power Systems

Get Best Price
Good price 7 Pin 1.27mm PCB Female Socket Connector, Right Angle SMT Board Interface for High Speed Signal Transmission, Custom Wire Harness, Automotive and Industrial Electronic Power Systems online

7 Pin 1.27mm PCB Female Socket Connector, Right Angle SMT Board Interface for High Speed Signal Transmission, Custom Wire Harness, Automotive and Industrial Electronic Power Systems

Get Best Price
Good price 7 Pin 1.27mm PCB Female Socket Connector, Right Angle SMT Board Interface for High Speed Signal Transmission, Custom Wire Harness, Automotive and Industrial Electronic Power Systems online

7 Pin 1.27mm PCB Female Socket Connector, Right Angle SMT Board Interface for High Speed Signal Transmission, Custom Wire Harness, Automotive and Industrial Electronic Power Systems

Get Best Price
Contact Us
Contact Now
Product Description

Product Description

This SATA 7-pin female PCB connector is designed for compact storage devices requiring reliable, high-speed serial data links. Gold-plated signal terminals ensure low contact resistance and stable transmission between HDD, SSD or controller boards. The right-angle through-hole construction provides excellent mechanical retention on the PCB, suitable for vibration-prone environments. A high-temperature, flame-retardant housing supports lead-free reflow and wave-solder processes, while customization of pin length, plating and coding can match different drive bays or proprietary storage modules.



SATA 7 pin female PCB connector, 1.27mm pitch gold-plated electronic signal terminals for SSD/HDD data transmission in customized server, industrial, automotive and power backup systems 0SATA 7 pin female PCB connector, 1.27mm pitch gold-plated electronic signal terminals for SSD/HDD data transmission in customized server, industrial, automotive and power backup systems 1SATA 7 pin female PCB connector, 1.27mm pitch gold-plated electronic signal terminals for SSD/HDD data transmission in customized server, industrial, automotive and power backup systems 2



Product type SATA 7-pin female PCB connector
Function High-speed data signal transmission
Positions 7 pins
Contact pitch 1.27 mm (standard SATA)
Mounting style Right-angle through-hole board mount
Termination Solder terminals
Contact material Copper alloy
Contact plating Gold over nickel on contact area
Housing material High-temperature thermoplastic, UL94 V-0
Rated current up to 1.5 A per contact (reference design)
Rated voltage up to 30 V AC/DC
Insulation resistance ≥ 1,000 MΩ at 500 V DC
Contact resistance ≤ 30 mΩ (initial)
Operating temperature −40 °C to +85 °C
PCB interface Through-hole tails for standard FR-4 PCB
Customization Tail length, plating thickness and keying options available



Applications

Server and storage backplanes connecting SATA HDD/SSD to RAID controller cards

Industrial PCs, automation controllers and embedded boards requiring robust data connectors

Automotive infotainment and data-logging units using SATA-based storage modules

UPS and power-backup systems where local SATA drives record operation logs and events

Precautions

Ensure correct mating with compliant SATA 7-pin male plug; avoid excessive insertion angle to protect terminals.

Follow recommended PCB footprint and hole size to guarantee solder joint strength and impedance performance.

Do not exceed rated current and voltage; derate appropriately in high-temperature or densely packed enclosures.

Keep contact area clean and free from flux residues or contaminants to maintain low contact resistance.

During wave or reflow soldering, observe specified temperature profile to prevent housing deformation or plating damage.



SATA 7 pin female PCB connector, 1.27mm pitch gold-plated electronic signal terminals for SSD/HDD data transmission in customized server, industrial, automotive and power backup systems 3

SATA 7 pin female PCB connector, 1.27mm pitch gold-plated electronic signal terminals for SSD/HDD data transmission in customized server, industrial, automotive and power backup systems 4
SATA 7 pin female PCB connector, 1.27mm pitch gold-plated electronic signal terminals for SSD/HDD data transmission in customized server, industrial, automotive and power backup systems 5
SATA 7 pin female PCB connector, 1.27mm pitch gold-plated electronic signal terminals for SSD/HDD data transmission in customized server, industrial, automotive and power backup systems 6
SATA 7 pin female PCB connector, 1.27mm pitch gold-plated electronic signal terminals for SSD/HDD data transmission in customized server, industrial, automotive and power backup systems 7
SATA 7 pin female PCB connector, 1.27mm pitch gold-plated electronic signal terminals for SSD/HDD data transmission in customized server, industrial, automotive and power backup systems 8
