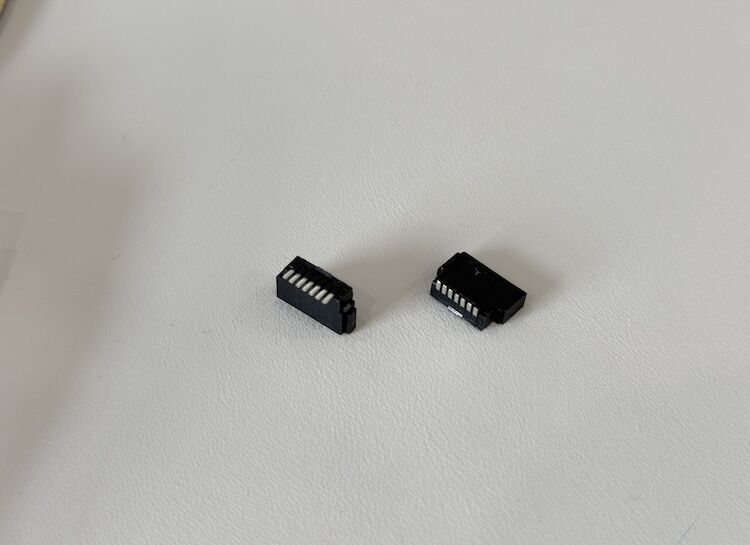

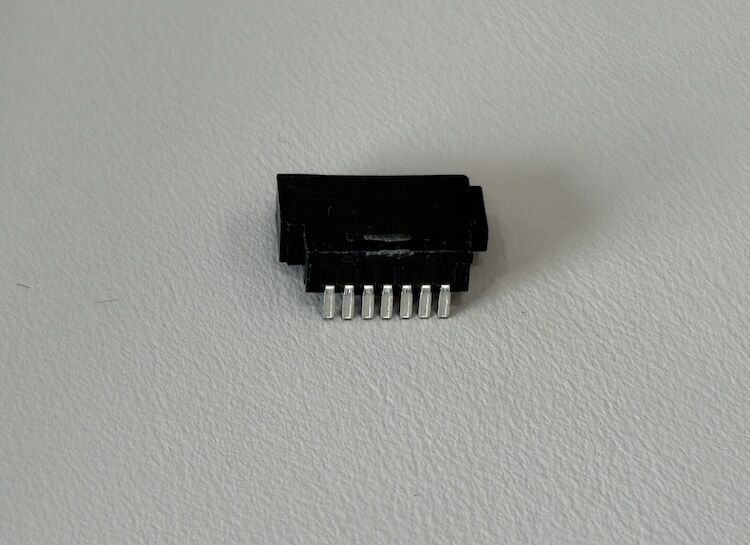

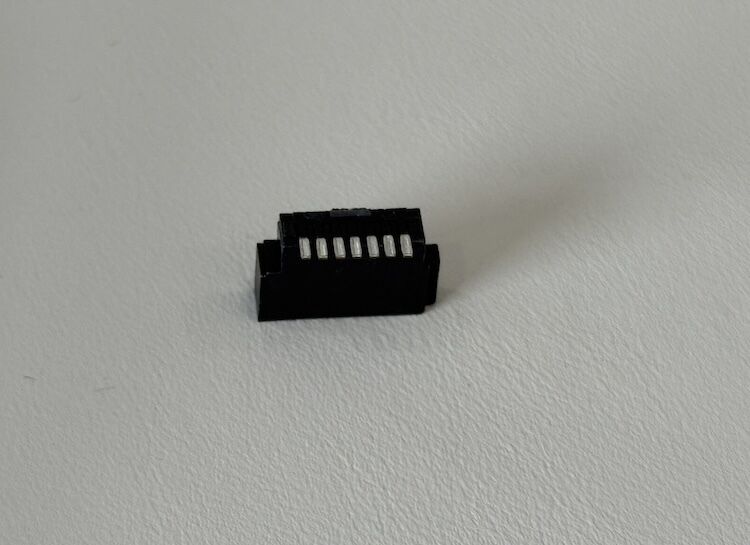

7 Pin SATA Female Connector for Wire Solder Cable, Gold Plated Electrical Signal Terminals, PCB Power Transmission Customization for Server, Automotive and Industrial Devices Applications

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA-C07F-A10S4B5-000H

Request A Quote

7 Pin SATA Female Connector for Wire Solder Cable, Gold Plated Electrical Signal Terminals, PCB Power Transmission Customization for Server, Automotive and Industrial Devices Applications

Product Details

Product Type:

SATA 7-pin Female Right-angle Connector, Solder-type Terminal

Interface Standard:

Serial ATA 7-pin Data Connector

Pin Count:

7 Pins

Pitch:

1.27 Mm (typical SATA Pitch)

Mounting Type:

SMT, Right-angle, Edge-board Mounting

Contact Material:

Phosphor Bronze Or Equivalent Copper Alloy

Contact Plating:

Gold Over Nickel On Mating Area, Tin-plated Solder Area

Housing Material:

High-temperature Thermoplastic, UL94V-0, Black

Rated Current:

Up To 1.5 A Per Contact (reference, Application Dependent)

Rated Voltage:

Up To 30 V AC / DC (low-voltage Signal Use)

Insulation Resistance:

≥ 1000 MΩ At 500 V DC

Contact Resistance:

≤ 30 MΩ (initial)

Dielectric Strength:

300 V AC / Minute

Mechanical Durability:

≥ 500 Mating Cycles

Operating Temperature:

−25 °C To +85 °C

PCB Thickness Reference:

Around 1.0 Mm Board Edge Design

RoHS/REACH:

Halogen-free, RoHS-compliant Materials

Customization Options:

Gold Thickness, Housing Color, Packaging, Harness Assembly

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$1.44-2.21 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

High board to board PCB connector 1.27mm pitch gold plated male terminals electrical signal connector for industrial control modules, server transmission, automotive electronics customization harness

Get Best Price

7 Pin 1.27mm PCB Female Socket Connector, Right Angle SMT Board Interface for High Speed Signal Transmission, Custom Wire Harness, Automotive and Industrial Electronic Power Systems

Get Best Price

7 Pin 1.27mm PCB Female Socket Connector, Right Angle SMT Board Interface for High Speed Signal Transmission, Custom Wire Harness, Automotive and Industrial Electronic Power Systems

Get Best Price

7 Pin 1.27mm PCB Female Socket Connector, Right Angle SMT Board Interface for High Speed Signal Transmission, Custom Wire Harness, Automotive and Industrial Electronic Power Systems

Get Best Price

Contact Now

Product Description

Product Description

This 7 pin SATA female connector is designed for reliable electrical signal and low-voltage power transmission in compact cable harnesses. The wire solder termination allows flexible cable routing and easy integration into custom assemblies for storage, industrial and embedded systems. Gold plated contacts over nickel provide low contact resistance, excellent corrosion resistance and stable performance over long service life.

The high-temperature, flame-retardant thermoplastic housing and copper-alloy terminals ensure mechanical strength during repeated mating and handling. The connector supports customization for wire gauge, cable length, labeling and overmolding, making it suitable for OEM/ODM projects that require tailored PCB-to-cable interconnect solutions.

7 Pin SATA Female Connector for Wire Solder Cable, Gold Plated Electrical Signal Terminals, PCB Power Transmission Customization for Server, Automotive and Industrial Devices Applications 0

Connector type	SATA 7-pin female connector, wire solder type
Application category	Electrical / electronic signal and low-voltage power connector
Positions	7 contacts
Contact pitch	Approx. 1.27 mm SATA contact spacing
Termination style	Solder termination for discrete wire or cable
Mounting style	For cable harness / wire lead assemblies
Contact material	Copper alloy
Contact plating	Gold over nickel on contact area, tin on solder area
Housing material	High-temperature thermoplastic, UL94V-0 rated
Rated voltage	Up to 30 V AC/DC (low-voltage systems)
Rated current	Up to 1.5 A per contact (depending on wire size)
Insulation resistance	≥ 1000 MΩ @ 500 V DC (typical)
Dielectric withstand	500 V AC/minute (typical)
Operating temperature	−40 °C to +85 °C (wider range customizable)
Wire gauge range	AWG 28–24 (other sizes on request)
Color	Black housing
Custom service	Cable length, wire gauge, plating thickness and labeling OEM/ODM

Applications

Server and industrial PC SATA storage cable harnesses

Automotive data logging units and on-board storage modules

Embedded controllers and industrial equipment requiring SATA signal transmission

Custom PCB assemblies in communication, networking and test equipment

Power and signal breakout cables inside enclosures or rack systems

Precautions

Name: 7 Pin SATA Female Connector for Wire Solder Cable, Gold Plated Electrical Signal Terminals, PCB Power Transmission Customization for Server, Automotive and Industrial Devices Applications
Brand: ShuangYi Precision Electronic Co., LTD
SKU: SATA-C07F-A10S4B5-000H
Price: 1.44 USD
Availability: InStock

Match the connector with compatible SATA plug connectors to ensure proper mating and signal integrity.

Select appropriate wire gauge according to system current and voltage requirements; avoid exceeding the rated current per contact.

When soldering wires to the terminals, control soldering temperature and time to prevent damage to the plastic housing.

Provide adequate strain relief (heat-shrink, overmold or clamps) on the cable to avoid pulling force directly on the solder joints.

Keep contacts and mating surfaces clean and free from dust, flux residue or oil to maintain low contact resistance.

Do not bend the cable sharply near the connector; maintain the recommended minimum bend radius to protect conductor and insulation.

Store and operate the assemblies within the specified temperature and humidity ranges to ensure long-term reliability.
