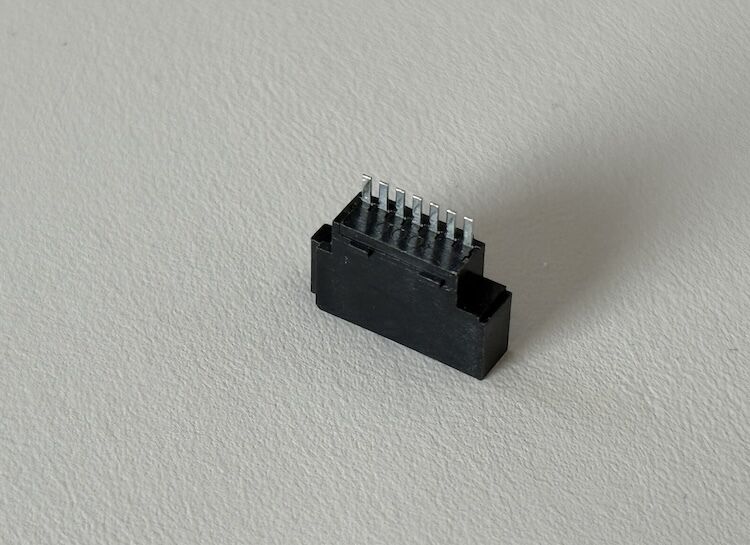

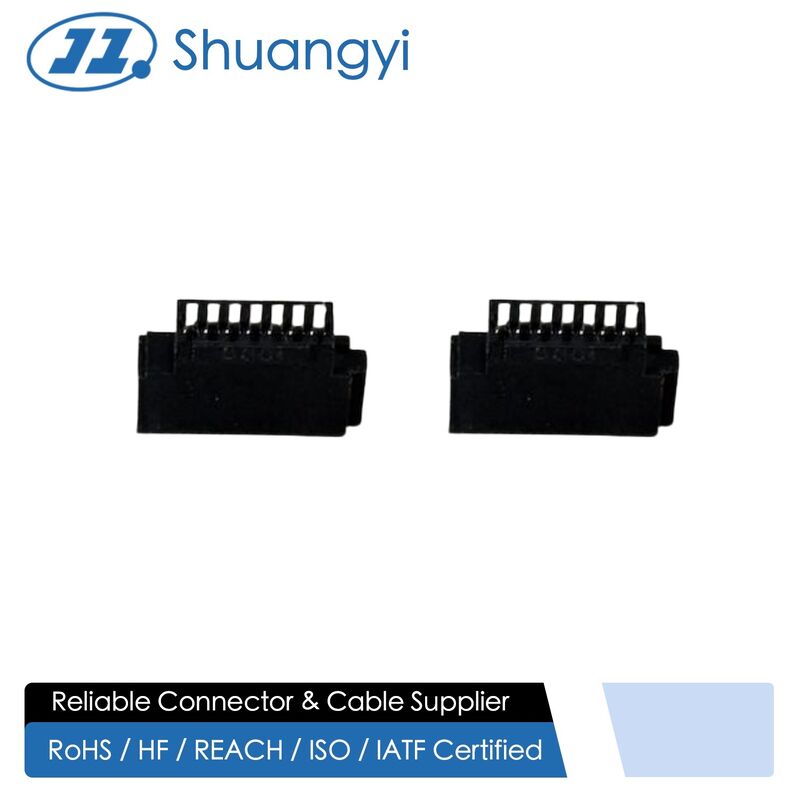

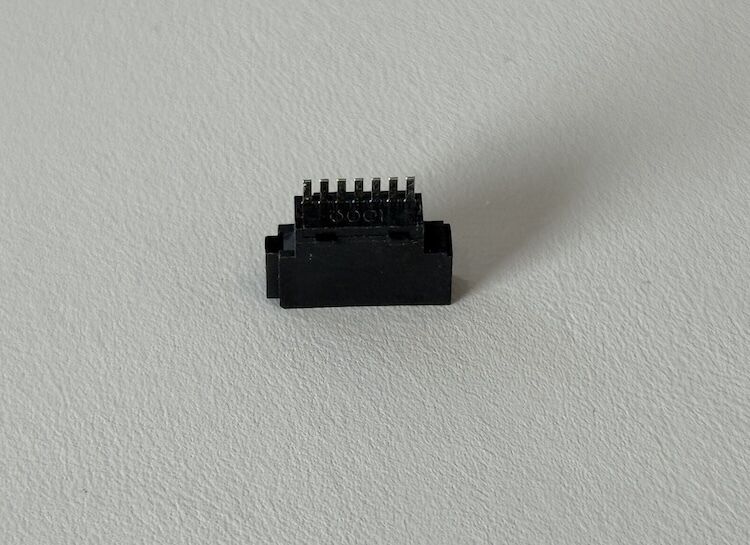

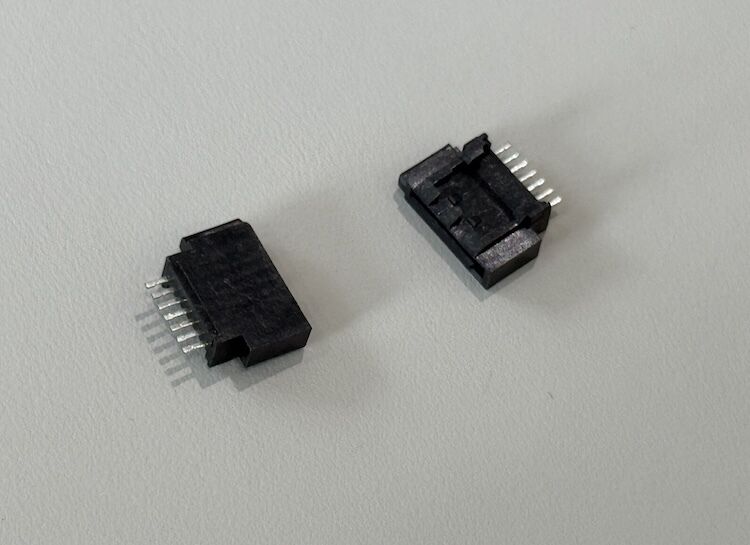

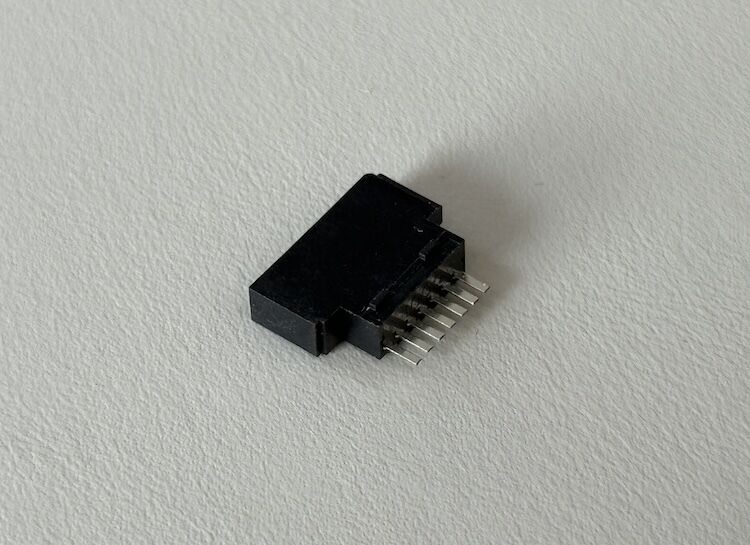

Name: 7 Pin 1.27mm PCB Female Socket Connector, Right Angle SMT Board Interface for High Speed Signal Transmission, Custom Wire Harness, Automotive and Industrial Electronic Power Systems
Brand: ShuangYi Precision Electronic Co., LTD
SKU: SATA-C07F-A21S47A5-020R(SAS 4.0）
Price: 1.44 USD
Availability: InStock

7 Pin 1.27mm PCB Female Socket Connector, Right Angle SMT Board Interface for High Speed Signal Transmission, Custom Wire Harness, Automotive and Industrial Electronic Power Systems

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA-C07F-A21S47A5-020R(SAS 4.0）

Request A Quote

Connector type

7-pin PCB female socket connector

Application

Signal and low-power transmission between PCB and cable/board

Mounting style

Right-angle SMT / solder-tail to PCB

Pitch

1.27 mm (typical SATA-style interface)

Positions

7 pins (other pin counts customizable)

Contact material

Copper alloy terminals, high conductivity

Contact plating

Nickel underplate, gold on contact area, tin on solder tail

Housing material

High-temperature, glass-filled thermoplastic, UL94-V0 flame rating

Rated current

1.5 A per pin (max, signal / low-power lines)

Rated voltage

Up to 250 V AC (creepage/clearance dependent)

Contact resistance

≤ 30 mΩ (initial)

Insulation resistance

≥ 1000 MΩ at 500 V DC

Dielectric withstand

500 VAC / 1 minute, no breakdown

Mating cycles

Up to 1500 mating/unmating cycles under rated conditions

Operating temperature

-20 °C to +80 °C (typical for this series)

Compliance

RoHS / HF / REACH-compatible, halogen-free options available

Customization

Pin count, plating thickness, housing color, packaging and matched cable assemblies available

Mating compatibility
Use only with matching 7-pin plug or header designed for the same pitch and keying to avoid bent terminals or intermittent contact.
Current and voltage limits
Do not exceed the specified current per pin or overall temperature rise; parallel multiple pins for higher current if required in the design.
Soldering recommendations
Follow recommended reflow or wave solder profiles for high-temperature thermoplastic housings. Avoid excessive peak temperatures or dwell time to prevent housing deformation or terminal loosening.
Mechanical handling
Insert and withdraw the mating connector in a straight line; avoid twisting or side-loading forces on the housing. Ensure proper PCB support to reduce stress on solder joints.
Environmental conditions
Operate within the specified temperature and humidity range; for applications with condensation, vibration or dust, consider conformal coating or additional sealing measures.
Quality and reliability
Periodically verify contact resistance and insulation resistance in long-life equipment or safety-critical systems, especially where frequent mating cycles or harsh environments are expected.
