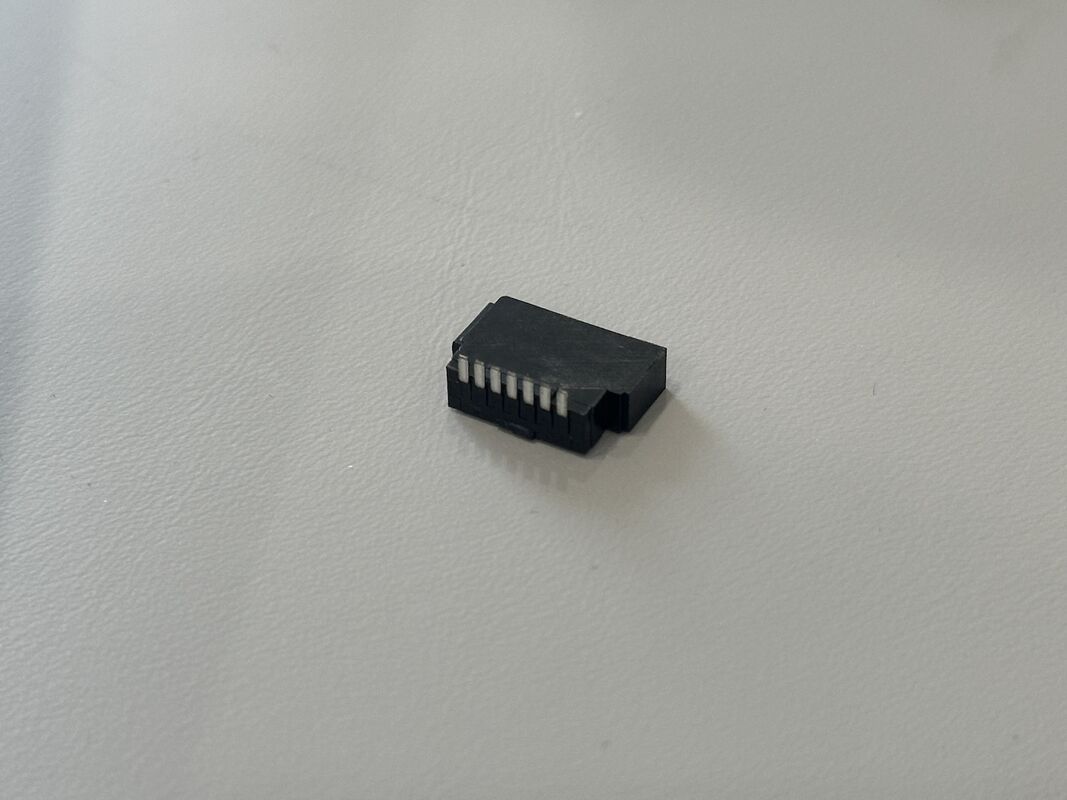

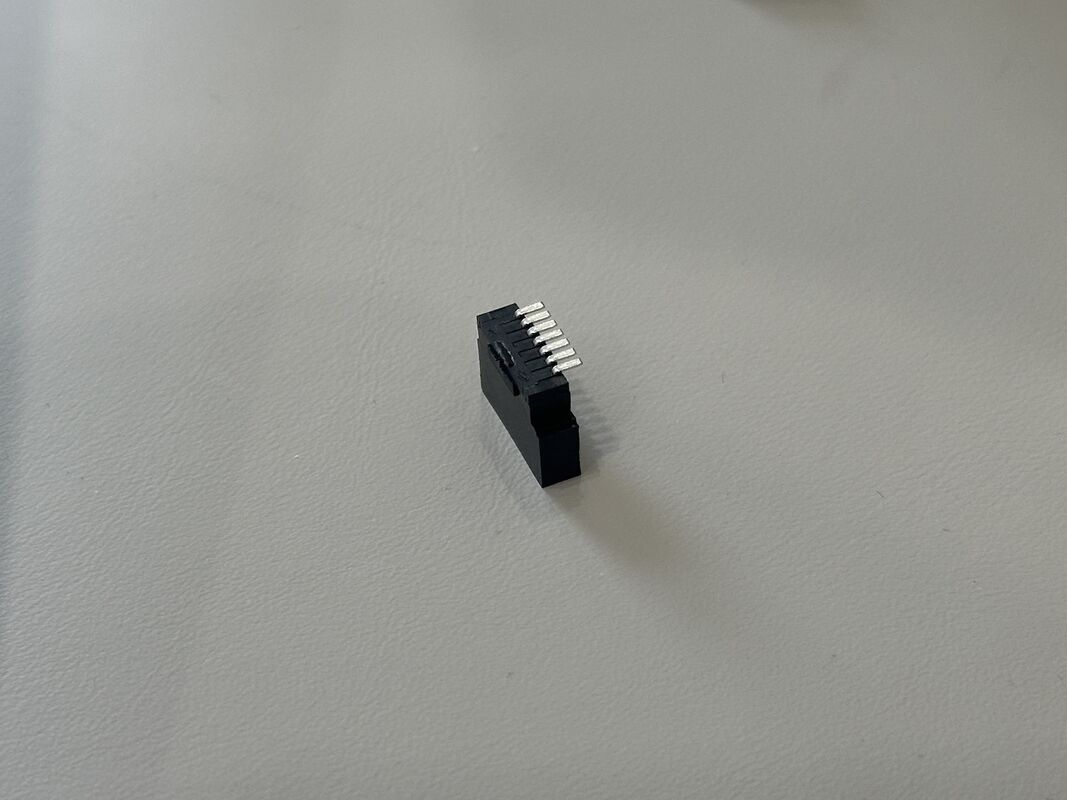

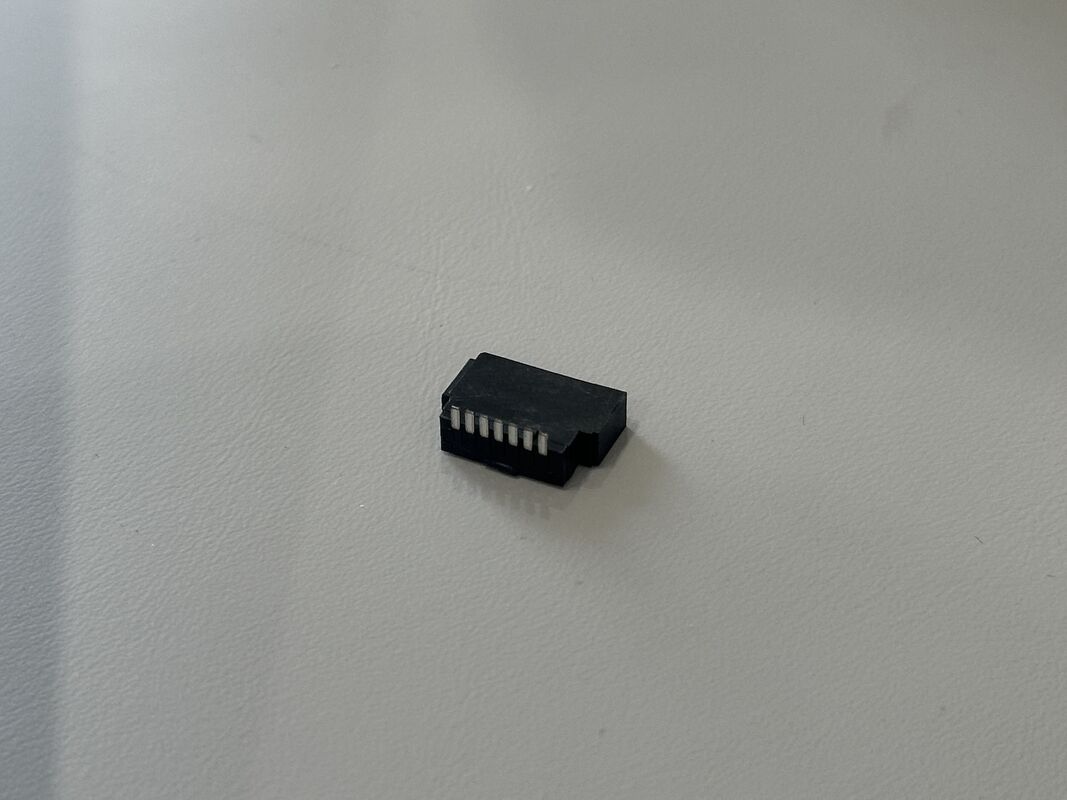

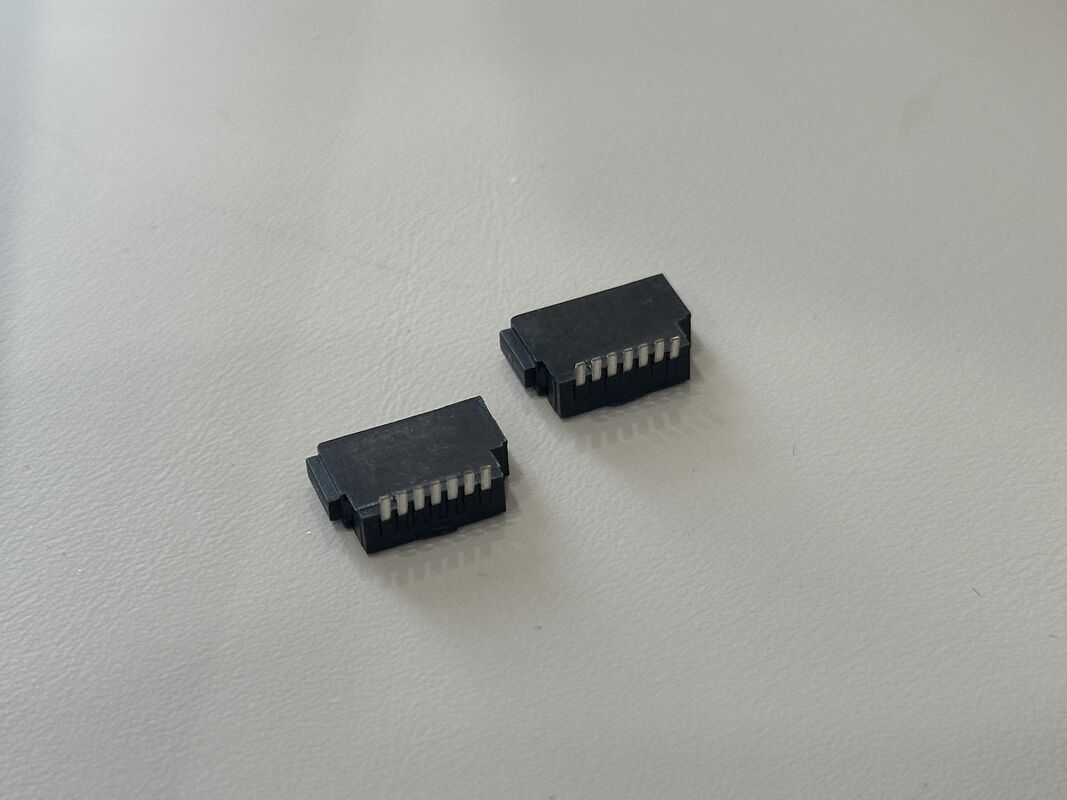

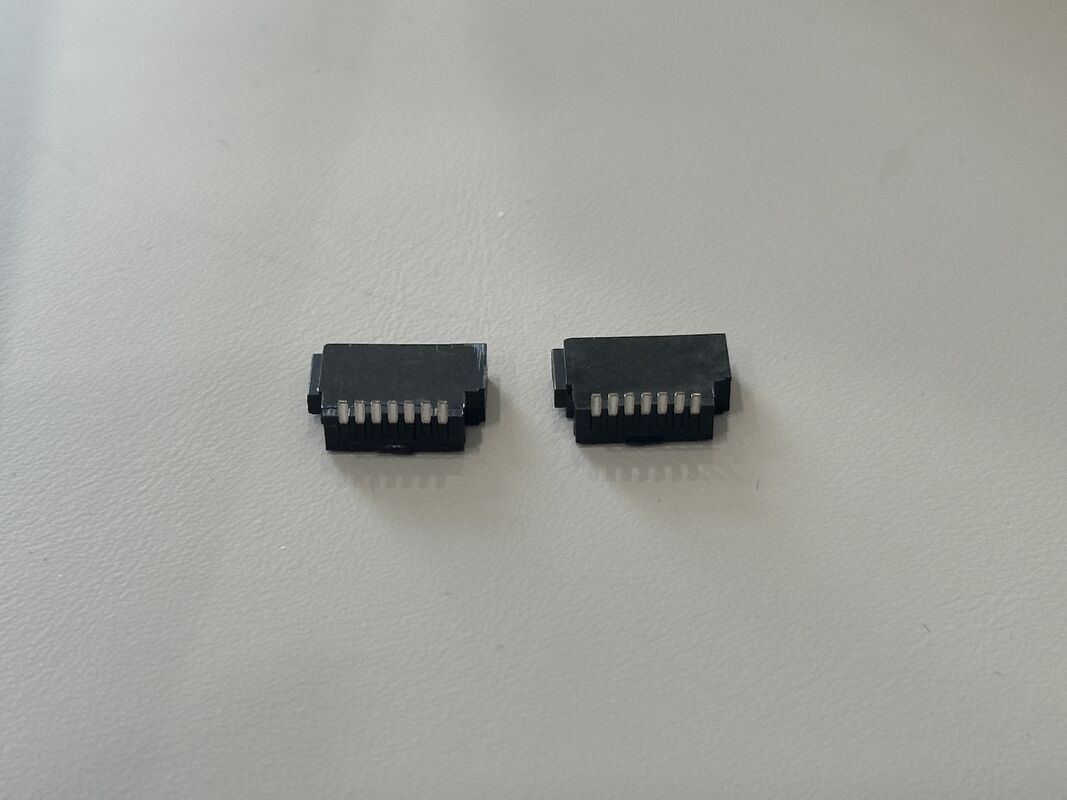

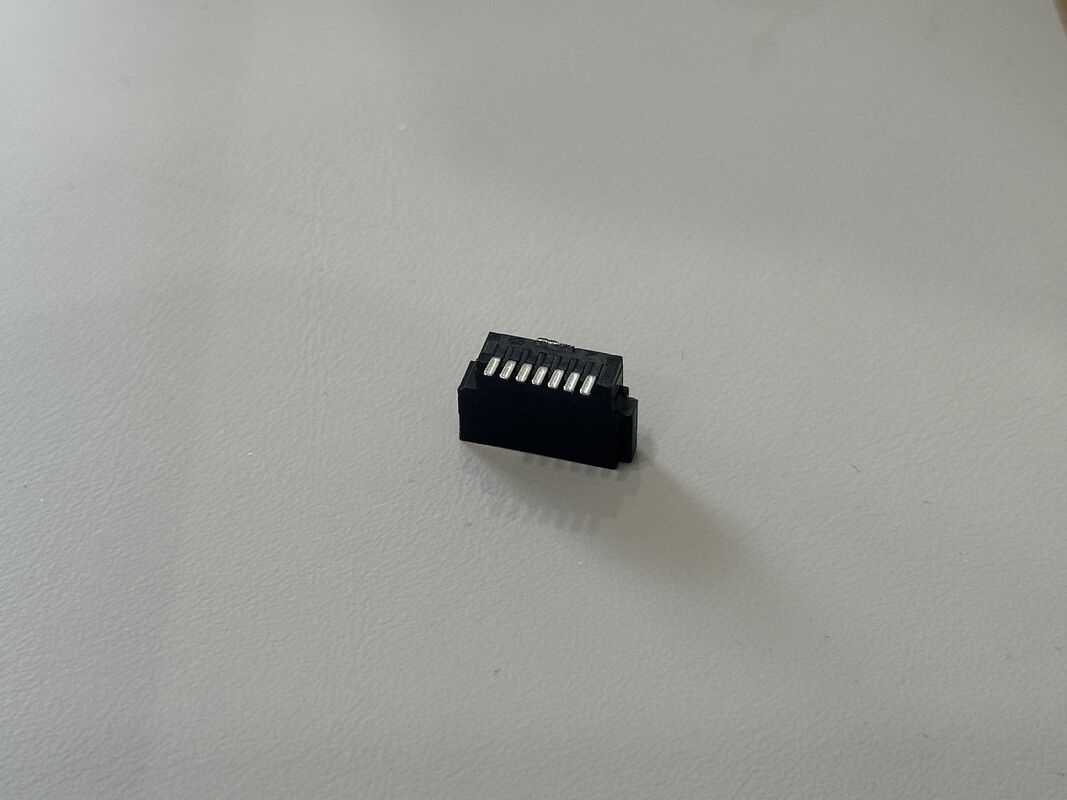

SATA 7-Pin Female Right-Angle Electrical Connector, Solder Type Cable Terminal, High-Reliability Data Transmission Connector for HDD/SSD, Server, Industrial PCB Customization Power&Signal Wire Harness

SATA 7-Pin Female Right-Angle Electrical Connector, Solder Type Cable Terminal, High-Reliability Data Transmission Connector for HDD/SSD, Server, Industrial PCB Customization Power&Signal Wire Harness

Name: SATA 7-Pin Female Right-Angle Electrical Connector, Solder Type Cable Terminal, High-Reliability Data Transmission Connector for HDD/SSD, Server, Industrial PCB Customization Power&Signal Wire Harness
Brand: ShuangYi Precision Electronic Co., LTD
SKU: SATA-C07F-A6S5A5-000R
Price: 1.44 USD
Availability: InStock

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA-C07F-A6S5A5-000R

Request A Quote

SATA 7-Pin Female Right-Angle Electrical Connector, Solder Type Cable Terminal, High-Reliability Data Transmission Connector for HDD/SSD, Server, Industrial PCB Customization Power&Signal Wire Harness

Product Details

Product Type:

SATA 7-pin Female Right-angle Connector, Solder-type Terminal

Interface Standard:

Serial ATA 7-pin Data Connector

Pin Count:

7 Pins

Pitch:

1.27 Mm (typical SATA Pitch)

Mounting Type:

SMT, Right-angle, Edge-board Mounting

Contact Material:

Phosphor Bronze Or Equivalent Copper Alloy

Contact Plating:

Gold Over Nickel On Mating Area, Tin-plated Solder Area

Housing Material:

High-temperature Thermoplastic, UL94V-0, Black

Rated Current:

Up To 1.5 A Per Contact (reference, Application Dependent)

Rated Voltage:

Up To 30 V AC / DC (low-voltage Signal Use)

Insulation Resistance:

≥ 1000 MΩ At 500 V DC

Contact Resistance:

≤ 30 MΩ (initial)

Dielectric Strength:

300 V AC / Minute

Mechanical Durability:

≥ 500 Mating Cycles

Operating Temperature:

−25 °C To +85 °C

PCB Thickness Reference:

Around 1.0 Mm Board Edge Design

RoHS/REACH:

Halogen-free, RoHS-compliant Materials

Customization Options:

Gold Thickness, Housing Color, Packaging, Harness Assembly

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$1.44-2.21 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

High board to board PCB connector 1.27mm pitch gold plated male terminals electrical signal connector for industrial control modules, server transmission, automotive electronics customization harness

Get Best Price

7 Pin 1.27mm PCB Female Socket Connector, Right Angle SMT Board Interface for High Speed Signal Transmission, Custom Wire Harness, Automotive and Industrial Electronic Power Systems

Get Best Price

7 Pin 1.27mm PCB Female Socket Connector, Right Angle SMT Board Interface for High Speed Signal Transmission, Custom Wire Harness, Automotive and Industrial Electronic Power Systems

Get Best Price

7 Pin 1.27mm PCB Female Socket Connector, Right Angle SMT Board Interface for High Speed Signal Transmission, Custom Wire Harness, Automotive and Industrial Electronic Power Systems

Get Best Price

Contact Now

Product Description

Product Description

This SATA 7-pin female connector is designed for high-speed serial data transmission between storage devices and host systems. The right-angle structure and compact housing allow efficient routing in slim enclosures, while the solder-type terminals support direct wire termination or integration into custom PCB assemblies.

Precision-formed copper-alloy contacts with gold-over-nickel plating provide low contact resistance and stable signal integrity for HDD/SSD interfaces, servers, and industrial controllers. The high-temperature, flame-retardant housing withstands reflow or hand-soldering processes and offers long-term reliability in demanding electrical and electronic equipment.

With flexible customization on wire gauge, cable length, plating thickness and labeling, this connector can be integrated into complete signal and power wire harness solutions for storage backplanes, embedded boards and automation devices.

Connector type	SATA 7-pin female right-angle connector, solder-type terminal
Positions	7 contacts (data and power control lines)
Pitch	1.27 mm SATA standard contact spacing
Contact material	Phosphor bronze or equivalent copper alloy
Contact plating	Gold over nickel on mating area, tin-plated solder area
Housing material	High-temperature thermoplastic, UL94V-0, black
Mounting / termination	Solder-type terminals for wire harness or small PCB pads
Rated current	Up to 1.5 A per contact (reference)
Rated voltage	Up to 30 V AC/DC (reference for signal applications)
Operating temperature	–40 °C to +85 °C (custom ranges available)
Mating cycles	≥500 insertion/withdrawal cycles under normal use
Compliance	RoHS-compliant, halogen-free options available
Dimensional reference	Compact body length around 12.96 mm according to drawing
