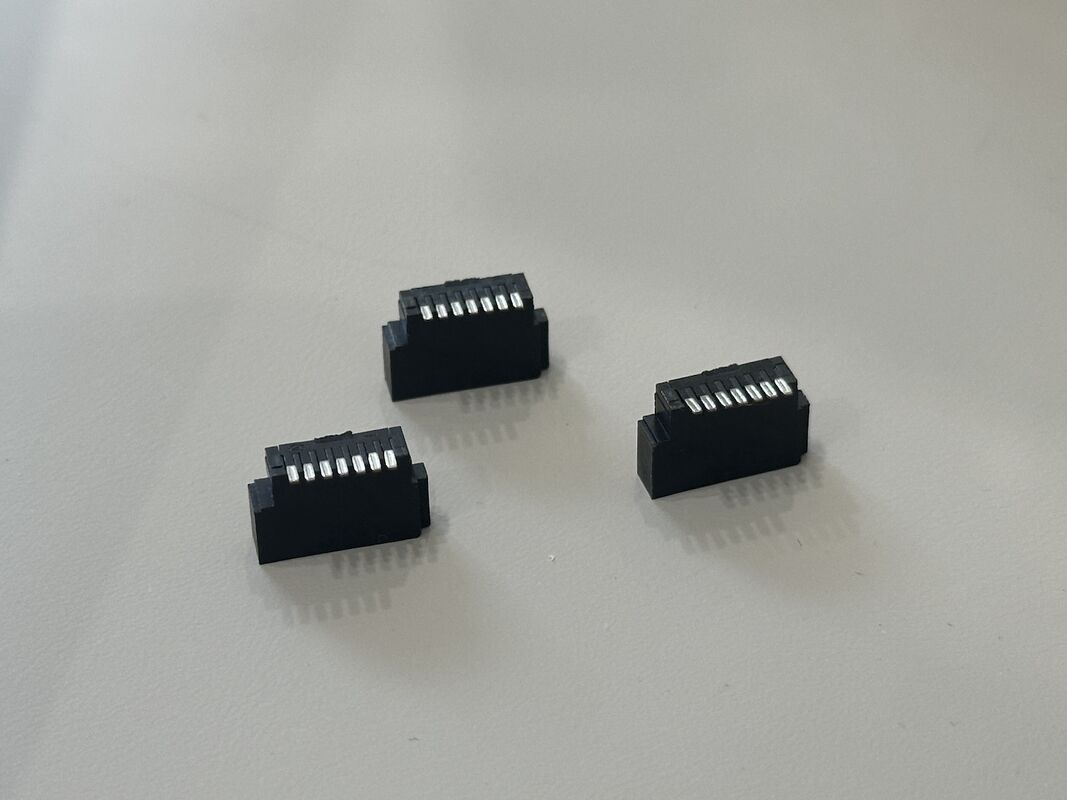

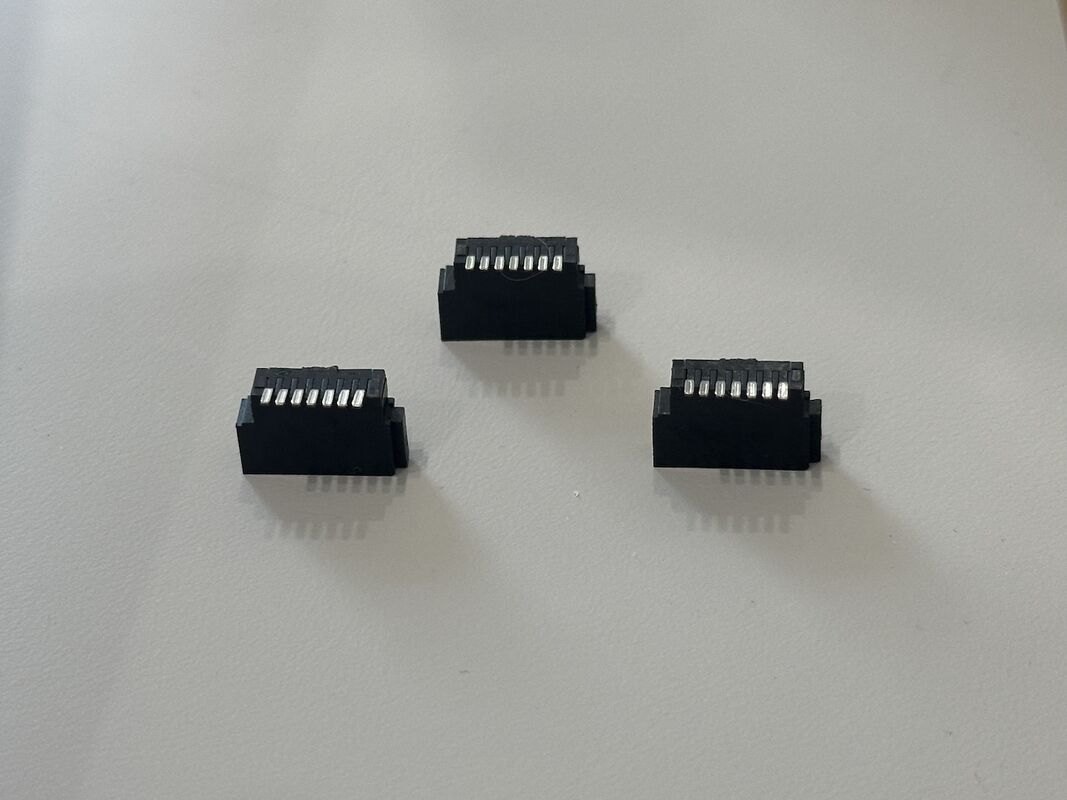

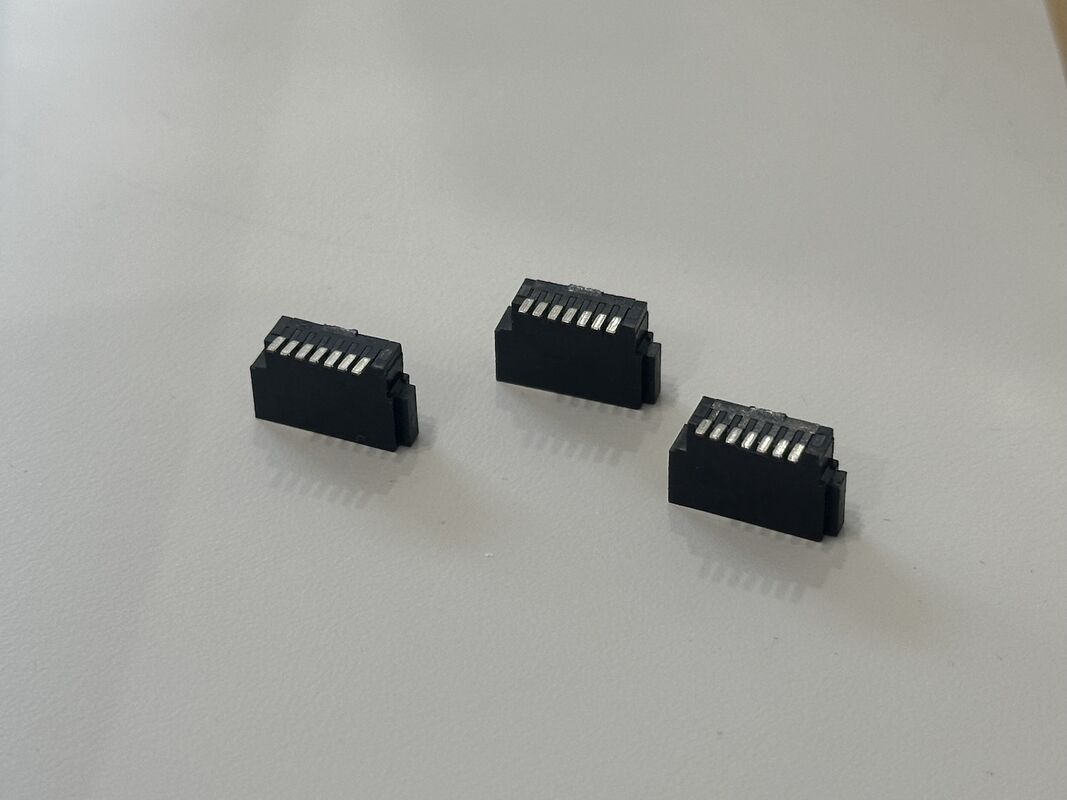

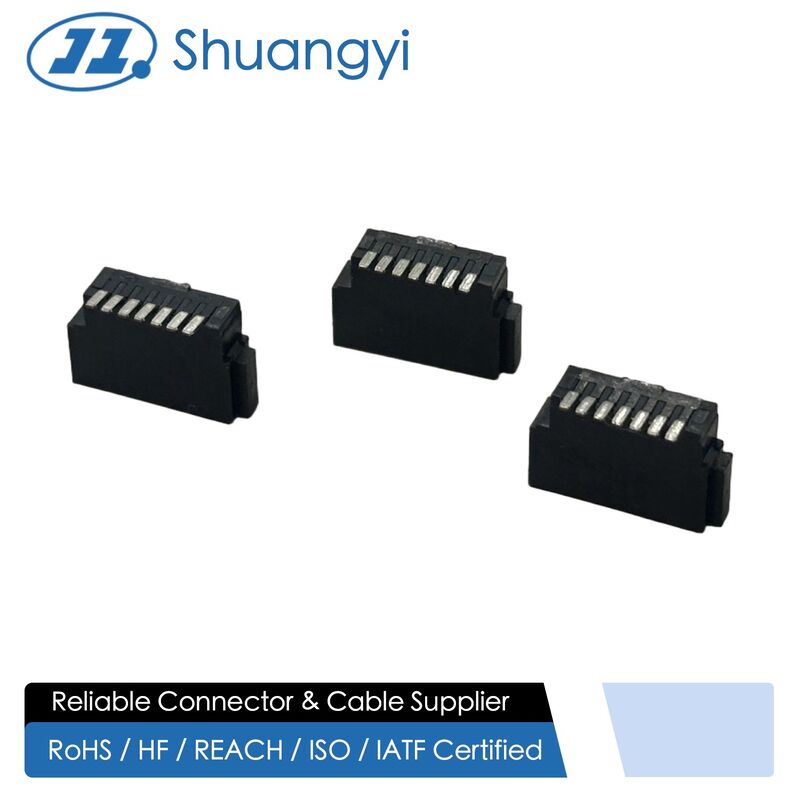

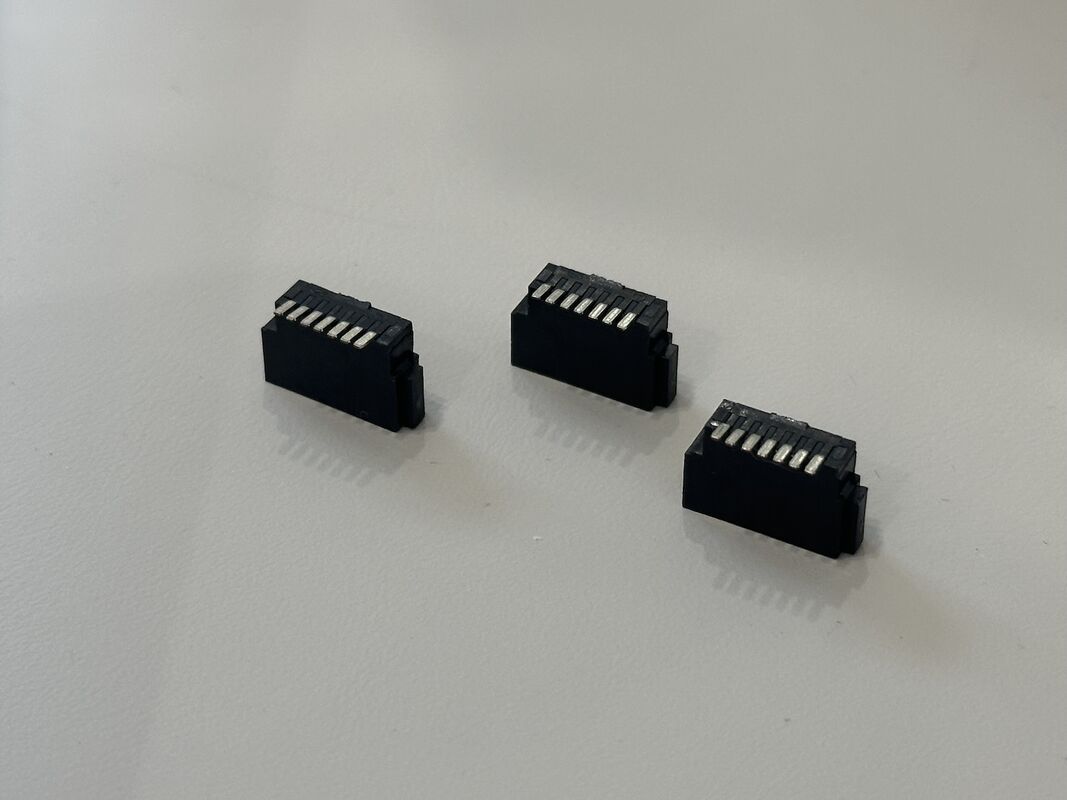

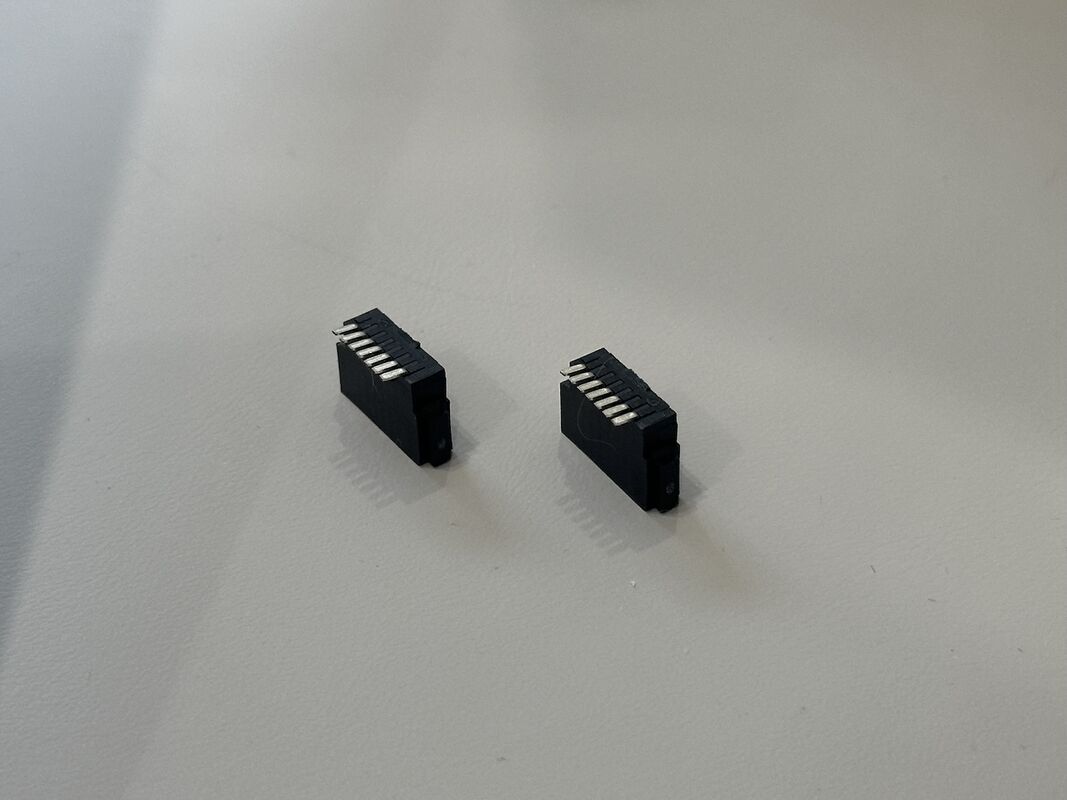

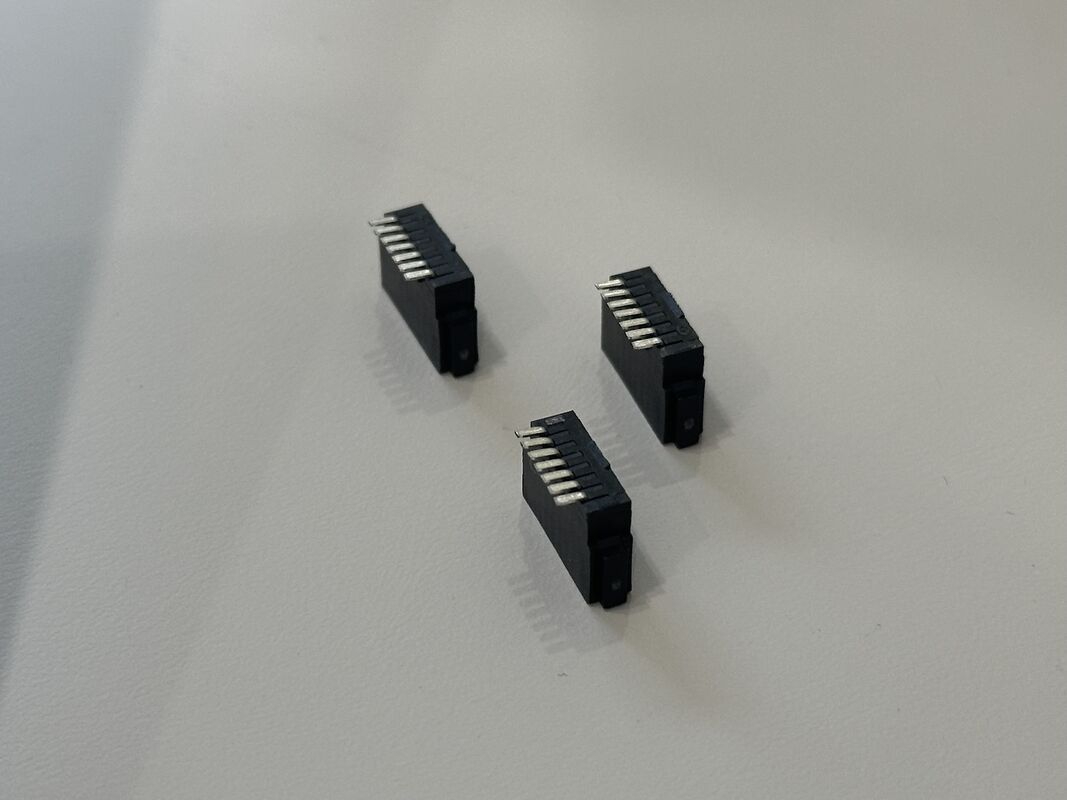

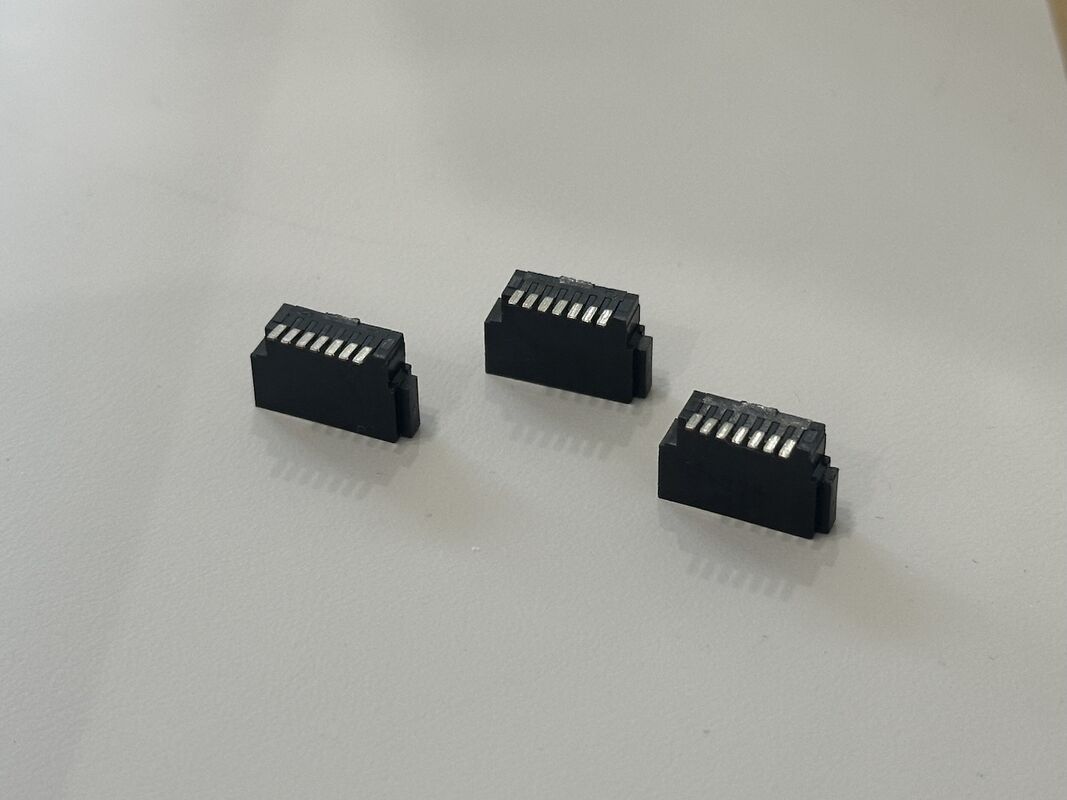

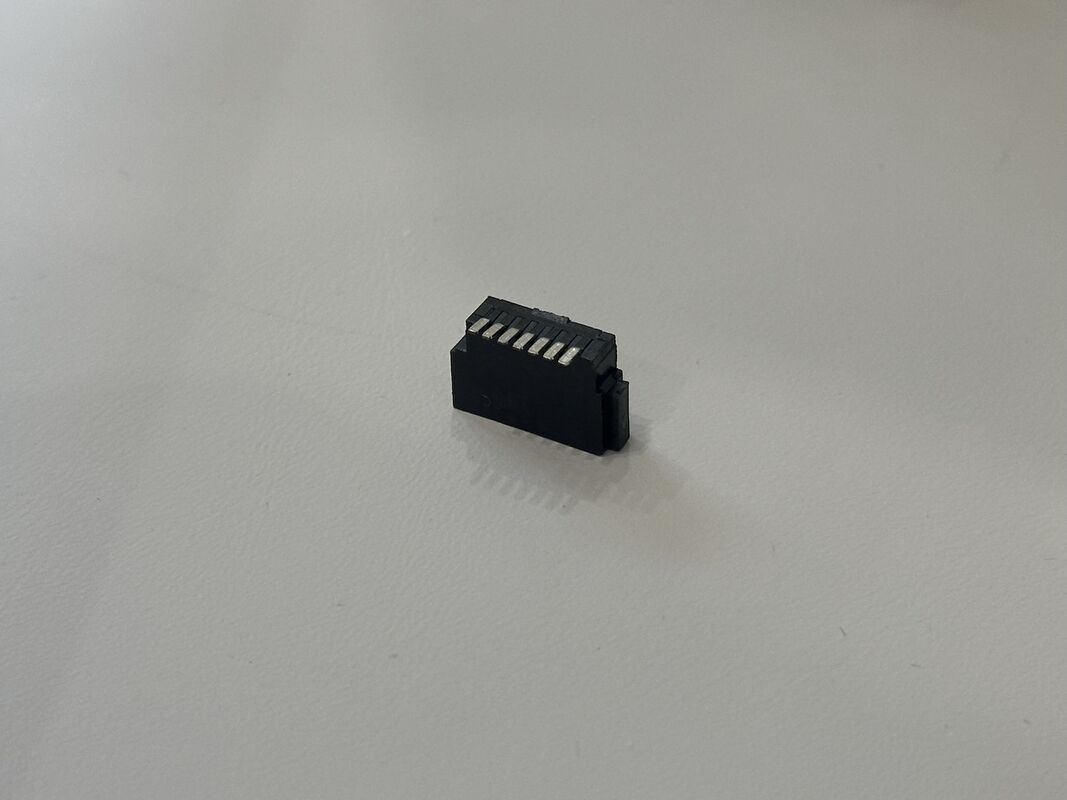

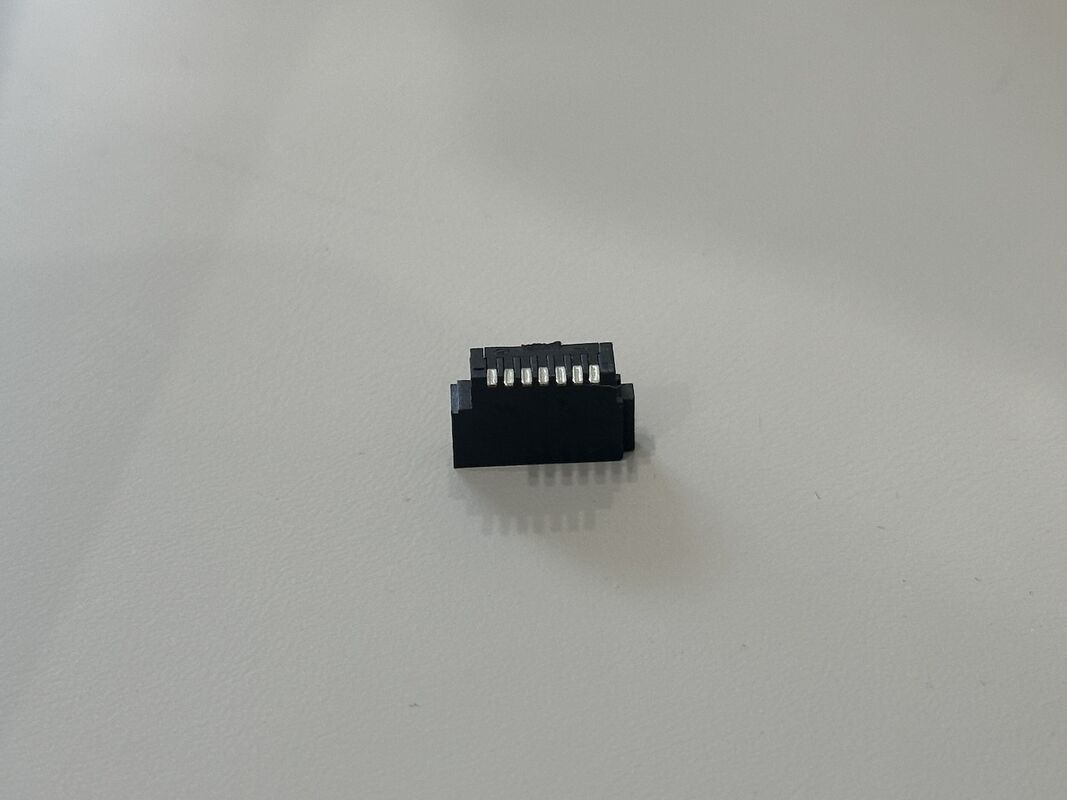

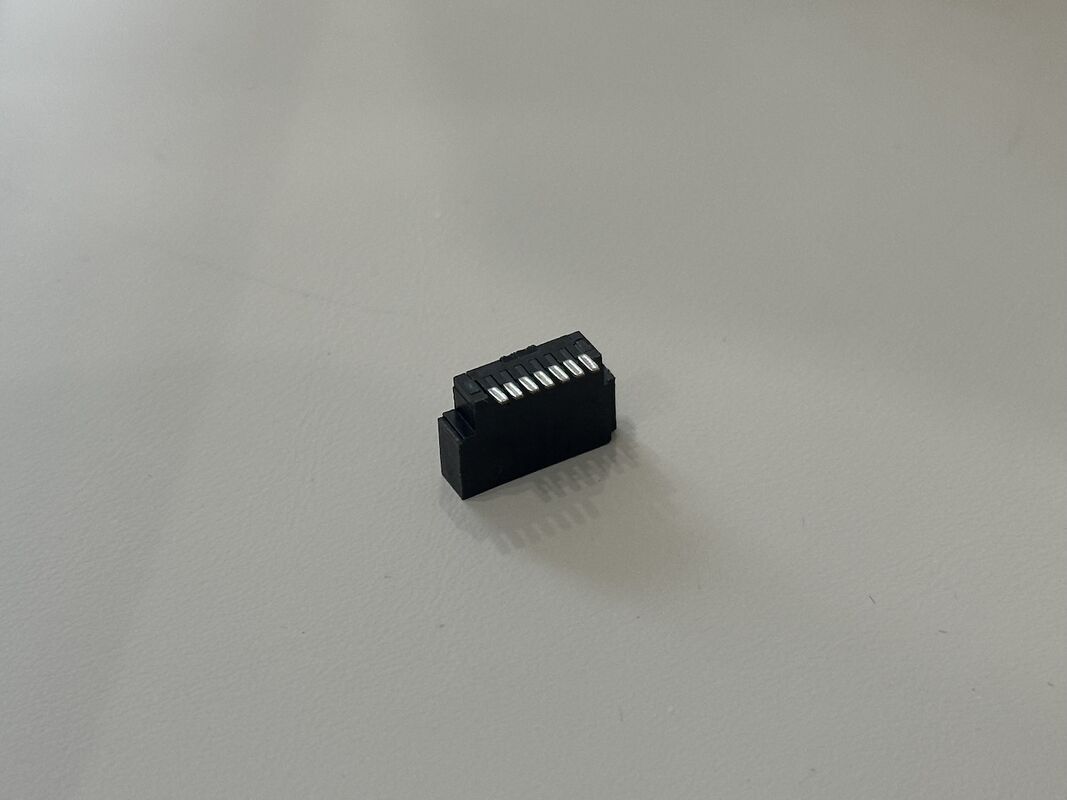

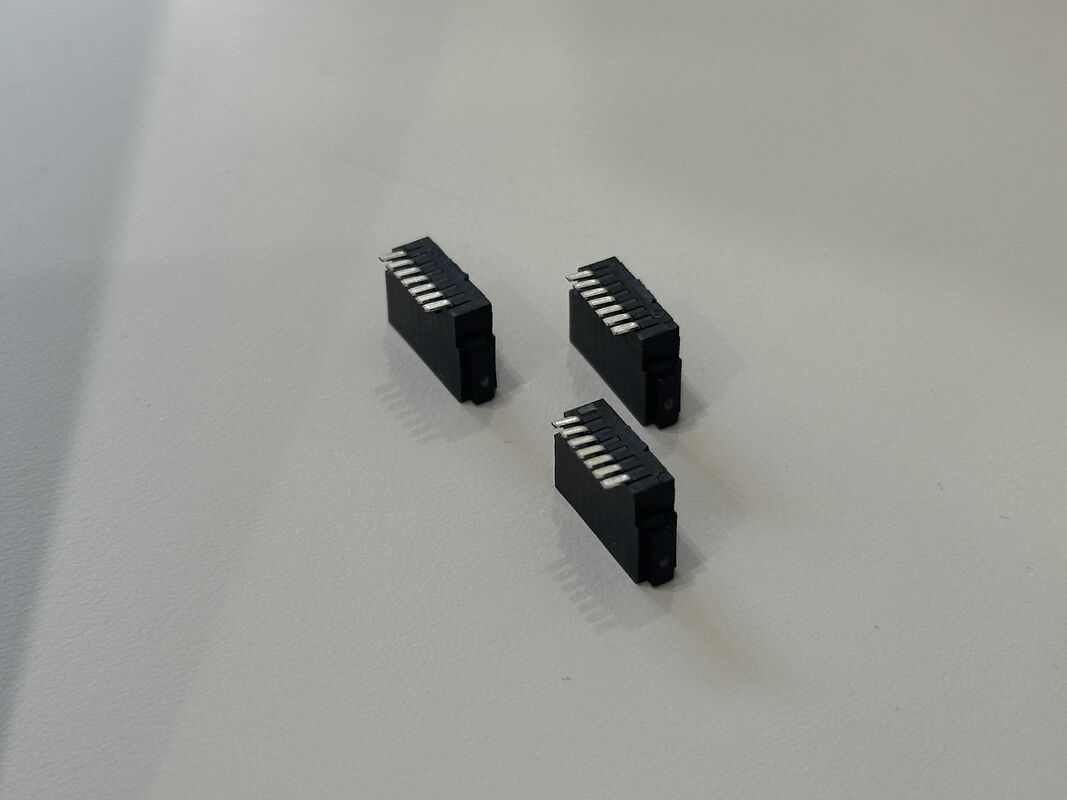

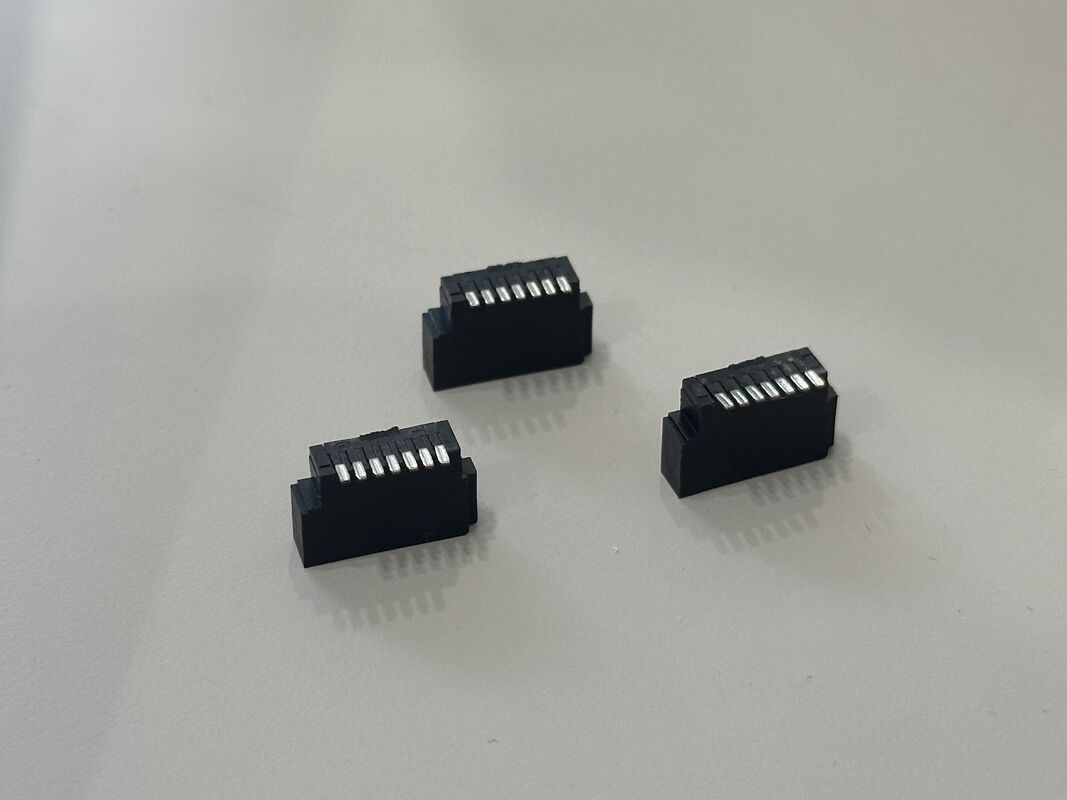

7-Pin SATA Female Wire Solder Connector, PCB Cable Harness Terminals, Electrical Signal Power connector for Server Storage, Industrial Control, Automotive Systems, Customization OEM Applications

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA-C07F-A6S5A5-000H

Request A Quote

7-Pin SATA Female Wire Solder Connector, PCB Cable Harness Terminals, Electrical Signal Power connector for Server Storage, Industrial Control, Automotive Systems, Customization OEM Applications

Product Details

Product Type:

7-pin SATA Female Wire Solder Connector

Interface Standard:

Serial ATA 7-pin Data Connector

Pin Count:

7 Pins

Pitch:

1.27 Mm (typical SATA Pitch)

Mounting Type:

SMT, Right-angle, Edge-board Mounting

Contact Type:

Female Terminals, Board-to-cable Data Interface

Contact Plating:

Approx. 30 μ" Gold Over Nickel On Contact Area

Housing Material:

High-temperature Thermoplastic, UL94V-0 Grade

Rated Current:

Up To 1.5 A Per Contact (reference, Application Dependent)

Rated Voltage:

Up To 30 V AC / DC (low-voltage Signal Use)

Insulation Resistance:

≥ 1000 MΩ At 500 V DC

Contact Resistance:

≤ 30 MΩ (initial)

Dielectric Strength:

300 V AC / Minute

Mechanical Durability:

≥ 500 Mating Cycles

Operating Temperature:

−25 °C To +85 °C

PCB Thickness Reference:

Around 1.0 Mm Board Edge Design

RoHS/REACH:

Halogen-free, RoHS-compliant Materials

Customization Options:

Gold Thickness, Housing Color, Packaging, Harness Assembly

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$1.44-2.21 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

High board to board PCB connector 1.27mm pitch gold plated male terminals electrical signal connector for industrial control modules, server transmission, automotive electronics customization harness

Get Best Price

7 Pin 1.27mm PCB Female Socket Connector, Right Angle SMT Board Interface for High Speed Signal Transmission, Custom Wire Harness, Automotive and Industrial Electronic Power Systems

Get Best Price

7 Pin 1.27mm PCB Female Socket Connector, Right Angle SMT Board Interface for High Speed Signal Transmission, Custom Wire Harness, Automotive and Industrial Electronic Power Systems

Get Best Price

7 Pin 1.27mm PCB Female Socket Connector, Right Angle SMT Board Interface for High Speed Signal Transmission, Custom Wire Harness, Automotive and Industrial Electronic Power Systems

Get Best Price

Contact Now

Product Description

Product Description

This 7-pin SATA female wire solder connector is designed for compact electrical and signal transmission between PCB-mounted SATA interfaces and remote devices. The connector uses a high-temperature thermoplastic housing and copper-alloy terminals with gold-plated contact areas to maintain low contact resistance and stable data integrity during high-speed operation.

Solder-termination tails allow direct connection to discrete wires or bundled cables, making it ideal for customized harness solutions. Options for wire gauge, cable jacket material, color, labeling and strain-relief over-molding are available to match different installation environments.

7-Pin SATA Female Wire Solder Connector, PCB Cable Harness Terminals, Electrical Signal Power connector for Server Storage, Industrial Control, Automotive Systems, Customization OEM Applications 0

Connector type	7-pin SATA female wire solder connector
Function	Combined electrical signal and low-voltage power transmission
Contact pitch	1.27 mm (typical SATA interface)
Positions / terminals	7 contacts (GND / TX / RX / control signals)
Termination style	Solder termination for discrete wires or cable harness
Mounting style	In-line, used at cable end, mates with SATA plug on PCB
Housing material	High-temperature thermoplastic, UL94V-0
Contact material	Copper alloy
Contact plating	Gold flash on contact area, tin on solder tails (nickel under-plating)
Rated current	Up to 1.5 A per pin (depending on wire gauge and layout)
Rated voltage	30 V AC/DC
Insulation resistance	≥ 1000 MΩ at 500 V DC (typical)
Contact resistance	≤ 30 mΩ (initial, per contact)
Operating temperature range	−40 °C to +85 °C (extended range on request)
Applicable wire size	26–30 AWG stranded copper wires
Cable type	Electrical / electronic cable harness, shielded or unshielded
Compliance	RoHS compliant, halogen-free options available
Customization	Length, wire gauge, jacket color, labeling and over-molding customizable

Applications

Internal cable harness between server motherboard and SATA HDD/SSD

Storage backplane, RAID card, and embedded industrial controller wiring

Compact data-logging equipment, medical and test instruments requiring SATA-style signal connectors

Customized cable assemblies for automotive infotainment or industrial PCs
