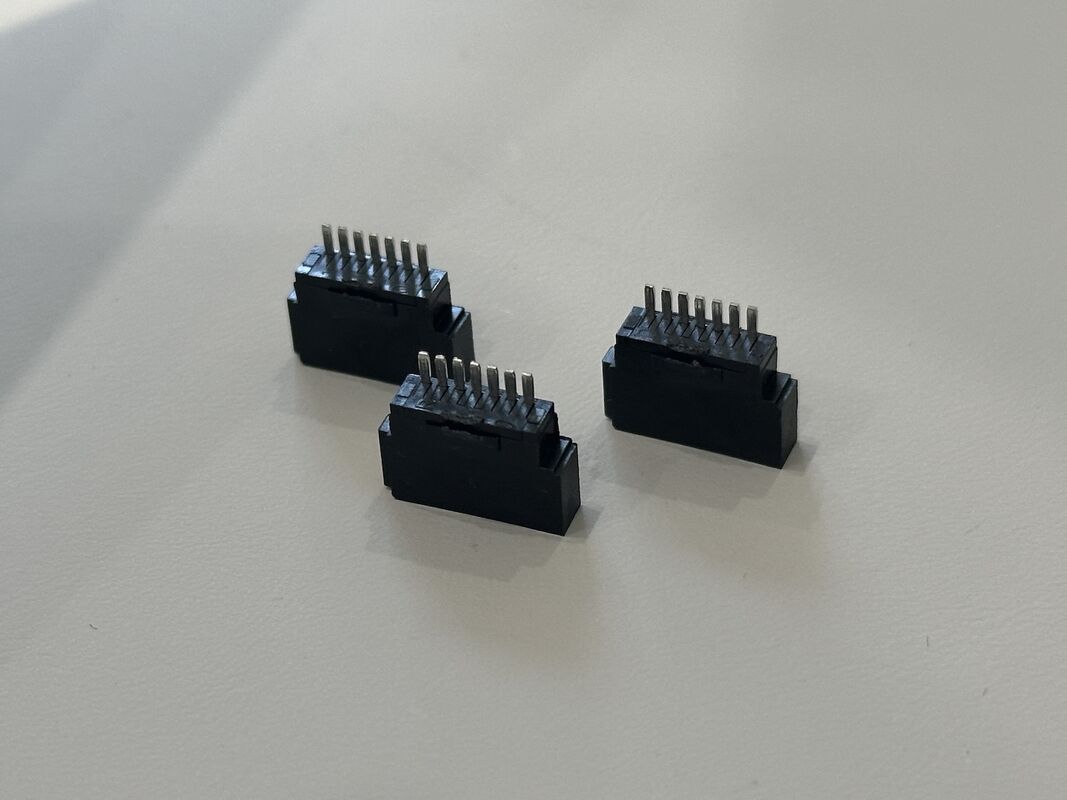

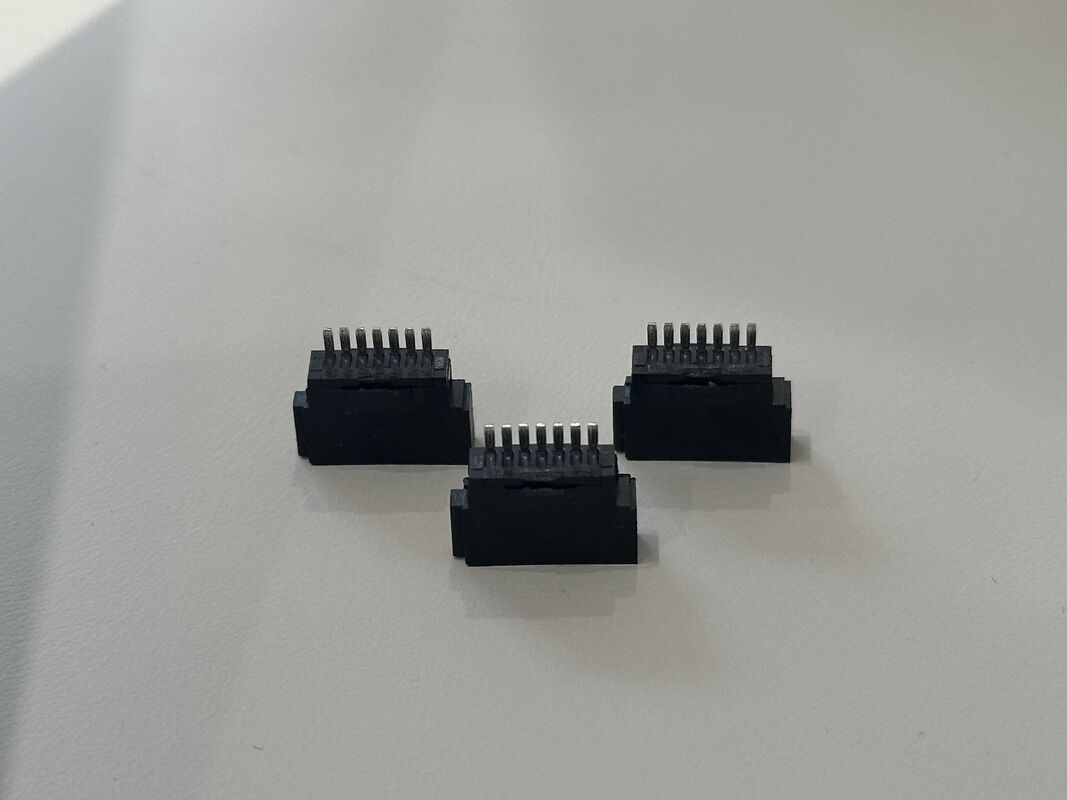

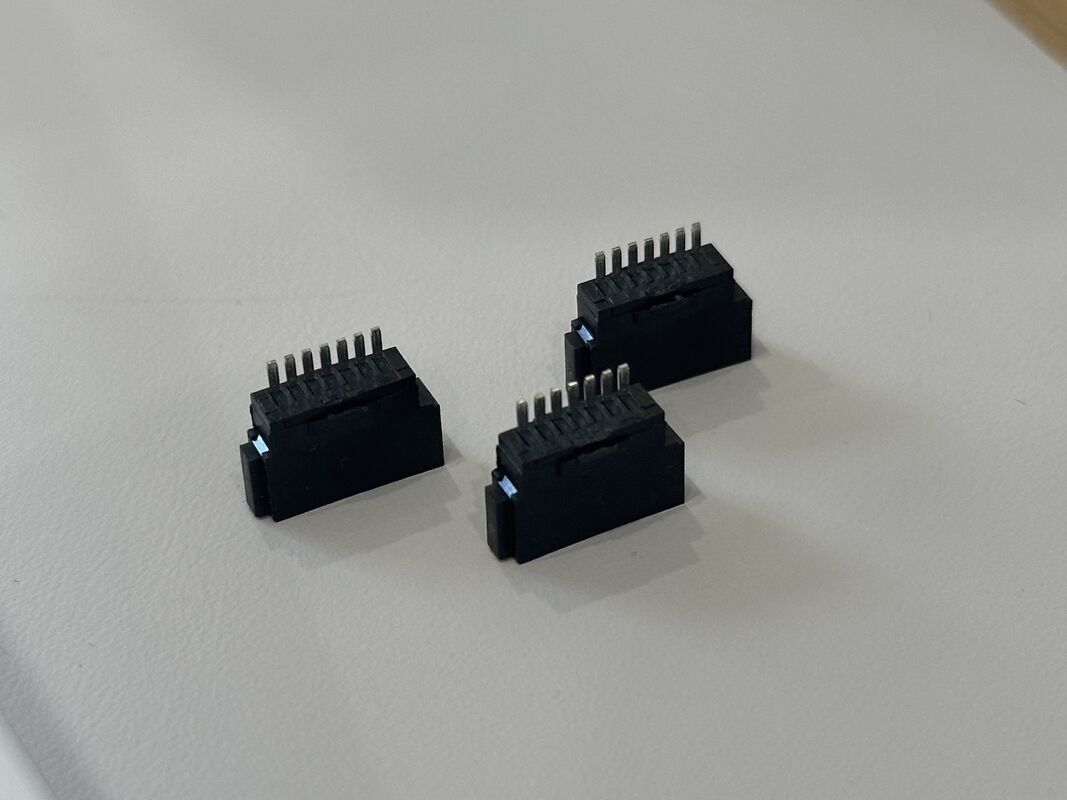

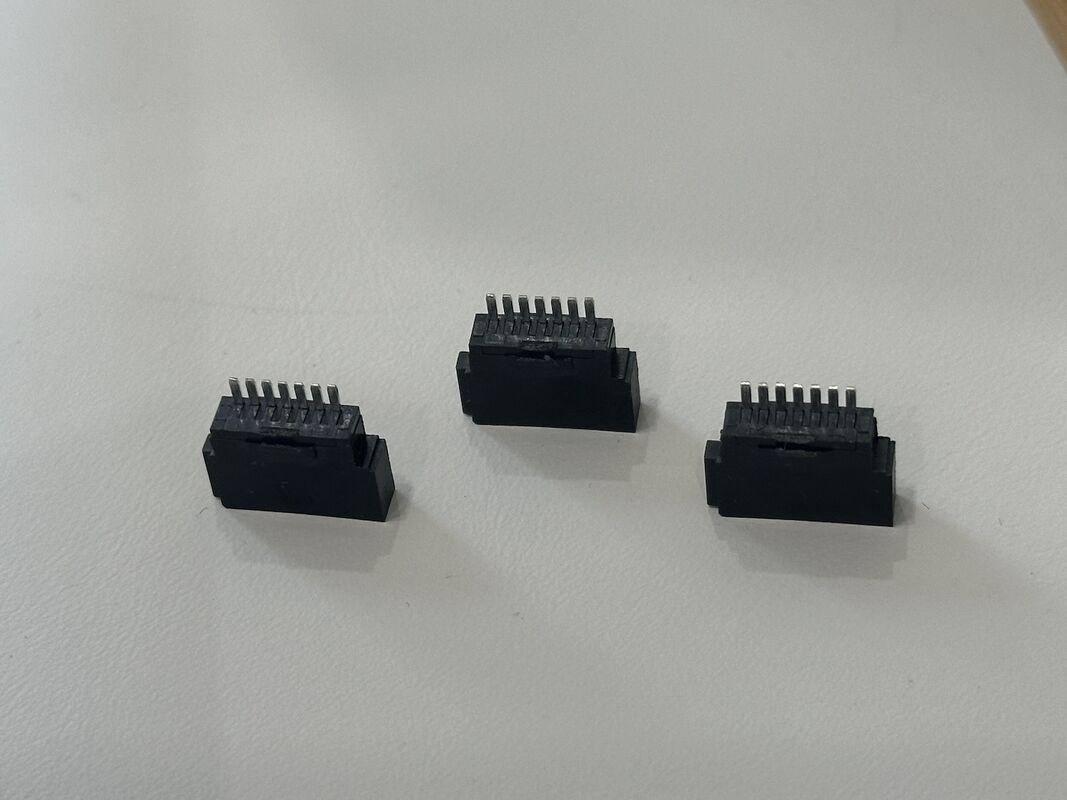

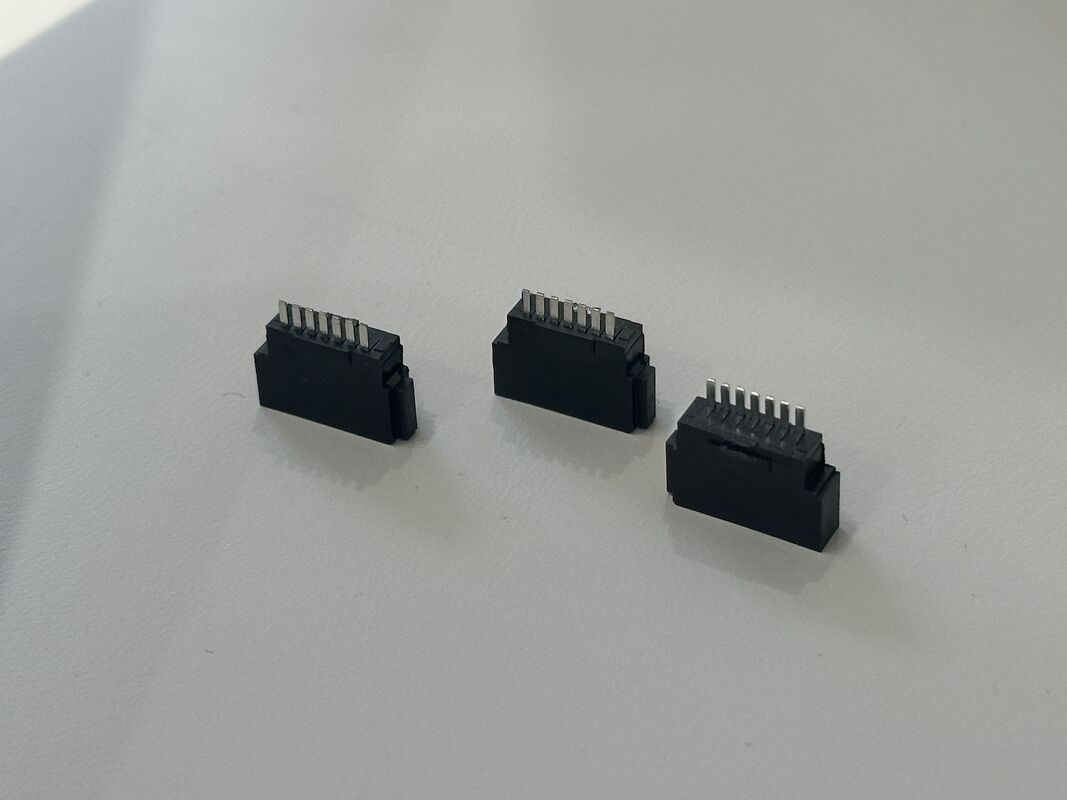

SATA 7P SMT female PCB connector, 1.27mm pitch gold-plated terminals, right-angle board mount, high-speed data signal transmission, customization for server, storage, automotive electronic devices

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA-C07F-A6S4A5-000R

Request A Quote

SATA 7P SMT female PCB connector, 1.27mm pitch gold-plated terminals, right-angle board mount, high-speed data signal transmission, customization for server, storage, automotive electronic devices

Product Details

Product Type:

SATA 7P SMT Female PCB Connector

Interface Standard:

Serial ATA 7-pin Data Connector

Pin Count:

7 Pins

Pitch:

1.27 Mm (typical SATA Pitch)

Mounting Type:

SMT, Right-angle, Edge-board Mounting

Contact Type:

Female Terminals, Board-to-cable Data Interface

Contact Plating:

Approx. 30 μ" Gold Over Nickel On Contact Area

Housing Material:

High-temperature Thermoplastic, UL94V-0 Grade

Rated Current:

Up To 1.5 A Per Contact (reference, Application Dependent)

Rated Voltage:

Up To 30 V AC / DC (low-voltage Signal Use)

Insulation Resistance:

≥ 1000 MΩ At 500 V DC

Contact Resistance:

≤ 30 MΩ (initial)

Dielectric Strength:

300 V AC / Minute

Mechanical Durability:

≥ 500 Mating Cycles

Operating Temperature:

−25 °C To +85 °C

PCB Thickness Reference:

Around 1.0 Mm Board Edge Design

RoHS/REACH:

Halogen-free, RoHS-compliant Materials

Customization Options:

Gold Thickness, Housing Color, Packaging, Harness Assembly

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$1.44-2.21 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

High board to board PCB connector 1.27mm pitch gold plated male terminals electrical signal connector for industrial control modules, server transmission, automotive electronics customization harness

Get Best Price

7 Pin 1.27mm PCB Female Socket Connector, Right Angle SMT Board Interface for High Speed Signal Transmission, Custom Wire Harness, Automotive and Industrial Electronic Power Systems

Get Best Price

7 Pin 1.27mm PCB Female Socket Connector, Right Angle SMT Board Interface for High Speed Signal Transmission, Custom Wire Harness, Automotive and Industrial Electronic Power Systems

Get Best Price

7 Pin 1.27mm PCB Female Socket Connector, Right Angle SMT Board Interface for High Speed Signal Transmission, Custom Wire Harness, Automotive and Industrial Electronic Power Systems

Get Best Price

Contact Now

Product Description

Product Description

This SATA 7P SMT female PCB connector is designed for high-speed serial data transmission between HDD/SSD devices and host boards. With a standard 7-pin layout and 1.27 mm pitch, it supports SATA I/II/III data rates and provides a stable, low-loss electrical path for differential signal pairs.

Gold-plated terminals over nickel ensure low contact resistance and long-term corrosion resistance, while the high-temperature thermoplastic housing meets UL94V-0 flame-retardant requirements for reliable performance in dense electronic systems. The right-angle SMT structure is suitable for edge-mounting on compact PCBs, saving vertical space and simplifying automatic reflow soldering processes.

This connector can be customized with different gold thicknesses, tape-and-reel or tray packaging, and complete cable or harness assemblies to match specific server, storage or industrial designs.

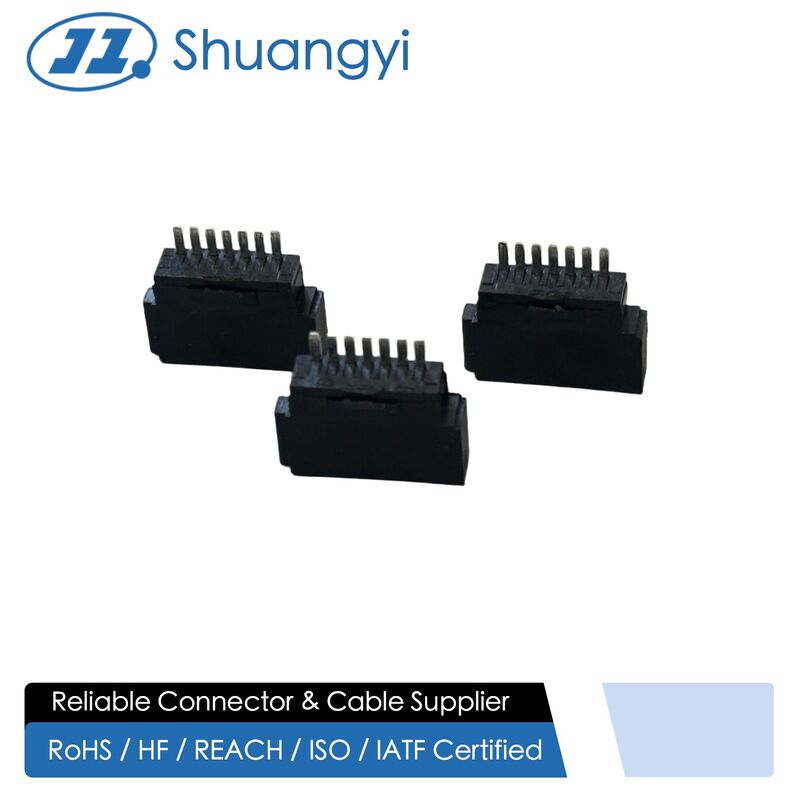

SATA 7P SMT female PCB connector, 1.27mm pitch gold-plated terminals, right-angle board mount, high-speed data signal transmission, customization for server, storage, automotive electronic devices 0

Product type	SATA 7P SMT female PCB connector
Interface standard	Serial ATA 7-pin data connector
Pin count	7 pins
Pitch	1.27 mm (typical SATA pitch)
Mounting type	SMT, right-angle, edge-board mounting
Contact type	Female terminals, board-to-cable data interface
Contact plating	Approx. 30 μ" gold over nickel on contact area
Housing material	High-temperature thermoplastic, UL94V-0 grade
Rated current	Up to 1.5 A per contact (reference, application dependent)
Rated voltage	Up to 30 V AC / DC (low-voltage signal use)
Insulation resistance	≥ 1000 MΩ at 500 V DC
Contact resistance	≤ 30 mΩ (initial)
Dielectric strength	300 V AC / minute
Mechanical durability	≥ 500 mating cycles
Operating temperature	−25 °C to +85 °C
PCB thickness reference	Around 1.0 mm board edge design
RoHS/REACH	Halogen-free, RoHS-compliant materials
Customization options	Gold thickness, housing color, packaging, harness assembly

Applications

Server and data-center storage backplanes

Desktop and industrial PCs, embedded boards and IPC motherboards

HDD/SSD, optical drives and removable storage modules

Network storage (NAS), RAID cards and controller boards

Automotive infotainment or telematics units using SATA-based storage
