Product Description

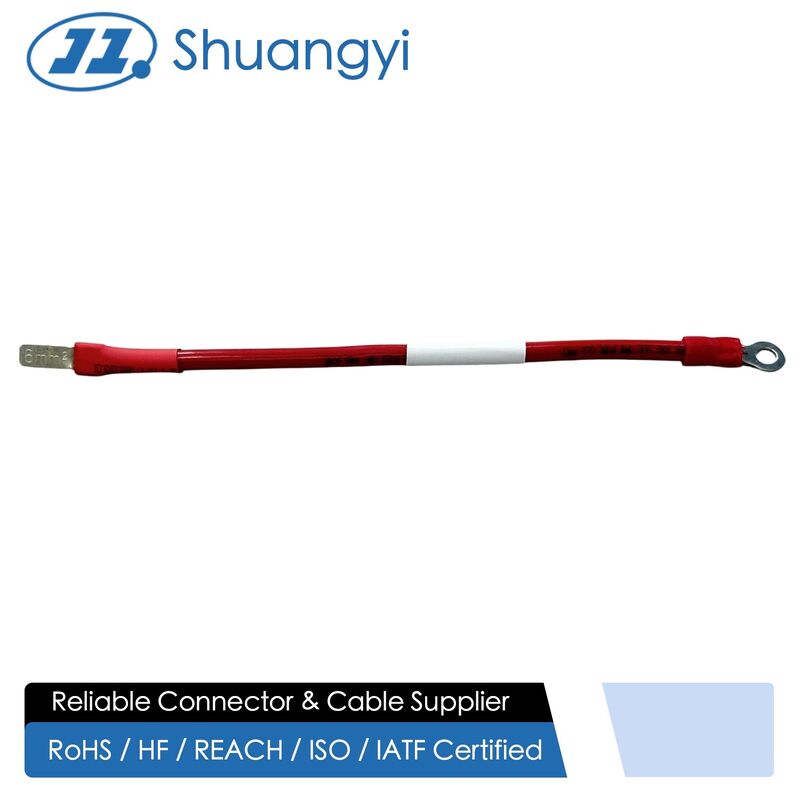

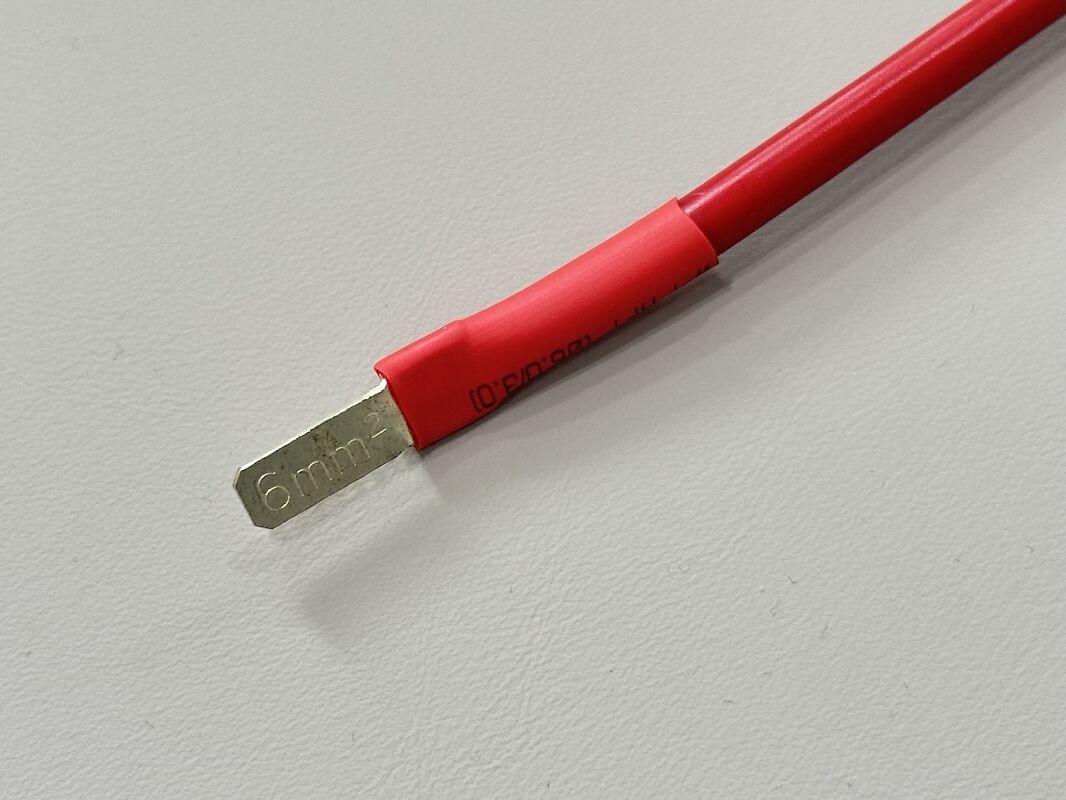

This DC battery cable assembly uses a tinned copper power wire with a flat tab connector on one side and a ring terminal connector on the other, providing a robust solution for high-current DC power transmission. The crimped terminals are protected with heat-shrink tubing to enhance mechanical strength and insulation performance.

The cable jacket is made from flame-retardant PVC or XLPE, offering good flexibility, abrasion resistance and electrical insulation in demanding electrical and electronic systems. Tin-plated terminals and conductor surfaces ensure low contact resistance and long-term corrosion resistance, even in humid or vibration-prone environments.

As a professional wire harness and connector manufacturer, we support full customization of wire gauge, length, connector type, terminal size and labeling, to match different PCB layouts, power distribution blocks, automotive batteries, photovoltaic combiner boxes, server power shelves and other applications.

Applications

Connection between battery packs and DC busbars, circuit breakers or power distribution units

Solar energy storage systems, DC combiner boxes and inverter DC input wiring

Automotive and off-road vehicles for starter battery, auxiliary battery or chassis grounding connections

Industrial power supplies, UPS systems and telecom base station DC cabinets

Custom electrical cabinets and low-voltage DC panels requiring reliable high-current connector cable assemblies
