Our SATA connector series is designed for stable data transmission and high reliability. With customizable pin count, pitch, materials, and plating specifications, we offer tailored solutions for diverse applications. Produced in our automated facilities with strict quality control, these connectors ensure excellent durability, heat resistance, and hot-swap performance. Widely used in computers, servers, and industrial storage devices, they deliver precision connection and long-lasting performance.
ShuangYi Precision — Powering Smarter Connections.
Why Choose Us:
• Free samples available for quality evaluation.
• Support for both OEM & ODM customization.
• Trade Terms: EXW, FOB, CIF, CPT, etc.
Notice: The displayed price is only for reference. Contact us now for the best offer and detailed quotation!

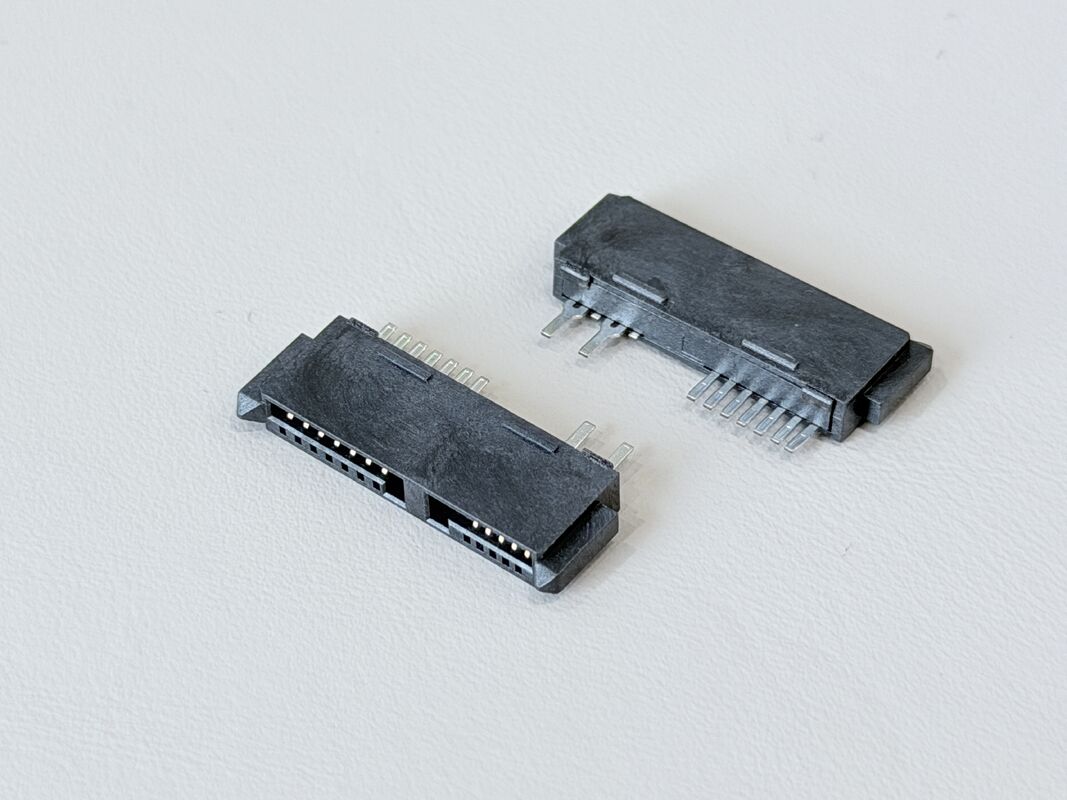

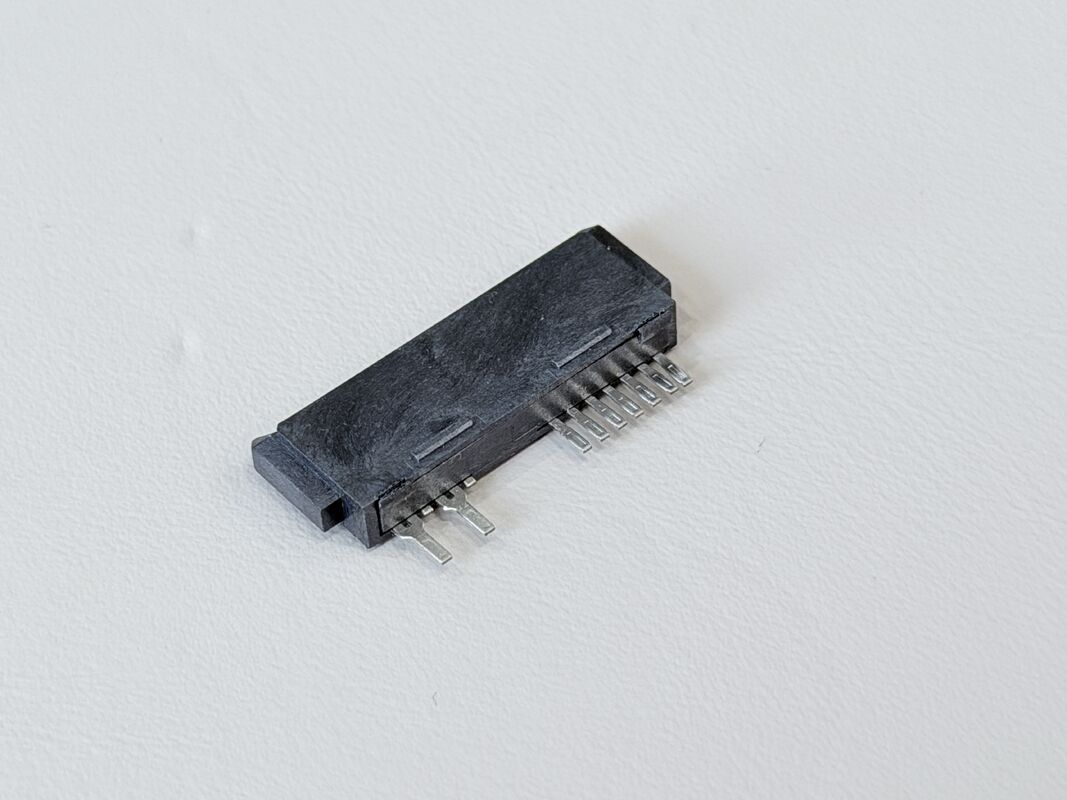

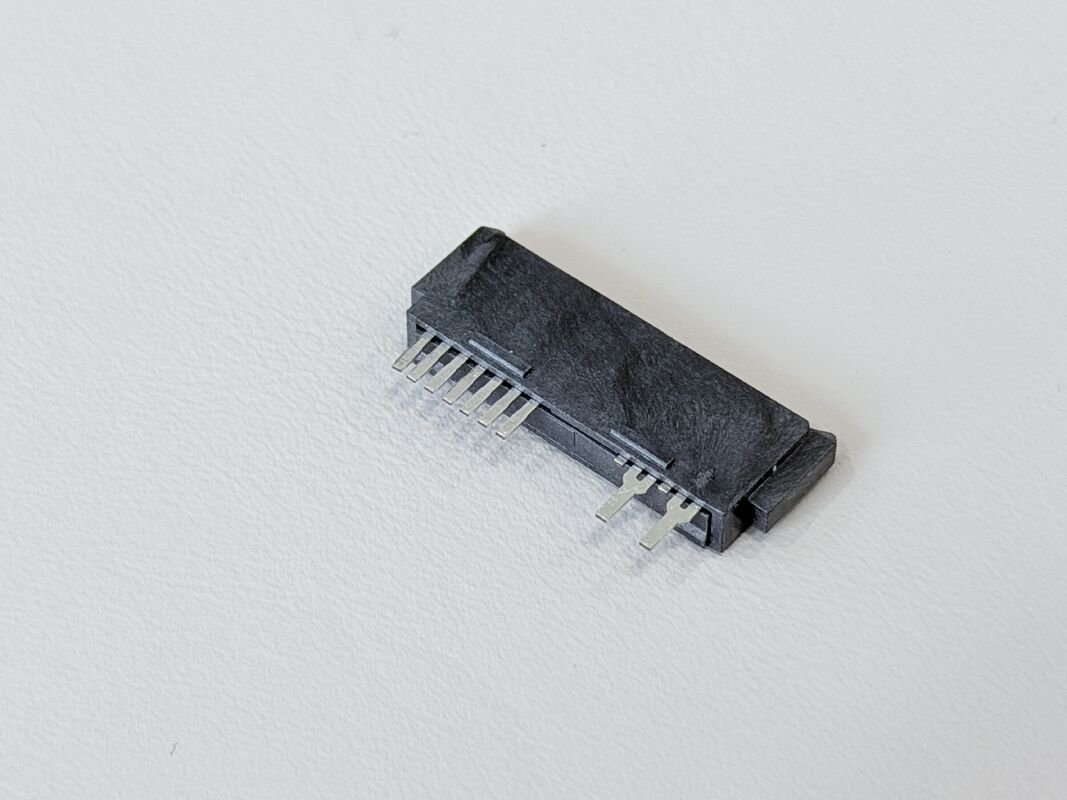

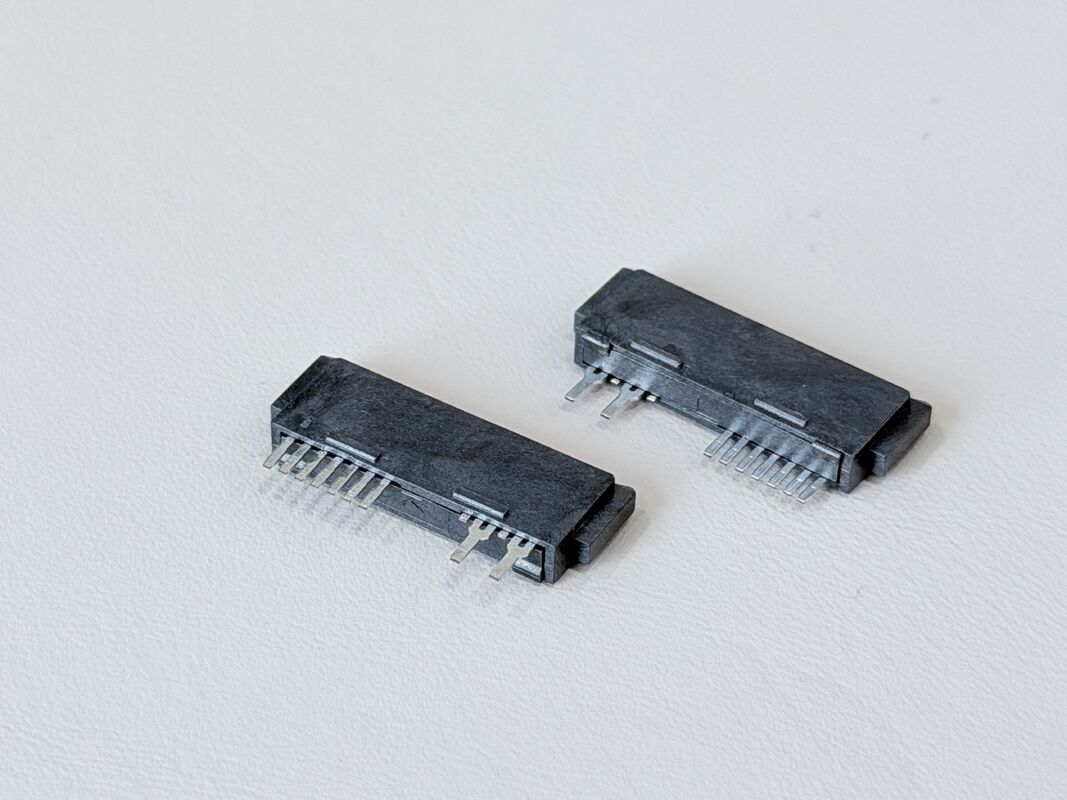

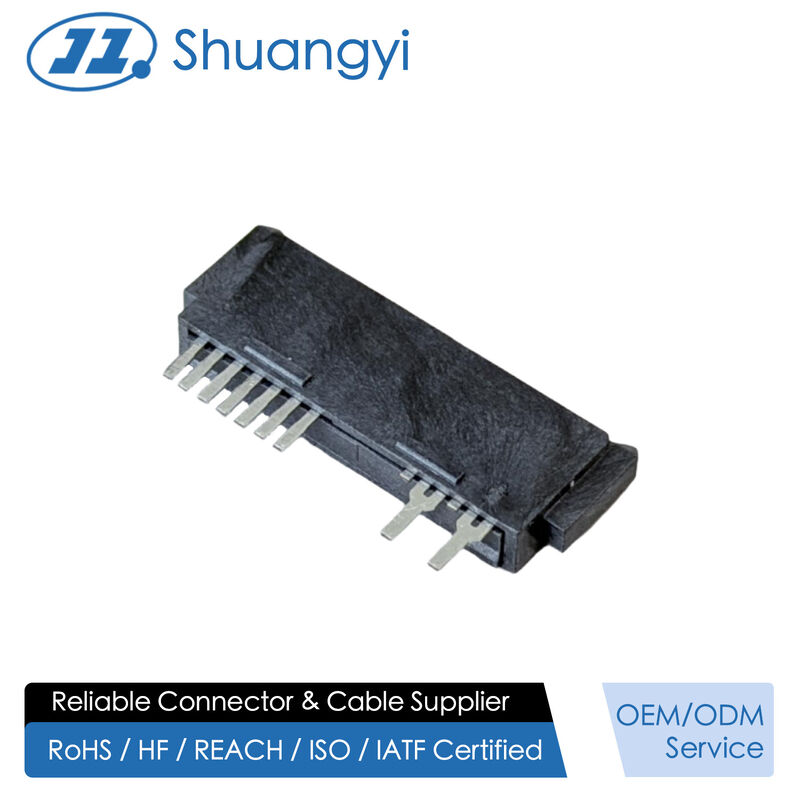

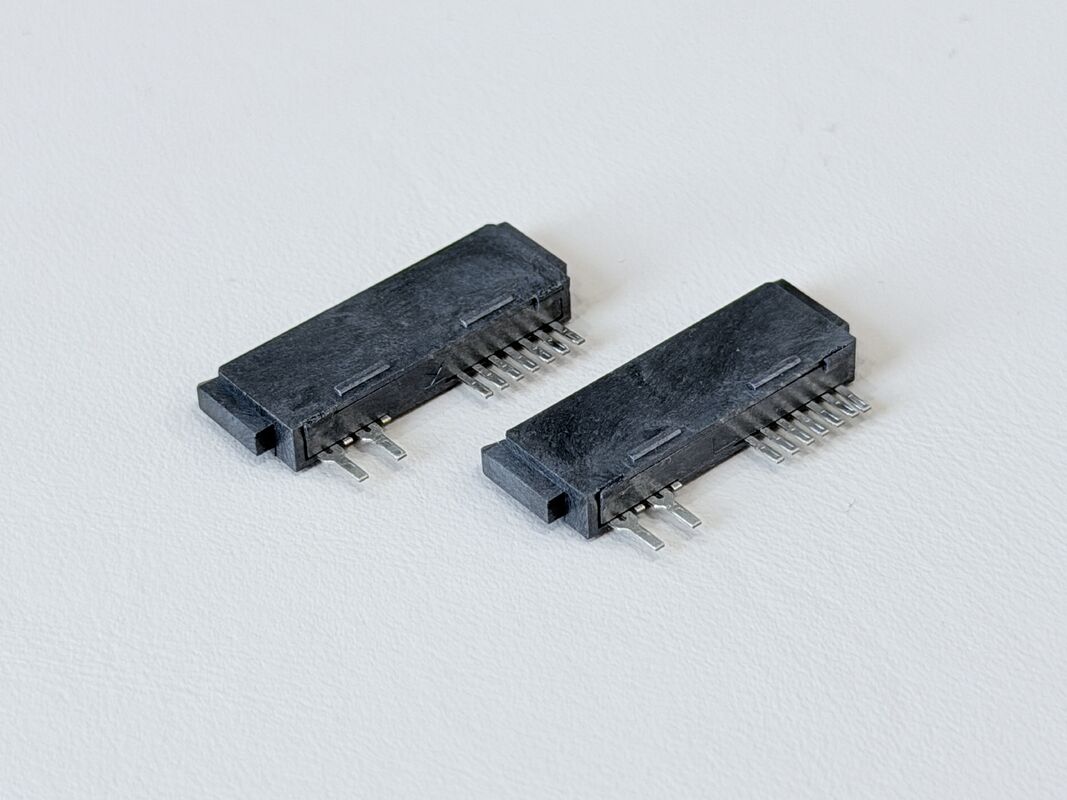

This SATA 13P 180° solder wire female connector is engineered for compact, high-reliability wire harness applications where stable electrical signal and power transmission are critical. With a 1.27mm pitch and SATA 13-pin interface, it is ideal for SATA wire cables used in servers, storage devices, automotive ECUs and industrial controllers.
The terminals are made from phosphor bronze C5191-H (0.25mm) and feature a robust plating structure: 50µ" nickel underplate to prevent corrosion, 15µ" gold G/F on the contact area to maintain low contact resistance for high-speed signals, and 80µ" matte tin on the wire-soldering area for strong, reliable bonding to the cable. Electrical performance includes a rating of 1.5A @ 40VAC, contact resistance ≤30mΩ, insulation resistance ≥1000MΩ, and withstand voltage 500VAC / minute, ensuring safe operation in demanding electronic systems.
Mechanically, the 180° solder-type wire termination combined with the reinforced housing delivers controlled mating/unmating forces and a single-pin retention force of at least 0.8kgf, improving vibration and pull-out resistance in finished wire harnesses. The black UL94-V0 glass-filled LCP housing, compliant with RoHS 2.0 and halogen-free requirements, provides excellent heat resistance and dimensional stability, making this connector suitable for automated soldering and mass-production cable assembly.
With support for custom wire length, cable gauge and harness layout, this SATA 13Pin 180° solder wire female connector is an excellent choice for OEMs that need a compact, dependable connector solution for electrical / electronic wire cable, automotive wiring, server transmission and power signal customization projects.
| Product Type |
SATA 13P 180° solder-type female connector, gold-plated 15µ" G/F |
| Interface Series |
SATA series, 13-pin female connector |
| Number of Positions |
13 pins |
| Pitch of Housing |
1.27mm (C: 1.27 pitch) |
| Termination Style |
180° solder way of terminal with wire, no PCB tail |
| Application Type |
Wire cable / harness signal & power connector |
| Rated Current / Voltage |
1.5A @ 40VAC |
| Operating Temperature |
–20°C to +85°C |
| Contact Resistance |
≤ 30mΩ (Max) |
| Insulation Resistance |
≥ 1000MΩ (Min) |
| Withstand Voltage |
500VAC / minute |
| Mating Force |
≤ 45N Max |
| Unmating Force |
≥ 15N Min (1–5 cycles), ≥ 10N Min (6–50 cycles) |
| Single Pin Retention |
≥ 0.8kgf per pin |
| Terminal Base Material |
Phosphor Bronze C5191-H, t = 0.25mm (TS-A06F-S09 / TS-C07F-S07) |
| Terminal Plating – Underlayer |
Ni 50µ" Min plated over terminal |
| Terminal Plating – Contact Area |
Au 15µ" G/F plated on contact area |
| Terminal Plating – Wire Area |
Tin 80µ" Min plated on solder/crimp area |
| Housing Material |
LCP G/F Black UL94-V0, halogen-free (HSS-C13F-A09) |
| Environmental Compliance |
RoHS 2.0 & HF compliant |
| Typical Uses |
Electrical / electronic wire cable assemblies, SATA signal & power harnesses for server, storage, automotive, industrial equipment |
⚙️ Applications
- Server & Data Center Equipment – Used as SAS / SATA electronic signal and power connectors on HDD/SSD backplanes, RAID cards, JBOD/NAS and 1U/2U server boards.
- Communication & Networking Systems – For routers, switches, base stations and other networking equipment that need compact PCB connectors and reliable high-speed transmission.
- Industrial & Automation Electronics – Applied in industrial PCs, PLCs, motion controllers, data loggers and test instruments as PCB-to-wire or cable connectors.
- Automotive & New Energy Applications – Used in in-vehicle data recorders, infotainment units, EV chargers and energy-storage systems for signal and low-power transmission.
- Custom Wire Harness & Cable Assemblies – Suitable for OEM/ODM projects that require connector customization for PCB, wire and cable layouts in electrical and electronic devices.
⚠️ Notes
- Make sure the working voltage, current and temperature of your design stay within the connector’s rated values, with proper safety margin.
- Design PCB pads, holes and mechanical space according to the drawing and pitch, and avoid bending or twisting stress on the connector after soldering or assembly.
- Select appropriate wire gauge, insulation and cable structure based on current load, signal speed and bending requirements for both power and signal terminals.
- For IDC / crimp types, use matched tooling and press-force to ensure full insulation displacement; for solder types, follow a controlled soldering profile to avoid overheating the LCP housing.
- Insert and pull out the connector along the mating direction, avoid pulling on the cable itself, and do not exceed the specified mating/unmating force or durability cycles.
- Keep gold-plated contact areas clean and dry, avoid touching them with bare fingers, and store products in dry anti-static packaging before assembly.
