Our SATA connector series is designed for stable data transmission and high reliability. With customizable pin count, pitch, materials, and plating specifications, we offer tailored solutions for diverse applications. Produced in our automated facilities with strict quality control, these connectors ensure excellent durability, heat resistance, and hot-swap performance. Widely used in computers, servers, and industrial storage devices, they deliver precision connection and long-lasting performance.
ShuangYi Precision — Powering Smarter Connections.
Why Choose Us:
• Free samples available for quality evaluation.
• Support for both OEM & ODM customization.
• Trade Terms: EXW, FOB, CIF, CPT, etc.
Notice: The displayed price is only for reference. Contact us now for the best offer and detailed quotation!

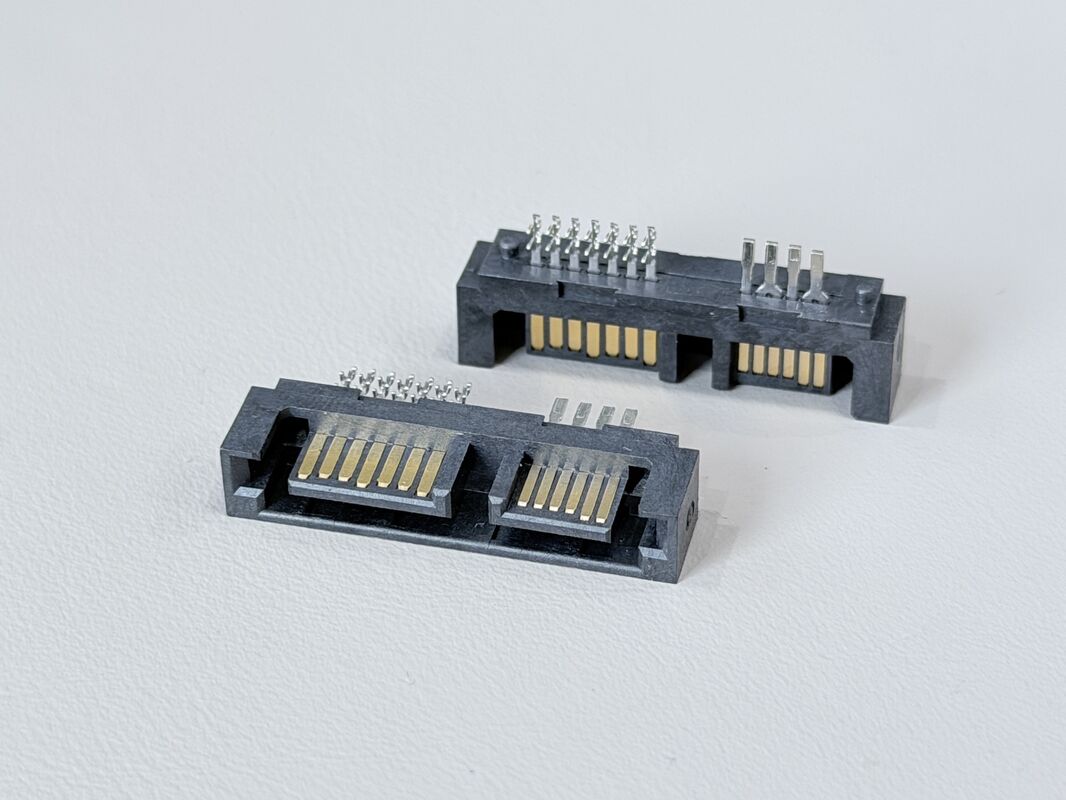

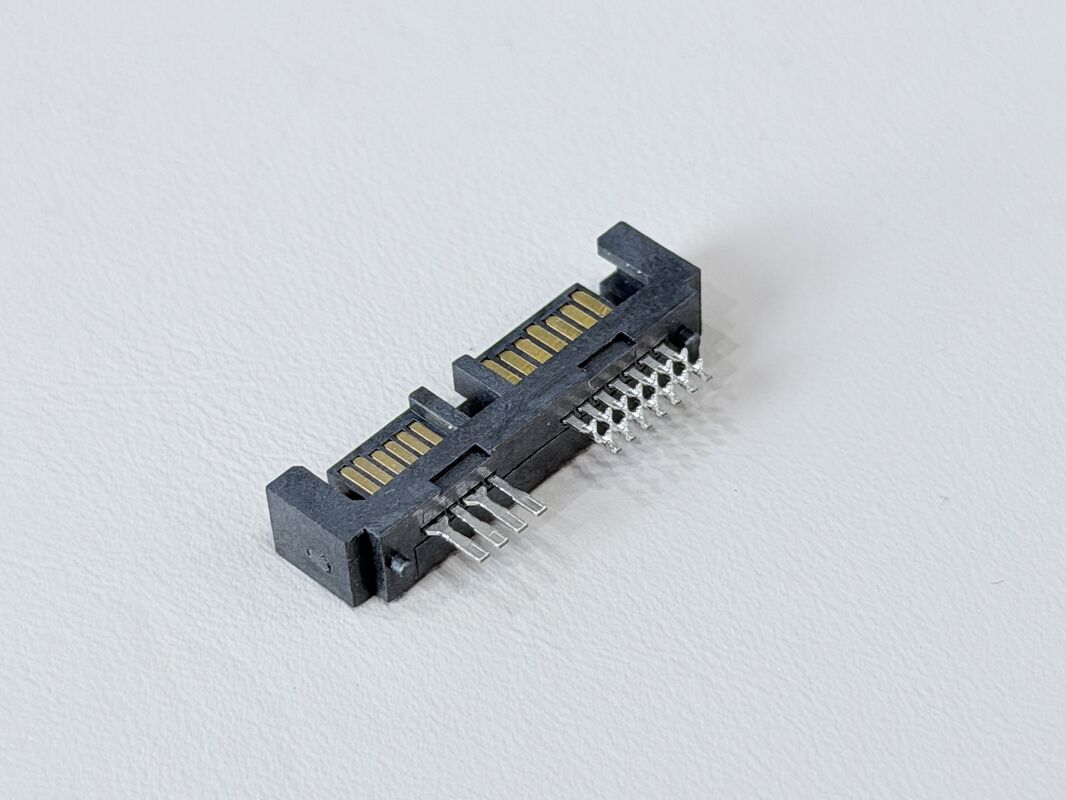

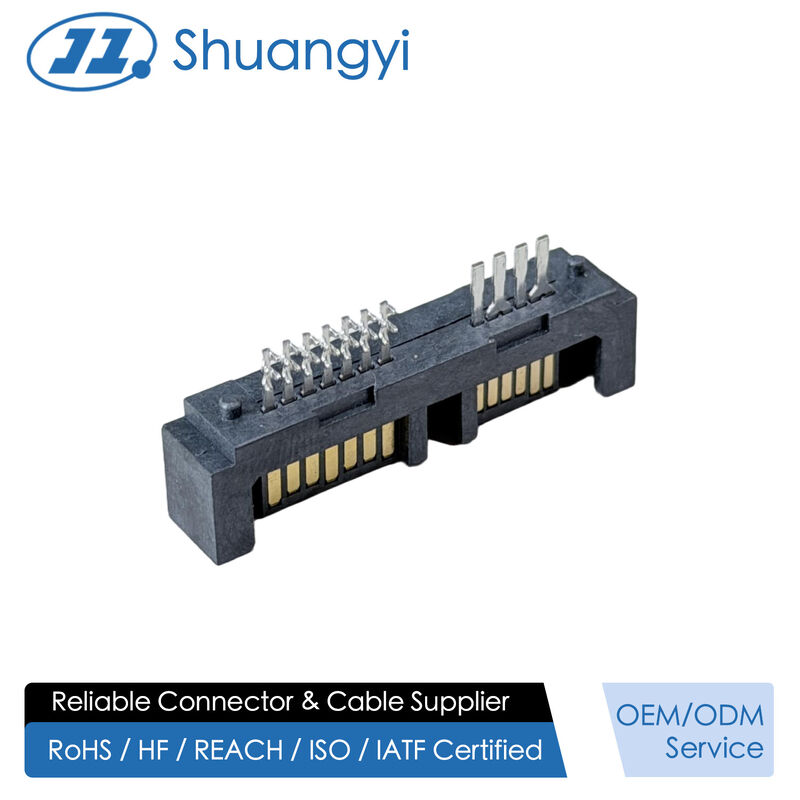

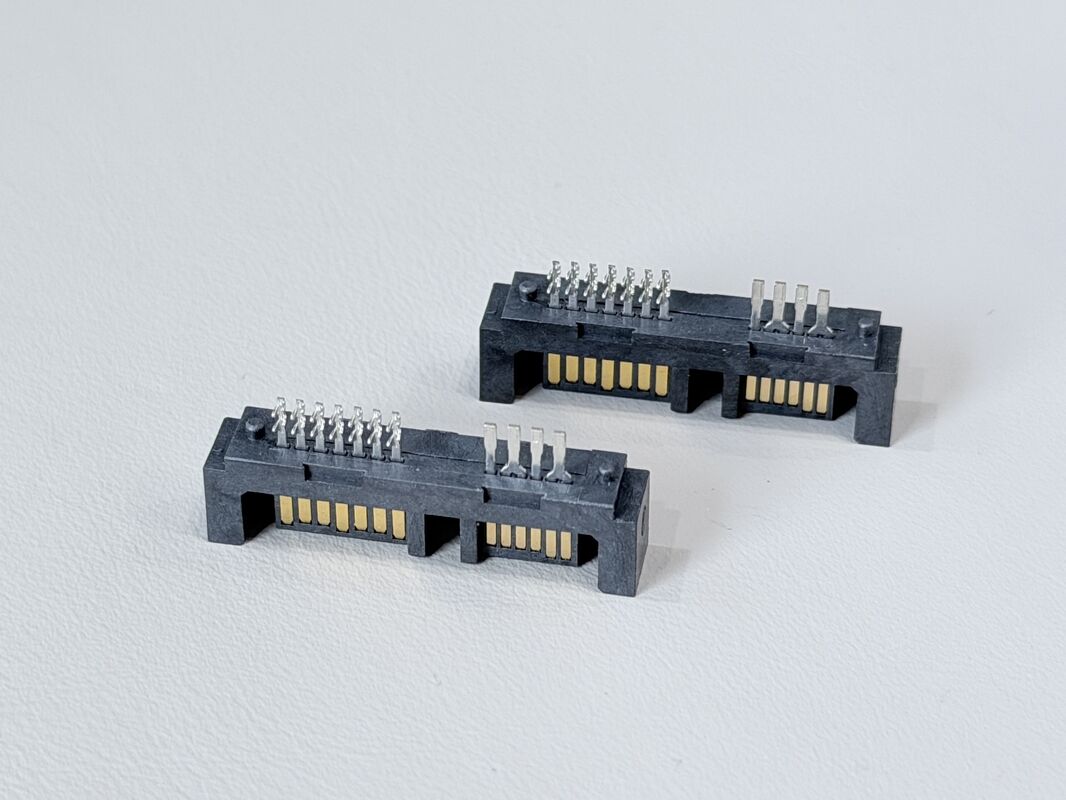

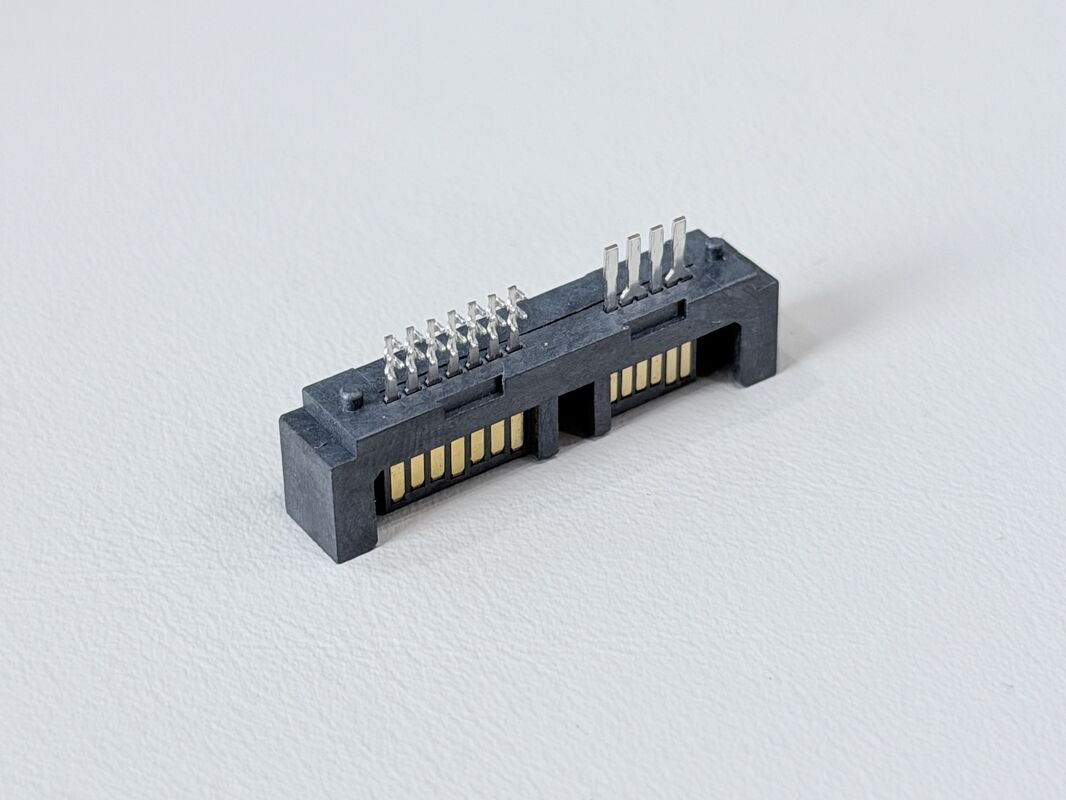

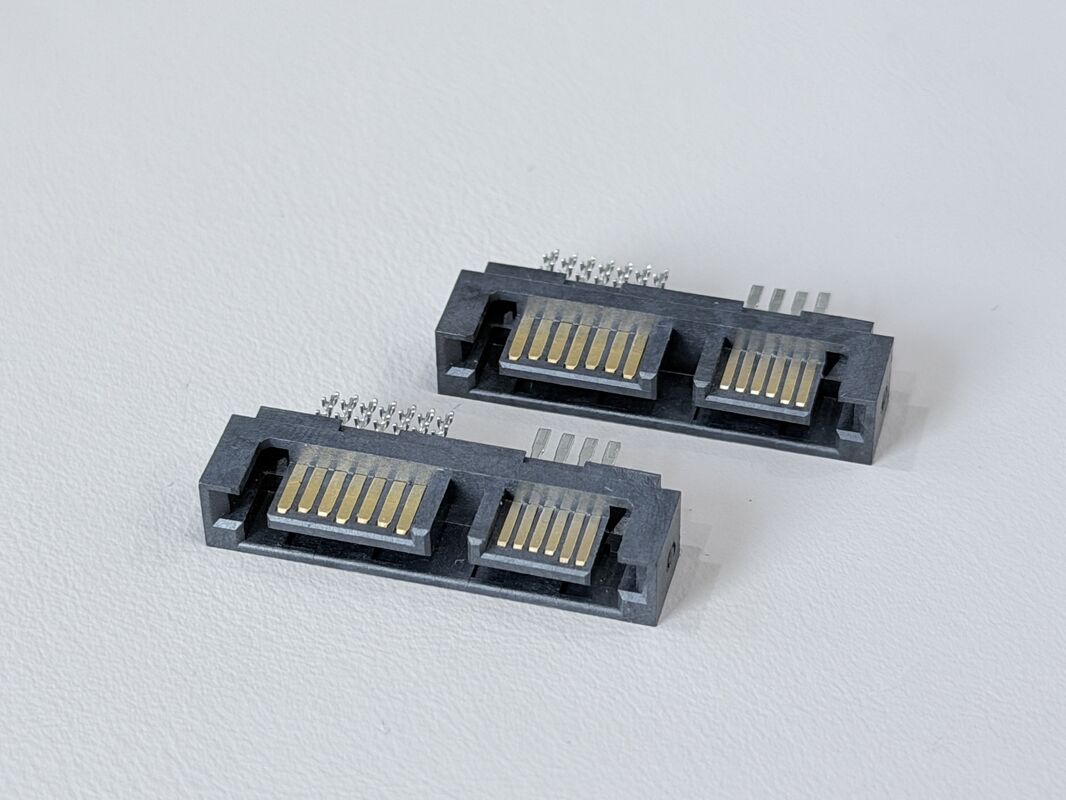

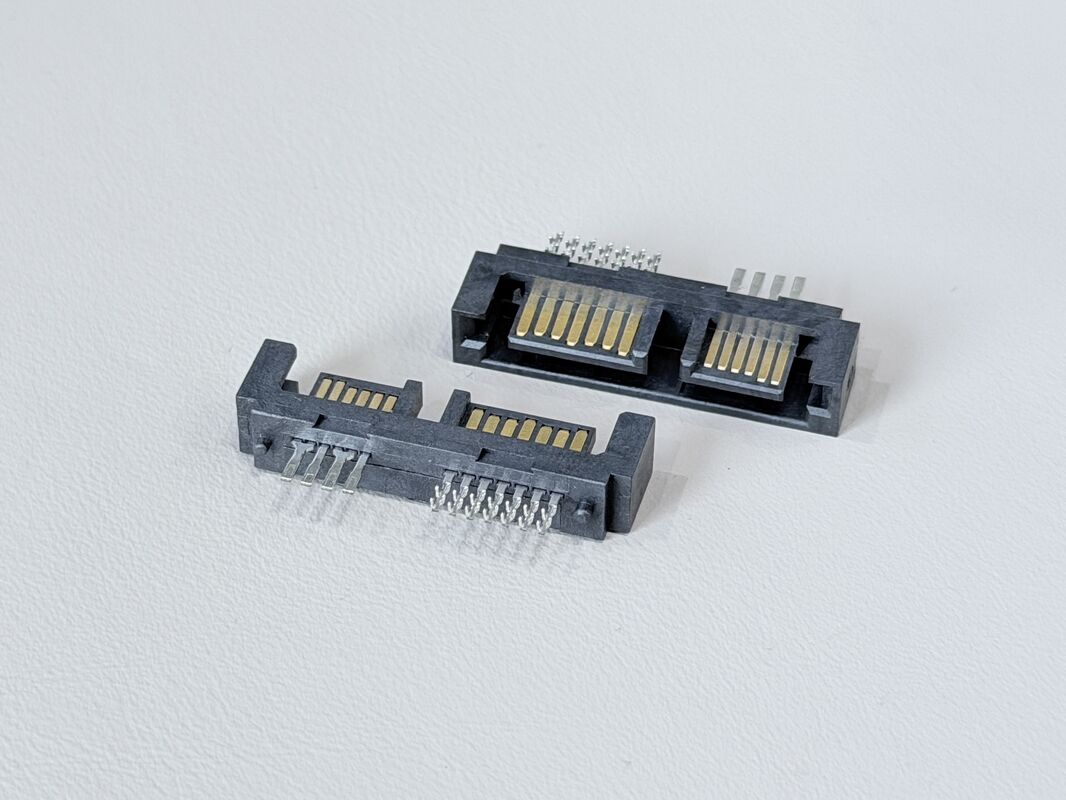

The SATA 13P 180° male wire cable connector is designed for compact, high-reliability electrical and electronic signal / power transmission in modern equipment. With a 1.27mm pitch and 13-pin SATA interface, it is ideal for custom wire harness and cable assemblies used in servers, storage devices, automotive systems and industrial controllers.
Terminals are manufactured from Brass C2680-H (0.25mm) with a robust three-layer plating structure: 50µ" nickel underplate for corrosion protection, 15µ" gold flash (G/F) on the contact area to maintain low contact resistance ≤30mΩ, and 80µ" tin on the wire-crimp / solder area to ensure strong, stable bonding to the cable. The connector is rated at 1.5A @ 40VAC, provides insulation resistance ≥1000MΩ, and withstands 500VAC per minute, delivering safe and consistent performance in demanding electrical environments.
Mechanically, the 180° wire-end termination (N2) and optimized housing design provide controlled mating force ≤45N, high static unmating force ≥25N and single-pin retention ≥0.8kgf, improving resistance to vibration and pull-out in cable harness applications. The glass-filled LCP housing (Black UL94-V0) offers excellent heat resistance and dimensional stability, making the connector suitable for automated crimping, soldering and over-molding processes.
Using RoHS-compliant materials and supporting customization of wire length, cable specification and harness layout, this SATA 13Pin 180° male wire cable connector is an excellent choice for OEMs seeking a high-reliability pin terminal connector for server, automotive and industrial power / signal transmission projects.
| Product Type |
SATA 13P 180° male wire-end connector, gold-plated 15u" |
| Interface Series |
SATA series 13-pin male connector |
| Number of Positions |
13 pins |
| Pitch of Housing |
1.27mm (C: 1.27 pitch) |
| Termination Style |
180° wire terminal connection (N2: way of 180° terminal with wire) |
| Application Type |
Wire / cable harness connector for signal & power transmission |
| Rated Current / Voltage |
1.5A @ 40VAC |
| Operating Temperature |
–20°C to +85°C |
| Contact Resistance |
≤ 30mΩ (Max) |
| Insulation Resistance |
≥ 1000MΩ (Min) |
| Withstand Voltage |
500VAC / minute |
| Mating Force |
≤ 45N Max |
| Unmating Force |
≥ 25N static removal force, no damage |
| Single Pin Retention |
≥ 0.8kgf per pin |
| Terminal Base Material |
Brass C2680-H, t = 0.25mm (TS-A06M-S03 / TS-C07M-C05) |
| Terminal Plating – Underlayer |
Ni 50µ" Min plated over terminal |
| Terminal Plating – Contact Area |
Au 15µ" G/F plated on contact area |
| Terminal Plating – Wire Area |
Tin 80µ" Min on solder & crimp area |
| Housing Material |
LCP G/F Black UL94-V0 (HSS-C13M-B06) |
| Environmental Compliance |
RoHS 2.0 compliant |
| Typical Uses |
Electrical / electronic wire cable assemblies, SATA signal & power harnesses for servers, storage devices, automotive electronics, industrial control and custom wire harness transmission |
⚙️ Applications
- Server & Data Center Equipment – Used as SAS / SATA electronic signal and power connectors on HDD/SSD backplanes, RAID cards, JBOD/NAS and 1U/2U server boards.
- Communication & Networking Systems – For routers, switches, base stations and other networking equipment that need compact PCB connectors and reliable high-speed transmission.
- Industrial & Automation Electronics – Applied in industrial PCs, PLCs, motion controllers, data loggers and test instruments as PCB-to-wire or cable connectors.
- Automotive & New Energy Applications – Used in in-vehicle data recorders, infotainment units, EV chargers and energy-storage systems for signal and low-power transmission.
- Custom Wire Harness & Cable Assemblies – Suitable for OEM/ODM projects that require connector customization for PCB, wire and cable layouts in electrical and electronic devices.
⚠️ Notes
- Make sure the working voltage, current and temperature of your design stay within the connector’s rated values, with proper safety margin.
- Design PCB pads, holes and mechanical space according to the drawing and pitch, and avoid bending or twisting stress on the connector after soldering or assembly.
- Select appropriate wire gauge, insulation and cable structure based on current load, signal speed and bending requirements for both power and signal terminals.
- For IDC / crimp types, use matched tooling and press-force to ensure full insulation displacement; for solder types, follow a controlled soldering profile to avoid overheating the LCP housing.
- Insert and pull out the connector along the mating direction, avoid pulling on the cable itself, and do not exceed the specified mating/unmating force or durability cycles.
- Keep gold-plated contact areas clean and dry, avoid touching them with bare fingers, and store products in dry anti-static packaging before assembly.
