High-Reliability SATA 13Pin 180° Right-Angle Wire Solder Female Connector with Latch 1.27mm Pitch | Electronic Signal & Power Terminal Connector for Server, Storage, Automotive Cable & Custom Wire Har

High-Reliability SATA 13Pin 180° Right-Angle Wire Solder Female Connector with Latch 1.27mm Pitch | Electronic Signal & Power Terminal Connector for Server, Storage, Automotive Cable & Custom Wire Har

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA-C13F-B2S5A5-00LH

Contact Us
Request A Quote
Product Details
Housing Material:
LCP
Terminal Material:
Phosphor Bronze C5191-H
Type:
180° Solder Way Of Terminal With Wire (solder Wire Connection)
Rated Current / Voltage:
1.5A @ 40VAC
Contact Resistance:
≤ 30 MΩ
Insulation Resistance:
≥ 1000 MΩ
Withstand Voltage:
500VAC / Minute
Operating Temperature:
-20°C ~ +85°C
Plating:
Au G/F Plated On Contact Area
Environmental Standard:
ROHS 2.0
Payment & Shipping Terms
Minimum Order Quantity
1000
Price
$0.09-0.16 PCS FOB
Packaging Details
Tape and Reel, 1500 per case, 10KG
Delivery Time
8-15 working days
Payment Terms
T/T
Supply Ability
500000 pcs per month
Product Description

Our SATA connector series is designed for stable data transmission and high reliability. With customizable pin count, pitch, materials, and plating specifications, we offer tailored solutions for diverse applications. Produced in our automated facilities with strict quality control, these connectors ensure excellent durability, heat resistance, and hot-swap performance. Widely used in computers, servers, and industrial storage devices, they deliver precision connection and long-lasting performance.
ShuangYi Precision — Powering Smarter Connections.
Why Choose Us:
• Free samples available for quality evaluation.
• Support for both OEM & ODM customization.
• Trade Terms: EXW, FOB, CIF, CPT, etc.
Notice: The displayed price is only for reference. Contact us now for the best offer and detailed quotation!

This SATA 13P 180° right-angle wire solder female connector with latch is designed for compact, high-reliability cable assemblies in SATA-based systems. With a 1.27mm pitch and 13-pin female interface, it supports combined high-speed signal and low-power transmission for servers, storage devices, automotive electronics and industrial controllers.

The connector uses phosphor bronze C5191-H terminals with a robust three-layer plating system: 50µ" Ni underplate for corrosion protection, 15µ" hard gold on the contact area to keep contact resistance low, and 80µ" matte tin on the solder area for strong and stable wire termination. Electrical performance is rated at 1.5A @ 40VAC, contact resistance ≤30mΩ, insulation resistance ≥1000MΩ, and withstand voltage 500VAC / minute, ensuring stable operation in demanding electrical environments.

Mechanically, the 180° right-angle structure and integrated spring latch provide secure locking to the mating connector, improving resistance to vibration, pull-out and shock during use and transport. Controlled mating/unmating forces and single-pin retention ≥0.8kgf help maintain reliability in dense cable harnesses. The UL94-V0 glass-filled LCP housing offers excellent heat resistance and dimensional stability, suitable for automated soldering and mass production.

Thanks to its wire-solder termination, latch design and gold-plated contacts, this SATA 13Pin female connector is an ideal choice for customized electrical / electronic wire cable assemblies, server and storage backplanes, automotive control units and other applications requiring reliable, space-saving signal and power connector solutions.

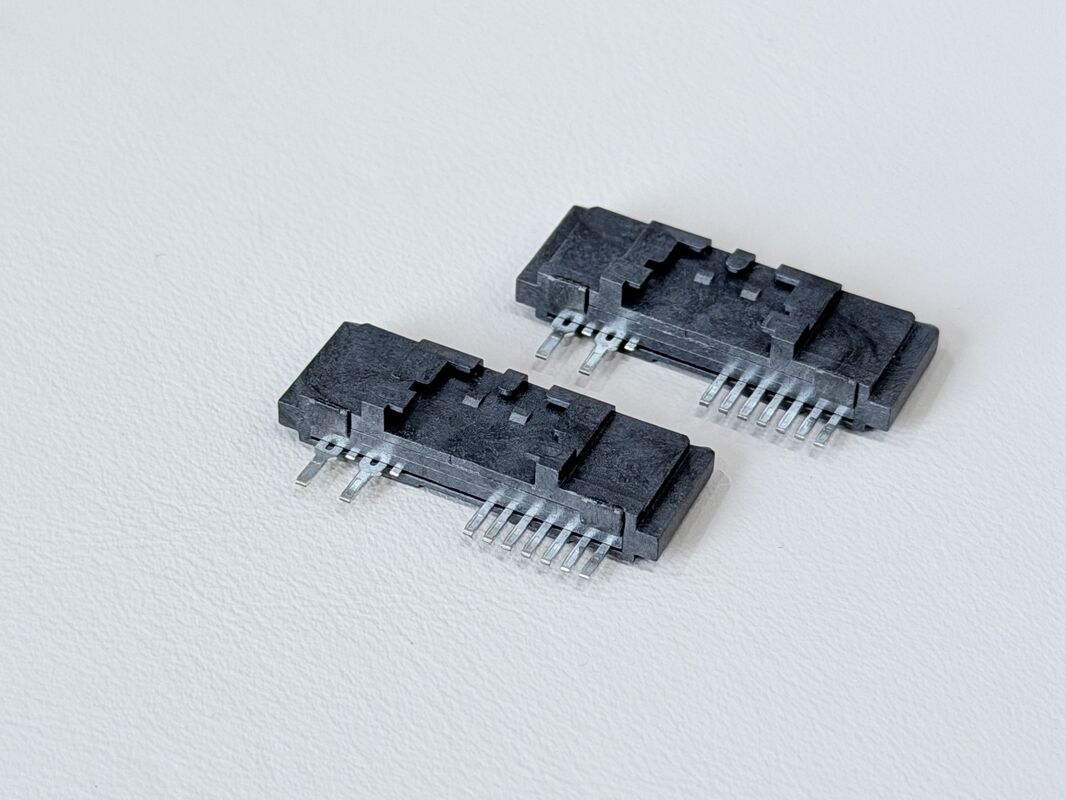

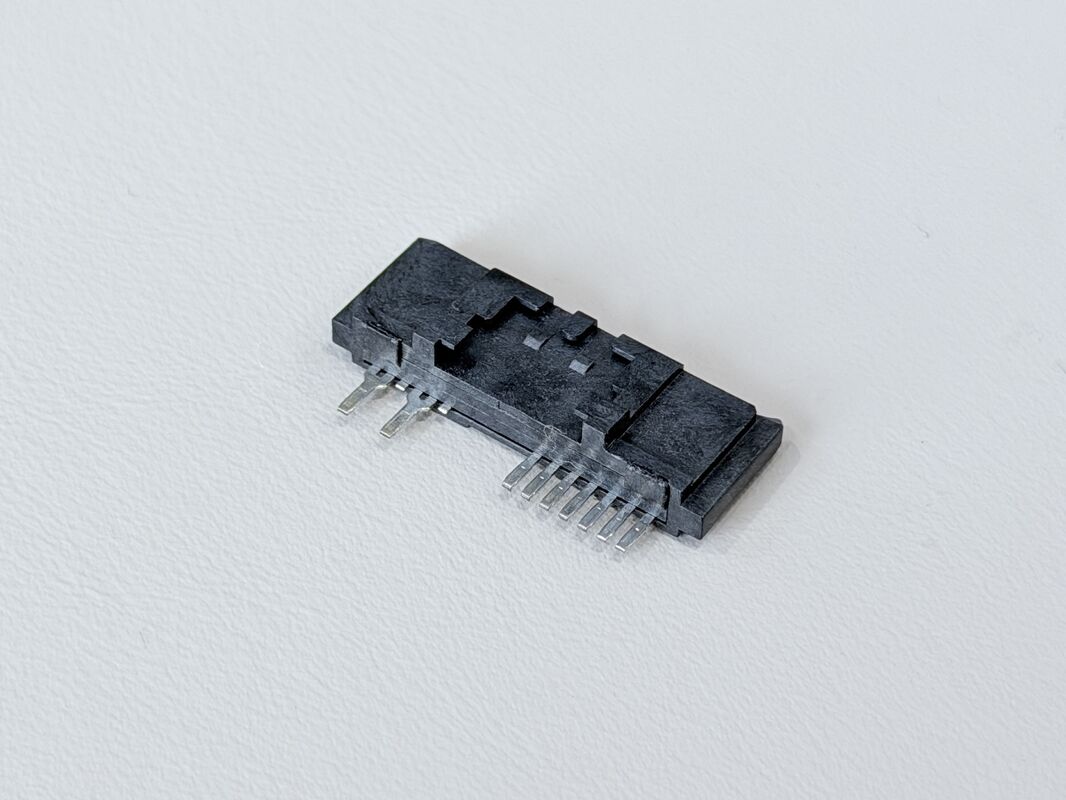

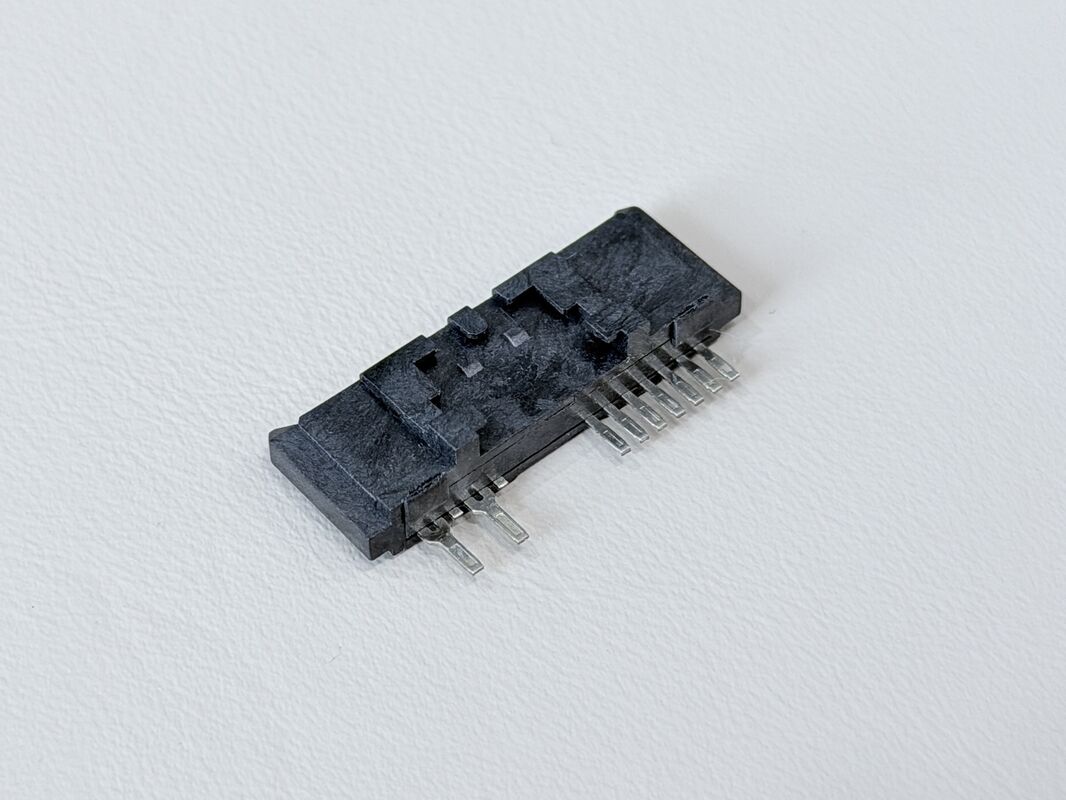

High-Reliability SATA 13Pin 180° Right-Angle Wire Solder Female Connector with Latch 1.27mm Pitch | Electronic Signal & Power Terminal Connector for Server, Storage, Automotive Cable & Custom Wire Har 0High-Reliability SATA 13Pin 180° Right-Angle Wire Solder Female Connector with Latch 1.27mm Pitch | Electronic Signal & Power Terminal Connector for Server, Storage, Automotive Cable & Custom Wire Har 1High-Reliability SATA 13Pin 180° Right-Angle Wire Solder Female Connector with Latch 1.27mm Pitch | Electronic Signal & Power Terminal Connector for Server, Storage, Automotive Cable & Custom Wire Har 2

Product Type SATA 13P 180° right-angle wire solder female connector with latch, gold-plated contacts
Interface Series SATA series, 13-pin female connector
Number of Positions 13 pins
Pitch of Housing 1.27mm
Termination Style 180° solder way of terminal with wire (cable-end connector, no PCB tail)
Locking Feature Integrated spring latch / clip for secure mating and vibration resistance
Orientation Right-angle, 180° horizontal cable exit
Rated Current / Voltage 1.5A @ 40VAC
Operating Temperature –20°C to +85°C
Contact Resistance ≤ 30mΩ (Max.)
Insulation Resistance ≥ 1000MΩ (Min.)
Withstand Voltage 500VAC / 1 minute
Mating / Unmating Mating force ≤ 45N; static removal force 25N without damage; single-pin retention ≥ 0.8kgf
Terminal Base Material Phosphor Bronze C5191-H, t = 0.25mm
Plating Ni 50µ" Min overall; Au 15µ" plated on contact area; Sn 80µ" Min on solder area
Housing Material LCP, glass-fiber reinforced, black, UL94-V0
Environmental Compliance RoHS 2.0 compliant
Application Type Electrical / electronic wire cable connector for signal & power transmission, custom harnesses
Typical Uses Server & storage system wiring, high-speed data equipment, automotive electronics, industrial devices where compact SATA signal/power cabling is required

⚙️ Applications

  • Server & Data Center Equipment – Used as SAS / SATA electronic signal and power connectors on HDD/SSD backplanes, RAID cards, JBOD/NAS and 1U/2U server boards.
  • Communication & Networking Systems – For routers, switches, base stations and other networking equipment that need compact PCB connectors and reliable high-speed transmission.
  • Industrial & Automation Electronics – Applied in industrial PCs, PLCs, motion controllers, data loggers and test instruments as PCB-to-wire or cable connectors.
  • Automotive & New Energy Applications – Used in in-vehicle data recorders, infotainment units, EV chargers and energy-storage systems for signal and low-power transmission.
  • Custom Wire Harness & Cable Assemblies – Suitable for OEM/ODM projects that require connector customization for PCB, wire and cable layouts in electrical and electronic devices.

⚠️ Notes

  • Make sure the working voltage, current and temperature of your design stay within the connector’s rated values, with proper safety margin.
  • Design PCB pads, holes and mechanical space according to the drawing and pitch, and avoid bending or twisting stress on the connector after soldering or assembly.
  • Select appropriate wire gauge, insulation and cable structure based on current load, signal speed and bending requirements for both power and signal terminals.
  • For IDC / crimp types, use matched tooling and press-force to ensure full insulation displacement; for solder types, follow a controlled soldering profile to avoid overheating the LCP housing.
  • Insert and pull out the connector along the mating direction, avoid pulling on the cable itself, and do not exceed the specified mating/unmating force or durability cycles.
  • Keep gold-plated contact areas clean and dry, avoid touching them with bare fingers, and store products in dry anti-static packaging before assembly.

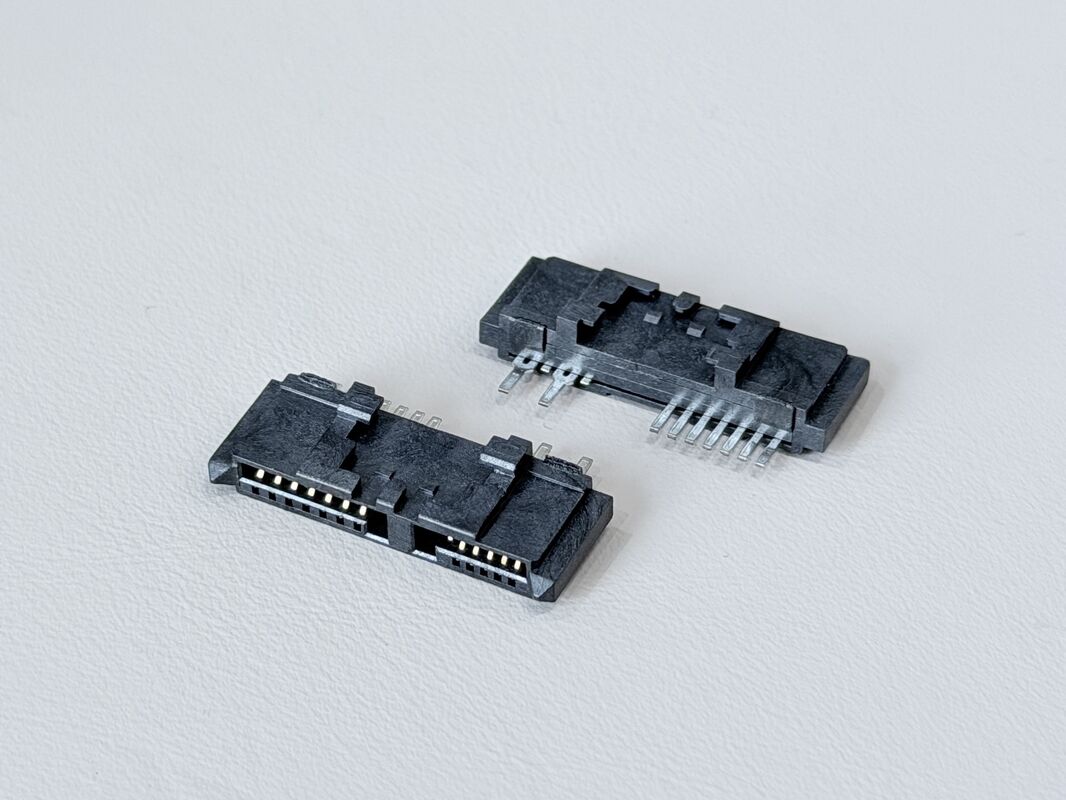

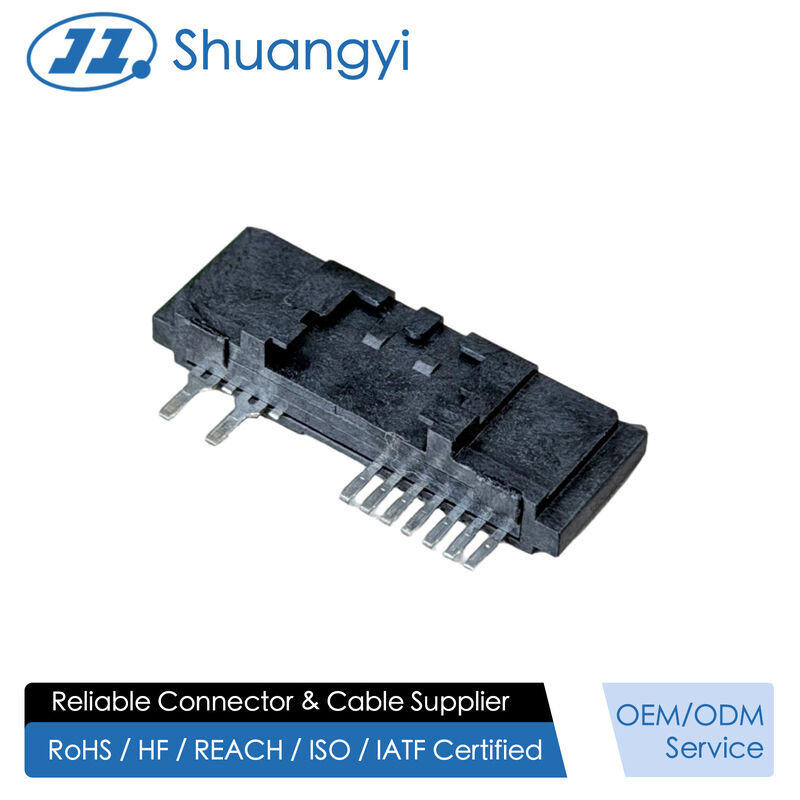

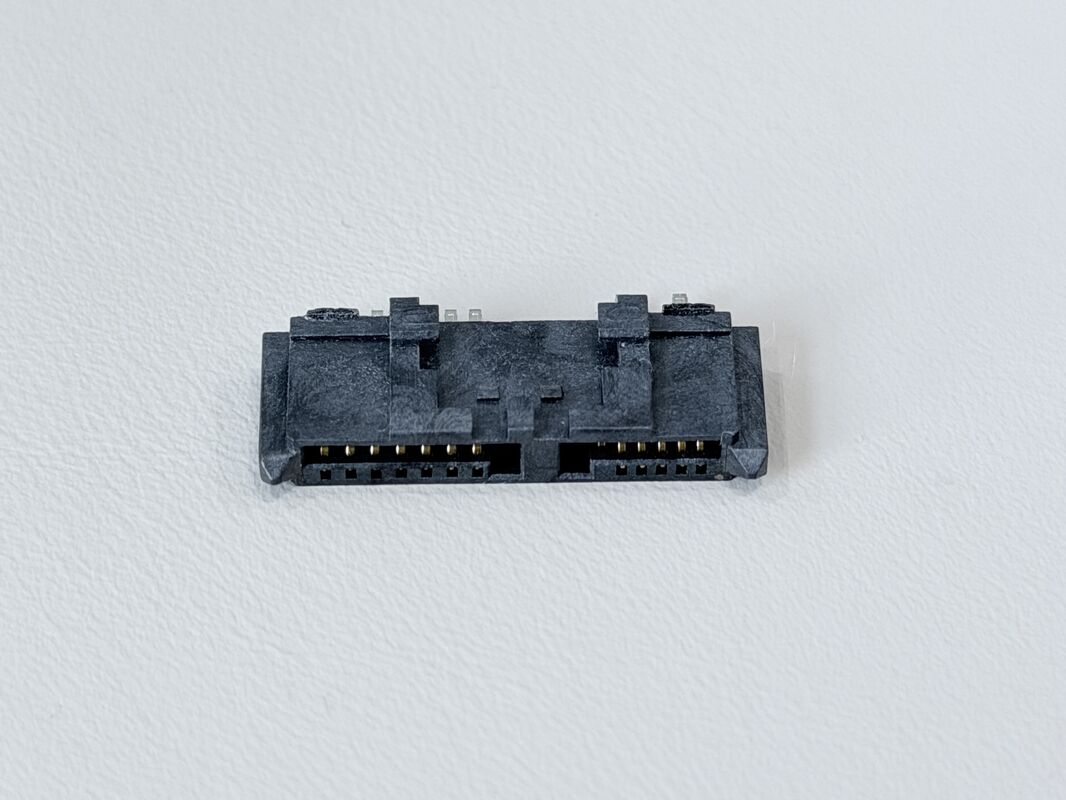

High-Reliability SATA 13Pin 180° Right-Angle Wire Solder Female Connector with Latch 1.27mm Pitch | Electronic Signal & Power Terminal Connector for Server, Storage, Automotive Cable & Custom Wire Har 3

High-Reliability SATA 13Pin 180° Right-Angle Wire Solder Female Connector with Latch 1.27mm Pitch | Electronic Signal & Power Terminal Connector for Server, Storage, Automotive Cable & Custom Wire Har 4
High-Reliability SATA 13Pin 180° Right-Angle Wire Solder Female Connector with Latch 1.27mm Pitch | Electronic Signal & Power Terminal Connector for Server, Storage, Automotive Cable & Custom Wire Har 5
High-Reliability SATA 13Pin 180° Right-Angle Wire Solder Female Connector with Latch 1.27mm Pitch | Electronic Signal & Power Terminal Connector for Server, Storage, Automotive Cable & Custom Wire Har 6
High-Reliability SATA 13Pin 180° Right-Angle Wire Solder Female Connector with Latch 1.27mm Pitch | Electronic Signal & Power Terminal Connector for Server, Storage, Automotive Cable & Custom Wire Har 7
High-Reliability SATA 13Pin 180° Right-Angle Wire Solder Female Connector with Latch 1.27mm Pitch | Electronic Signal & Power Terminal Connector for Server, Storage, Automotive Cable & Custom Wire Har 8
