Our SAS 3.0/4.0 series connectors deliver exceptional data transfer speeds of up to 24 Gb/s, ensuring stable and efficient transmission for enterprise storage and server systems. Designed with high reliability and hot-plug capability, each connector undergoes strict quality control and automated precision manufacturing. With flexible customization options and strong R&D support, our SAS connectors are ideal for both board-to-board and wire-to-board applications in enterprise storage systems, servers, and data centers requiring consistent, high-speed performance. ShuangYi Precision — Powering Smarter Connections.
ShuangYi Precision — Powering Smarter Connections.
Why Choose Us:
• Free samples available for quality evaluation.
• Support for both OEM & ODM customization.
• Trade Terms: EXW, FOB, CIF, CPT, etc.
Notice: The displayed price is only for reference. Contact us now for the best offer and detailed quotation!

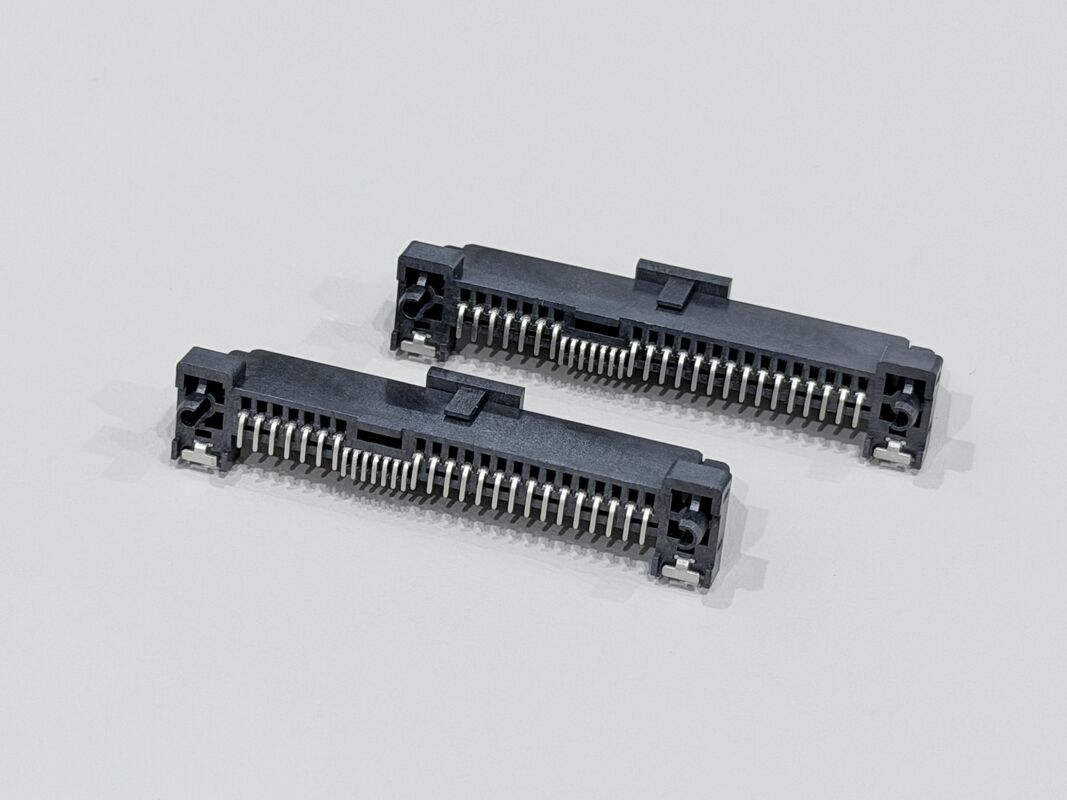

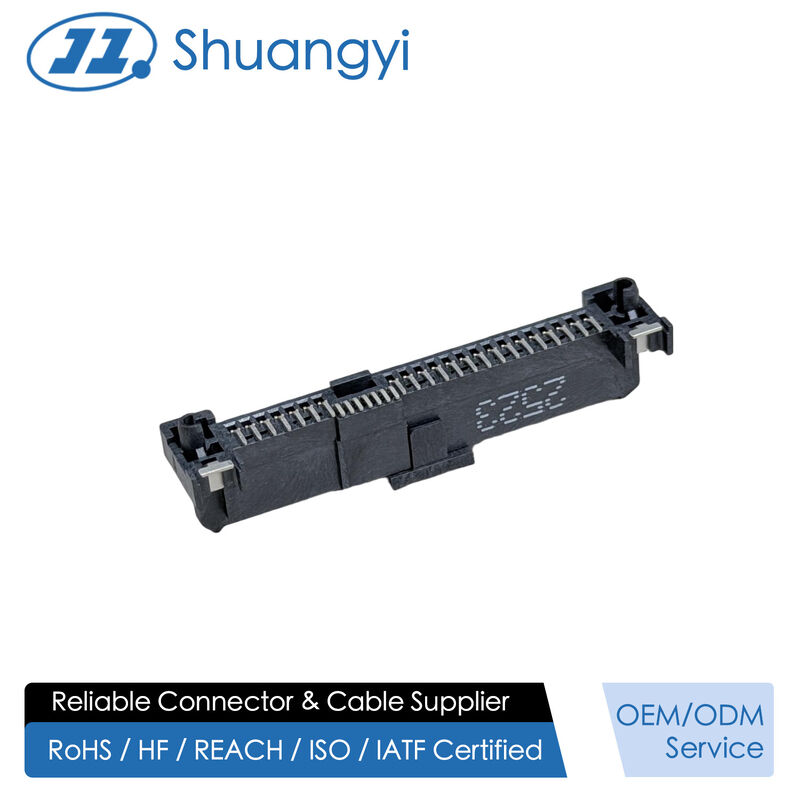

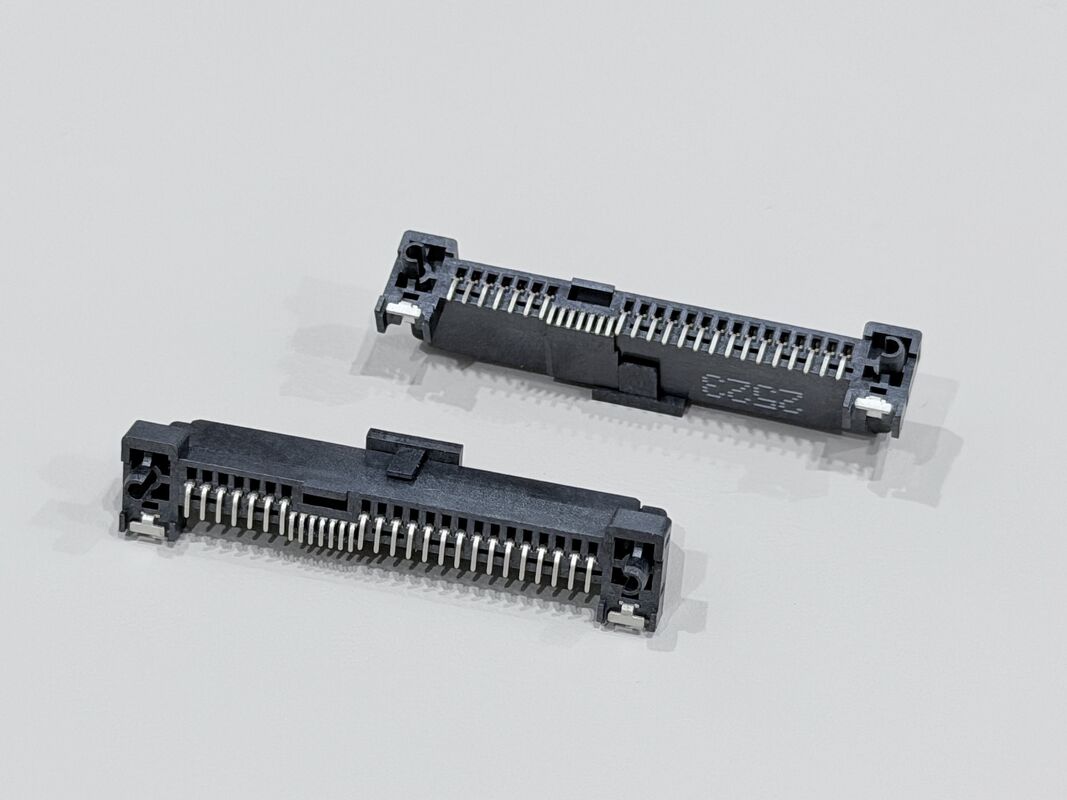

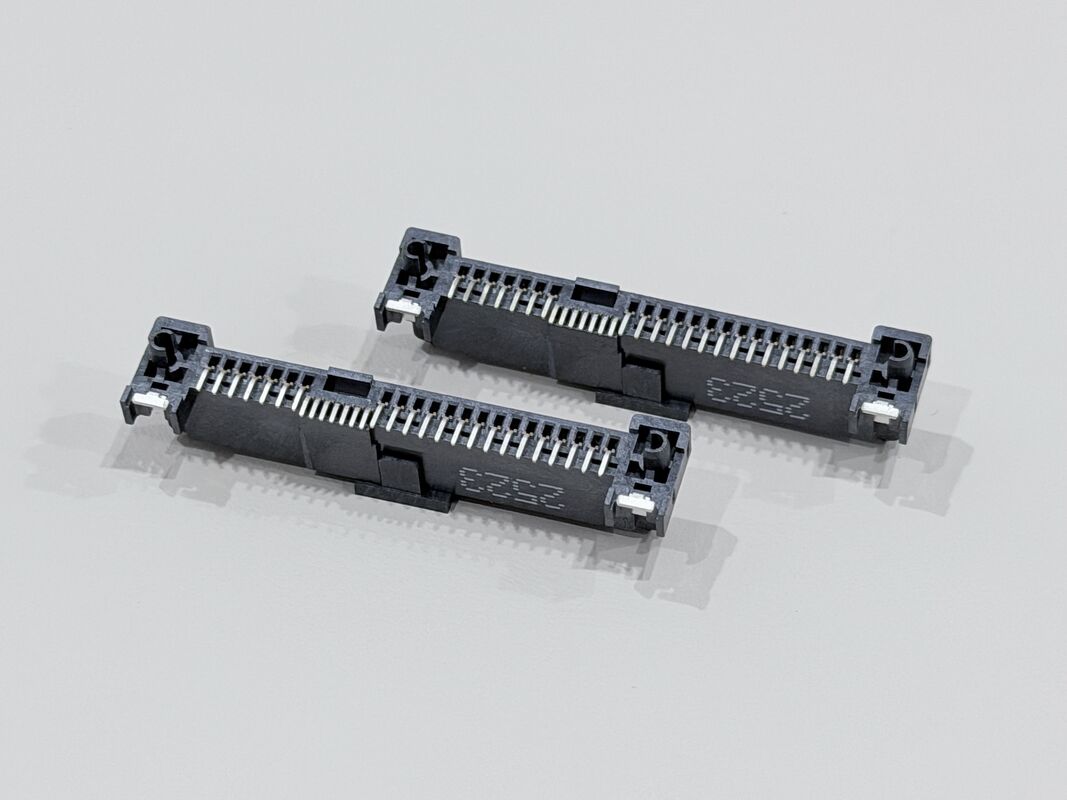

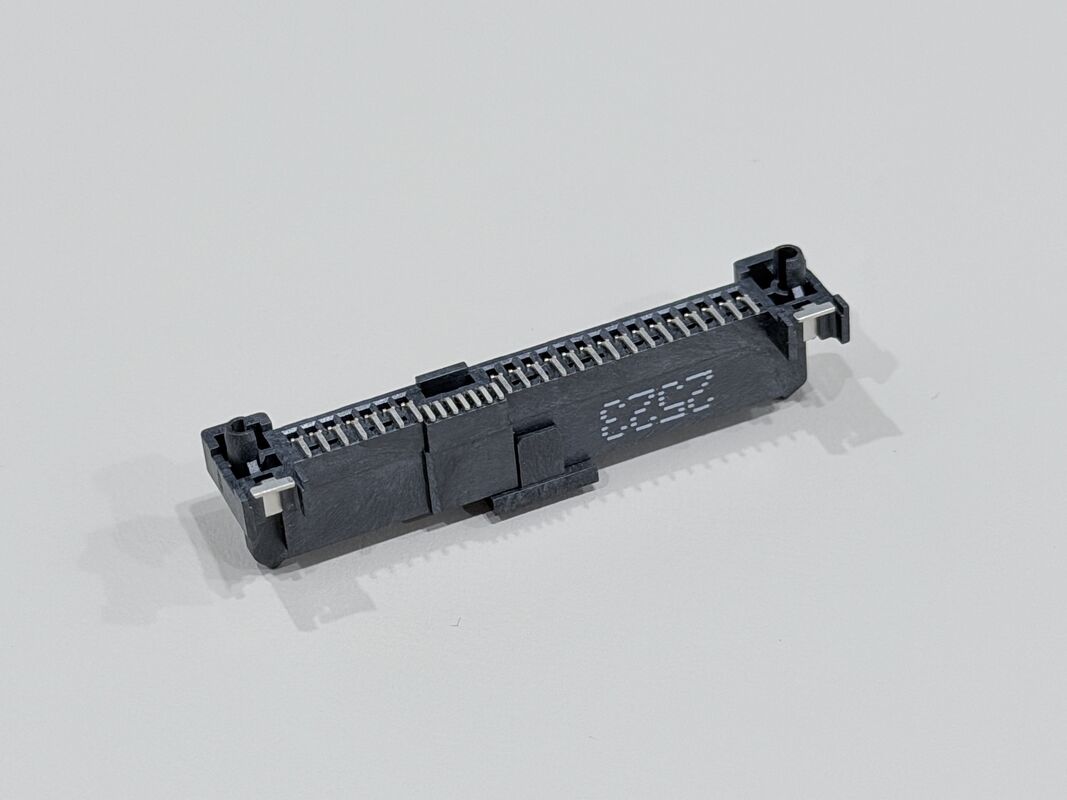

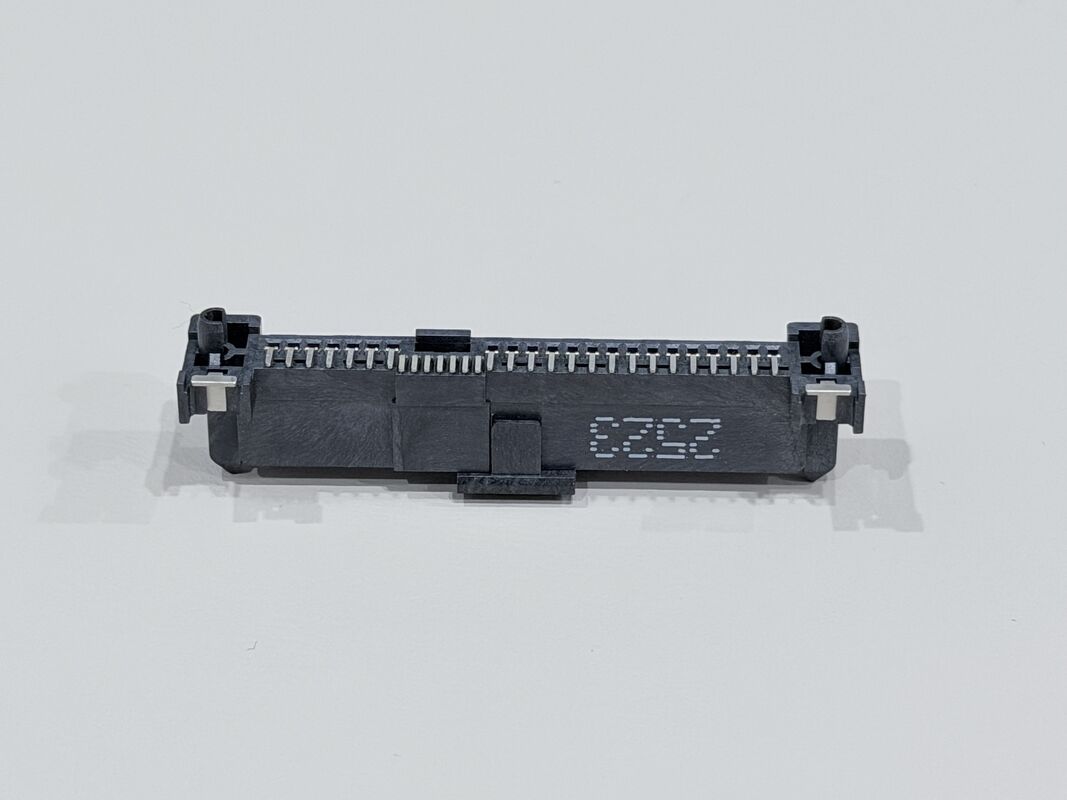

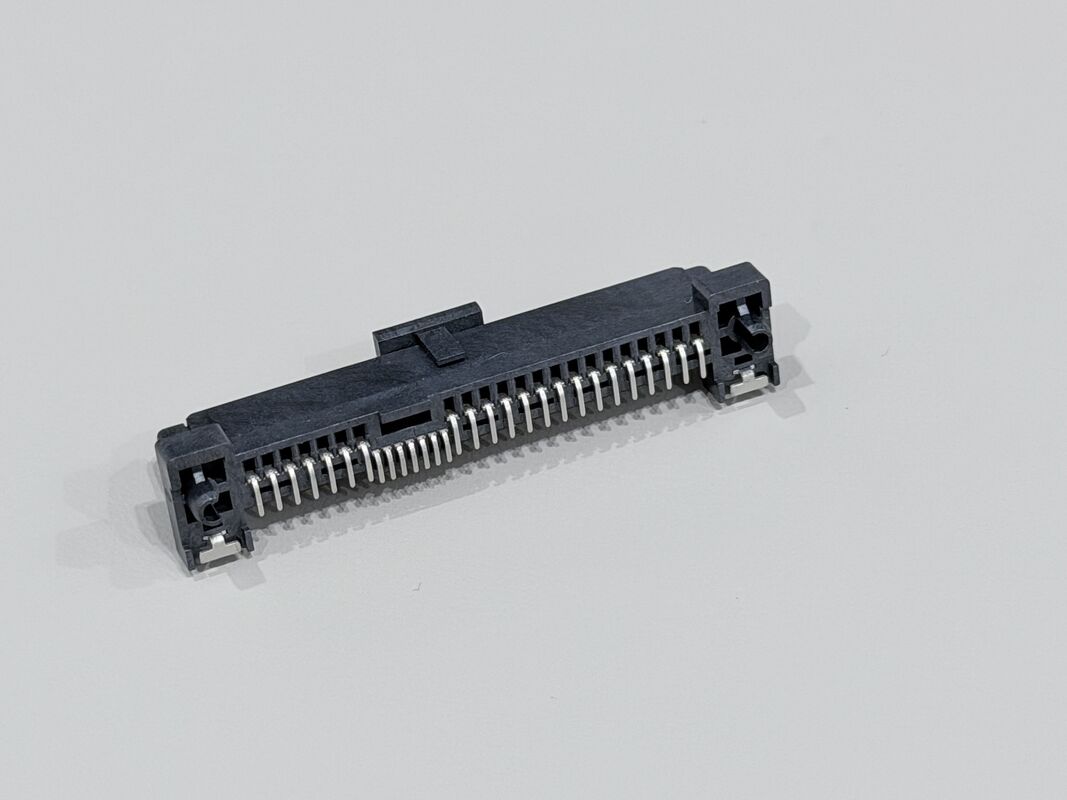

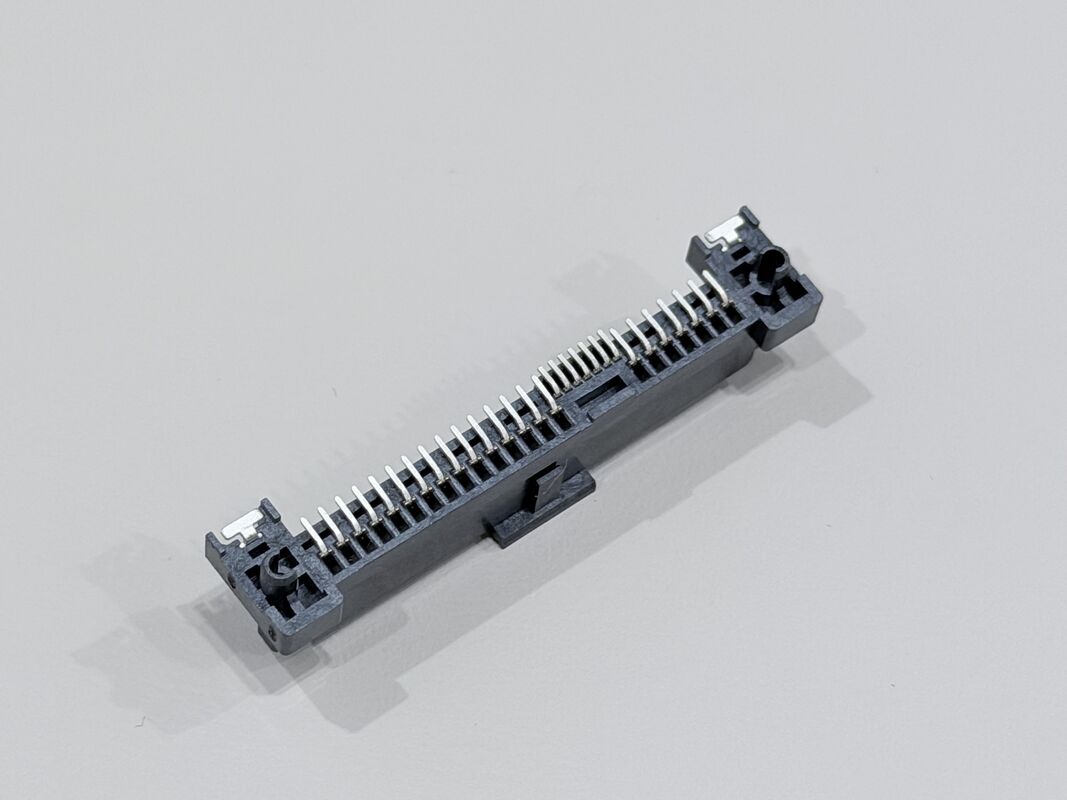

This SAS 29P Type 45 SMT female connector is designed for high-density electronic signal and low-power transmission in servers, storage arrays, communication equipment and industrial control systems. With a 1.27mm pitch and full SMT PCB mounting, it supports compact layouts and automated reflow assembly for high-volume production.
The 29-pin layout provides separate high-speed differential pairs and power/ground pins, making it ideal as a SAS backplane connector for HDD/SSD and other storage devices. Terminals are stamped from a high-strength phosphor bronze alloy and finished with a multilayer plating system: a nickel underlayer for corrosion protection and 30U" gold flash on the contact area to ensure low, stable contact resistance and clean high-speed signal transmission. Tin-plated solder areas deliver strong, reliable joints to the PCB pads.
The connector is rated at 1.5A @ 40VAC, with contact resistance ≤30mΩ, insulation resistance ≥1000MΩ and a withstand voltage of 500VAC per minute. Mechanical performance is controlled with a maximum mating force of 25N, minimum unmating force of 5N, and up to 500 mating cycles on the backplane side in accordance with EIA 364-09. A 48-hour salt-spray test on the gold area verifies good resistance to harsh environments.
Using halogen-free, RoHS 2.0 compliant LCP housing material, this SAS 29-pin SMT female connector is a robust choice for customized PCB, wire and cable designs in server, automotive, industrial and power-electronic transmission applications.
| Product Type |
SAS 29P Type 45 SMT straight female connector, 30U" gold-plated |
| Interface Series |
SAS series, 29-pin female connector |
| Number of Positions |
29 pins (7 + 7 high-speed signal pins, 15 power/ground pins) |
| Pitch of Housing |
1.27mm (SAS standard pitch) |
| Gender |
Female connector (mates with SAS male plug) |
| Mounting Style |
SMT (surface-mount to PCB), with positioning features |
| Rated Current / Voltage |
1.5A @ 40VAC |
| Operating Temperature |
–20°C to +85°C |
| Contact Resistance |
≤ 30mΩ (Max) |
| Insulation Resistance |
≥ 1000MΩ (Min) |
| Withstand Voltage |
500VAC / minute |
| Mating Force |
Backplane ≤ 25N Max |
| Unmating Force |
Backplane ≥ 5N Min |
| Mating Durability |
Up to 200 cycles/hour; backplane 500 cycles max (per EIA 364-09) |
| Salt Spray Test |
Gold-plated area ≥ 48 hours |
| Plating Code |
A6: 30U" Gold Flash on contact area (other options A2/A5 per SAS-C29F-45M3xx-01Lx code) |
| Terminal Base Material |
Phosphor bronze (C5191 or equivalent high-strength copper alloy) |
| Terminal Plating – Underlayer |
Nickel underplate (typically 50µ" min) for corrosion resistance |
| Terminal Plating – Contact Area |
30U" gold flash (A6) for low contact resistance and stable signal transmission |
| Terminal Plating – Solder Area |
Tin plating for reliable soldering to PCB pads |
| Housing Material |
High-temperature LCP, glass-fiber reinforced, black, UL94-V0 |
| Environmental Compliance |
HF (Halogen-Free) + RoHS 2.0 compliant |
| Typical Connection |
High-speed signal and low-power transmission between PCB and SAS cable/board in electrical and electronic systems |
⚙️ Applications
- Server & Data Center Equipment – Used as SAS / SATA electronic signal and power connectors on HDD/SSD backplanes, RAID cards, JBOD/NAS and 1U/2U server boards.
- Communication & Networking Systems – For routers, switches, base stations and other networking equipment that need compact PCB connectors and reliable high-speed transmission.
- Industrial & Automation Electronics – Applied in industrial PCs, PLCs, motion controllers, data loggers and test instruments as PCB-to-wire or cable connectors.
- Automotive & New Energy Applications – Used in in-vehicle data recorders, infotainment units, EV chargers and energy-storage systems for signal and low-power transmission.
- Custom Wire Harness & Cable Assemblies – Suitable for OEM/ODM projects that require connector customization for PCB, wire and cable layouts in electrical and electronic devices.
⚠️ Notes
- Make sure the working voltage, current and temperature of your design stay within the connector’s rated values, with proper safety margin.
- Design PCB pads, holes and mechanical space according to the drawing and pitch, and avoid bending or twisting stress on the connector after soldering or assembly.
- Select appropriate wire gauge, insulation and cable structure based on current load, signal speed and bending requirements for both power and signal terminals.
- For IDC / crimp types, use matched tooling and press-force to ensure full insulation displacement; for solder types, follow a controlled soldering profile to avoid overheating the LCP housing.
- Insert and pull out the connector along the mating direction, avoid pulling on the cable itself, and do not exceed the specified mating/unmating force or durability cycles.
- Keep gold-plated contact areas clean and dry, avoid touching them with bare fingers, and store products in dry anti-static packaging before assembly.
