Our SAS 3.0/4.0 series connectors deliver exceptional data transfer speeds of up to 24 Gb/s, ensuring stable and efficient transmission for enterprise storage and server systems. Designed with high reliability and hot-plug capability, each connector undergoes strict quality control and automated precision manufacturing. With flexible customization options and strong R&D support, our SAS connectors are ideal for both board-to-board and wire-to-board applications in enterprise storage systems, servers, and data centers requiring consistent, high-speed performance. ShuangYi Precision — Powering Smarter Connections.
ShuangYi Precision — Powering Smarter Connections.
Why Choose Us:
• Free samples available for quality evaluation.
• Support for both OEM & ODM customization.
• Trade Terms: EXW, FOB, CIF, CPT, etc.
Notice: The displayed price is only for reference. Contact us now for the best offer and detailed quotation!

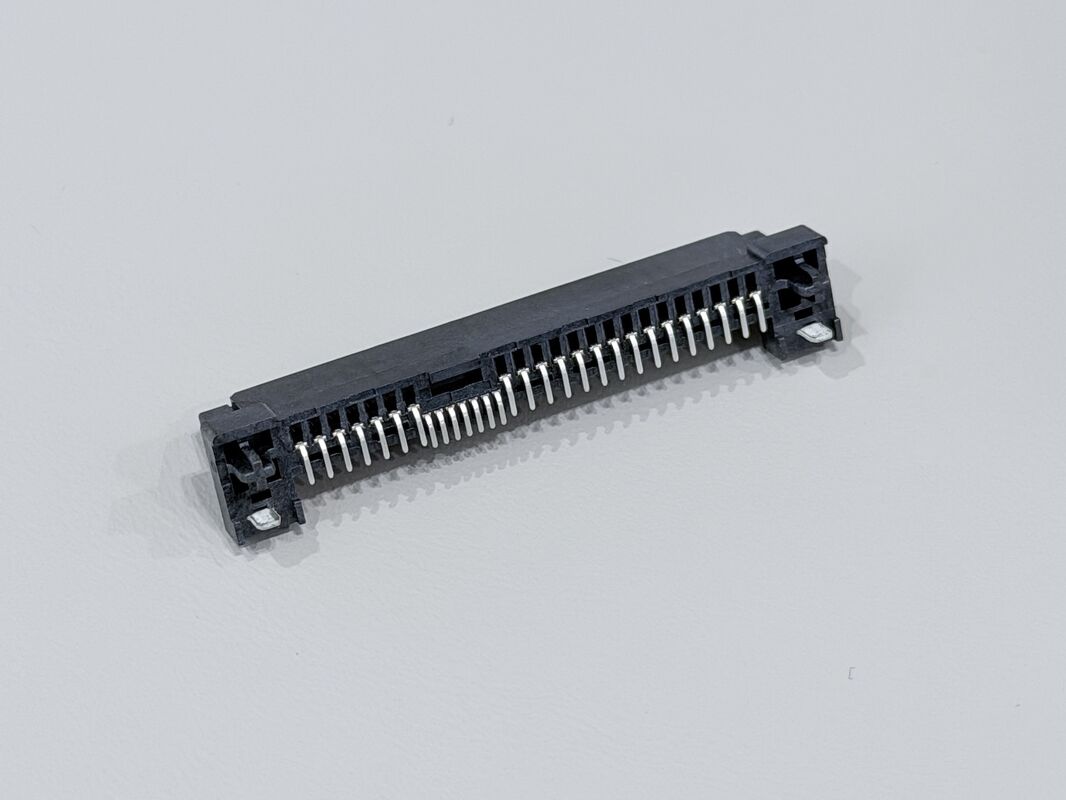

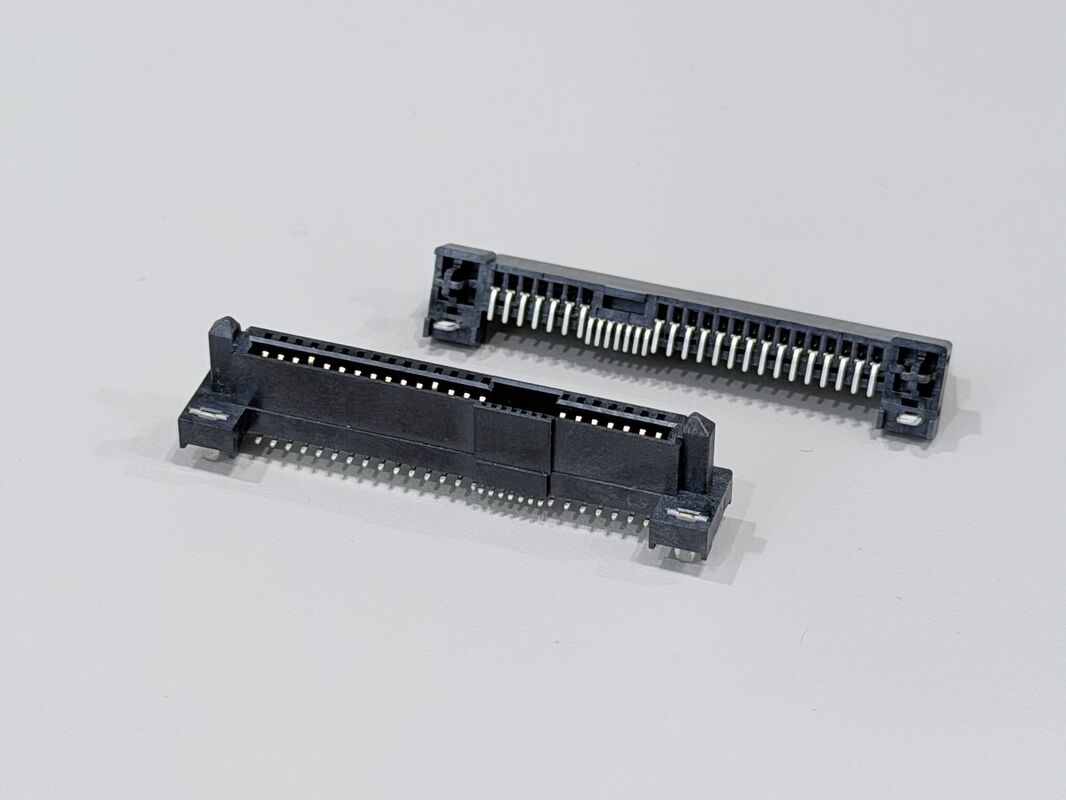

The SAS 29P Female Socket SMT Connector is engineered for high-speed data transmission applications, particularly in data storage systems, automotive electronics, and industrial automation environments. This connector features gold-plated contact areas (≥30μ") for superior conductivity and long-term reliability, while the matte tin-plated solder areas (≥80μ") ensure secure PCB mounting.
The LCP housing (Liquid Crystal Polymer), rated UL94-V0, is designed to withstand high temperatures during reflow soldering processes, ensuring robustness in demanding conditions. The connector's terminals are crafted from Copper Alloy C1100, delivering high mechanical strength and stable electrical performance.
Its 1.27mm pin pitch makes it perfect for high-density PCB layouts, allowing compact, reliable connections. Rated for 1.5A @ 40VAC, the connector ensures stable electrical transmission even under high load conditions. With excellent mechanical retention force (≥1.0 Kgf per pin) and the ability to endure up to 1,000 mating cycles, this connector is ideal for applications requiring high durability.
The operating temperature range of -20°C to +85°C adds versatility, while RoHS 2.0 and Halogen-Free compliance ensures environmental responsibility and global manufacturing standards.
| Product Type |
SAS 29P Female Socket SMT Connector |
| Contact Area Plating |
≥ 30μ" Gold (G/F) |
| Solder Area Plating |
≥ 80μ" Matte Tin (Sn) |
| Housing Material |
LCP (Liquid Crystal Polymer), UL94-V0, Black |
| Terminal Material |
Copper Alloy C1100, t=0.30mm |
| Pin Pitch |
1.27mm |
| Operating Temperature |
-20°C to +85°C |
| Rated Current / Voltage |
1.5A @ 40VAC |
| Contact Resistance |
≤ 30mΩ (Max) |
| Insulation Resistance |
≥ 1000MΩ |
| Withstand Voltage |
500VAC/minute |
| Insertion Force |
≤ 25N (Board side) |
| Unmating Force |
≥ 5N (Board side) |
| Terminal Retention Force |
≥ 1.0 Kgf per pin |
| Durability |
200 cycles per hour, 500 cycles max (per EIA 364-09) |
| Salt Spray Test |
Gold-plated area, 24 hours (salt mist resistance) |
| Environmental Compliance |
RoHS 2.0 + Halogen-Free |
| Pin Width |
1.2mm |
| Recommended PCB Layout |
1.27mm pitch, 1.27mm PCB hole size |
Key Features
- Gold-plated contact areas (≥30μ") for superior conductivity and long-term signal integrity
- Matte tin-plated solder areas (≥80μ") for durable and reliable PCB mounting
- LCP UL94-V0 housing provides high-temperature resistance during reflow soldering
- Low contact resistance (≤30mΩ) and high insulation resistance (≥1000MΩ) for stable electrical performance
- Strong mechanical retention with ≥1.0 Kgf per pin ensures secure connections
- 200 cycles per hour durability, 500 cycles max (per EIA 364-09)
- Salt spray resistance: 24 hours for the gold-plated area
- RoHS 2.0 and Halogen-Free compliant for global standards compliance
- Designed for high-speed applications with a compact 1.27mm pin pitch
⚙️ Applications
1. Server & Storage Devices
SAS HDD/SSD modules
RAID controller boards
Server backplanes
High-speed data transmission lines
2. Communication Equipment
Network routers and switches
Optical-electrical conversion modules
Edge computing devices
3. Automotive Electronics
ADAS data modules
In-vehicle storage interfaces
ECU signal connectors
4. Industrial Control Systems
PLC controllers
Industrial computers
Data acquisition boards
5. PCB & High-Speed Signal Designs
Multi-board connectivity
Fine-pitch high-density boards
High-speed signal routing applications
⚠️ Notes
- Installation: Ensure proper alignment during PCB assembly to avoid damaging the connector or PCB.
- Environmental Conditions: Avoid exposing the connector to extreme temperatures or corrosive environments that could degrade the material.
- Mating and Unmating: Do not exceed the specified mating and unmating forces to avoid damaging the connector.
