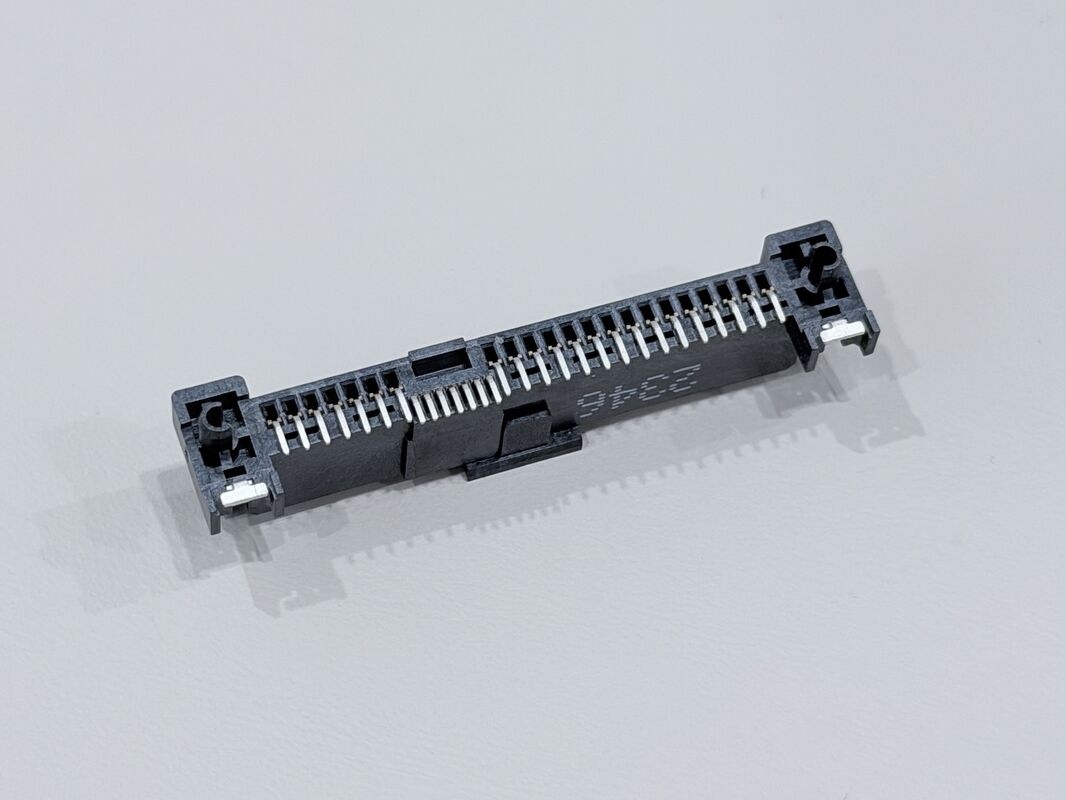

SAS 29P Female Connector with fish fork, SMT, Gold-Plated 30U", PCB Mount, High-Speed Signal and Power Transmission, RoHS &HF Compliant

This 29-Pin SAS Female Connector is designed for high-speed data and power transmission, providing reliability and durability in critical applications. It features Surface Mount Technology (SMT) for efficient integration into high-density PCBs, ideal for applications in data storage systems, telecommunications, and automotive electronics. The connector has a gold-plated contact area (30U") for superior conductivity and a matte tin-plated soldering area (80U") for corrosion resistance, ensuring stable performance even under demanding conditions. Compliant with RoHS2.0, this connector meets the highest environmental standards, making it an ideal choice for industries seeking sustainable and reliable electronic components.

Key Features

• Gold-Plated Contacts: The 30U" gold plating on the contact area ensures high conductivity and superior resistance to oxidation.
• SMT Mounting: Designed for automated surface-mount assembly, reducing production costs and improving manufacturing efficiency.
• Durable Materials: Constructed for long-term use, providing excellent mechanical properties and resistance to wear.
• RoHS Compliant: Meets RoHS2.0 standards for environmentally safe materials, free from hazardous substances.
• Wide Temperature Range: Capable of operating within a temperature range of -20°C to +85°C, making it suitable for various applications.
• High Reliability: Built to withstand over 200 mating cycles per hour for backplane connections and 500 cycles for board-end connections.

⚙️ Applications

1. Server & Storage Devices

SAS HDD/SSD modules

RAID controller boards

Server backplanes

High-speed data transmission lines

2. Communication Equipment

Network routers and switches

Optical-electrical conversion modules

Edge computing devices

3. Automotive Electronics

ADAS data modules

In-vehicle storage interfaces

ECU signal connectors

4. Industrial Control Systems

PLC controllers

Industrial computers

Data acquisition boards

5. PCB & High-Speed Signal Designs

Multi-board connectivity

Fine-pitch high-density boards

High-speed signal routing applications

⚠️ Notes

• Installation: Ensure proper alignment during PCB assembly to avoid damaging the connector or PCB.
• Environmental Conditions: Avoid exposing the connector to extreme temperatures or corrosive environments that could degrade the material.
• Mating and Unmating: Do not exceed the specified mating and unmating forces to avoid damaging the connector.
