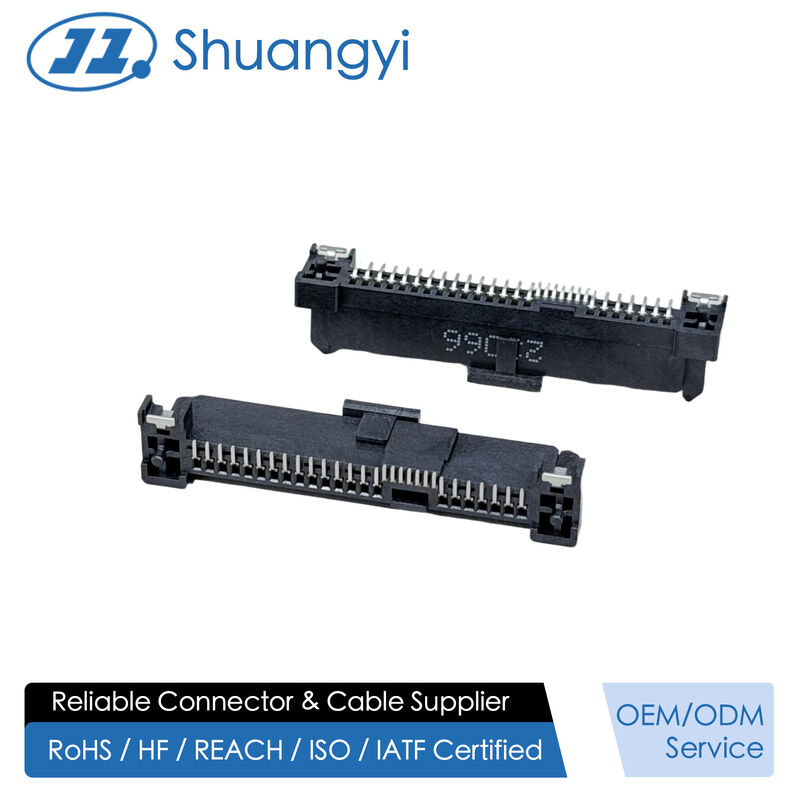

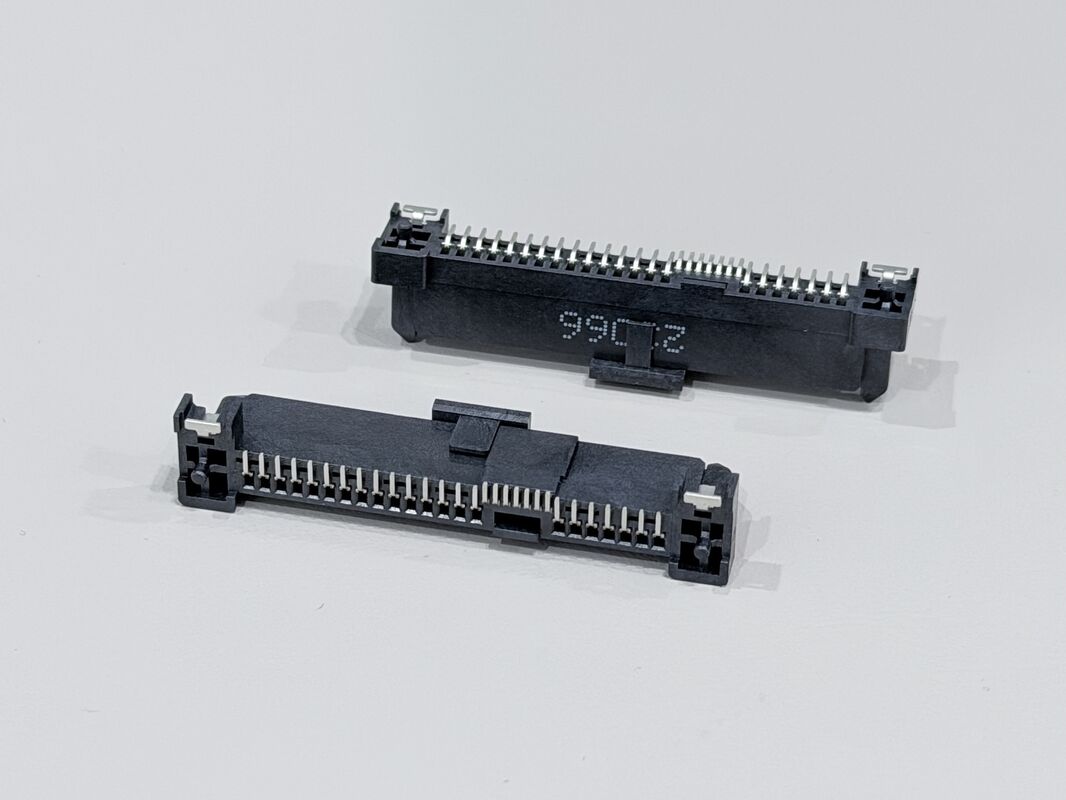

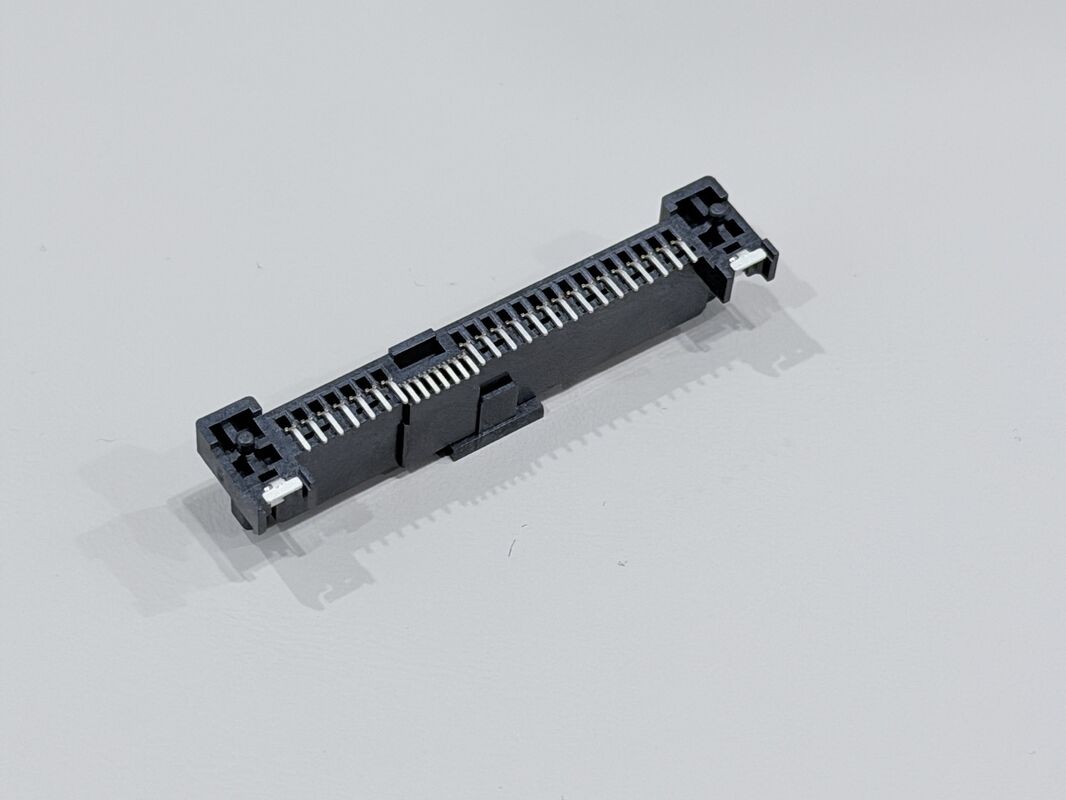

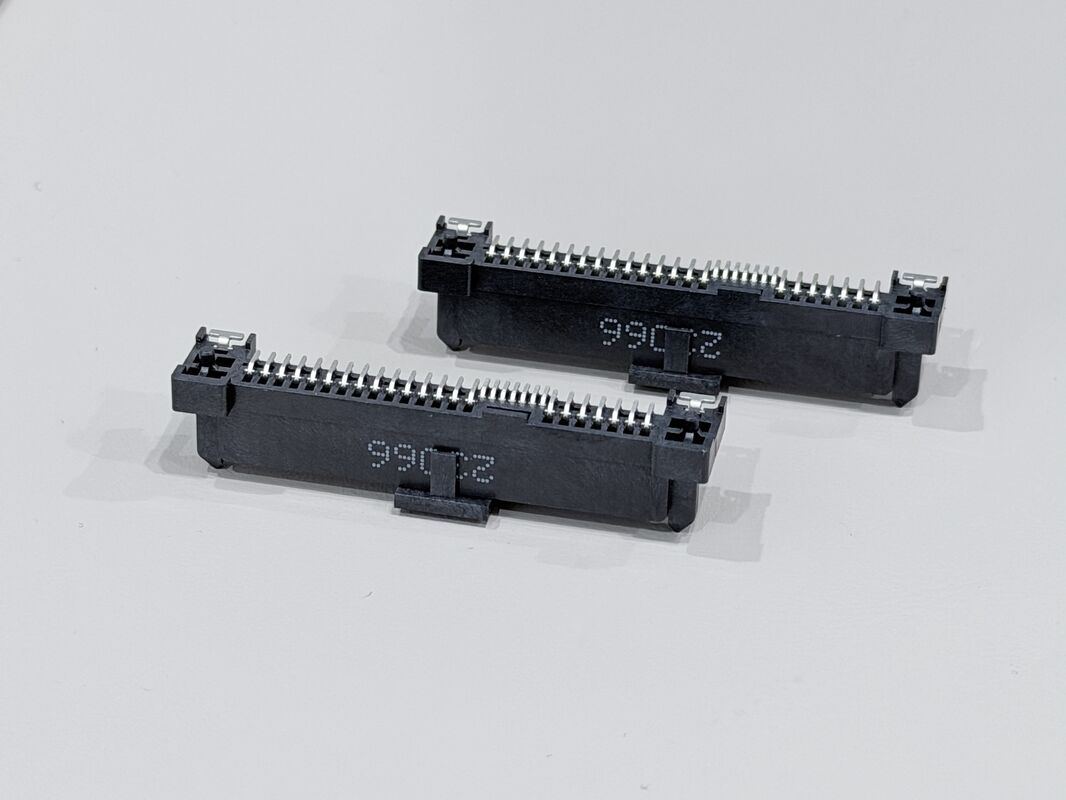

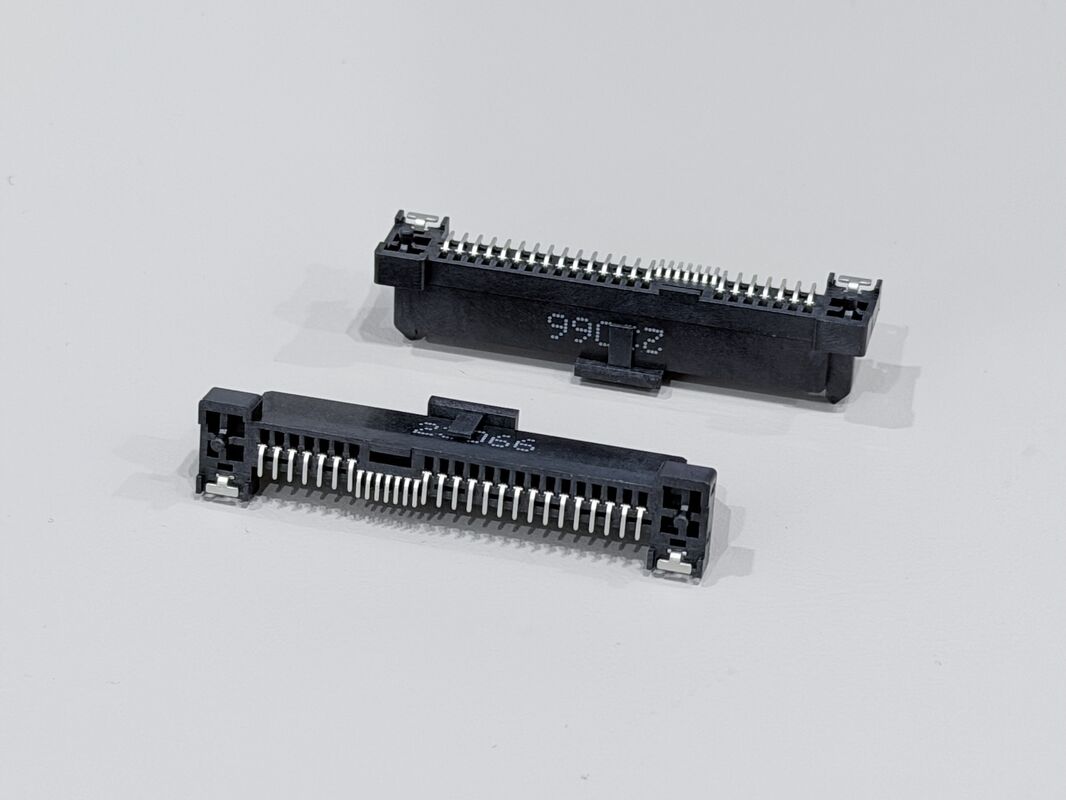

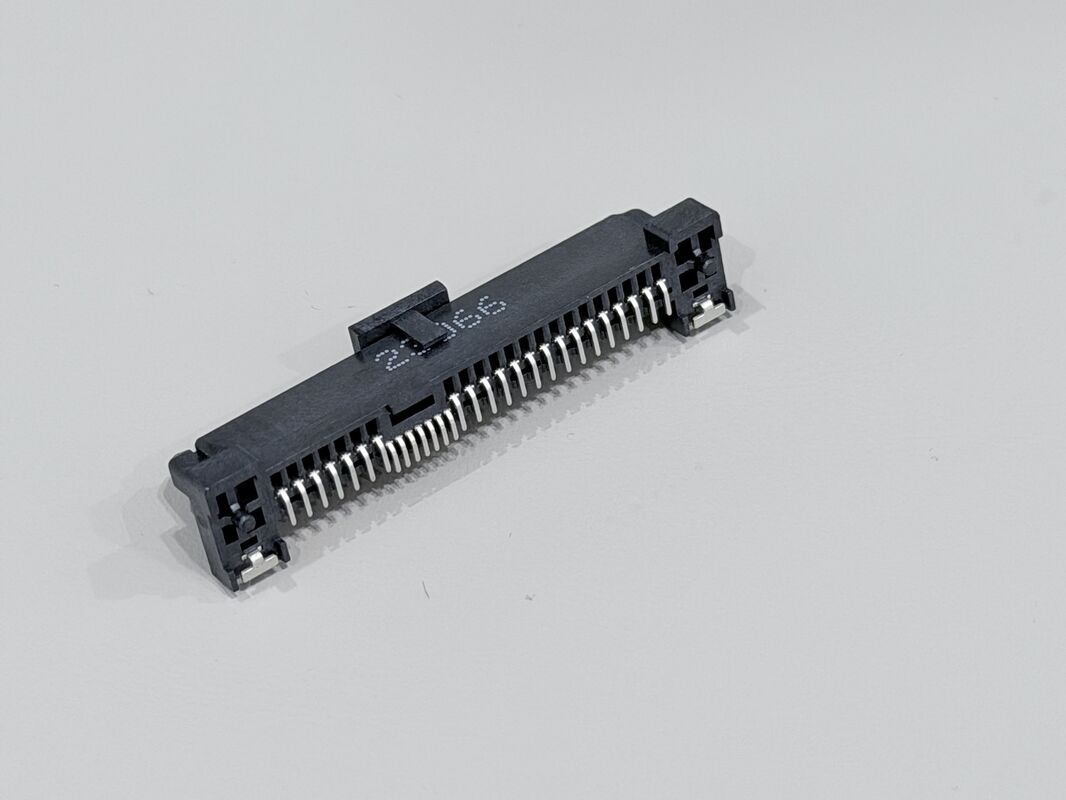

SAS 29P Female Connector, SMT, Gold-Plated 30U", High Durability for Data and Power Transmission, RoHS Compliant

This high-performance SAS 29P Female Connector is designed for applications that require reliable data and power transmission. Manufactured with Surface Mount Technology (SMT), it provides efficient integration into high-density circuit boards. The connector features gold-plated contacts (30U") for superior conductivity and matte tin plating (80U") on the soldering area for enhanced durability and resistance to corrosion. It is ideal for industries such as automotive, server data transmission, and telecommunications, offering robust mechanical and electrical properties for high-reliability connections. It complies with RoHS2.0 standards, ensuring minimal environmental impact.

Key Features

• Gold-Plated Contact Area: 30U" of gold plating ensures maximum electrical conductivity and resistance to corrosion, ensuring stable signal transmission.
• SMT Mounting: Designed for efficient surface mounting on PCBs, providing cost-effective and automated assembly.
• Durable Construction: Featuring strong mechanical properties and high-quality materials for a long service life.
• RoHS Compliant: Meets the global environmental standards for hazardous substances.
• Temperature Range: Operates between -20°C to +85°C, suitable for both indoor and outdoor applications.

⚙️ Applications

1. Server & Storage Devices

SAS HDD/SSD modules

RAID controller boards

Server backplanes

High-speed data transmission lines

2. Communication Equipment

Network routers and switches

Optical-electrical conversion modules

Edge computing devices

3. Automotive Electronics

ADAS data modules

In-vehicle storage interfaces

ECU signal connectors

4. Industrial Control Systems

PLC controllers

Industrial computers

Data acquisition boards

5. PCB & High-Speed Signal Designs

Multi-board connectivity

Fine-pitch high-density boards

High-speed signal routing applications

⚠️ Notes

• Proper Installation: Ensure correct placement during assembly to avoid potential damage to the pins or contact area.
• Temperature Limitations: Avoid exposure to temperatures beyond the specified range to prevent performance degradation.
• Environmental Care: Store and use in environments free from harmful chemicals that could compromise connector integrity.
