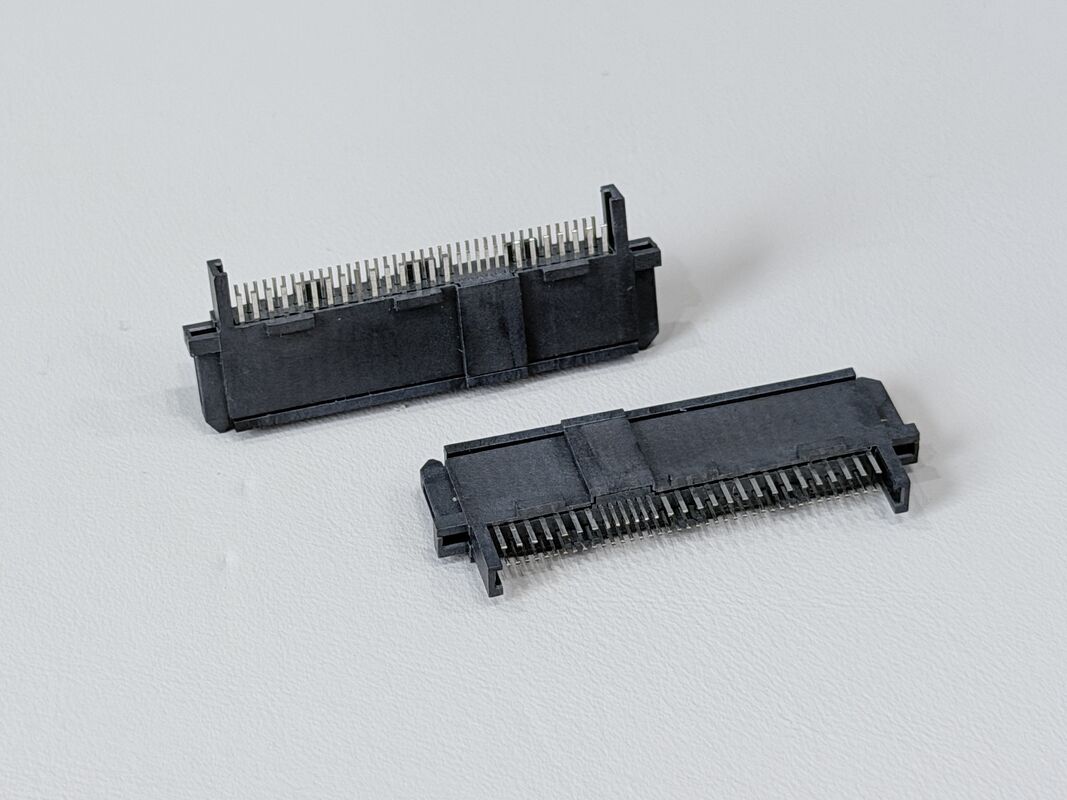

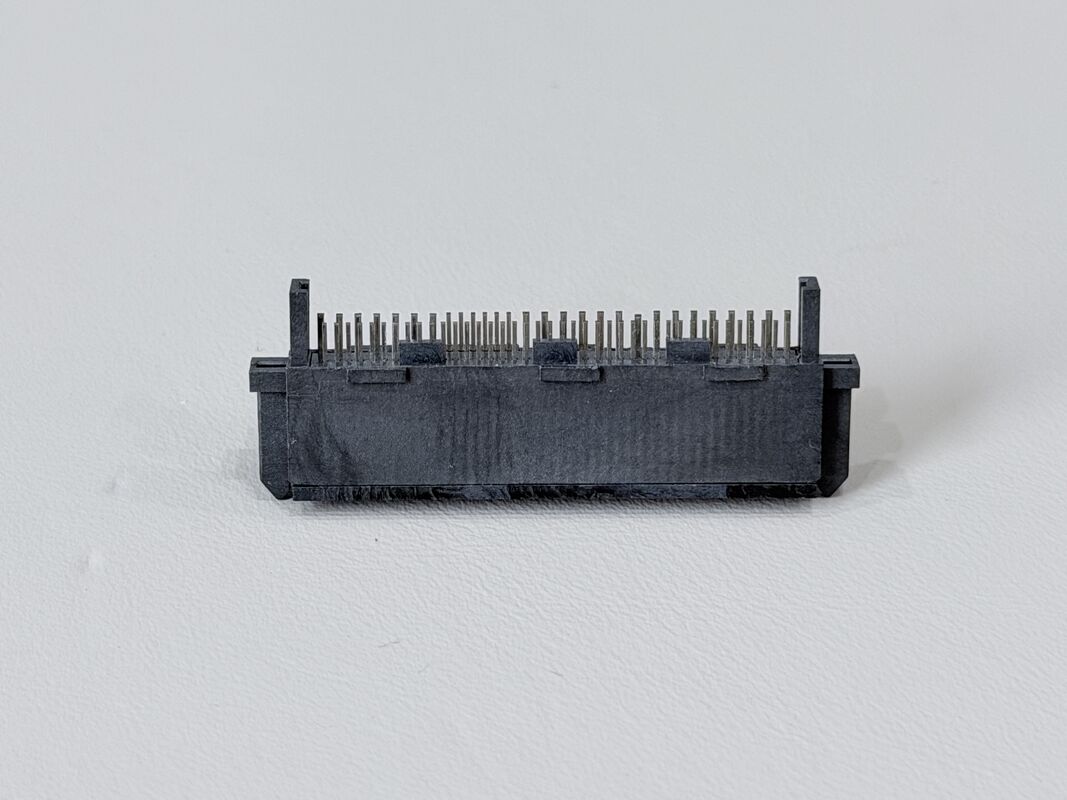

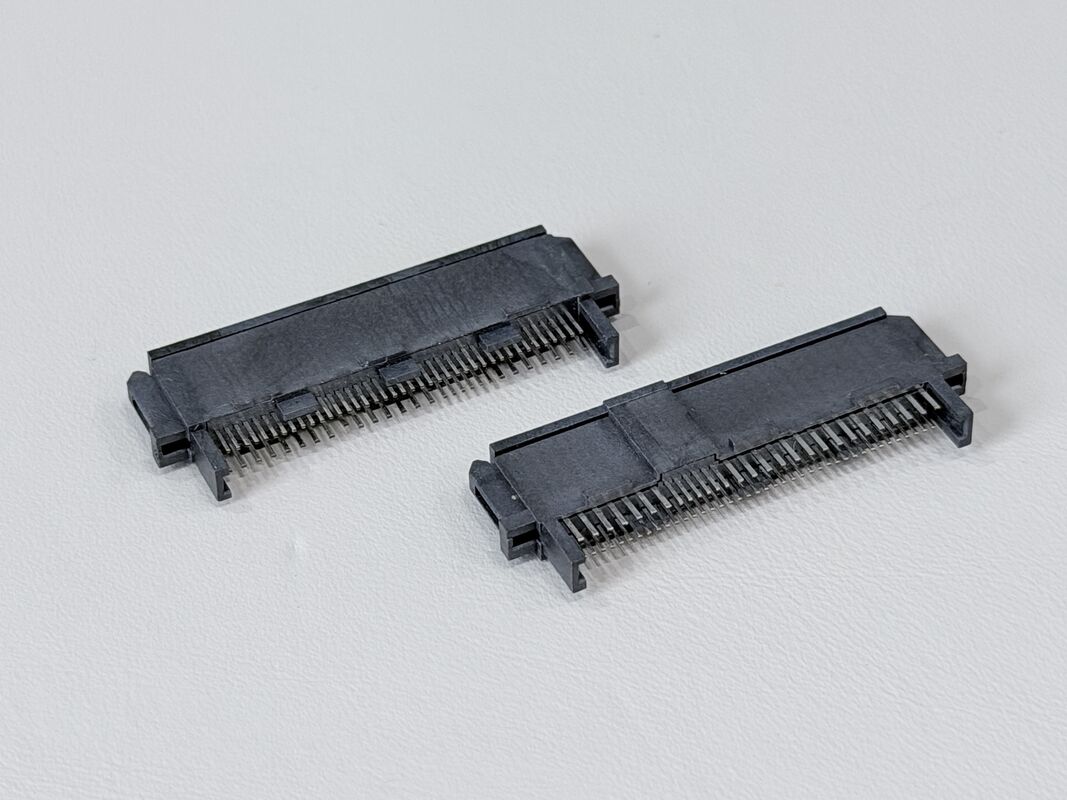

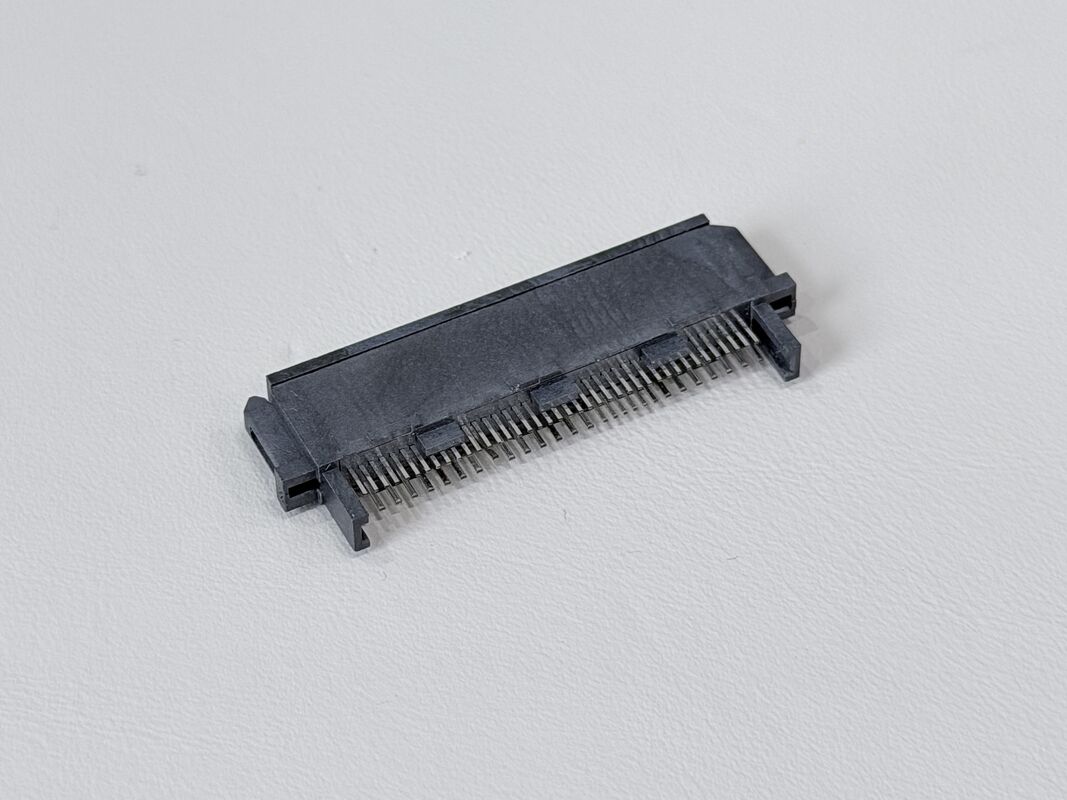

This SAS 68-Pin 180° Solder-Type Female Connector is engineered for stable and efficient wire-to-connector soldering applications, supporting reliable high-speed signal transmission for SAS interface systems.
The contact area features ≥30µ" gold plating with ≥50µ" nickel underlayer, ensuring excellent electrical conductivity, corrosion resistance, and long-term durability.
Designed using high-temperature LCP UL94-V0 housing and C5191 phosphor-bronze terminals, this connector provides robust mechanical strength and thermal stability suitable for harsh industrial and automotive environments.
Its 180° solder-type configuration makes it ideal for custom wire harnesses, server transmission modules, storage equipment, PCB extensions, and applications requiring strong and stable soldering joints.
| Product Type |
SAS 68-Pin Female Connector (Wire Solder Type, 180°) |
| Housing Material |
LCP, Glass-Fiber Reinforced, Black, UL94-V0 |
| Terminal Material |
Phosphor Bronze (C5191-H), t = 0.25 mm |
| Base & Cover Material |
LCP G/F Black UL94-V0 |
| Plating – Nickel |
≥ 50µ" Nickel underplating |
| Plating – Gold (Contact Area) |
≥ 30µ" Gold |
| Plating – Tin (Wire Solder Area) |
≥ 80µ" Matte Tin |
| Operating Temperature |
–20°C to +85°C |
| Rated Current / Voltage |
1.5A @ 40VAC |
| Contact Resistance |
≤ 30mΩ |
| Insulation Resistance |
≥ 1000MΩ |
| Withstand Voltage |
500VAC / 1 minute |
| Insertion Force |
≤ 59N |
| Withdrawal Force |
≥ 12N |
| Durability – PCB Side |
500 cycles |
| Durability – Cable Side |
25 cycles |
| Pin Pitch |
1.27mm |
| Environmental Compliance |
HF + RoHS 2.0 |
| Special Notes |
Terminal–wire soldering method coded as S1; structure design optimized to avoid deformation |
Apllication
1. Server & Storage Equipment
SAS HDD/SSD
RAID expansion cards
Storage backplanes
Data center servers
2. Communication & Networking Devices
Routers and switches
Edge computing devices
Telecom base stations
3. Industrial & Automation Systems
PLC controllers
Industrial IPC motherboards
Motion control modules
4. Automotive Electronics
ADAS data logging
Vehicle storage modules
Smart cockpit controllers
5. High-Density PCB Designs
Compact electronic systems
Multi-board interconnection modules
Notes
- Maintain clean, oil-free contact surfaces before soldering or mating.
- Use proper soldering temperature to avoid LCP housing deformation.
- Follow correct wire–terminal soldering angle and depth.
- Ensure wire gauge matches solder cup size for optimal bonding.
- Avoid excessive mechanical pulling to maintain long-term terminal strength.
- Keep connectors in dry, anti-static packaging during storage.
- Verify signal integrity requirements for SAS applications before wiring.
- Avoid pairing with heavily oxidized male connectors to prevent signal loss.
