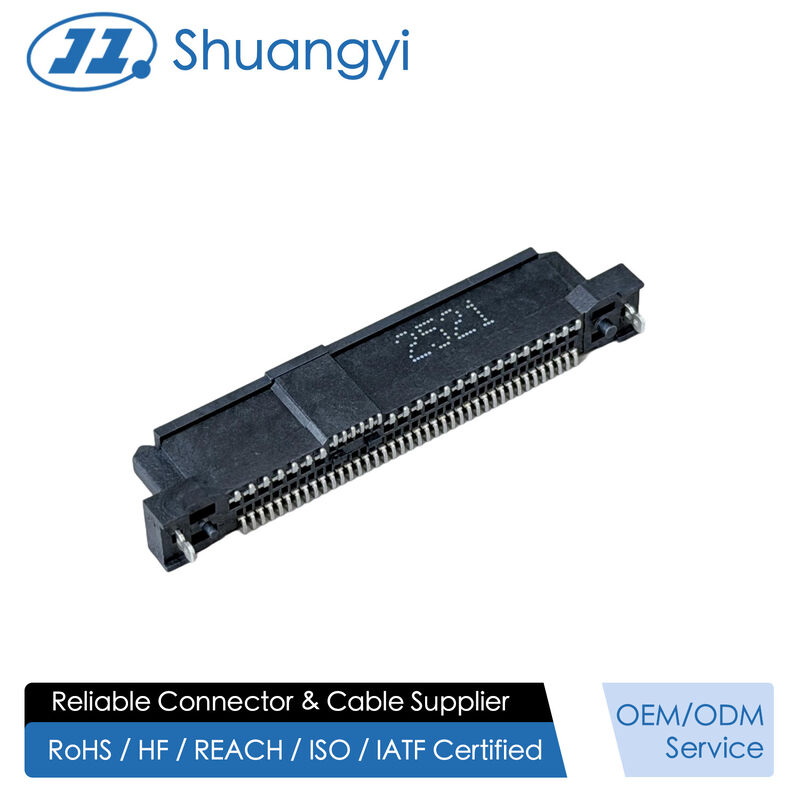

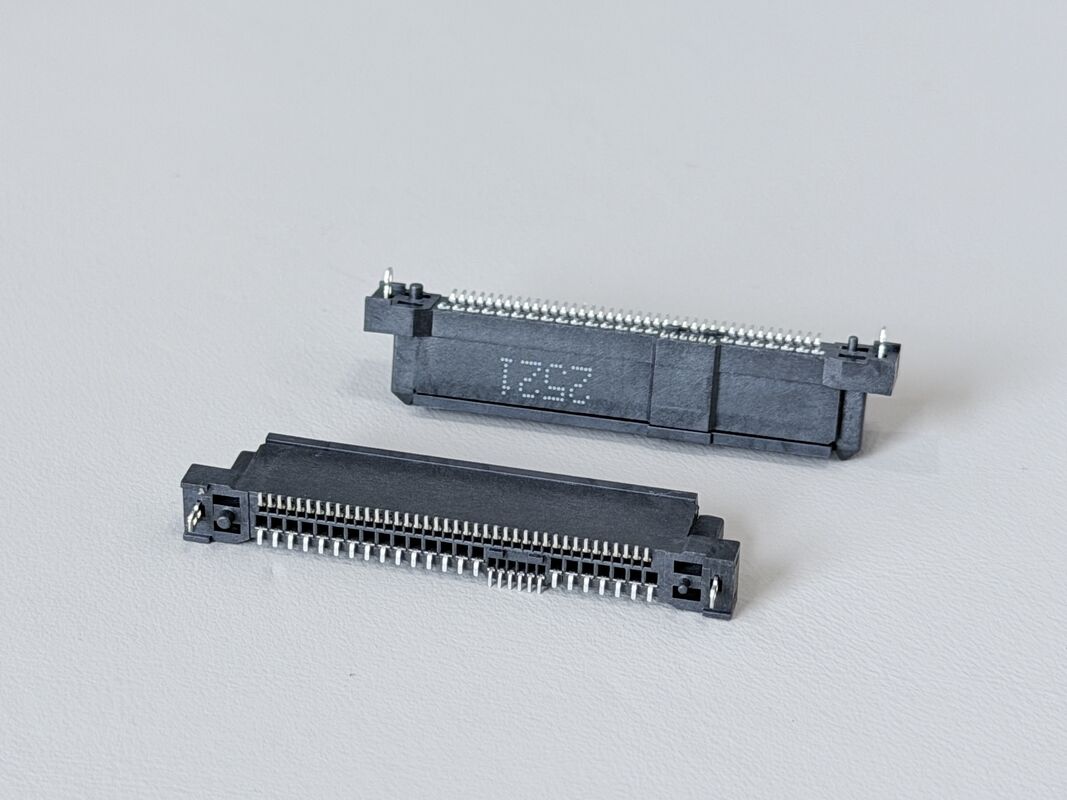

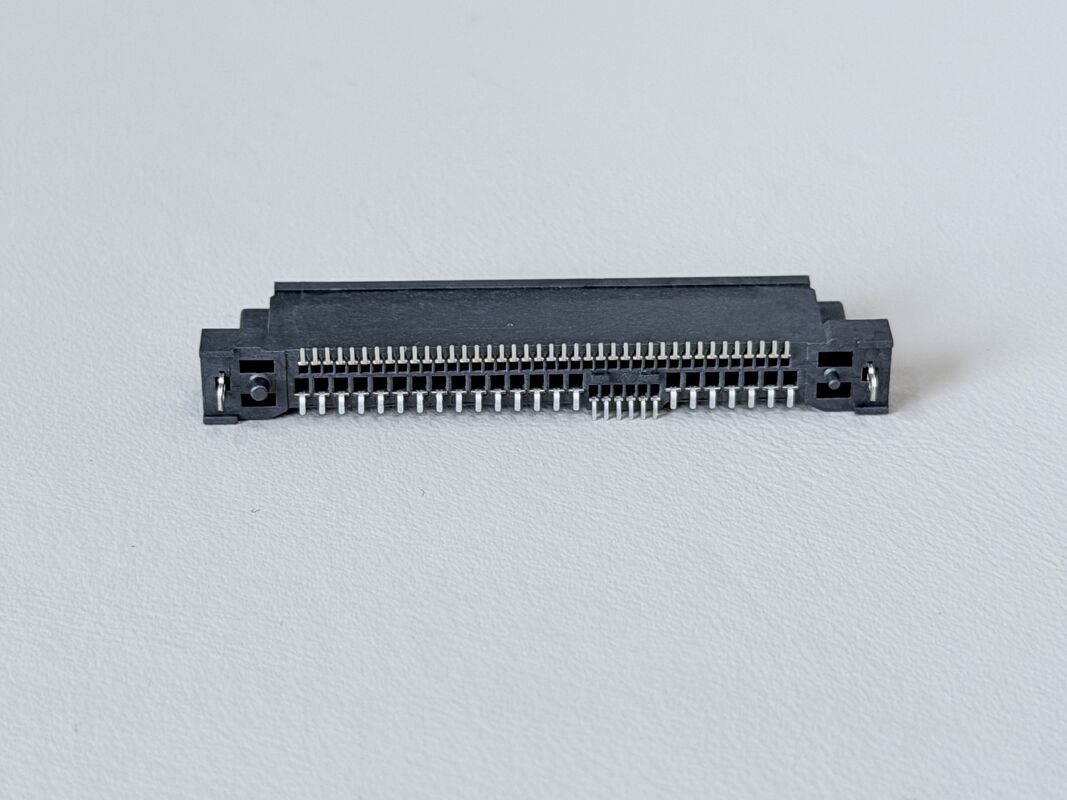

The SAS 68-Pin SMT Female Connector is designed for high-speed and high-integrity signal transmission in enterprise-level and industrial electronic systems.
Featuring 30μ" gold-plated terminals, nickel underplating, and UL94-V0 LCP housing, this connector delivers excellent conductivity, corrosion resistance, and long-term durability.
The surface-mount structure supports fully automated SMT assembly lines and ensures stable performance in compact PCB layouts. With 1.5A @ 40VAC, low contact resistance (≤30mΩ), and reliable mechanical engagement, this connector is ideal for servers, storage devices, automotive electronics, and industrial control applications requiring high data bandwidth and reliability.
| Product Type |
SAS 68-Pin SMT Female Connector |
| Plating – Contact Area |
30µ" Gold (Au) |
| Nickel Underplating |
≥50µ" Nickel |
| Solder Area Plating |
≥80µ" Matte Tin |
| Housing Material |
LCP, Glass-Fiber Reinforced, Black, UL94-V0 |
| Terminal Material |
Phosphor Bronze C5191-H, t=0.25 mm |
| Operating Temperature |
–20°C to +85°C |
| Rated Current / Voltage |
1.5A @ 40VAC |
| Contact Resistance |
≤30mΩ |
| Insulation Resistance |
≥1000MΩ |
| Withstanding Voltage |
500VAC / 1 minute |
| Mating Force |
≤59N |
| Unmating Force |
≥12N |
| Durability |
500 cycles (EIA364-09 Standard) |
| Salt Spray Test |
48 hours (Gold Plated Area) |
| Environmental Compliance |
HF + RoHS 2.0 |
| Production Marking |
2-digit year + 2-digit production week (white font) |
| Mounting Type |
SMT Surface-Mount |
| Package Carrier Tape Spec |
410mm reel, with desiccant and sealed moisture bag |
| Recommended PCB Pitch |
0.50mm / 0.60mm mixed layout based on drawing |
Key Features
- 30μ" Gold-Plated Contact Terminals for superior signal integrity
- Robust SMT Design supporting automated reflow soldering
- High-Speed Data Transmission suitable for SAS interface systems
- Durable Housing Material using UL94-V0 flame-retardant LCP
- Strong Mechanical Performance: ≤59N insertion, ≥12N withdrawal
- Reliable in Harsh Environments: –20°C to +85°C operation
- RoHS 2.0 + Halogen-Free Compliant
- Customization Available: pitch, terminal structure, plating thickness
⚙️ Applications
1. Server & Storage Equipment
SAS HDD/SSD
RAID expansion cards
Storage backplanes
Data center servers
2. Communication & Networking Devices
Routers and switches
Edge computing devices
Telecom base stations
3. Industrial & Automation Systems
PLC controllers
Industrial IPC motherboards
Motion control modules
4. Automotive Electronics
ADAS data logging
Vehicle storage modules
Smart cockpit controllers
5. High-Density PCB Designs
Compact electronic systems
Multi-board interconnection modules
⚠️ Notes
- Follow recommended SMT reflow profiles to prevent LCP deformation.
- Keep contact areas clean and free of contamination before mating.
- Use ESD protection when handling sensitive terminals.
- Ensure PCB layout follows drawing specifications to prevent misalignment.
- Avoid excessive force during insertion to protect terminal structure.
- Do not pair gold-plated connectors with oxidized contacts.
- Store reels in sealed moisture-proof packaging with desiccant.
- Maintain ambient humidity and temperature per packaging instructions.
