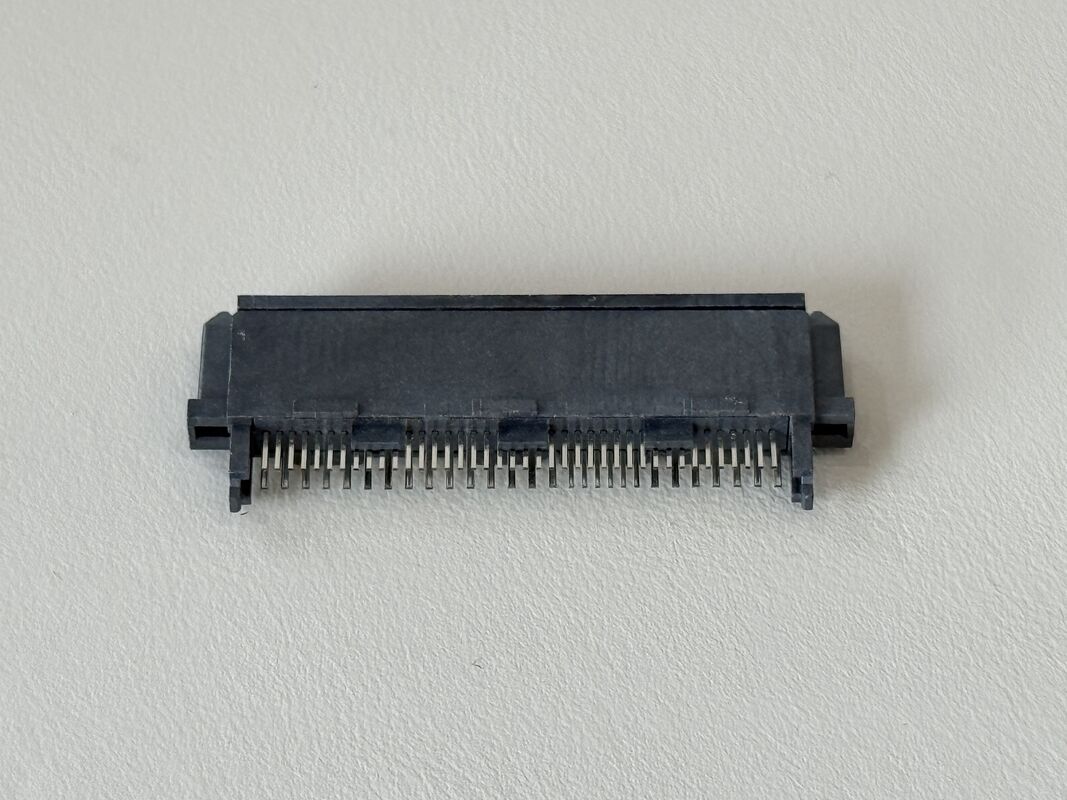

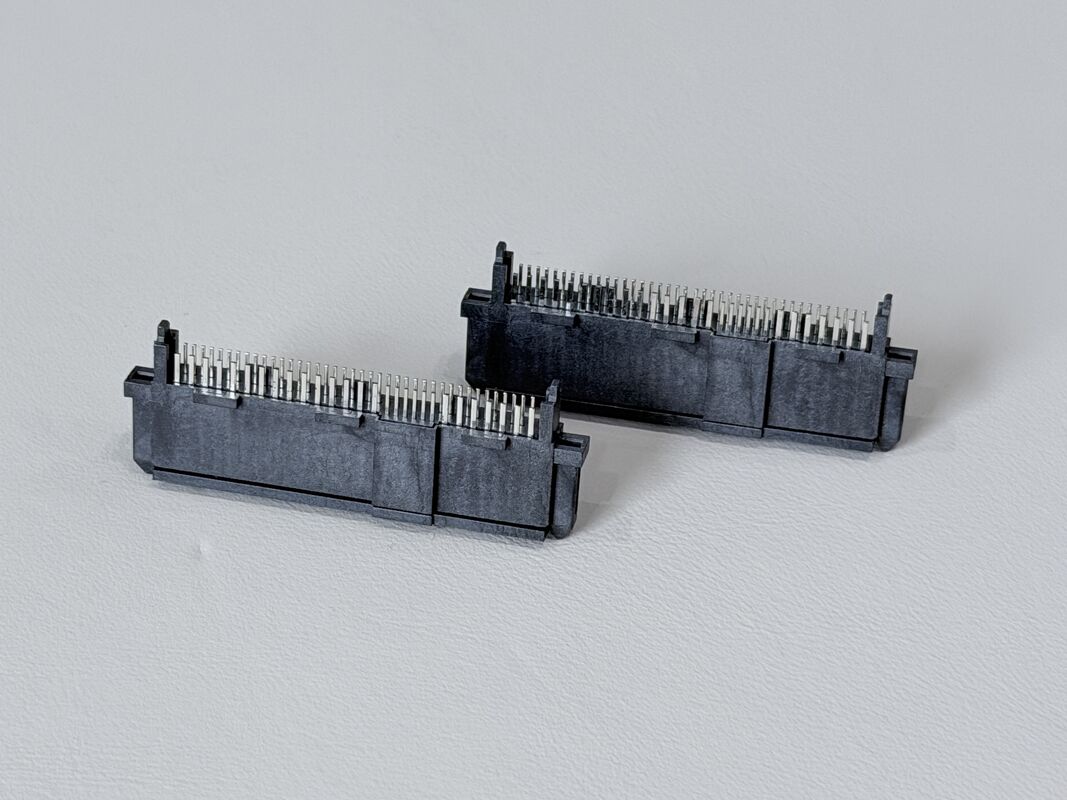

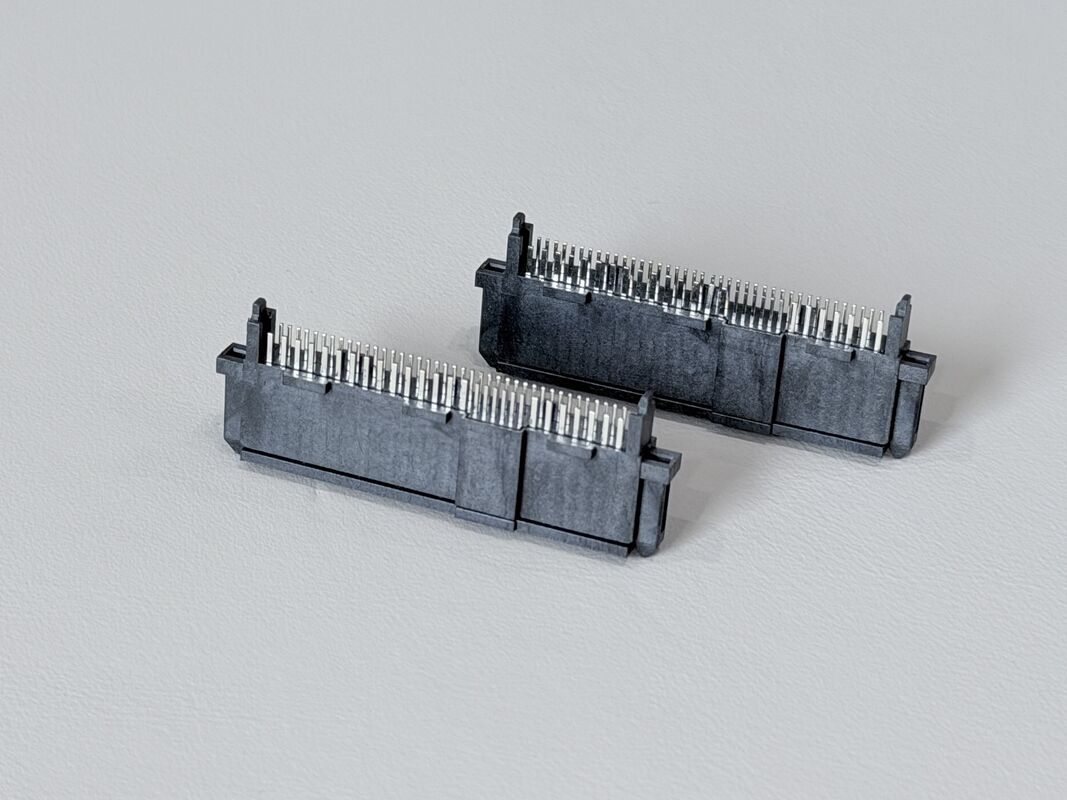

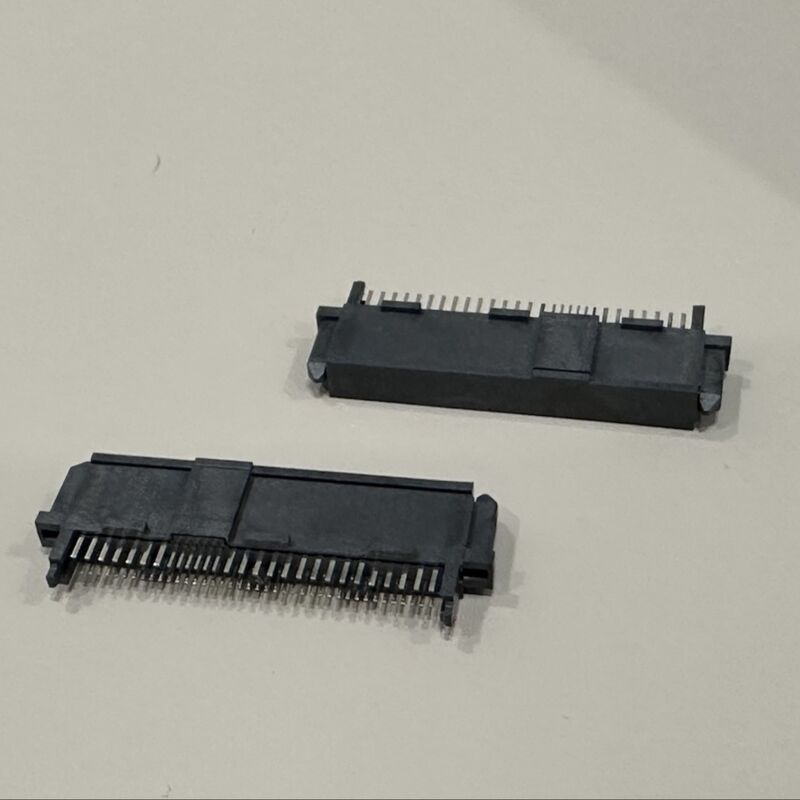

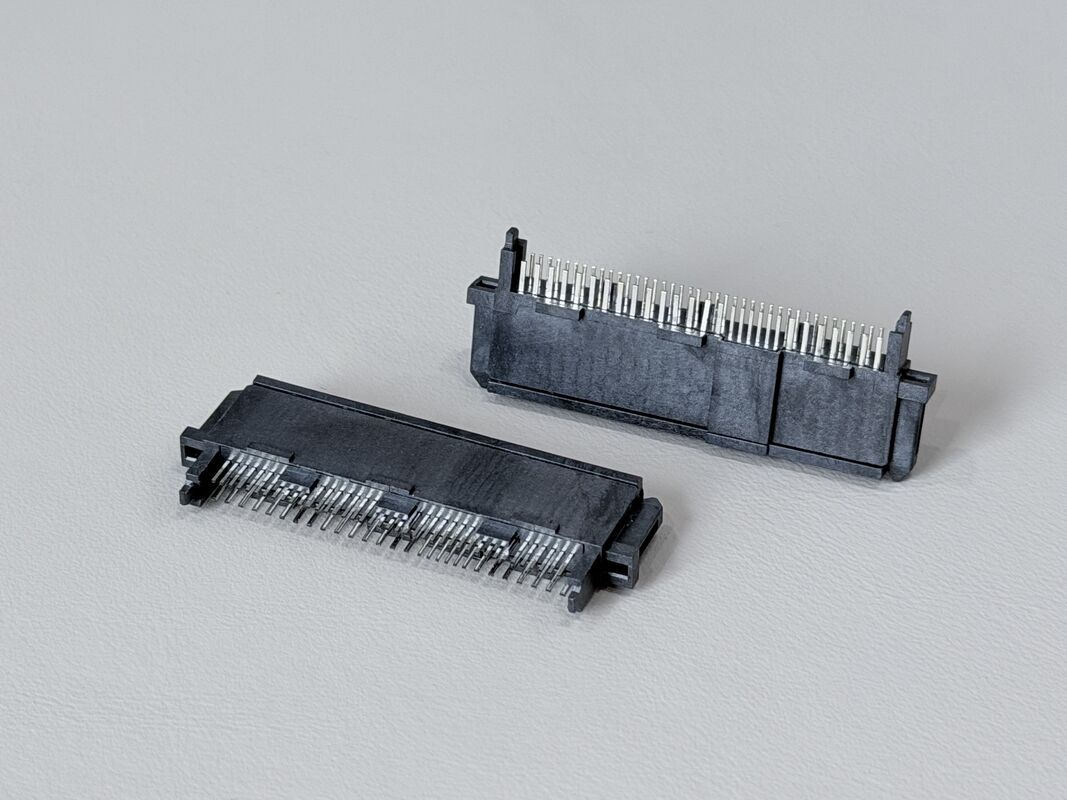

Name: SAS 68Pin Female 180° Wire to Board Connector 30u'' Gold Plated High-Speed Signal Transmission PCB Electronic Connector for Server and Storage Devices
Brand: Chongqing ShuangYi Precision Electronic Co., LTD
SKU: SAS-C68F-04S1A6-00LH
Price: 0.50 USD
Availability: InStock

Home > Products > Connectors >

SAS 68Pin Female 180° Wire to Board Connector 30u'' Gold Plated High-Speed Signal Transmission PCB Electronic Connector for Server and Storage Devices

Place of Origin:

China

Brand Name:

ShuangYI

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SAS-C68F-04S1A6-00LH

Request A Quote

SAS 68Pin Female 180° Wire to Board Connector 30u'' Gold Plated High-Speed Signal Transmission PCB Electronic Connector for Server and Storage Devices

Product Details

Housing Material:

LCP High-temperature Plastic (UL94V-0)

Terminal Material:

Copper Alloy With Gold Plating (30μ" Au)

Mount Type:

Wire-to-Board, SMT Mount

Pitch:

0.8 Mm

Rated Current / Voltage:

1.5A @ 40VAC

Contact Resistance:

≤ 30 MΩ

Insulation Resistance:

≥ 1000 MΩ

Withstand Voltage:

500VAC / Minute

Operating Temperature:

-20°C ~ +85°C

Plating:

Ni ≥ 50u'' (base), Au ≥ 30u'' (contact Area), Tin ≥ 80u'' (solder Area)

Mating Force:

≤ 59 N

Unmating Force:

≥ 12 N

Durability:

Backplane: 500 Cycles / Cable: 25 Cycles

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$0.5-0.8 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

SAS 68Pin Female SMT Gold Plated 30u’’ Wire to Board Connector with PCB – High-Speed Server Storage Data Transmission Connector

Get Best Price

SAS 68Pin Female 180° Wire to Board Connector 30u'' Gold Plated High-Speed Signal Transmission PCB Electronic Connector for Server and Storage Devices

Get Best Price

3.96 mm Pitch Printed Circuit Board PCB Connectors Wire To Board Phosphor Bronz Terminal

Get Best Price

Black PCB Wire To Board Connectors , 22 Pin Jst Crimp Type Connector

Get Best Price

Contact Now

Product Description

The SAS 68Pin Female 180° Wire-to-Board Connector delivers high-speed, stable signal transmission for servers, RAID systems, and high-density storage equipment. Featuring 30 micro-inch gold plating on the contacts and a 50 micro-inch nickel base layer, it ensures superior conductivity, corrosion resistance, and long-term durability.

Manufactured with precision molds, automated assembly, and in-house electroplating lines, our factory guarantees tight dimensional control and reliable quality. Each connector undergoes electrical performance, insertion durability, and thermal testing to meet international standards.

Our production facilities support custom designs, including variations in pin count, pitch, angle, and plating thickness, ensuring compatibility with multiple PCB layouts and cable assemblies.

⚠️ Notes

Avoid excessive mechanical stress and high-temperature soldering to protect gold plating.
Store connectors in a dry, dust-free environment to maintain performance.
Verify alignment before insertion to prevent PCB or terminal damage.
Custom packaging and labeling are available for OEM/ODM orders.

SAS 68Pin Female 180° Wire to Board Connector 30u'' Gold Plated High-Speed Signal Transmission PCB Electronic Connector for Server and Storage Devices 0

Item	Specification
Product Name	SAS 68Pin Female Right Angle Connector
Type	Wire-to-Board, SMT Mount
Contact Material	Copper Alloy with Gold Plating (30μ" Au)
Housing Material	High-Temperature Thermoplastic, UL94V-0 Rated
Pitch	0.8 mm
Rated Current	1.0 A per Pin
Rated Voltage	30 V AC/DC
Insulation Resistance	≥1000 MΩ at 500 V DC
Contact Resistance	≤30 mΩ at 100 mA
Operating Temperature	–40 °C ~ +105 °C
Application	Server, Storage, PCIe Card, Data Center Equipment
