Double Row 2x12P Natural Straight Pin Header with Tin Plated Pins for High-Density Connections on PCB

Double Row 2x12P Natural Straight Pin Header with Tin Plated Pins for High-Density Connections on PCB

Place of Origin:

China

Brand Name:

Shuangyi

Certification:

ISO9001,ISO14001

Model Number:

PZQM-B04B24-P50T3-00WH

Contact Us
Request A Quote
Product Details
Insulator Height:
2.0mm Or Customizable
Termination Style:
Solder
Plating:
Tin Or Gold
Pin Lengths:
Customizable
Gender:
Male,Plug,Header
Pitch:
2.54mm
With Peg:
Yes
Type:
Male
Stacker:
Yes
Pin Pre Row:
1-40p
Terminal:
Phosphor Bronze Or Brass
Contact Plating:
Copper
Number Of Pins:
2-40
Series:
Standard
Product:
Replace To Samtec FTSH Series
Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
1.Custom polybag packing 2.Custom paper box packing 3.According to client's request
Delivery Time
According to clients' request
Payment Terms
L/C, T/T
Supply Ability
100000 Pieces Per Month
Product Description

Product parameter

Product name Double row 2*12 P Natural Straight Pin header tin Plated Pin header
Pin Count row 2*12p
Plating tin

Product description

We are proud to introduce our Double Row 2x12P Natural Straight Pin Header, which is tin-plated for enhanced conductivity and corrosion resistance. This product is specifically designed for applications requiring high-density, reliable electrical connections.

Key Features:

  • Double Row Configuration: The pin header features two rows of pins, with 12 pins in each row, totaling 24 pins. This configuration allows for a compact yet versatile connection solution.

  • Natural Straight Pins: The pins are made from a natural material (typically copper alloy) and have a straight design, making them suitable for through-hole mounting on PCBs.

  • Tin Plating: The pins are coated with tin, which not only improves the conductivity but also enhances the solderability and corrosion resistance of the product.

  • High-Density Connections: With 24 pins in total, this pin header is ideal for applications that require multiple electrical channels in a limited space.

  • Versatile Dimensions: While the exact dimensions may vary depending on the specific model, the "100 U" mentioned in the product code likely refers to a specific length or height parameter. It's important to consult the product specifications or contact our support team for accurate dimensions.

  • Durability and Reliability: The pin header is constructed with high-quality materials that ensure long-term durability and reliable electrical performance.

Target Applications:

Our Double Row 2x12P Natural Straight Pin Header is widely used in various industries, including but not limited to:

  • Electronics: For connecting PCBs, modules, and other electronic components in computers, servers, and other electronic devices.
  • Communications: In telecommunication equipment, routers, switches, and other networking devices that require high-speed, high-density connections.
  • Industrial Automation: For control systems, sensors, actuators, and other components in automated machinery and production lines.
  • Automotive: In automotive electronics, such as ECUs, infotainment systems, and advanced driver assistance systems (ADAS).

detailed photos

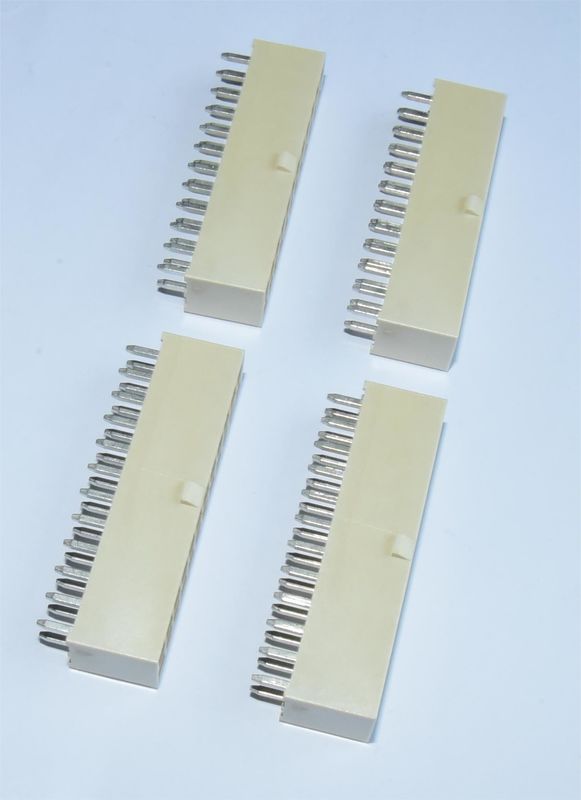

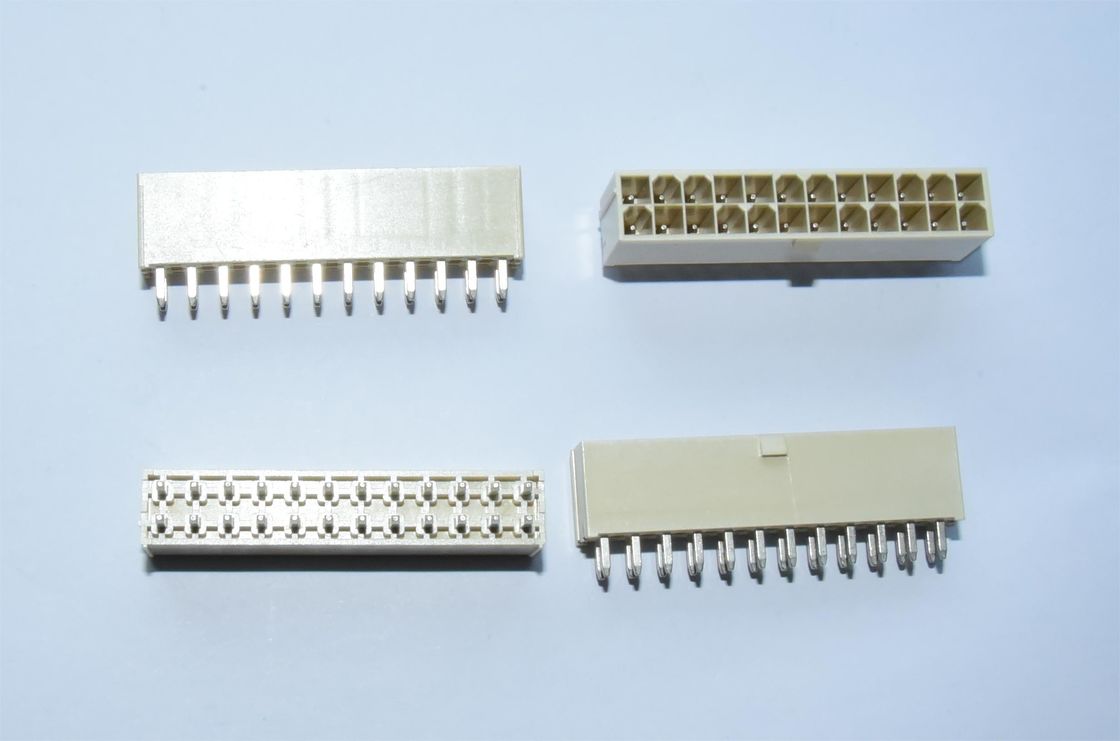

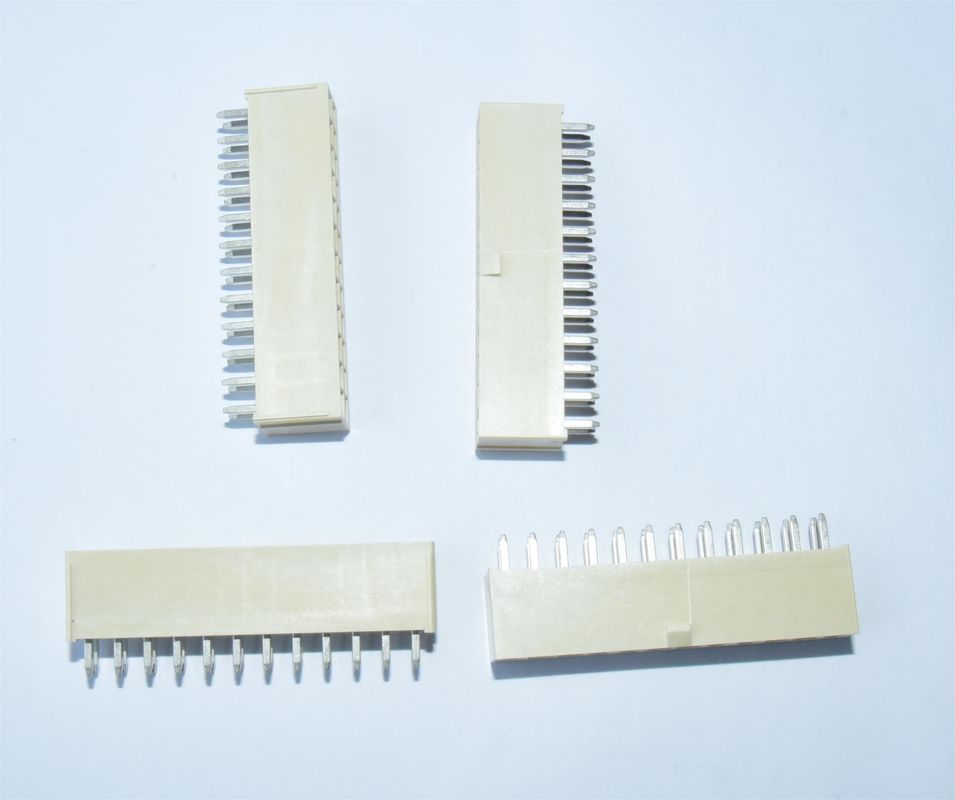

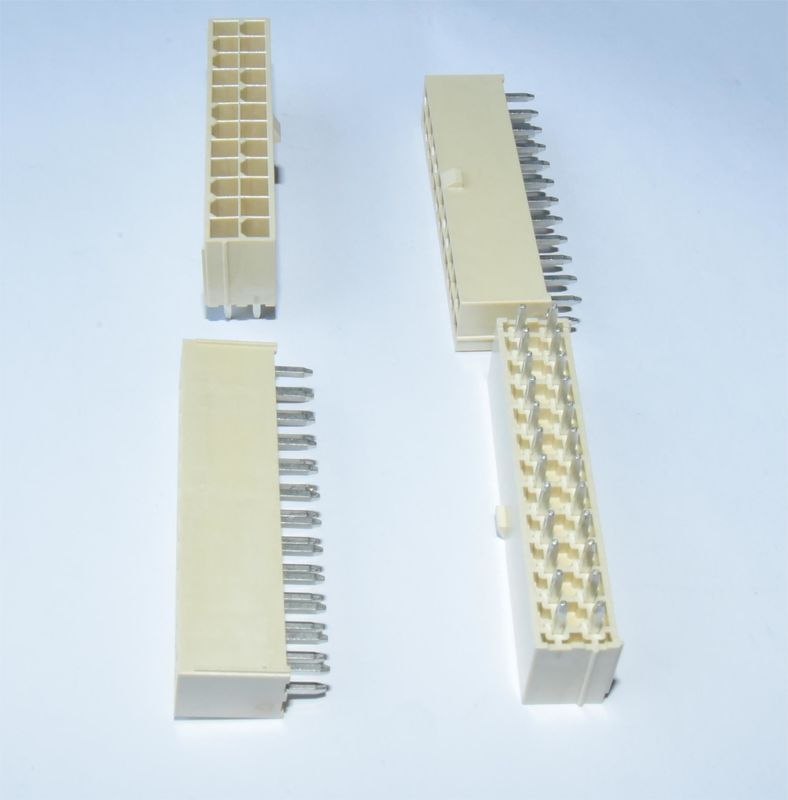

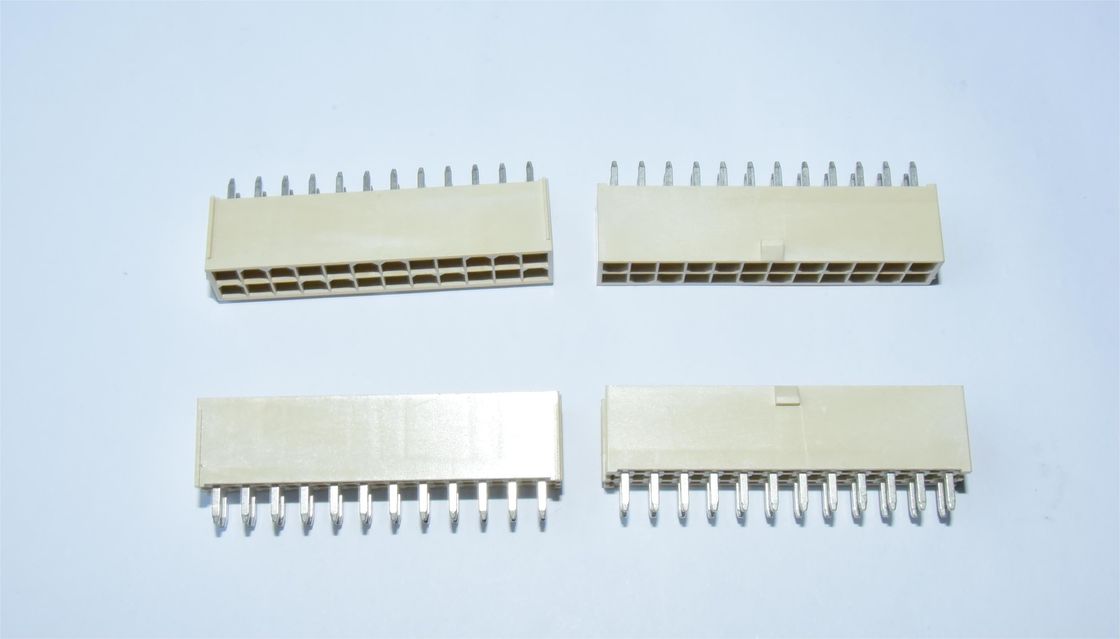

Double Row 2x12P Natural Straight Pin Header with Tin Plated Pins for High-Density Connections on PCB 0Double Row 2x12P Natural Straight Pin Header with Tin Plated Pins for High-Density Connections on PCB 1Double Row 2x12P Natural Straight Pin Header with Tin Plated Pins for High-Density Connections on PCB 2Double Row 2x12P Natural Straight Pin Header with Tin Plated Pins for High-Density Connections on PCB 3Double Row 2x12P Natural Straight Pin Header with Tin Plated Pins for High-Density Connections on PCB 4
