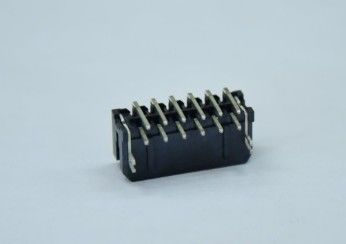

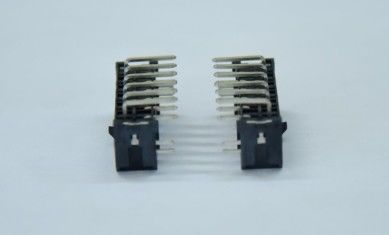

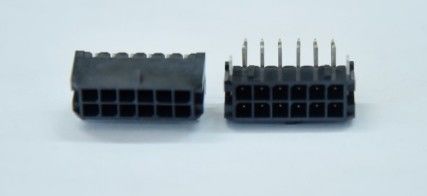

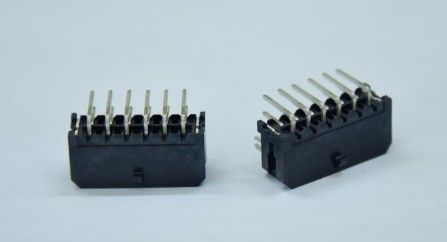

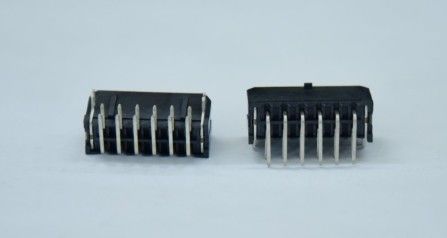

Side-Inserted Double Row Header Tinned 100u'' Terminals

Product Description.

Type and Construction:
Type: this is a side-inserted double-row pin connector (Header) with two rows of pins for electronic applications that require high-density, high-reliability connections.
Insertion method: Side-insertion design facilitates connection at the edge of the board or at a specific location, helping to save space and improve connection flexibility.

Pin & Surface Finish:
Pin Configuration: Double row of pins, the exact number of pins may vary depending on the product model, but typically this design is intended to provide multiple connection points for different signal and power requirements.
Finish: Pins and contact areas are tinned to improve conductivity, corrosion resistance, and longevity.

Features and Benefits:
High Density: The double-row pin design increases the pin density of the connector for space-constrained applications.
High Reliability: Tin plating enhances the conductivity and corrosion resistance of the pins, improving the stability and reliability of the connection.
Flexibility: Side-plug design allows the connector to be mounted in different locations on the board, providing more layout options.

Application Areas:
These connectors are widely used in electronic equipment, communication equipment, automotive electronics, industrial control and other fields, especially in applications that require stable, reliable and high-density connections.

Precautions:
Before use, please be sure to read the product specifications and instructions carefully to ensure that the product meets your application requirements.
Please follow the correct operation procedures and precautions during installation to avoid damaging the connector or affecting the connection quality.
During storage and transportation, please pay attention to the requirements of moisture-proof, dust-proof and anti-static to ensure that the product performance is not affected.
