Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SHUANG YI
Certification:
ISO9001/SGS/UL/RoHS/Reach

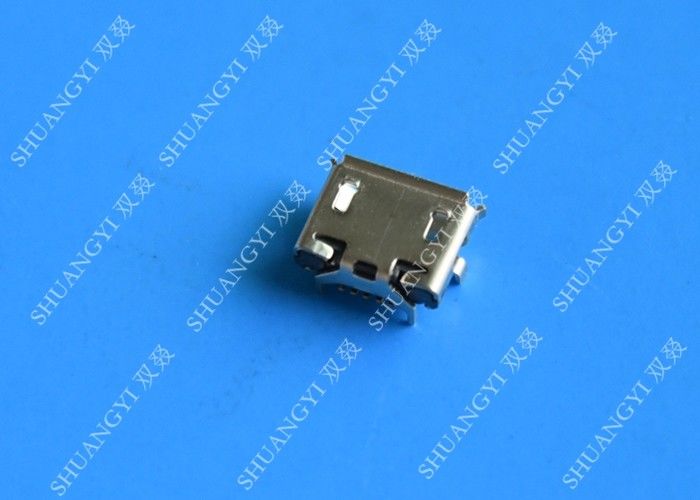

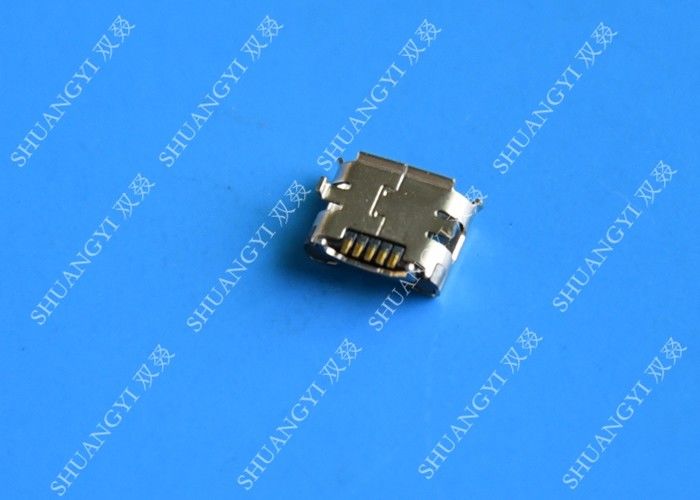

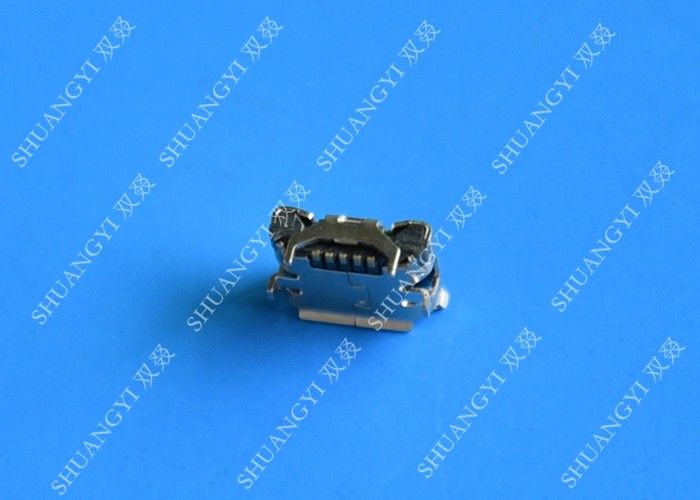

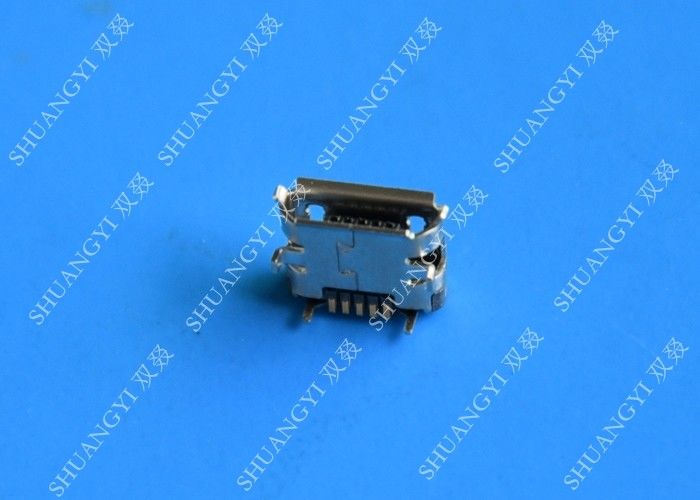

Model Number:
Mirco USB
Features:
1. With A Type/B Type/Mini USB variety of types of public Socket Interface Design;
2. Installed in the form of DIP/SMT/clip wire/wire type available;
3. Flexible design of terminal contact area to ensure good contact performance and long life requirements;
4. Meet a variety of welding equipment parameters temperature requirements
Welding conditions :
1. Hand soldering
Use a soldering iron of 30 watts, controlled at 350º C approximately 3 seconds while solder applying.
2. Wave soldering/Reflow Soldering
The peak temperature of the wave oven should be set to 260º C max. Condition for soldering temperature
Material :
1. Housing: PBT White/Black
2. Terminal: Phosphor Bronze Plating Gold/Tin
3. Shell: BRASS Plating Ni
Applications:
The can be used in mobile phones, CD players, cordless telephones, MP3, MP4 PDA notebooks, DVD and digital camera.
Specification:
Eelectrical Characteristics | |
Contact Curren Rating | 0.5A Min. |
Voltage Rating | 40V AC (rms) |
Withstanding Voltage | 500V AC for 1 Min. |
Insulation Resistance | 100 Megaohms Min. |
Contact Resistance | 30 mΩ Max. |
Mechanical Characteristics | |
Insertion Force | 44.1 N (4.5kgf) Max |
Withdrawal Force | 9.8 N (1.0kgf) Min.,3 9.2N( 4.0kgf) Max. |
Durability | 10000 cycles at 100±50 cycles per hour |
Environmental Characteristics | |
Operating Temperature | -25ºC to +85ºC |
Inspection for USB Connector:
Test Description | Requirement | Procedure |
Visual Inspection | The inspection results should be compliant with the individual specification | Before the qualification test, all these components shall be examined the Features, Construction as per applicable specification and documents |
Mechanical Performance:
Test Description | Requirement | Procedure |
Terminal / Housing Retention Force | 0.40kgf /Pin Min. | Measure the contact retention |
Insertion Force & Withdrawal Force | Insertion Force: 4.50kgf Max. | The specimen is mounted to mounting fixtures by the normal mounting means. The peak force shall be recorded at the maximum rate of 25mm per minute |
Durability | After 10000 cycles test, shall be no evidence of mechanical or electric defects, and shall meet the requirements of connector using. | 10000 insertion / extraction cycles at a maximum rate of 100±50 cycles per hour. |
