USB 2.0 AM Male Connector Integrated Solder-Type Housing Black Gold-Plated G/F | Electrical Wire Cable Signal Terminal Connector for Customization

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

USB-04M-A4S2A2-040H

Request A Quote

USB 2.0 AM Male Connector Integrated Solder-Type Housing Black Gold-Plated G/F | Electrical Wire Cable Signal Terminal Connector for Customization

Product Details

Structure:

Clamp-mount With Protective Housing

Material:

Brass (C2680)

Plating:

Copper ≥100 μ″ + Nickel ≥80 μ″

Surface Treatment:

Smooth, No Scratches, Dents, Or Deformation

Orientation:

Straight 180°

Application Category:

Wire-to-PCB, Power Transmission, Electronic Equipment

Compliance:

RoHS 2.0

Withstand Voltage:

AC 500V/min

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$0.05-0.08 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

High-Performance USB 2.0 AM Connector | Integrated White Housing | Gold-Flash Contacts | Bright-Nickel Shell | Wire-Solder Type

Get Best Price

USB 2.0 AM Integrated Wire Solder Connector | Gold-Plated Terminal | White Housing | Electrical Cable Connector

Get Best Price

High-Durability USB 2.0 AM Connector – Integrated Solder-Type Black Housing Gold-Flash Plated Interconnect

Get Best Price

USB 2.0 AM Male Connector Integrated Solder-Type Housing Black Gold-Plated G/F | Electrical Wire Cable Signal Terminal Connector for Customization

Get Best Price

Contact Now

Product Description

Product Description

This USB 2.0 AM wire-soldering connector is engineered for reliable power and data transmission in electronic, automotive, and consumer-device applications. The connector features a black flame-retardant housing, gold-flash contacts for enhanced conductivity, and bright-tin plating on solder areas to ensure long-term stability. Manufactured with precise tolerances and ROHS-compliant materials, it supports consistent performance, secure mating, and strong mechanical durability across repeated insertions.

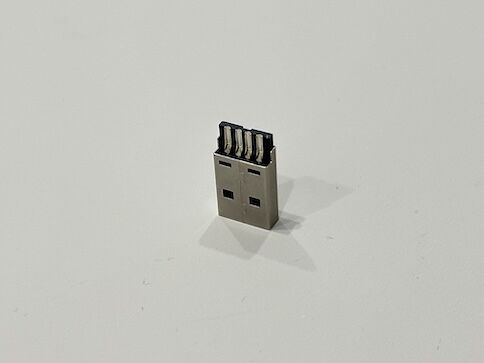

USB 2.0 AM Male Connector Integrated Solder-Type Housing Black Gold-Plated G/F | Electrical Wire Cable Signal Terminal Connector for Customization 0

Connector Type	USB 2.0 AM Male Integrated Solder-Type Connector
Structure	One-piece housing, solder-cup terminals
Application	Wire-to-Cable electrical connection
Plating	Gold-plated contact area (G/F), nickel-plated shell
Housing Material	High-strength black PBT, flame-retardant
Terminal Material	Copper alloy C2680
Shell Material	SPCC steel
Current Rating	1.5A @ 250VAC
Contact Resistance	≤ 30mΩ
Insulation Resistance	≥ 1000MΩ @ 500VDC
Withstanding Voltage	500VAC / 1 min
Durability	≥ 1500 mating cycles
Operating Temperature	−20°C ~ +85°C
Wire Compatibility	Suitable for various cable diameters (per customer requirement)
Compliance	RoHS / REACH

Applications

Consumer electronics device wiring

Power and signal transmission harnesses

Automotive wire harness customization

Industrial control equipment

Server and storage device cable assemblies

DIY and custom-made cable manufacturing

Precautions

Name: USB 2.0 AM Male Connector Integrated Solder-Type Housing Black Gold-Plated G/F | Electrical Wire Cable Signal Terminal Connector for Customization
Brand: Chongqing ShuangYi Precision Electronic Co., LTD
SKU: USB-04M-A4S2A2-040H
Price: 0.05 USD
Availability: InStock

Ensure proper soldering temperature to avoid damaging terminals.

Select matching cable diameter and conductor size before assembly.

Avoid excessive pulling or twisting during installation.

Keep connector away from humid or corrosive environments.

Verify compatibility with USB 2.0 specifications when designing assemblies.

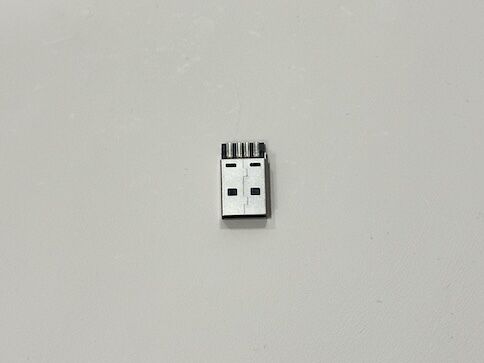

USB 2.0 AM Male Connector Integrated Solder-Type Housing Black Gold-Plated G/F | Electrical Wire Cable Signal Terminal Connector for Customization 3

USB 2.0 AM Male Connector Integrated Solder-Type Housing Black Gold-Plated G/F | Electrical Wire Cable Signal Terminal Connector for Customization 4

USB 2.0 AM Male Connector Integrated Solder-Type Housing Black Gold-Plated G/F | Electrical Wire Cable Signal Terminal Connector for Customization 5

USB 2.0 AM Male Connector Integrated Solder-Type Housing Black Gold-Plated G/F | Electrical Wire Cable Signal Terminal Connector for Customization 6

USB 2.0 AM Male Connector Integrated Solder-Type Housing Black Gold-Plated G/F | Electrical Wire Cable Signal Terminal Connector for Customization 7

USB 2.0 AM Male Connector Integrated Solder-Type Housing Black Gold-Plated G/F | Electrical Wire Cable Signal Terminal Connector for Customization 8
