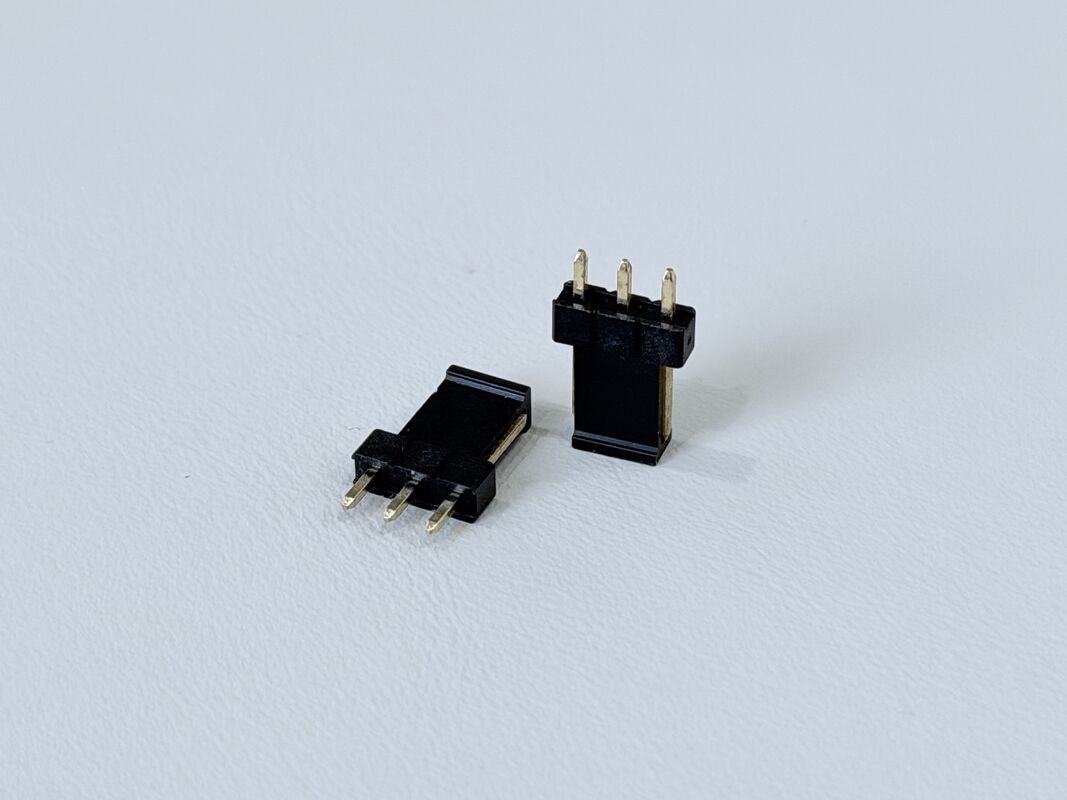

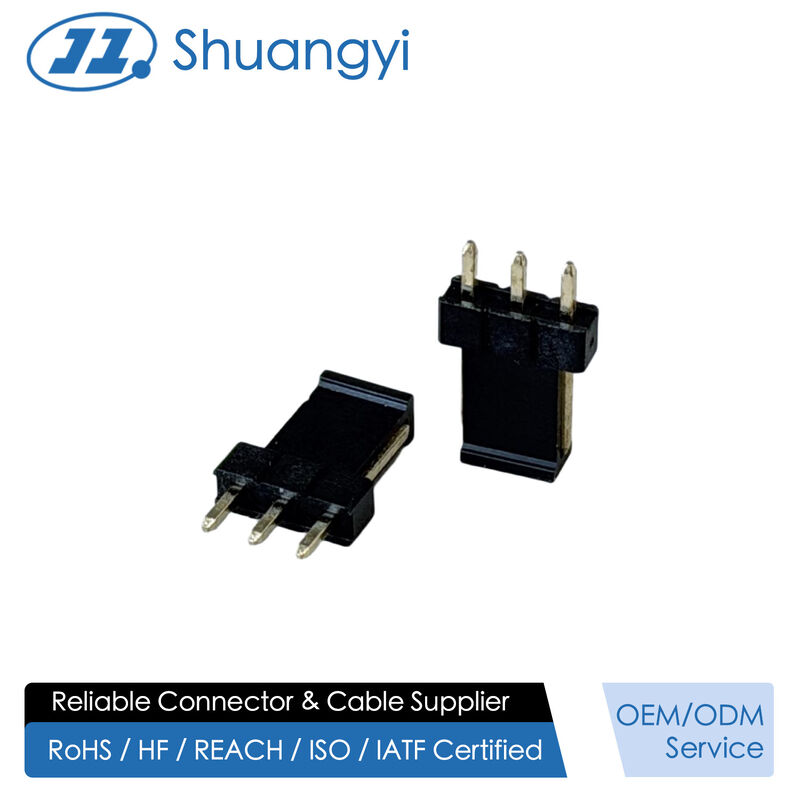

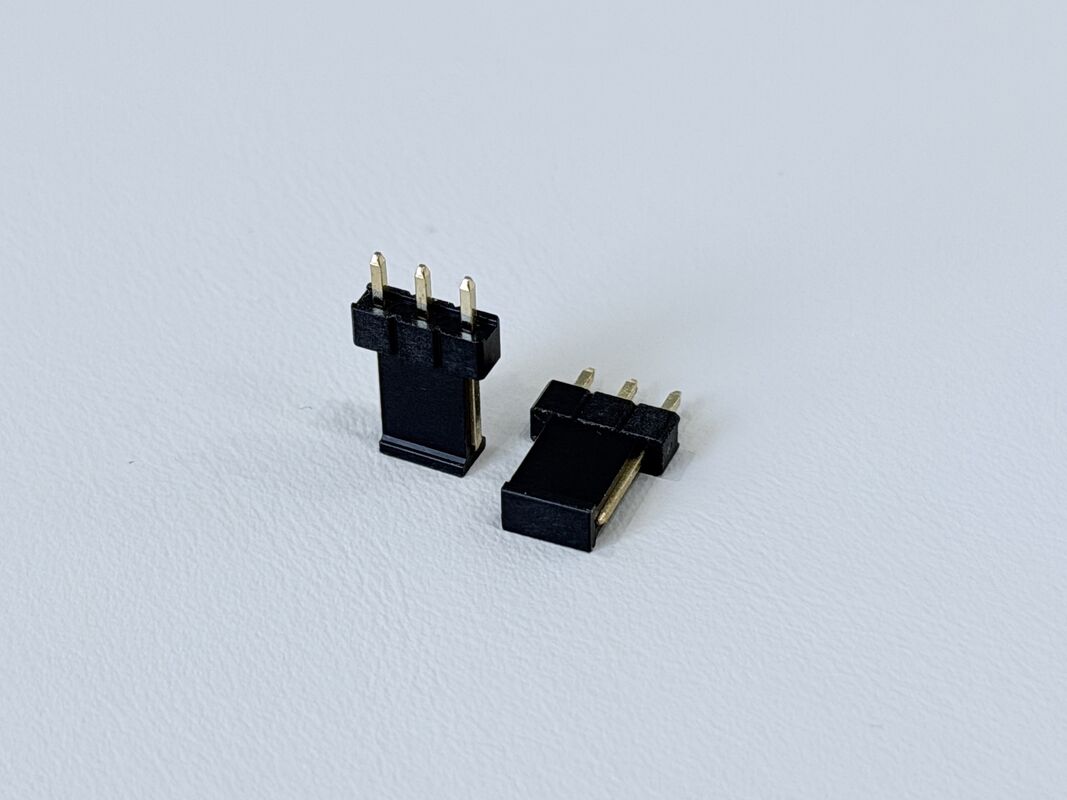

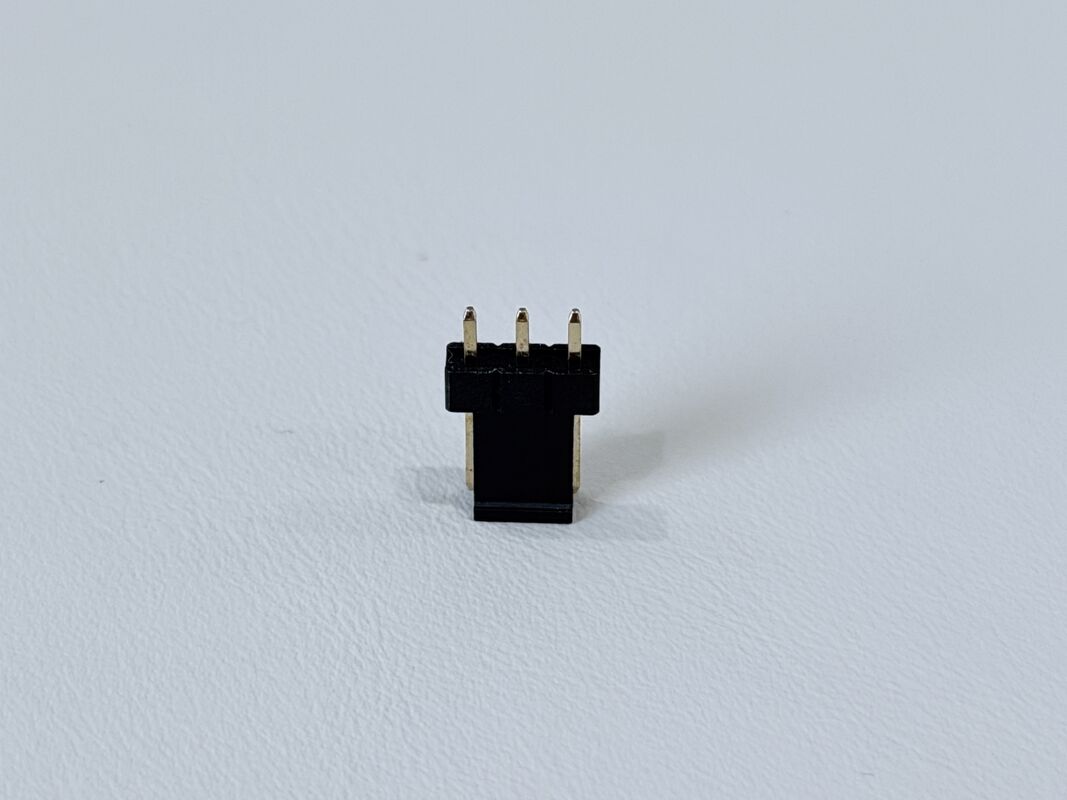

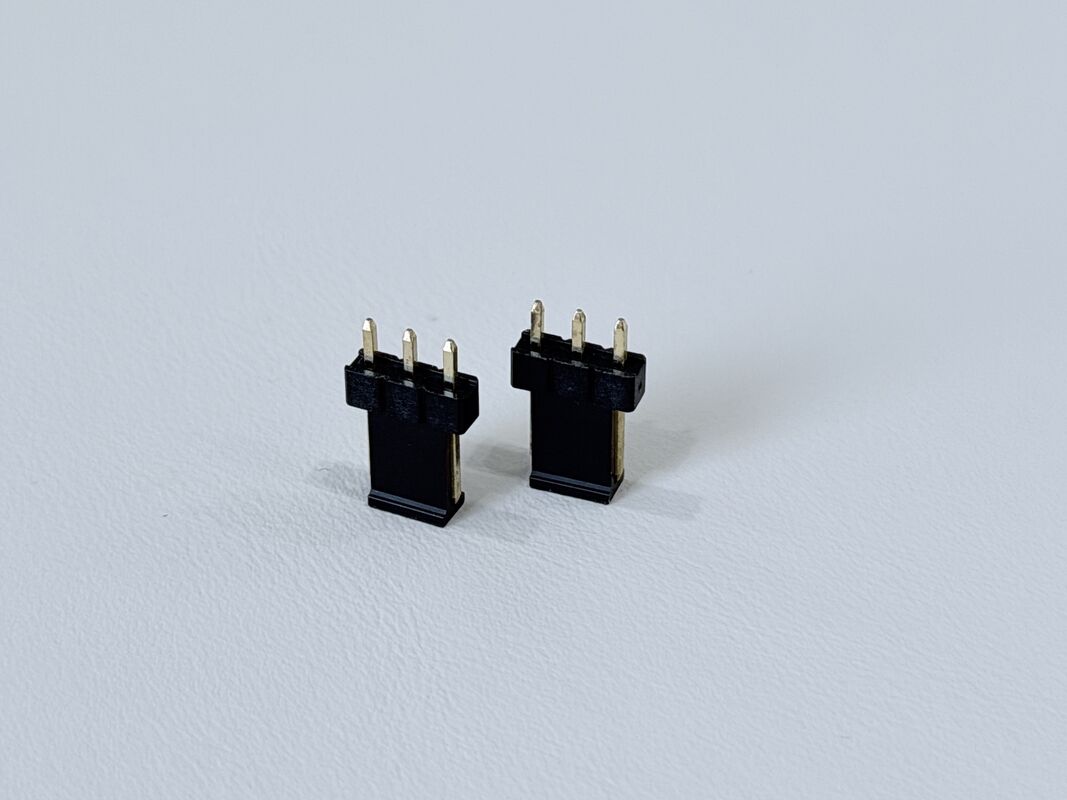

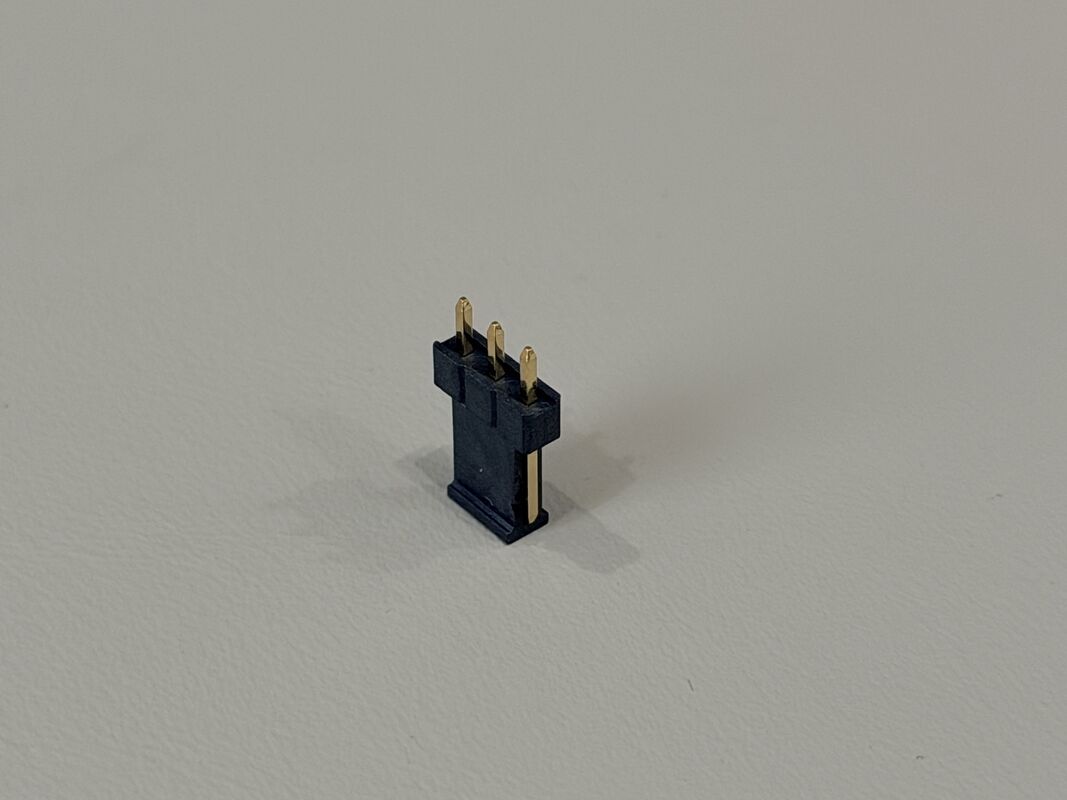

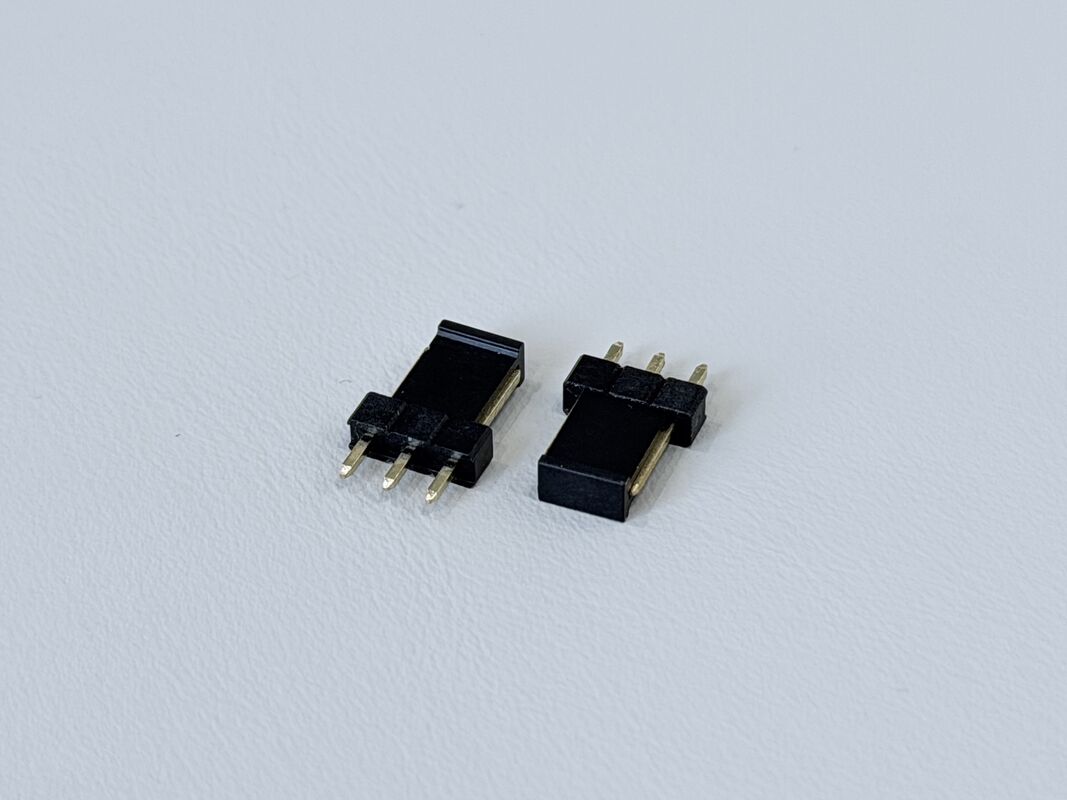

2.54mm Pitch 1×3 Single-Row Pin Header, Gold-Plated PCB Electronic Electrical Terminal Connector for Signal & Power Transmission

This 2.54mm pitch 1×3 single-row pin header connector offers reliable electrical and signal transmission for PCB applications. Built with high-temperature PA9T UL94-V0 housing, this connector maintains dimensional stability and withstands harsh soldering environments.

The terminals are made of high-conductivity Brass C2680, plated with 50µ” nickel and 15µ” gold, providing excellent corrosion resistance, stable conductivity, and long-term durability. Its 8.5H vertical through-hole design ensures solid mechanical retention with a single-pin holding force of ≥0.8 Kgf, making it ideal for applications requiring stable vibration resistance.

With a 3A max current rating, 250V DC rating, and a –25°C to +105°C operating range, this connector supports both signal and low-power circuits in a wide variety of electronic devices.

⚙️ Applications

• PCB Signal & Data Transmission: Used for board-to-board or board-to-module connections, including low-voltage signals, data transmission, and control interfaces.
• Consumer Electronics: Common in smart home appliances, printers, cameras, displays, controllers, and handheld devices for internal signal routing.
• Industrial Automation & Control Systems: Applied in PLCs, industrial control boards, sensors, meters, robotics modules, and automation I/O interfaces.
• Servers & Data Center Equipment: Used for backplane interfaces, storage modules, communication boards, and signal expansion connectors.
• Automotive Electronics: Suitable for ECUs, BMS modules, sensor units, dashboards, infotainment systems, and on-board control interfaces.
• Communication & Networking Devices: Used in routers, switches, IoT gateways, RF modules, and network communication cards.
• IoT & Smart Device Modules: Applied in Bluetooth modules, WiFi modules, GPS/Beidou modules, sensor nodes, and embedded system expansion ports.
• Power Control & Monitoring Boards: For auxiliary power transmission, monitoring signals, and low-power control circuits.
• Custom OEM/ODM Electronic Designs: Ideal for designs requiring customizable pin count, pitch, height, plating option, and configuration.

⚠️ Notes

• Ensure Correct Pin Alignment: Check orientation and positioning before mating to avoid mis-insertion, bent pins, or PCB pad damage.
• Do Not Exceed Electrical Ratings: Follow the specified current and voltage limits to prevent overheating or contact failure.
• Proper Insertion and Extraction Force: Avoid excessive force during mating/unmating to prevent deformation, cracked solder joints, or pin damage.
• Keep Contact Surfaces Clean: Ensure terminals remain free from dust, oil, oxidation, or contaminants that reduce conductivity.
• Follow Recommended Soldering Conditions: Use appropriate soldering temperature profiles according to plastic materials such as LCP, PA6T, PA66, or PBT.
• Verify PCB Hole Tolerance: Incorrect hole size may cause inadequate solder filling or mechanical instability.
• Avoid Mechanical Stress After Assembly: Do not apply lateral pressure or bending forces, especially for SMT pin headers.
• Maintain Proper Storage Conditions: Store in a dry, dust-free environment to prevent terminal oxidation; use anti-static packaging if required.
• Confirm Compatibility with Female Header: Ensure matching pitch, pin count, height, and contact design to avoid mating failure.
• Choose Correct Plating Specification: Select proper plating (gold, tin, nickel) based on your application’s durability, corrosion resistance, and signal reliability needs.
