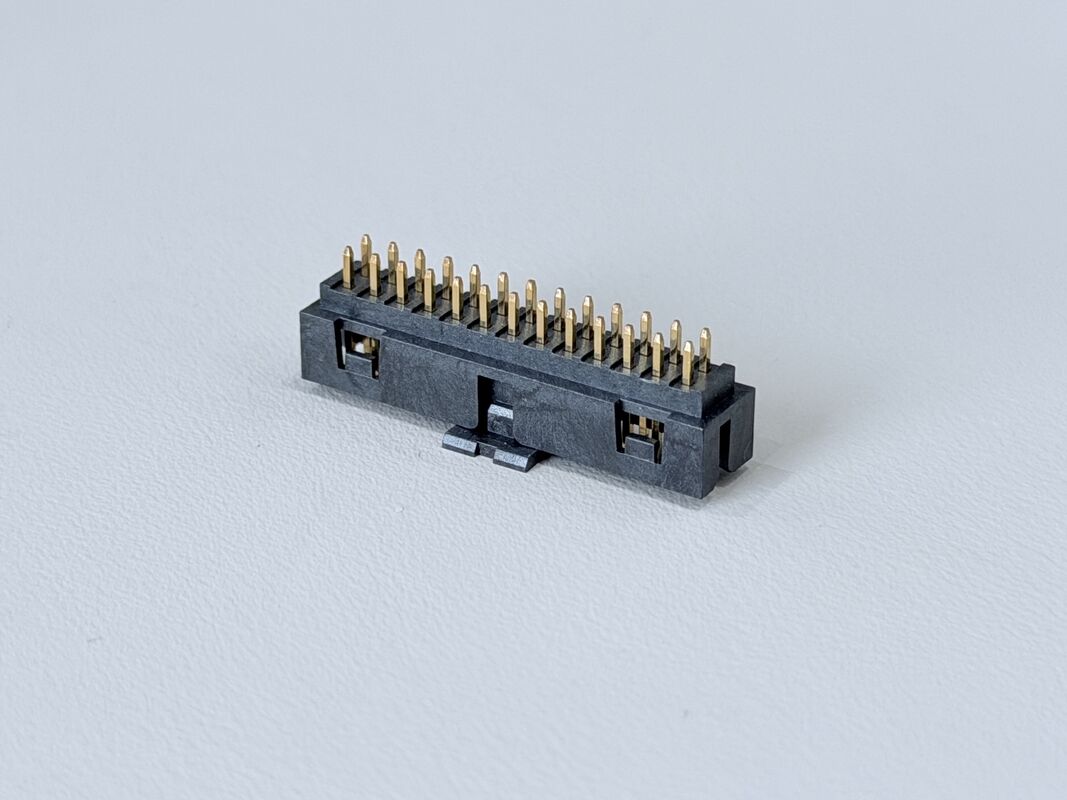

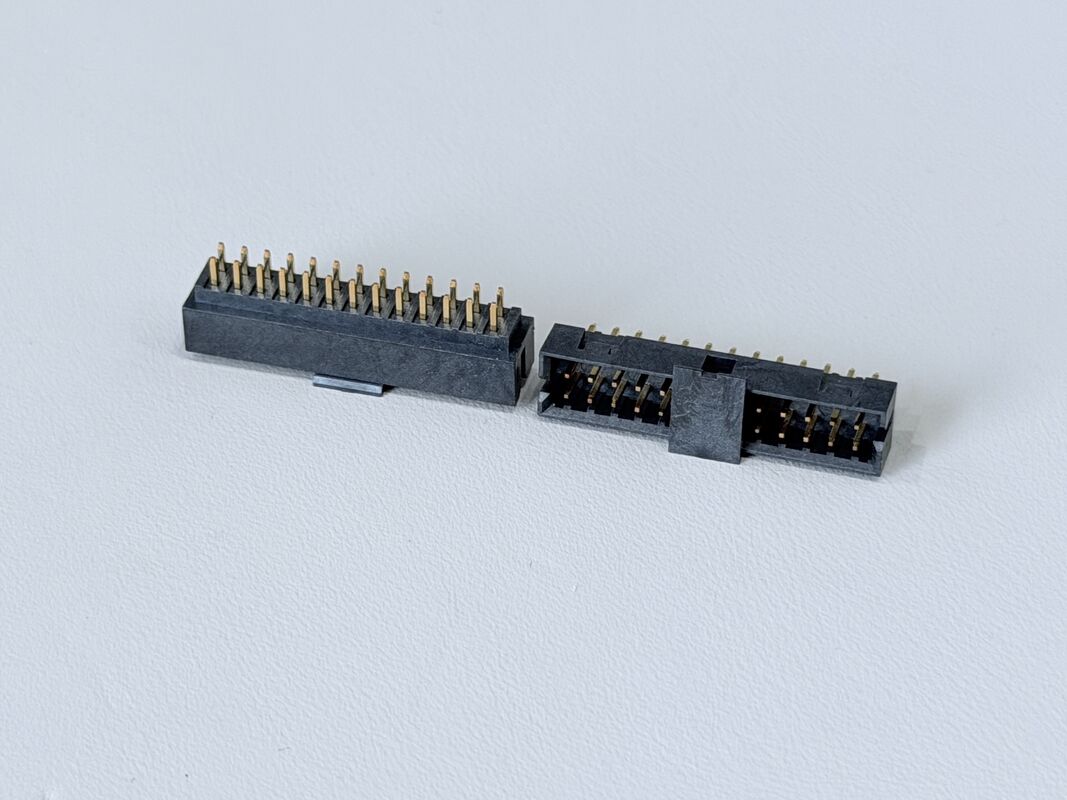

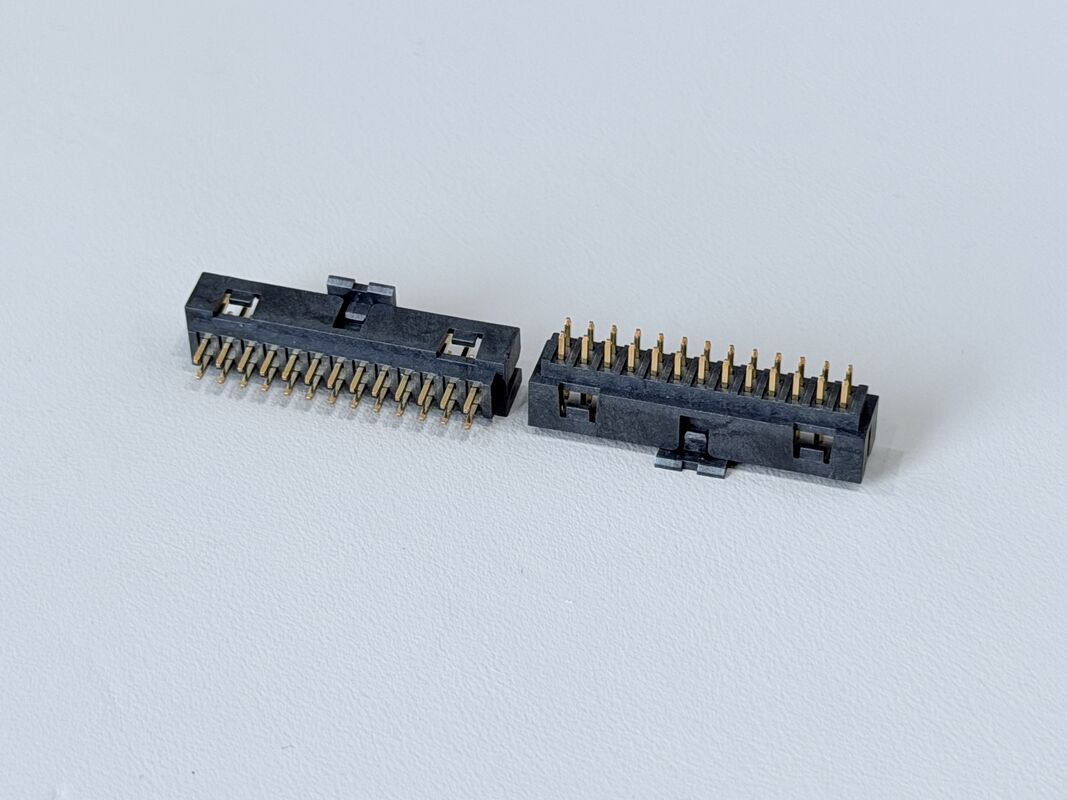

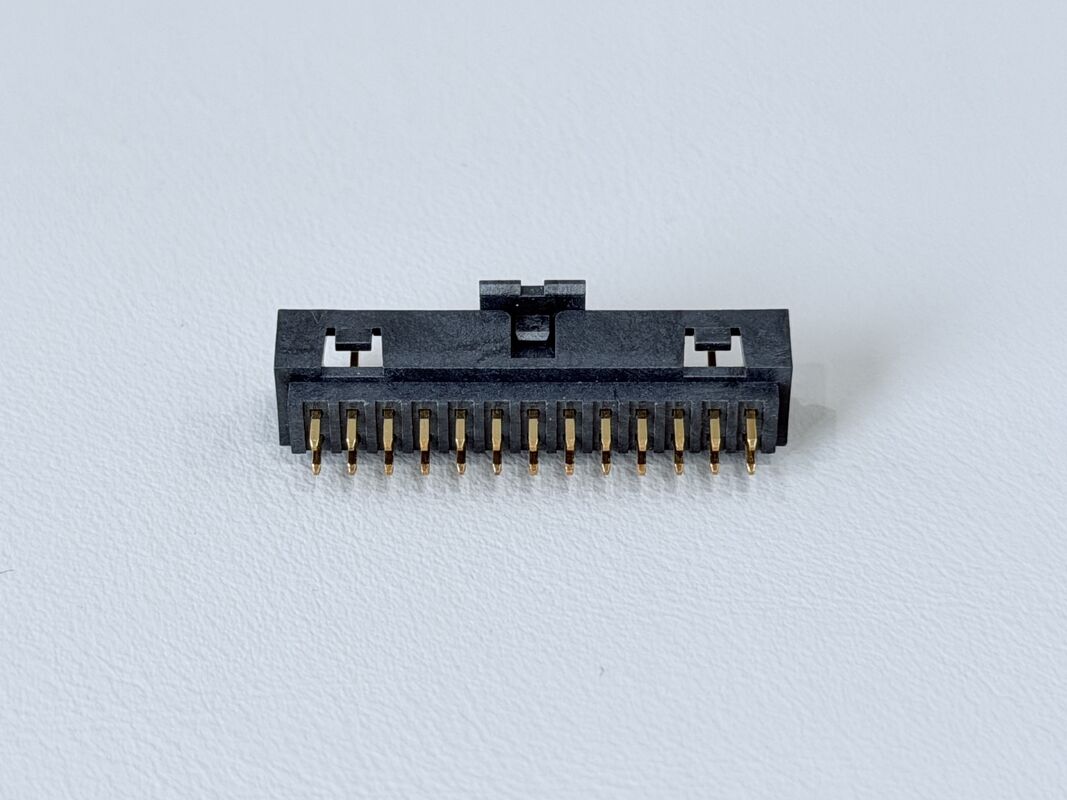

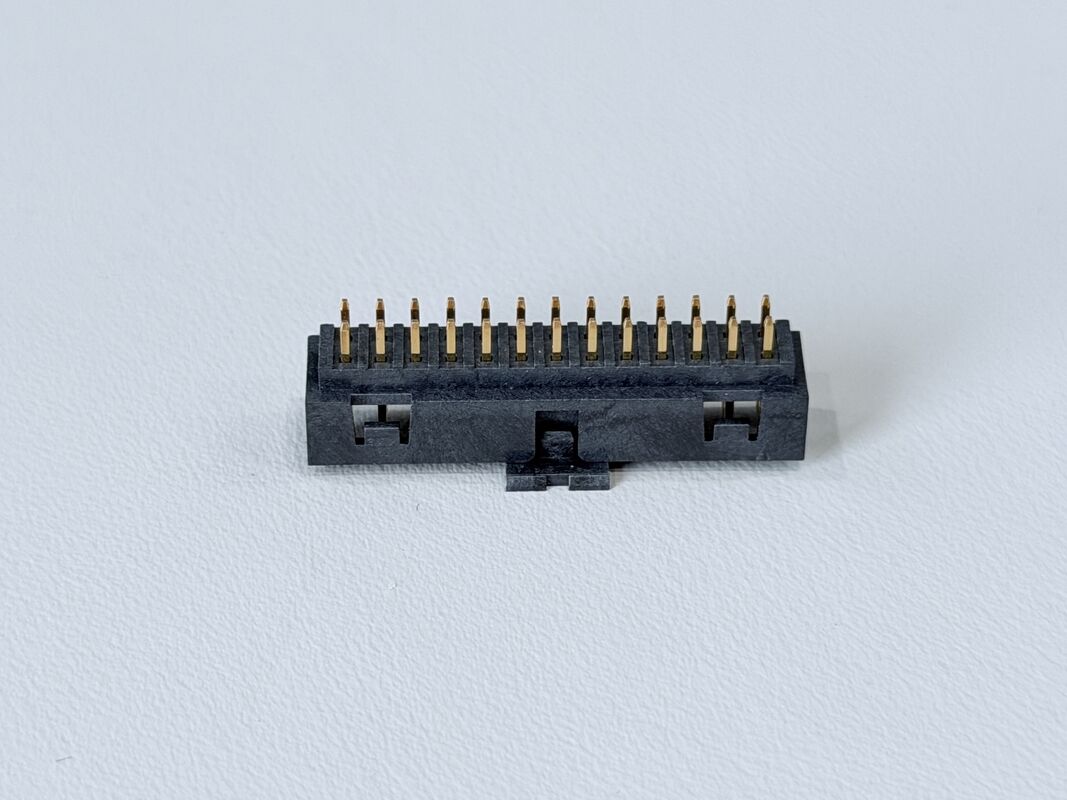

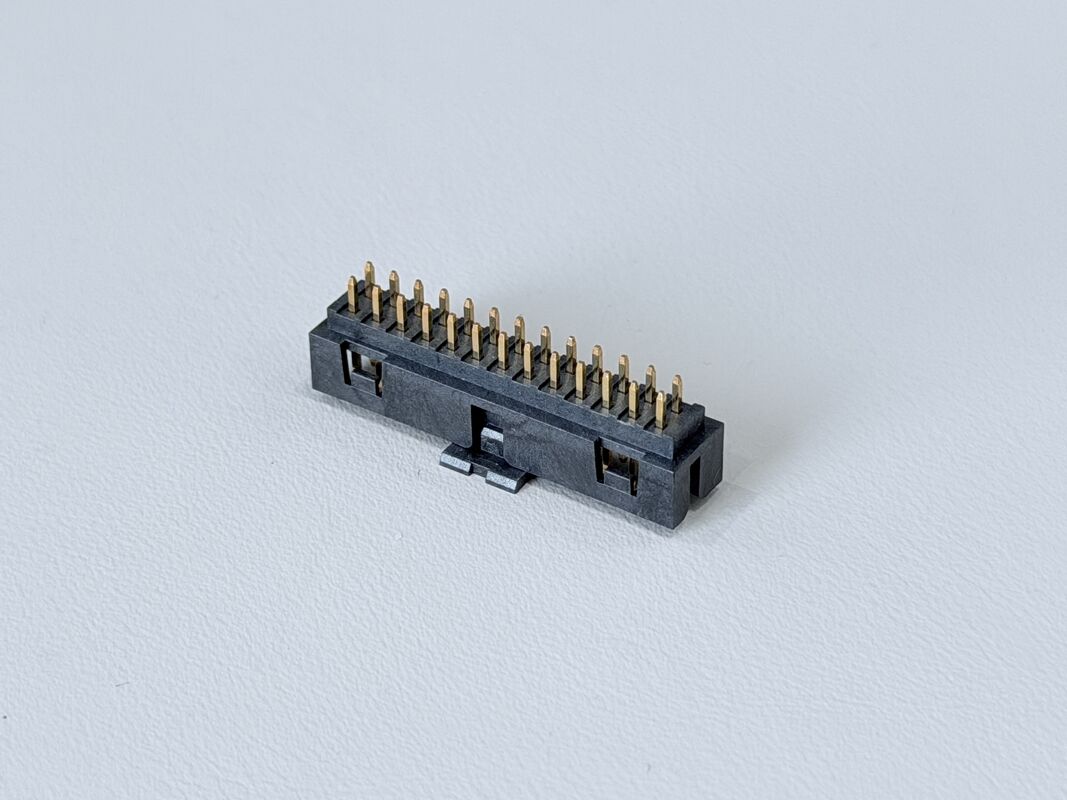

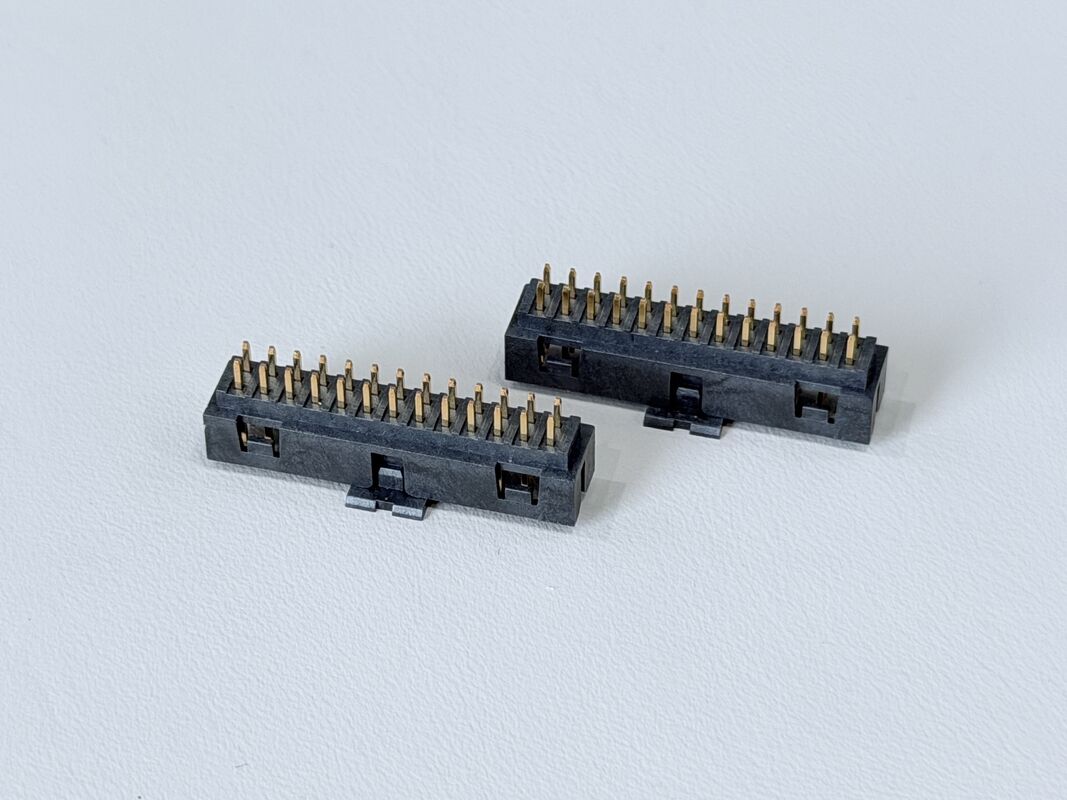

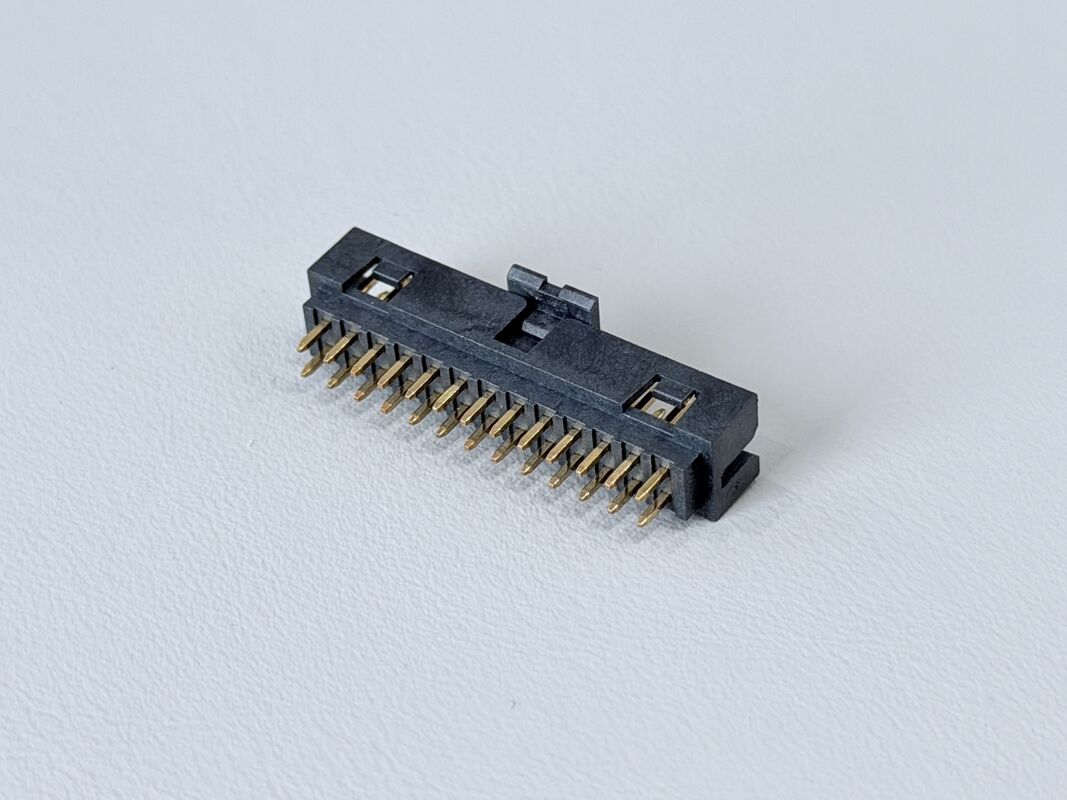

2.00mm Pitch 2×13 Pin Header Connector, Dual-Row PCB Through-Hole Electronic Connector, Gold-Plated Terminals, Signal & Power Transmission

This 2.00mm pitch 2×13 Pin Header Connector is designed for high-density PCB applications requiring reliable electronic signal and low-power transmission. The connector features a dual-row through-hole design with 2.5mm exposed tails, ensuring secure soldering strength and stable PCB mounting.

Manufactured with LCP E130i UL94-V0 high-temperature housing, this connector provides excellent heat resistance, dimensional stability, and durability. The terminals are made from H65 brass and plated with 50 µ” nickel and 15 µ” gold on the contact area to deliver superior conductivity, anti-corrosion performance, and long-term stability.

With a current rating of up to 2A per pin, halogen-free materials, and 1.0 kgf minimum pin retention, this connector is suitable for compact electronic devices and industrial-grade equipment requiring stable multi-pin interconnections.

⚙️ Applications

• PCB Signal & Data Transmission: Used for board-to-board or board-to-module connections, including low-voltage signals, data transmission, and control interfaces.
• Consumer Electronics: Common in smart home appliances, printers, cameras, displays, controllers, and handheld devices for internal signal routing.
• Industrial Automation & Control Systems: Applied in PLCs, industrial control boards, sensors, meters, robotics modules, and automation I/O interfaces.
• Servers & Data Center Equipment: Used for backplane interfaces, storage modules, communication boards, and signal expansion connectors.
• Automotive Electronics: Suitable for ECUs, BMS modules, sensor units, dashboards, infotainment systems, and on-board control interfaces.
• Communication & Networking Devices: Used in routers, switches, IoT gateways, RF modules, and network communication cards.
• IoT & Smart Device Modules: Applied in Bluetooth modules, WiFi modules, GPS/Beidou modules, sensor nodes, and embedded system expansion ports.
• Power Control & Monitoring Boards: For auxiliary power transmission, monitoring signals, and low-power control circuits.
• Custom OEM/ODM Electronic Designs: Ideal for designs requiring customizable pin count, pitch, height, plating option, and configuration.

⚠️ Notes

• Ensure Correct Pin Alignment: Check orientation and positioning before mating to avoid mis-insertion, bent pins, or PCB pad damage.
• Do Not Exceed Electrical Ratings: Follow the specified current and voltage limits to prevent overheating or contact failure.
• Proper Insertion and Extraction Force: Avoid excessive force during mating/unmating to prevent deformation, cracked solder joints, or pin damage.
• Keep Contact Surfaces Clean: Ensure terminals remain free from dust, oil, oxidation, or contaminants that reduce conductivity.
• Follow Recommended Soldering Conditions: Use appropriate soldering temperature profiles according to plastic materials such as LCP, PA6T, PA66, or PBT.
• Verify PCB Hole Tolerance: Incorrect hole size may cause inadequate solder filling or mechanical instability.
• Avoid Mechanical Stress After Assembly: Do not apply lateral pressure or bending forces, especially for SMT pin headers.
• Maintain Proper Storage Conditions: Store in a dry, dust-free environment to prevent terminal oxidation; use anti-static packaging if required.
• Confirm Compatibility with Female Header: Ensure matching pitch, pin count, height, and contact design to avoid mating failure.
• Choose Correct Plating Specification: Select proper plating (gold, tin, nickel) based on your application’s durability, corrosion resistance, and signal reliability needs.
