SATA 22-Pin Female SMT Connector with Pillar | 1.27mm Pitch Gold-Plated Terminal | PCB Electronic Signal Power Transmission Connector

SATA 22-Pin Female SMT Connector with Pillar | 1.27mm Pitch Gold-Plated Terminal | PCB Electronic Signal Power Transmission Connector

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA-C22F-83M9A5-00LH

Contact Us
Request A Quote
Product Details
Housing Material:
PBT 20% G/F, UL94-V0, Black
Terminal Material:
PH. BRONZE – C5191, T = 0.25
Type:
SMT PCB
Rated Current / Voltage:
1.5A @ 40VAC
Contact Resistance:
≤ 30 MΩ
Insulation Resistance:
≥ 1000 MΩ
Withstand Voltage:
500VAC / Minute
Operating Temperature:
-20°C ~ +85°C
Plating:
Au Plated On Contact Area
Environmental Standard:
RoHS 2.0
Payment & Shipping Terms
Minimum Order Quantity
1000
Price
$0.38-0.58 PCS FOB
Packaging Details
Tape and Reel, 1500 per case, 10KG
Delivery Time
8-15 working days
Payment Terms
T/T
Supply Ability
500000 pcs per month
Product Description

Our SATA connector series is designed for stable data transmission and high reliability. With customizable pin count, pitch, materials, and plating specifications, we offer tailored solutions for diverse applications. Produced in our automated facilities with strict quality control, these connectors ensure excellent durability, heat resistance, and hot-swap performance. Widely used in computers, servers, and industrial storage devices, they deliver precision connection and long-lasting performance.
ShuangYi Precision — Powering Smarter Connections.
Why Choose Us:
• Free samples available for quality evaluation.
• Support for both OEM & ODM customization.
• Trade Terms: EXW, FOB, CIF, CPT, etc.
Notice: The displayed price is only for reference. Contact us now for the best offer and detailed quotation!

Our SATA 22-Pin Female SMT Connector with Pillar is designed for reliable PCB-mounted data and power transmission in SATA-based storage systems. Built with high-temperature LCP housing (UL94-V0) and precision-stamped phosphor bronze terminals, this connector ensures outstanding mechanical durability and stable signal integrity.

The 15µ" gold-plated contact area provides excellent corrosion resistance, reduced contact loss, and long-life performance for high-frequency data applications. The SMT structure with reinforcing pillar offers enhanced soldering strength, making it suitable for automated reflow processes in industrial production environments.

This connector is widely used in SSD/HDD drives, industrial computers, servers, communication equipment, and embedded systems, providing stable electrical and signal connections in compact PCB layouts.

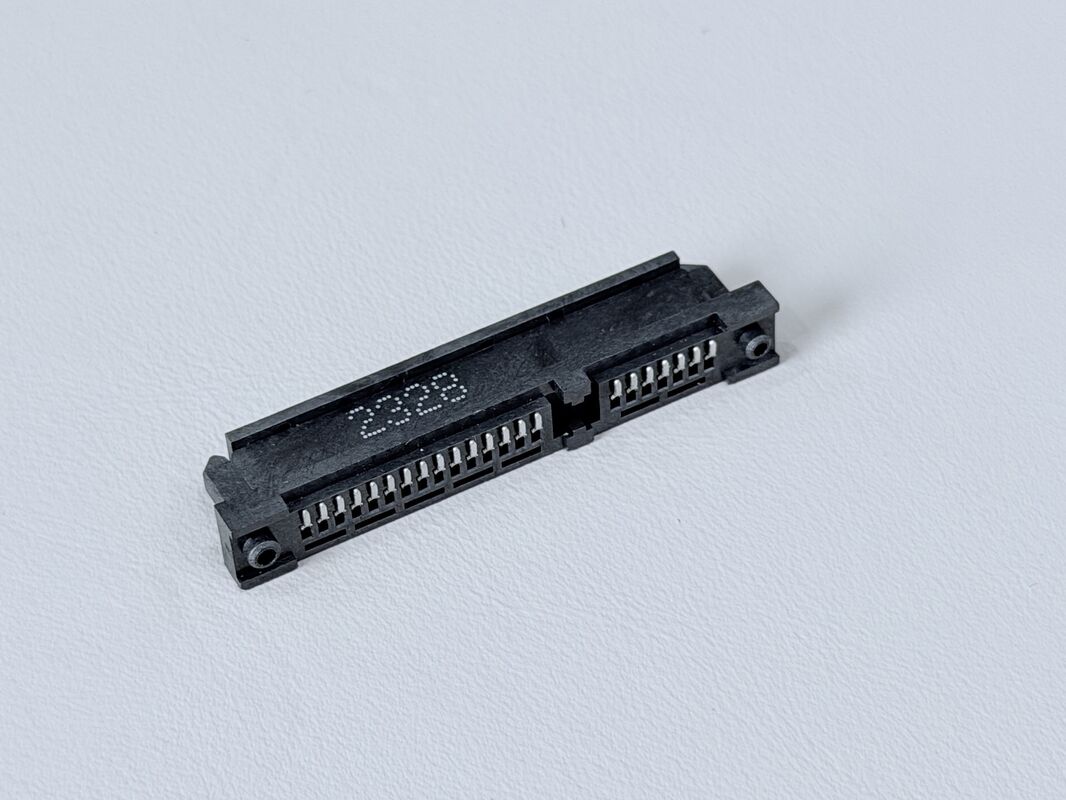

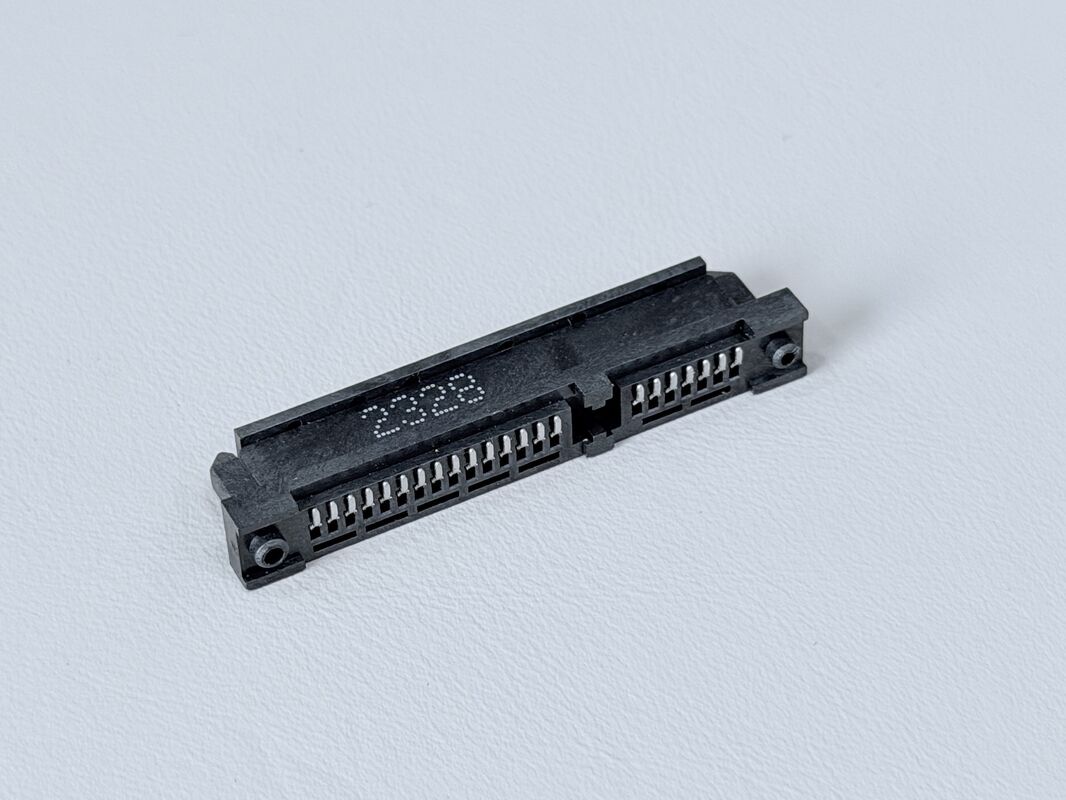

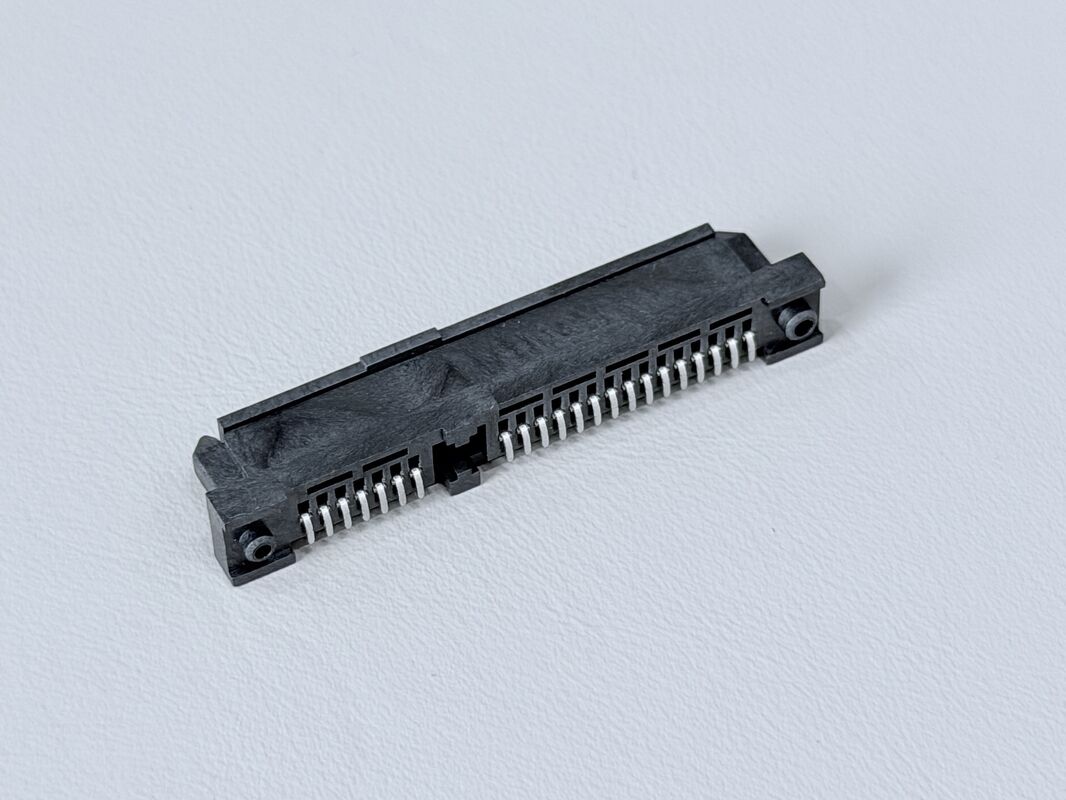

SATA 22-Pin Female SMT Connector with Pillar | 1.27mm Pitch Gold-Plated Terminal | PCB Electronic Signal Power Transmission Connector 0SATA 22-Pin Female SMT Connector with Pillar | 1.27mm Pitch Gold-Plated Terminal | PCB Electronic Signal Power Transmission Connector 1SATA 22-Pin Female SMT Connector with Pillar | 1.27mm Pitch Gold-Plated Terminal | PCB Electronic Signal Power Transmission Connector 2

Product Type SATA 22-Pin Female SMT Connector with Pillar
Pitch 1.27 mm
Pin Count 22 Pins
Contact Plating Au 15µ" (Contact Area)
Terminal Material Phosphor Bronze C5191-H, T=0.25mm
Housing Material LCP, Glass-Filled, Black, UL94-V0
Cap Material LCP G/F Black UL94-V0
Operating Temperature –20°C to +85°C
Rated Current 1.5A @ 40VAC
Contact Resistance ≤30mΩ
Insulation Resistance ≥1000MΩ
Withstand Voltage 500VAC/min
Mechanical Strength 45N Max Mating Force
Pin Retention Force ≥0.8 kgf
Solder/Crimp Area Plating Tin 80µ" Min
Environmental Compliance RoHS 2.0 / HF

⚙️ Applications

  • Server & Data Center Equipment – Used as SAS / SATA electronic signal and power connectors on HDD/SSD backplanes, RAID cards, JBOD/NAS and 1U/2U server boards.
  • Communication & Networking Systems – For routers, switches, base stations and other networking equipment that need compact PCB connectors and reliable high-speed transmission.
  • Industrial & Automation Electronics – Applied in industrial PCs, PLCs, motion controllers, data loggers and test instruments as PCB-to-wire or cable connectors.
  • Automotive & New Energy Applications – Used in in-vehicle data recorders, infotainment units, EV chargers and energy-storage systems for signal and low-power transmission.
  • Custom Wire Harness & Cable Assemblies – Suitable for OEM/ODM projects that require connector customization for PCB, wire and cable layouts in electrical and electronic devices.

⚠️ Notes

  • Make sure the working voltage, current and temperature of your design stay within the connector’s rated values, with proper safety margin.
  • Design PCB pads, holes and mechanical space according to the drawing and pitch, and avoid bending or twisting stress on the connector after soldering or assembly.
  • Select appropriate wire gauge, insulation and cable structure based on current load, signal speed and bending requirements for both power and signal terminals.
  • For IDC / crimp types, use matched tooling and press-force to ensure full insulation displacement; for solder types, follow a controlled soldering profile to avoid overheating the LCP housing.
  • Insert and pull out the connector along the mating direction, avoid pulling on the cable itself, and do not exceed the specified mating/unmating force or durability cycles.
  • Keep gold-plated contact areas clean and dry, avoid touching them with bare fingers, and store products in dry anti-static packaging before assembly.

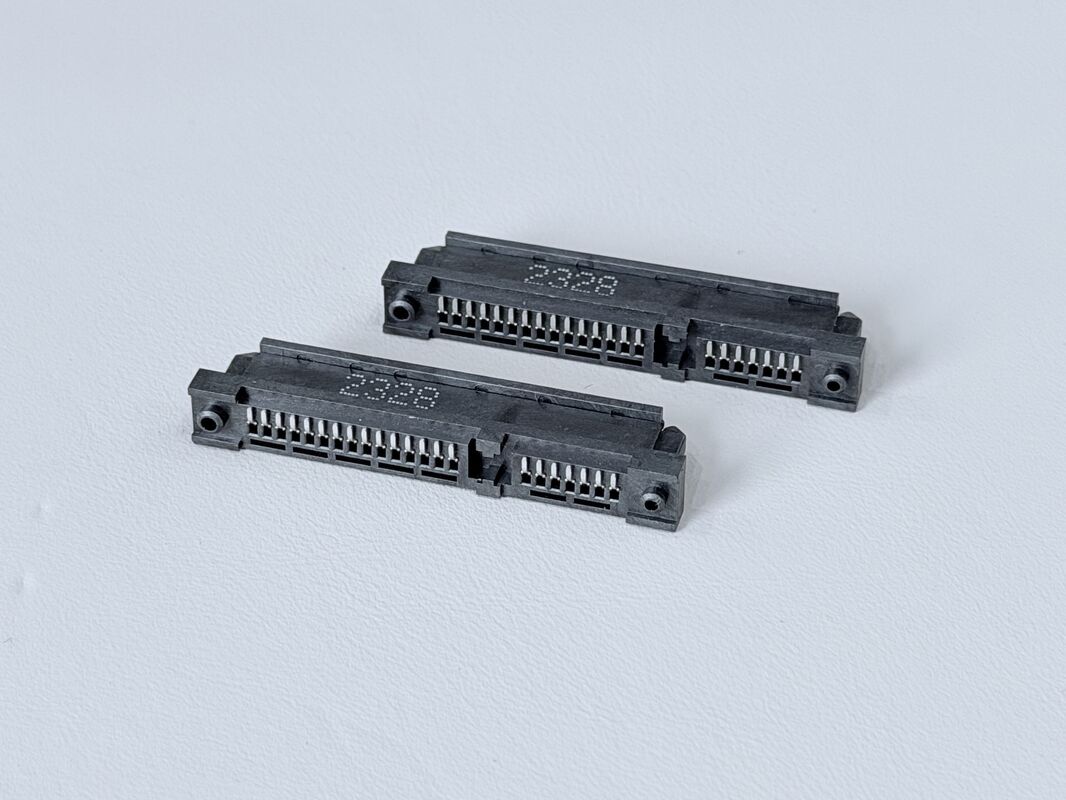

SATA 22-Pin Female SMT Connector with Pillar | 1.27mm Pitch Gold-Plated Terminal | PCB Electronic Signal Power Transmission Connector 3

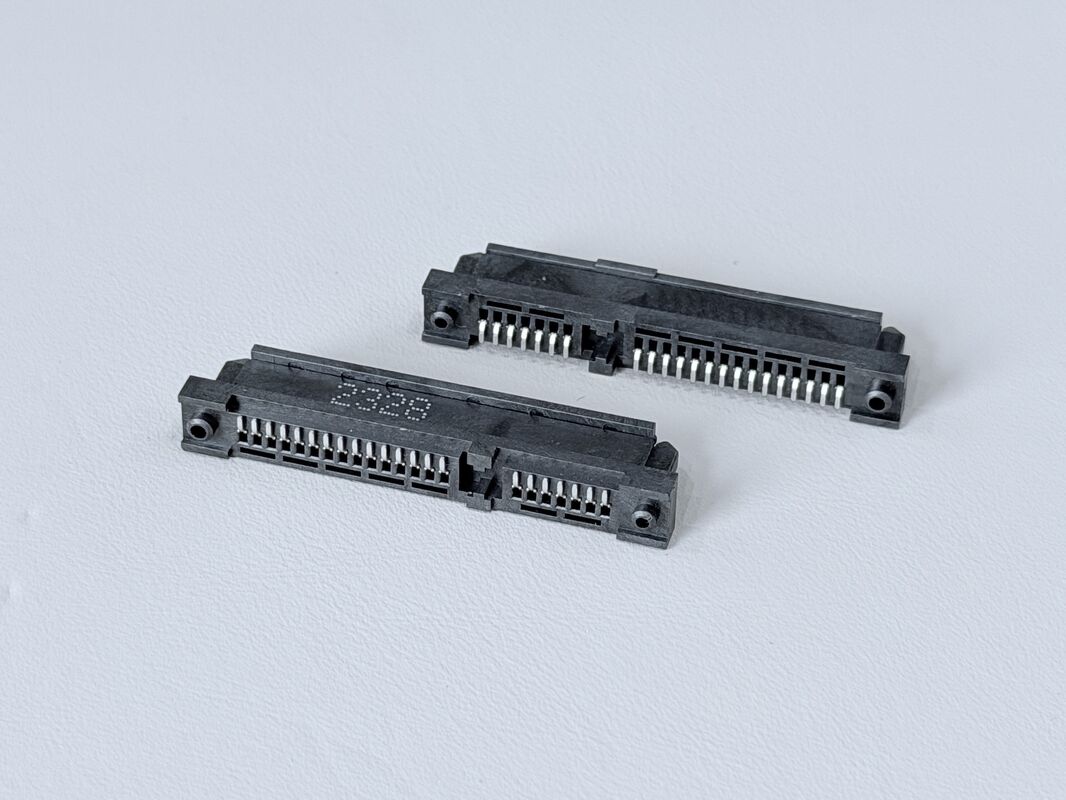

SATA 22-Pin Female SMT Connector with Pillar | 1.27mm Pitch Gold-Plated Terminal | PCB Electronic Signal Power Transmission Connector 4

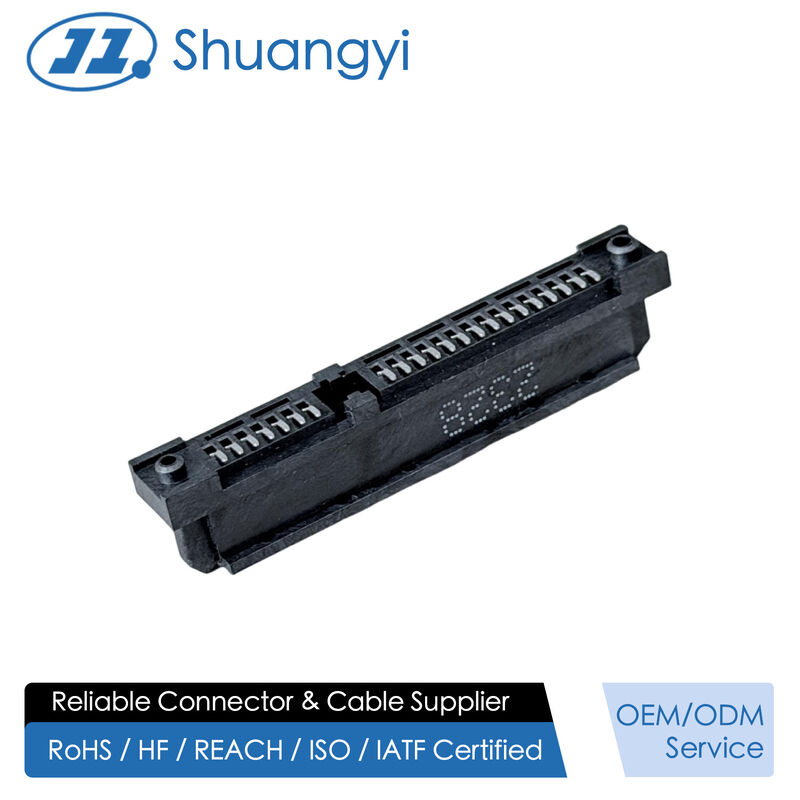

SATA 22-Pin Female SMT Connector with Pillar | 1.27mm Pitch Gold-Plated Terminal | PCB Electronic Signal Power Transmission Connector 5

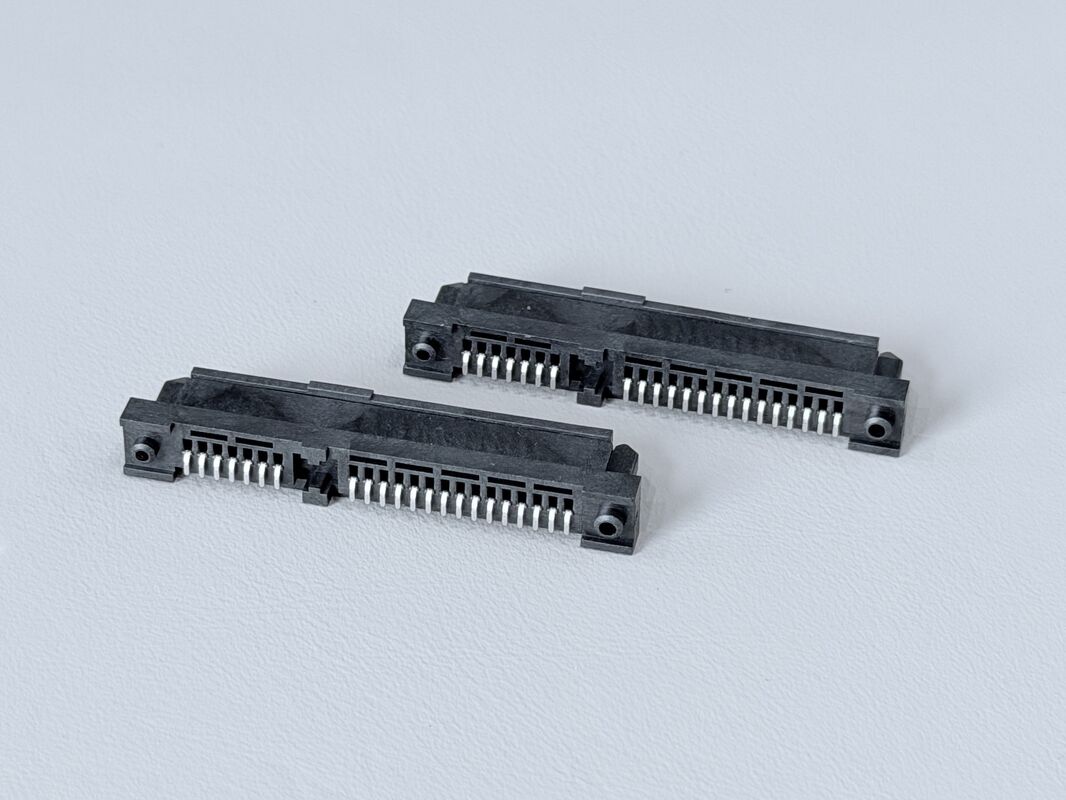

SATA 22-Pin Female SMT Connector with Pillar | 1.27mm Pitch Gold-Plated Terminal | PCB Electronic Signal Power Transmission Connector 6
SATA 22-Pin Female SMT Connector with Pillar | 1.27mm Pitch Gold-Plated Terminal | PCB Electronic Signal Power Transmission Connector 7
SATA 22-Pin Female SMT Connector with Pillar | 1.27mm Pitch Gold-Plated Terminal | PCB Electronic Signal Power Transmission Connector 8
