SATA 22P Female Connector | Pin SMT PCB Terminal Connector | G/F Gold-Plated Electrical Signal Connector for Server, Automotive, Wire Cable & Power Transmission

SATA 22P Female Connector | Pin SMT PCB Terminal Connector | G/F Gold-Plated Electrical Signal Connector for Server, Automotive, Wire Cable & Power Transmission

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SATA-C22F-53C1A2-000R

Contact Us
Request A Quote
Product Details
Housing Material:
PBT 20% G/F, UL94-V0, Black
Terminal Material:
PH. BRONZE – C5191, T = 0.25
Type:
Crimp With Wire (C1 Per Code Explanation)
Rated Current / Voltage:
1.5A @ 40VAC
Contact Resistance:
≤ 30 MΩ
Insulation Resistance:
≥ 1000 MΩ
Withstand Voltage:
500VAC / Minute
Operating Temperature:
-20°C ~ +85°C
Plating:
Au Plated On Contact Area
Environmental Standard:
RoHS 2.0
Payment & Shipping Terms
Minimum Order Quantity
1000
Price
$0.12-0.19 PCS FOB
Packaging Details
Tape and Reel, 1500 per case, 10KG
Delivery Time
8-15 working days
Payment Terms
T/T
Supply Ability
500000 pcs per month
Product Description

Our SATA connector series is designed for stable data transmission and high reliability. With customizable pin count, pitch, materials, and plating specifications, we offer tailored solutions for diverse applications. Produced in our automated facilities with strict quality control, these connectors ensure excellent durability, heat resistance, and hot-swap performance. Widely used in computers, servers, and industrial storage devices, they deliver precision connection and long-lasting performance.
ShuangYi Precision — Powering Smarter Connections.
Why Choose Us:
• Free samples available for quality evaluation.
• Support for both OEM & ODM customization.
• Trade Terms: EXW, FOB, CIF, CPT, etc.
Notice: The displayed price is only for reference. Contact us now for the best offer and detailed quotation!

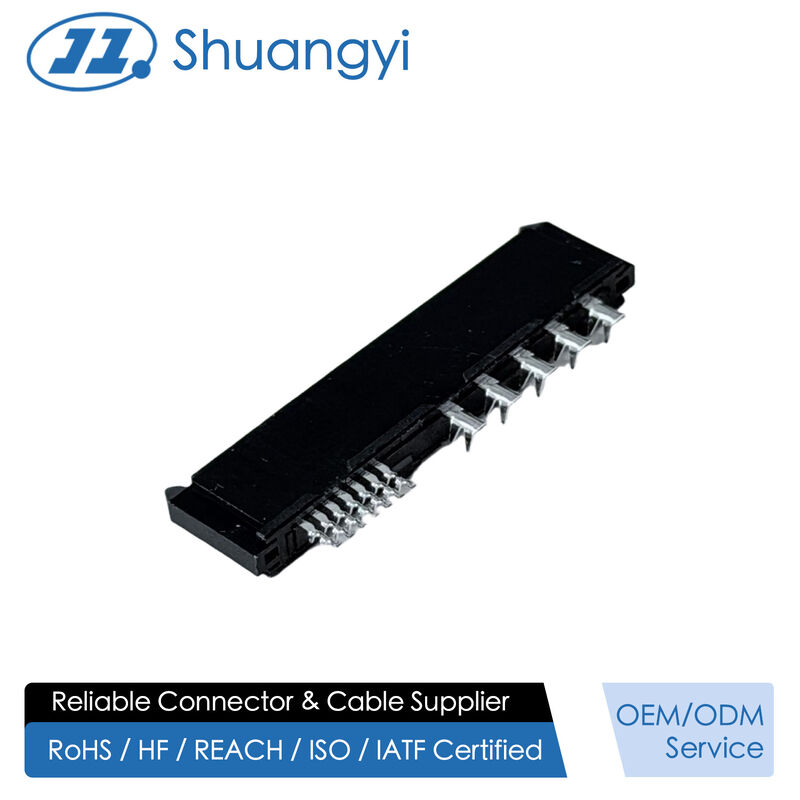

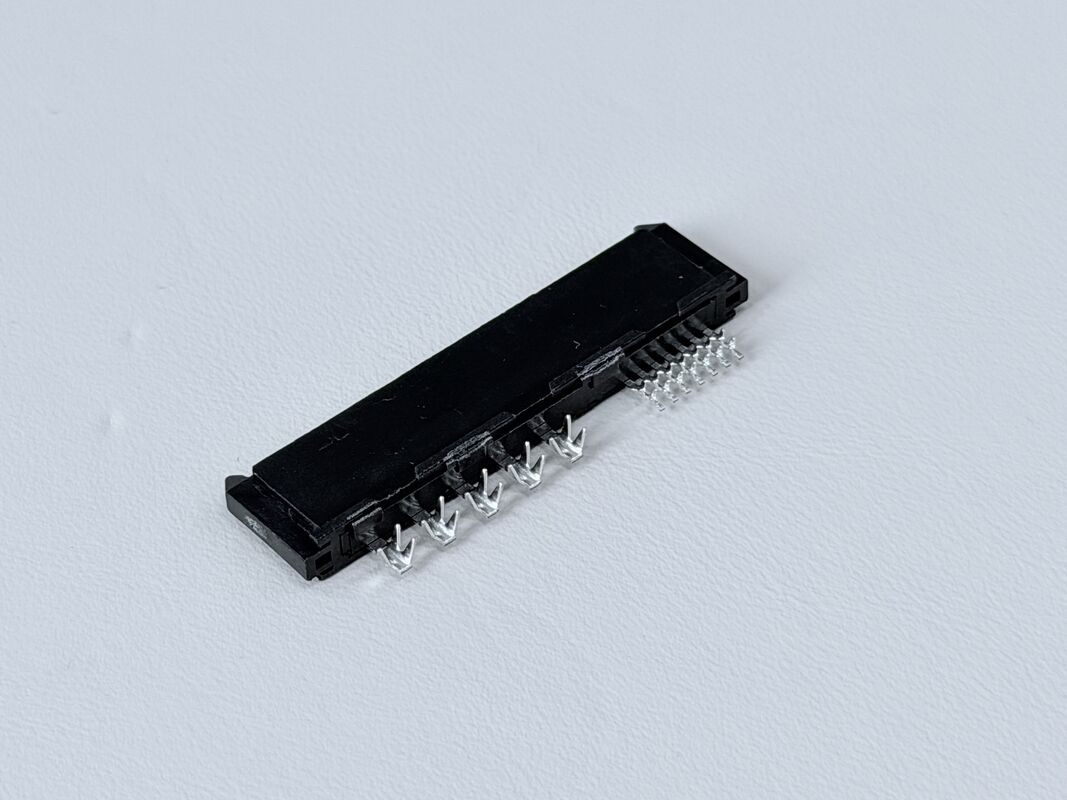

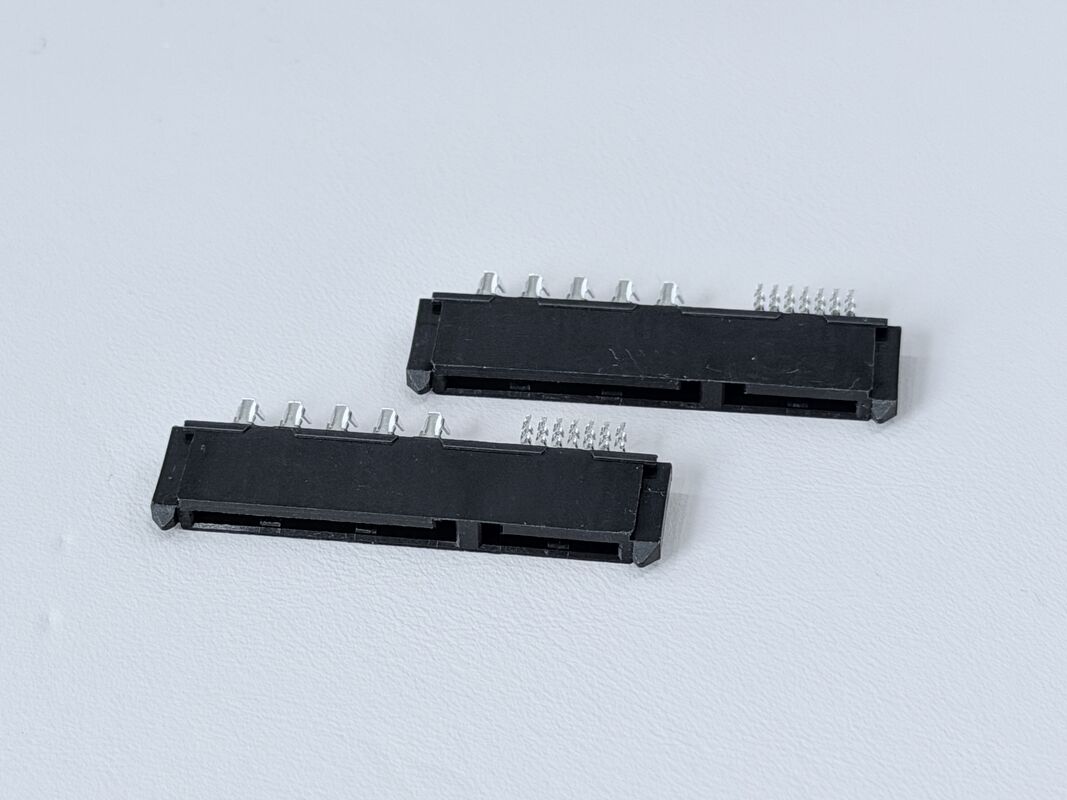

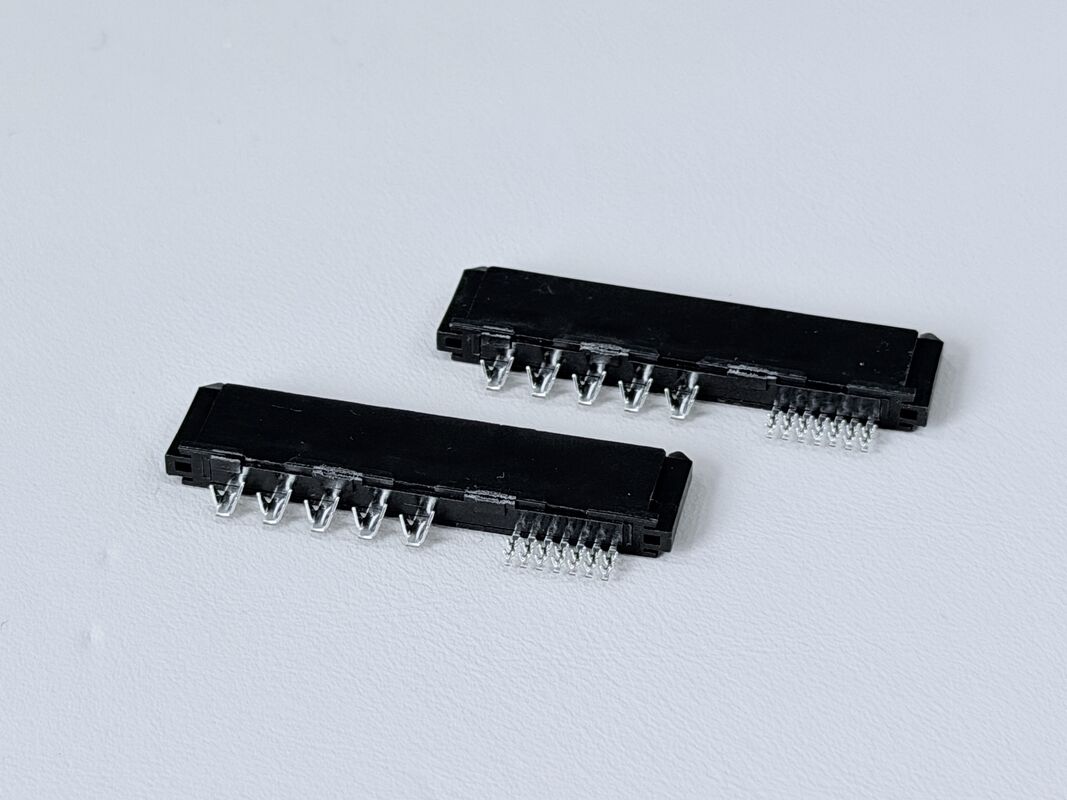

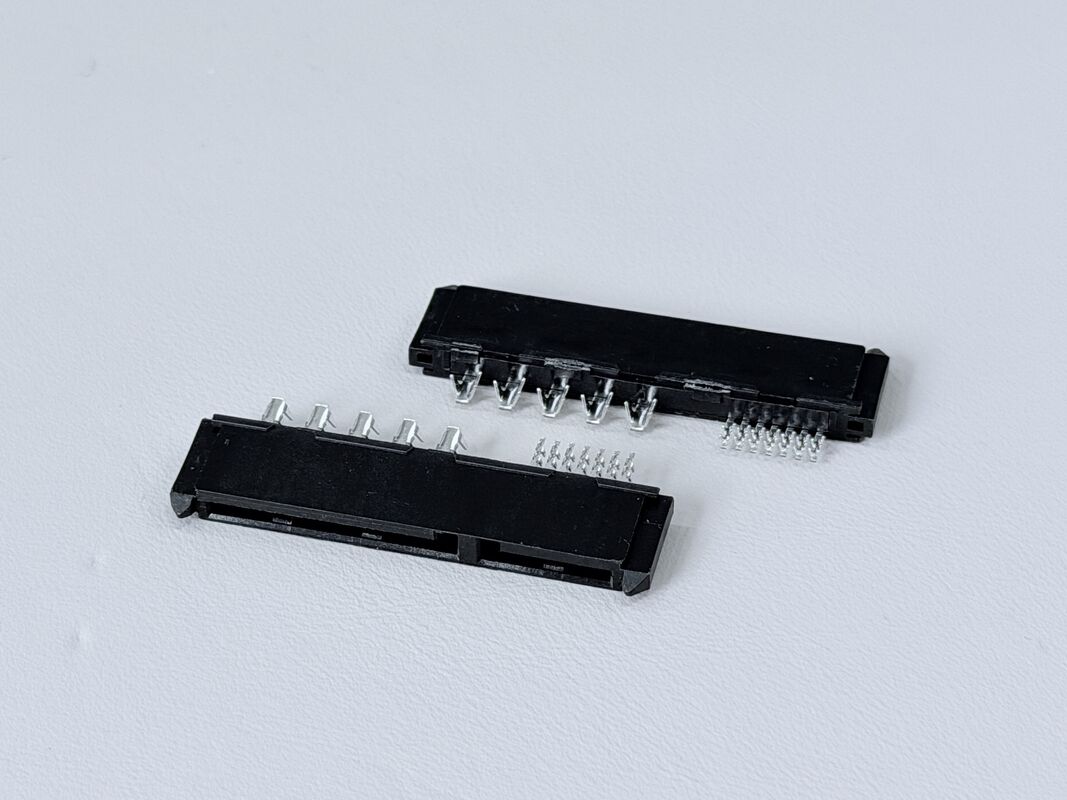

This SATA 22-Pin Female Connector is designed with a 1.27mm pitch and features a dual-hold crimp-type construction for stable wire termination. The contact area is gold-flash plated (G/F) for enhanced conductivity and long-term durability, supported by nickel and tin plating layers for corrosion and wear resistance.

The housing is made from UL94-V0 flame-retardant PBT with 20% glass fiber, offering high strength and reliability in demanding environments. Phosphor bronze terminals ensure excellent mechanical performance, including low contact resistance (≤30mΩ), strong pin retention, and consistent mating/unmating forces.

This connector provides stable power and signal transmission, making it suitable for server hardware, storage devices, industrial electronics, and automotive applications requiring secure SATA interconnection.

SATA 22P Female Connector | Pin SMT PCB Terminal Connector | G/F Gold-Plated Electrical Signal Connector for Server, Automotive, Wire Cable & Power Transmission 0SATA 22P Female Connector | Pin SMT PCB Terminal Connector | G/F Gold-Plated Electrical Signal Connector for Server, Automotive, Wire Cable & Power Transmission 1SATA 22P Female Connector | Pin SMT PCB Terminal Connector | G/F Gold-Plated Electrical Signal Connector for Server, Automotive, Wire Cable & Power Transmission 2

Product Type SATA 22P Female Connector, Crimp Type, Dual-Hold, 180°
Pitch 1.27mm
Rated Current 1.5A @ 40VAC
Contact Resistance ≤30mΩ (max)
Withstand Voltage 500VAC / 1 minute
Insulation Resistance ≥1000MΩ
Terminal Plating Ni ≥50u" (over terminal) / Au G/F plated (contact area) / Tin ≥80u" (solder & crimp area)
Mating Force ≤45N
Unmating Force ≥15N (1–5 cycles), ≥10N (6–50 cycles)
Single Pin Retention Force ≥0.8kgf
Housing Material PBT 20% G/F, UL94-V0, Black
Terminal Material Phosphor Bronze C5191-H, T=0.25
PEG Material Brass C2680-H, T=0.30
Compliance RoHS 2.0
Assembly Type Crimp with wire (C1 per code explanation)

⚙️ Applications

  • Server & Data Center Equipment – Used as SAS / SATA electronic signal and power connectors on HDD/SSD backplanes, RAID cards, JBOD/NAS and 1U/2U server boards.
  • Communication & Networking Systems – For routers, switches, base stations and other networking equipment that need compact PCB connectors and reliable high-speed transmission.
  • Industrial & Automation Electronics – Applied in industrial PCs, PLCs, motion controllers, data loggers and test instruments as PCB-to-wire or cable connectors.
  • Automotive & New Energy Applications – Used in in-vehicle data recorders, infotainment units, EV chargers and energy-storage systems for signal and low-power transmission.
  • Custom Wire Harness & Cable Assemblies – Suitable for OEM/ODM projects that require connector customization for PCB, wire and cable layouts in electrical and electronic devices.

⚠️ Notes

  • Make sure the working voltage, current and temperature of your design stay within the connector’s rated values, with proper safety margin.
  • Design PCB pads, holes and mechanical space according to the drawing and pitch, and avoid bending or twisting stress on the connector after soldering or assembly.
  • Select appropriate wire gauge, insulation and cable structure based on current load, signal speed and bending requirements for both power and signal terminals.
  • For IDC / crimp types, use matched tooling and press-force to ensure full insulation displacement; for solder types, follow a controlled soldering profile to avoid overheating the LCP housing.
  • Insert and pull out the connector along the mating direction, avoid pulling on the cable itself, and do not exceed the specified mating/unmating force or durability cycles.
  • Keep gold-plated contact areas clean and dry, avoid touching them with bare fingers, and store products in dry anti-static packaging before assembly.

SATA 22P Female Connector | Pin SMT PCB Terminal Connector | G/F Gold-Plated Electrical Signal Connector for Server, Automotive, Wire Cable & Power Transmission 3

SATA 22P Female Connector | Pin SMT PCB Terminal Connector | G/F Gold-Plated Electrical Signal Connector for Server, Automotive, Wire Cable & Power Transmission 4
SATA 22P Female Connector | Pin SMT PCB Terminal Connector | G/F Gold-Plated Electrical Signal Connector for Server, Automotive, Wire Cable & Power Transmission 5
SATA 22P Female Connector | Pin SMT PCB Terminal Connector | G/F Gold-Plated Electrical Signal Connector for Server, Automotive, Wire Cable & Power Transmission 6
SATA 22P Female Connector | Pin SMT PCB Terminal Connector | G/F Gold-Plated Electrical Signal Connector for Server, Automotive, Wire Cable & Power Transmission 7
SATA 22P Female Connector | Pin SMT PCB Terminal Connector | G/F Gold-Plated Electrical Signal Connector for Server, Automotive, Wire Cable & Power Transmission 8
