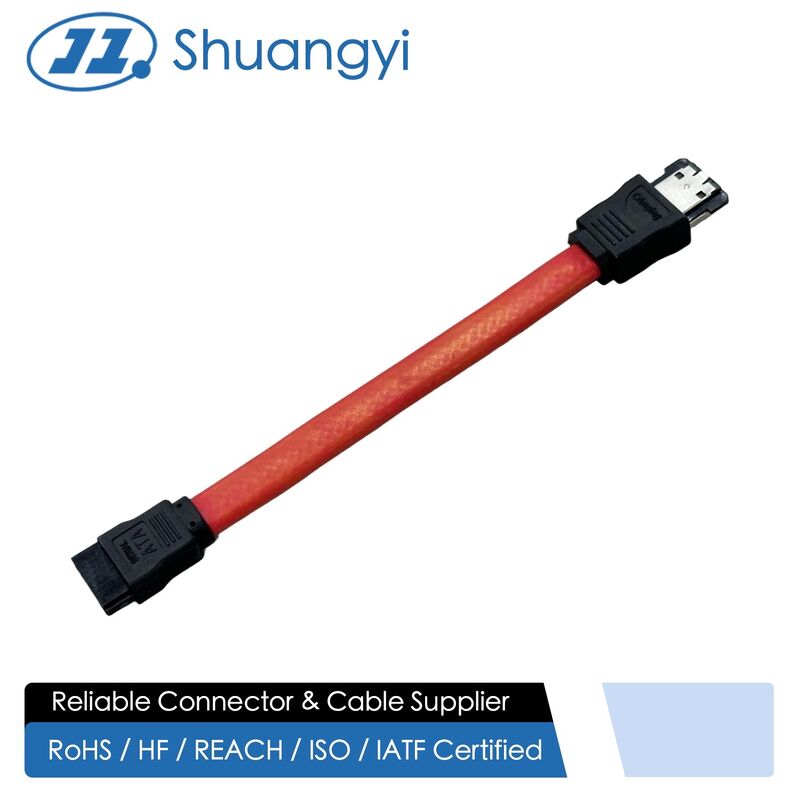

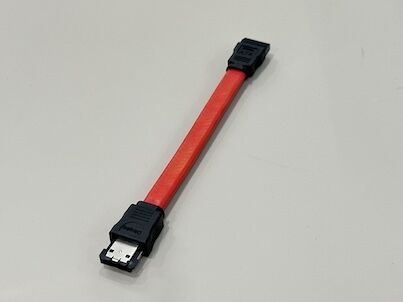

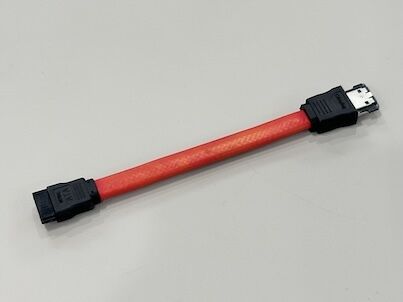

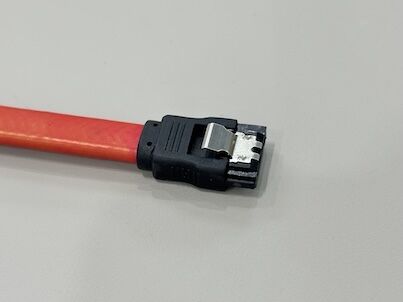

eSATA to SATA 7-Pin Data Connector Cable – Latching Serial ATA Transmission Wire for HDD/SSD, DVR, Industrial PC and Server Storage

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

Oculink SAS SFF-8611 TO SFF-8639+SATA 15P L=500mm

Request A Quote

eSATA to SATA 7-Pin Data Connector Cable – Latching Serial ATA Transmission Wire for HDD/SSD, DVR, Industrial PC and Server Storage

Product Details

Product Type:

ESATA Plug To SATA 7-pin Data Connector

Application:

High-speed Electrical Data Transmission For Hard Drives And SSDs

Rated Voltage:

30 V Max (signal Use)

Characteristic Impedance:

100 Ω Differential (typical SAS Channel)

Wire Gauge:

26–28 AWG (customizable)

Insulation:

PVC Electronic Wire, 80 °C / 300 V Rating

Max Data Rate:

Up To 6 Gb/s Transmission

Conductor Material:

Oxygen-free Copper For Low-loss Power And Signal Paths

Housing Material:

Flame-retardant PA / PBT, UL94V-0 Compatible

Operating Voltage:

Low-voltage Electronic Signal Application

Operating Temperature:

-20 °C ~ +80 °C

Compliance:

RoHS / REACH

Custom Options:

Length, Color, Straight/right-angle Mix, PCB Side Plug, Label Printing And Bundled Harness Customization

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$1.44-2.21 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

USB-A to Lightning Power & Data Cable Connector, Flexible Charging Wire for Mobile Phone & Tablet

Get Best Price

SATA 22P Female Connector | Pin SMT PCB Terminal Connector | G/F Gold-Plated Electrical Signal Connector for Server, Automotive, Wire Cable & Power Transmission

Get Best Price

SATA 22P Female Connector | Pin SMT PCB Terminal Connector | G/F Gold-Plated Electrical Signal Female Connector for Server, Automotive, Wire Cable Applications

Get Best Price

SATA 22P Female Connector | 32-Wire Solder Type 180° G/F Gold Plated | Electrical PCB Signal Terminal Connector for Server, Automotive, Wire Cable Applications

Get Best Price

Contact Now

Product Description

Product Description

This braided backplane power and data connector cable harness is designed for compact server and industrial computer platforms where a proprietary board connector must be adapted to standard Slimline SATA and 15-pin SATA power interfaces. High-quality copper wire, precision-crimped terminals and robust over-molding deliver stable electrical performance and low insertion loss for both power and high-speed signal transmission.

The round cable construction with PET braided sleeving resists abrasion and bending fatigue, while helping organize wiring inside dense 1U/2U chassis. Color-coded power lines and clearly keyed connectors reduce installation errors and make field maintenance easier. With full OEM/ODM customization capability, this harness can be tuned for different PCB pitch, connector types and cable lengths used in automotive data recorders, embedded computers and storage expansion modules.

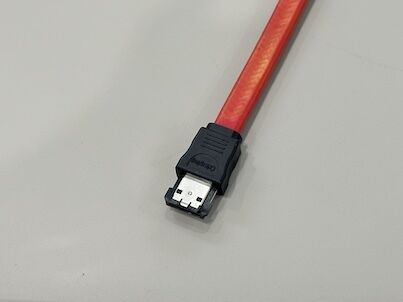

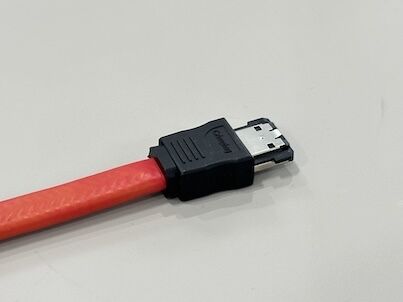

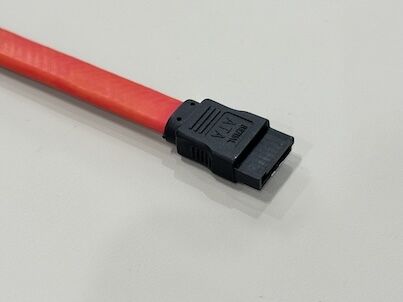

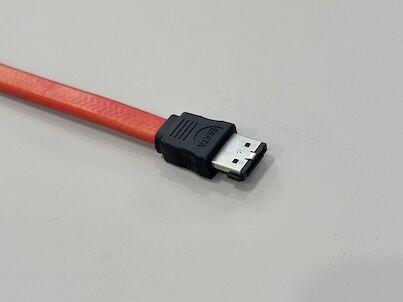

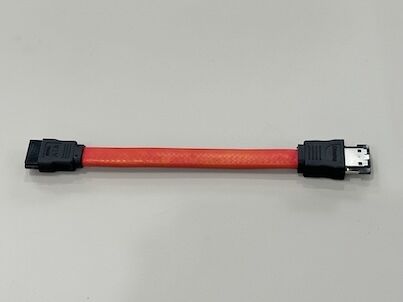

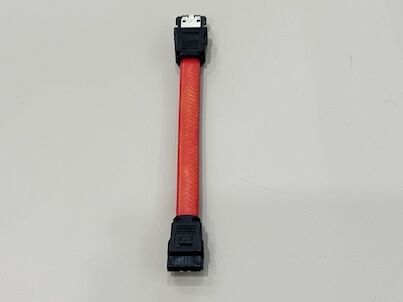

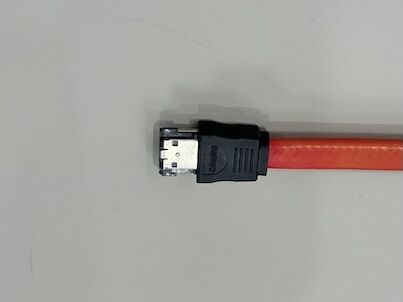

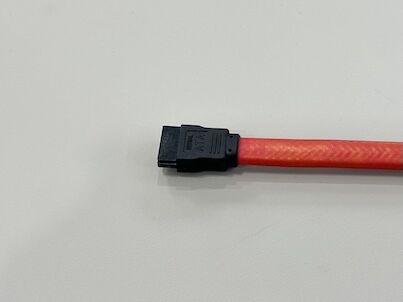

eSATA to SATA 7-Pin Data Connector Cable – Latching Serial ATA Transmission Wire for HDD/SSD, DVR, Industrial PC and Server Storage 0

Connector type	eSATA plug to SATA 7-pin data connector
Connector gender	Male-to-male connector
Application	High-speed electrical data transmission for hard drives and SSDs
Transmission standard	SATA I/II/III compatible, up to 6 Gbps
Conductor type	Stranded copper wire
Wire gauge	26–28 AWG (customizable)
Outer jacket	PVC or LSZH insulation
Color	Red cable, black connector housing (custom colors available)
Cable OD	Approx. 4.5–5.0 mm (depends on AWG/custom design)
Shielding	Al-foil + braid or customized shielding structure
Operating voltage	Low-voltage signal transmission
Operating temperature	−20 ℃ to +80 ℃ (typical data-cable rating)
Connector material	High-temperature plastic housing, copper alloy terminals
Plating	Nickel base with selective gold-plated contacts for reliable signal contact
Pitch	1.27 mm SATA contact pitch
Length	Standard 0.5 m / 1.0 m, other lengths on request
Compliance	RoHS compliant, halogen-free options optional
Customization	Length, wire gauge, color, labeling and over-molding available
Application category	Electronic cable assembly / PCB connection / storage server transmission
Packaging	PE bag and carton, OEM/ODM packing supported

Applications

Connecting external eSATA ports to internal SATA hard disk drives or solid-state drives

Expansion of storage capacity for DVR/NVR systems, industrial control computers and embedded systems

Data transmission between host controllers and 2.5"/3.5" SATA drives in servers and workstations

Test fixtures, evaluation boards and custom PCB assemblies requiring SATA signal routing

Precautions

Name: eSATA to SATA 7-Pin Data Connector Cable – Latching Serial ATA Transmission Wire for HDD/SSD, DVR, Industrial PC and Server Storage
Brand: Chongqing ShuangYi Precision Electronic Co., LTD
SKU: Oculink SAS SFF-8611 TO SFF-8639+SATA 15P L=500mm
Price: 1.44 USD
Availability: InStock

Confirm the interface type and pin definition of both host and device before installation to avoid mismatched connectors.

Do not exceed the recommended cable length for 6 Gbps operation; for long-distance routing, select a lower-speed setting or consult for a customized high-performance cable.

Avoid excessive bending, twisting or pulling near the connector ends; maintain a bend radius larger than 10× the cable diameter for reliable transmission.

Keep the connector terminals clean and free of dust or oxidation; insert and remove the cable vertically to prevent damage to the mating connector on the PCB or device.

When used in high-temperature or high-vibration environments, choose reinforced and fully shielded customized versions to ensure long-term stability of power and signal transmission.
