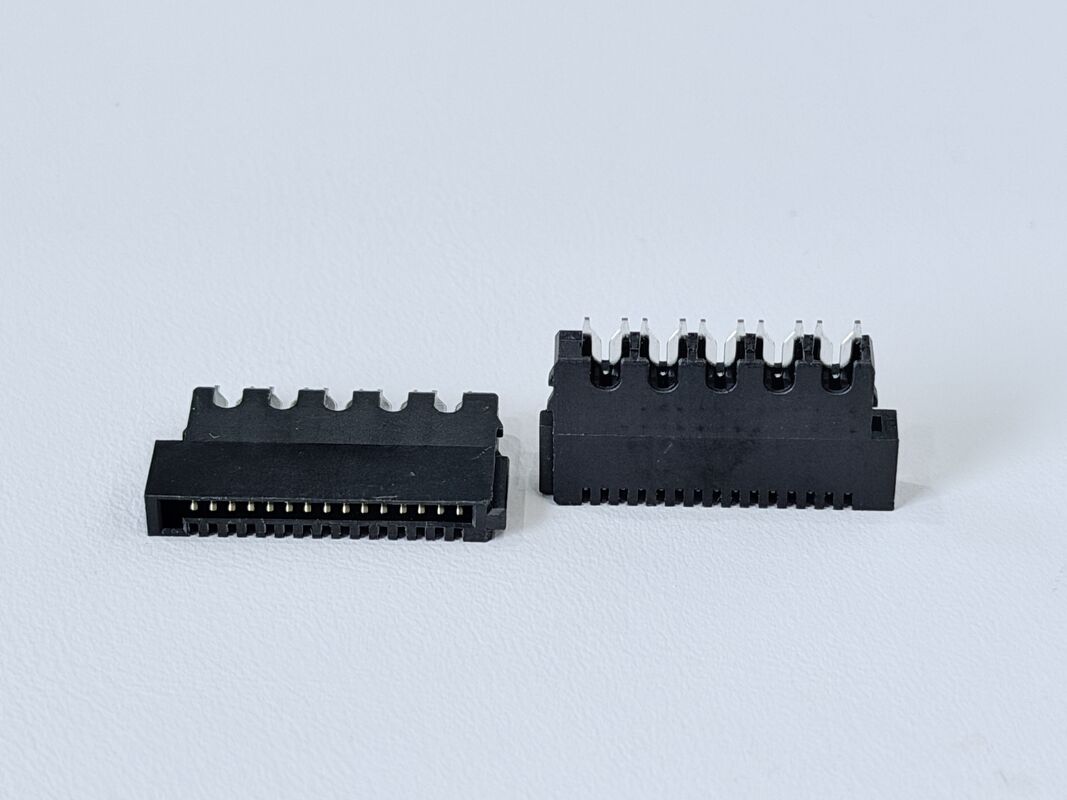

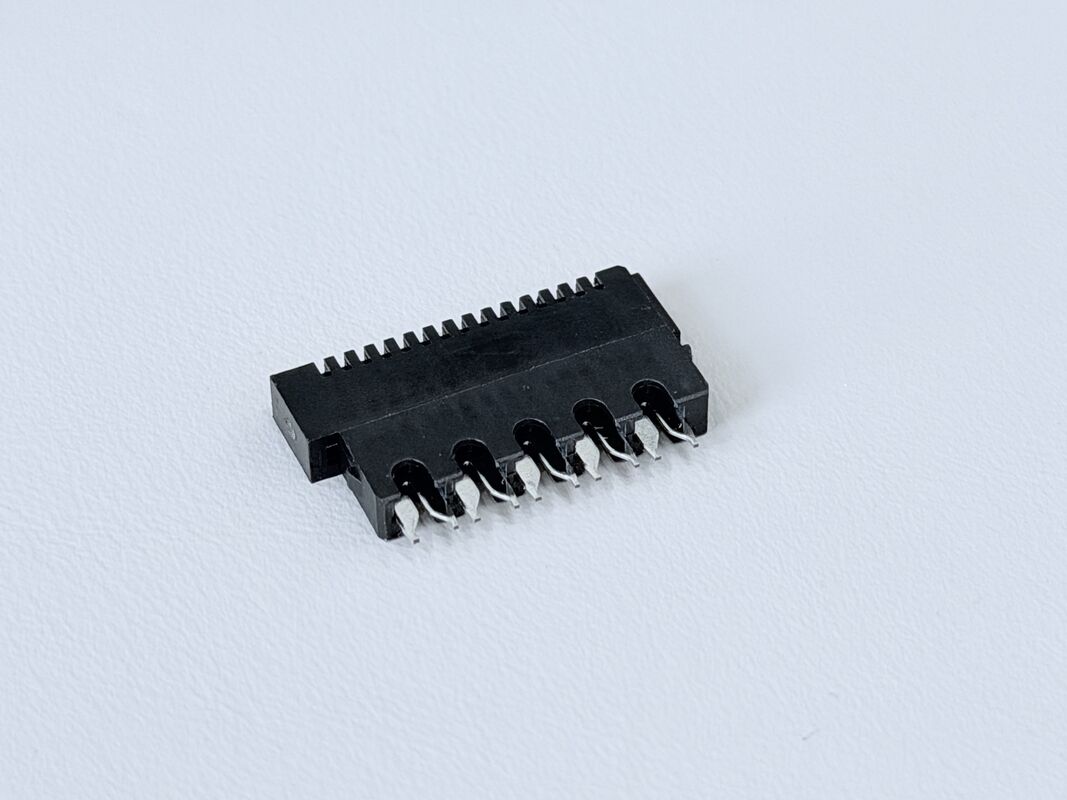

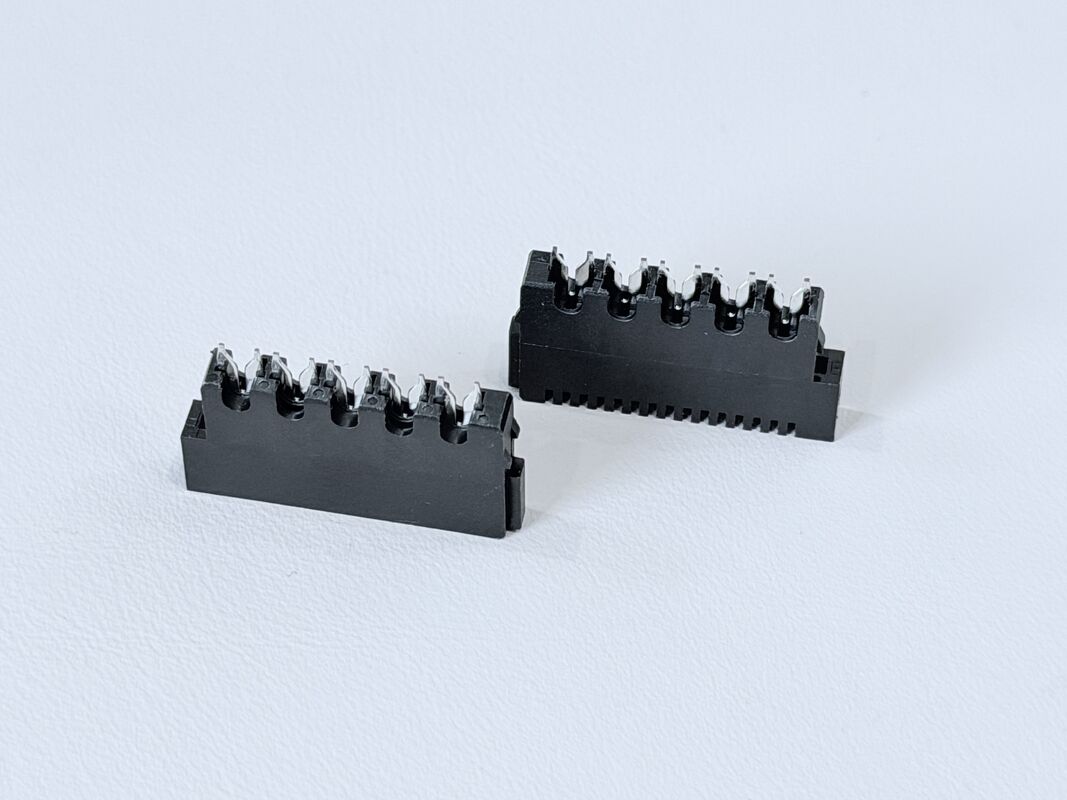

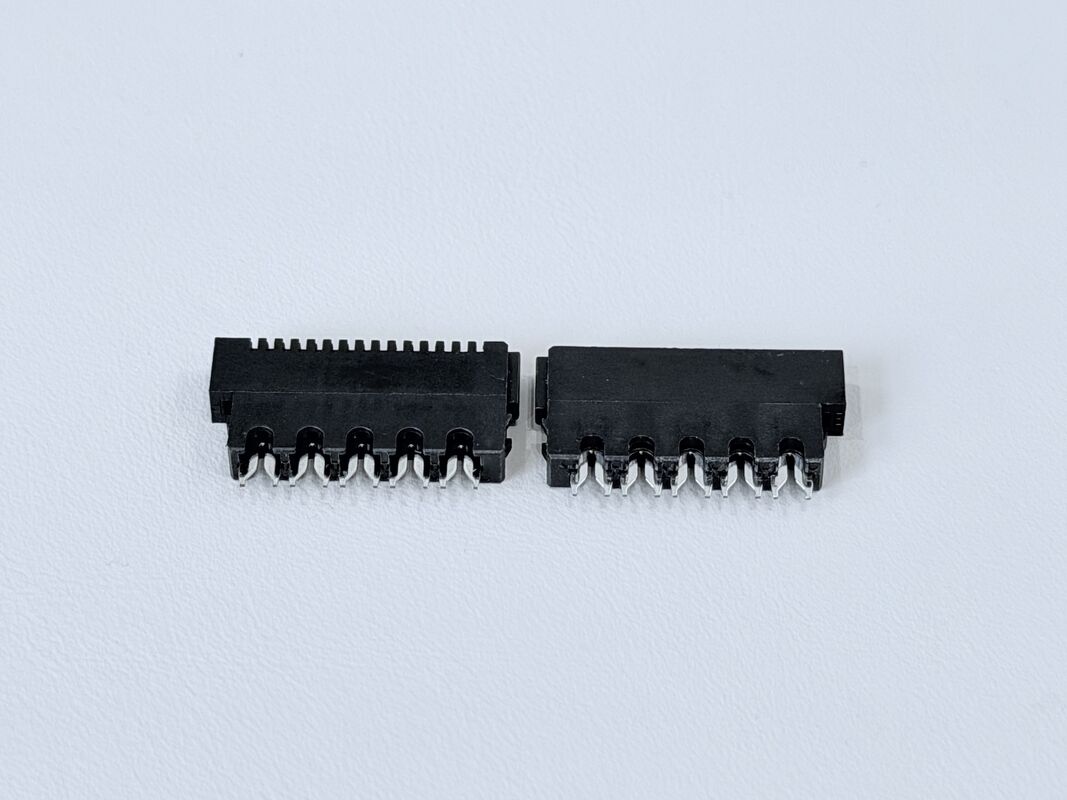

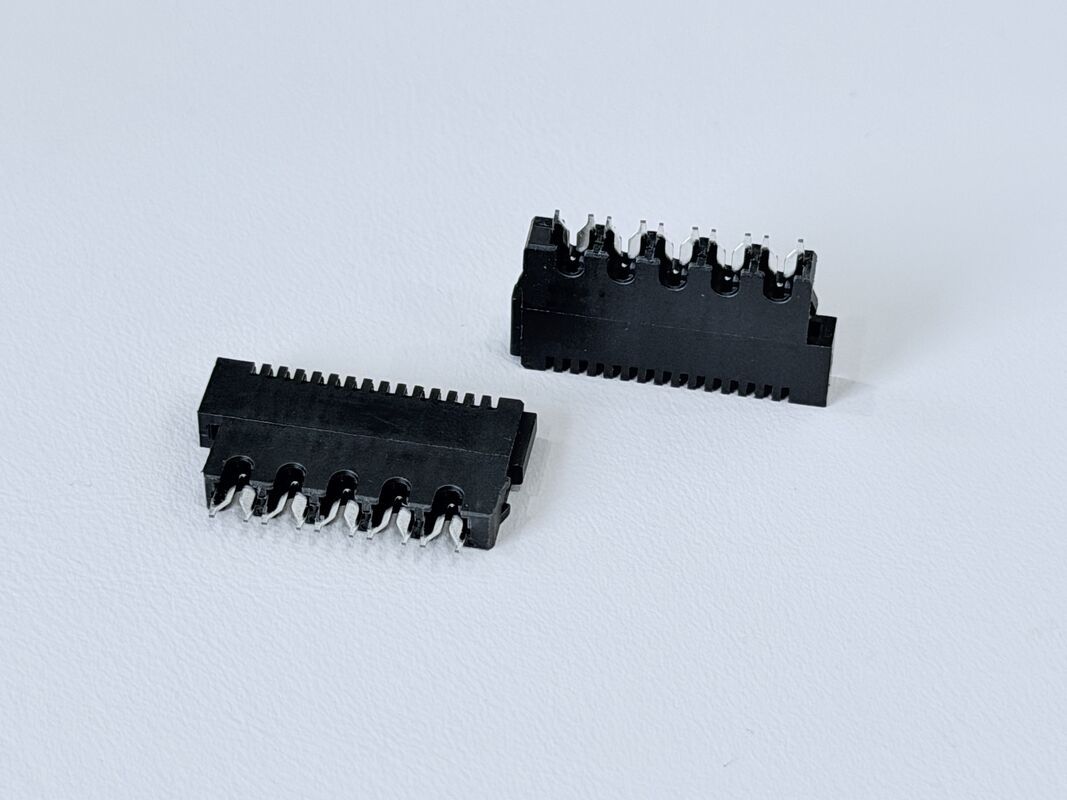

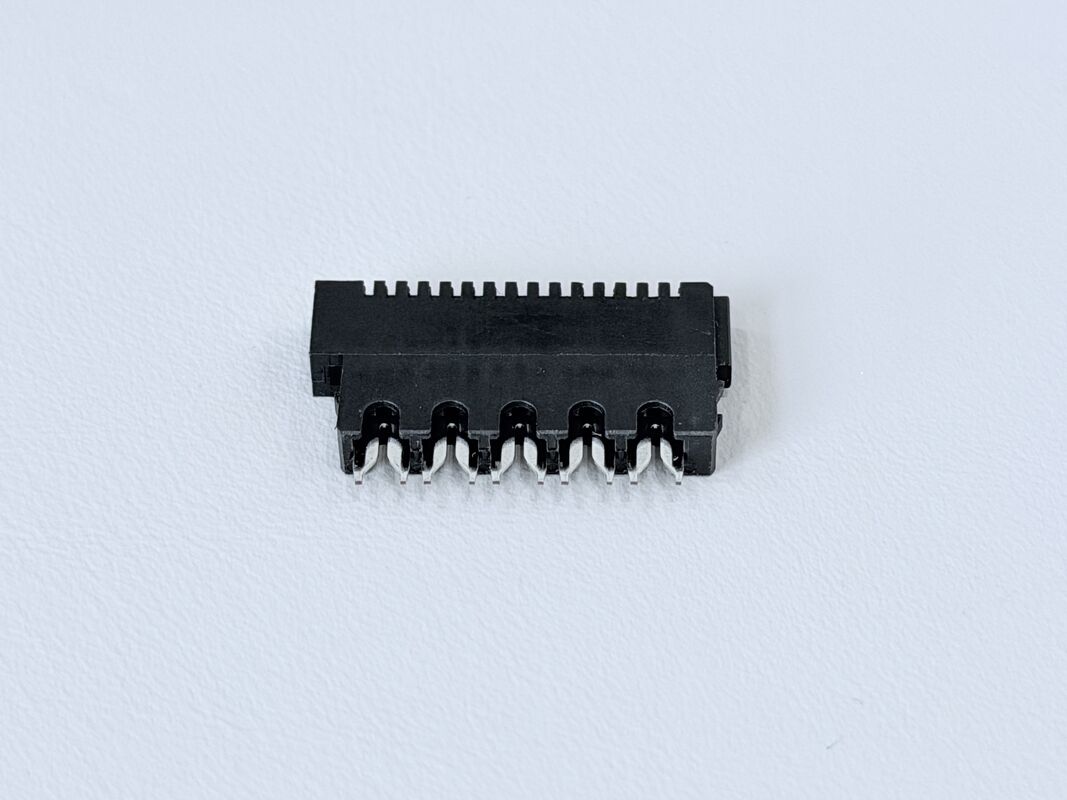

The SATA 15P Female Connector features a single puncture-type terminal structure designed for 24AWG wires, providing a secure and stable electrical interface for SATA power applications.
The terminals are plated with ≥50µ” nickel, with gold flash (G/F) on the contact area to ensure improved conductivity and corrosion resistance. The solder and crimp areas are finished with ≥80µ” tin plating, ensuring reliable wire termination.
The connector is built with a UL94-V0 rated PBT housing (20%GF) for high mechanical strength and heat resistance.
It supports 1.5A @ 40VAC, with ≤30mΩ contact resistance, ≥1000MΩ insulation resistance, and 500VAC/min withstand voltage, ensuring stable electrical performance.
Mechanical reliability is ensured by a mating force ≤45N, unmating force ≥15N (1–5 cycles), ≥10N (6–50 cycles), and ≥0.8Kgf single-pin retention force.
The connector also meets RoHS 2.0 environmental standards and passes a 24-hour salt spray test.
This connector is ideal for SATA power assemblies, servers, automotive electronics, and industrial equipment where stable wire-to-terminal performance is required.
| Product Type |
SATA 15P Female Connector, Single Puncture-Type Terminal |
| Operating Temperature |
–20°C to +85°C |
| Rated Current |
1.5A @ 40VAC |
| Contact Resistance |
≤ 30mΩ |
| Withstand Voltage |
500VAC / minute |
| Insulation Resistance |
≥ 1000MΩ |
| Terminal Plating |
Ni ≥ 50µ” over terminal |
| Contact Area Plating |
Au G/F (Gold Flash), thickness per drawing |
| Tin Plating (Solder/Crimp) |
Tin ≥ 80µ” |
| Mating Force |
≤ 45N |
| Unmating Force |
≥ 15N (1–5 cycles), ≥10N (6–50 cycles) |
| Single Pin Retention Force |
≥ 0.8 Kgf |
| Salt Spray Test |
24 hours |
| Environmental Standard |
RoHS 2.0 |
| Terminal Material |
Bronze C5191-H, T = 0.30mm |
| Housing Material |
PBT 20% G/F, Black, UL94-V0 |
| Wire Type |
24 AWG puncture connection |
| Terminal P/N |
TS–C15F–X09 |
| Housing P/N |
HSS–C15F–X04 |
⚙️ Applications
- Server & Data Center Equipment – Used as SAS / SATA electronic signal and power connectors on HDD/SSD backplanes, RAID cards, JBOD/NAS and 1U/2U server boards.
- Communication & Networking Systems – For routers, switches, base stations and other networking equipment that need compact PCB connectors and reliable high-speed transmission.
- Industrial & Automation Electronics – Applied in industrial PCs, PLCs, motion controllers, data loggers and test instruments as PCB-to-wire or cable connectors.
- Automotive & New Energy Applications – Used in in-vehicle data recorders, infotainment units, EV chargers and energy-storage systems for signal and low-power transmission.
- Custom Wire Harness & Cable Assemblies – Suitable for OEM/ODM projects that require connector customization for PCB, wire and cable layouts in electrical and electronic devices.
⚠️ Notes
- Make sure the working voltage, current and temperature of your design stay within the connector’s rated values, with proper safety margin.
- Design PCB pads, holes and mechanical space according to the drawing and pitch, and avoid bending or twisting stress on the connector after soldering or assembly.
- Select appropriate wire gauge, insulation and cable structure based on current load, signal speed and bending requirements for both power and signal terminals.
- For IDC / crimp types, use matched tooling and press-force to ensure full insulation displacement; for solder types, follow a controlled soldering profile to avoid overheating the LCP housing.
- Insert and pull out the connector along the mating direction, avoid pulling on the cable itself, and do not exceed the specified mating/unmating force or durability cycles.
- Keep gold-plated contact areas clean and dry, avoid touching them with bare fingers, and store products in dry anti-static packaging before assembly.
