Product Description

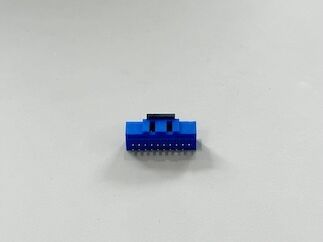

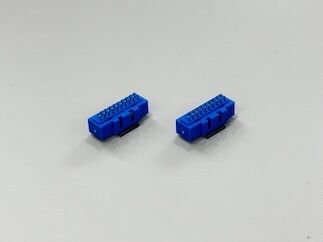

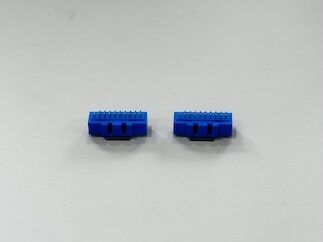

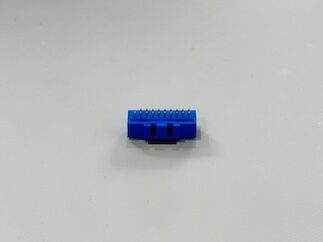

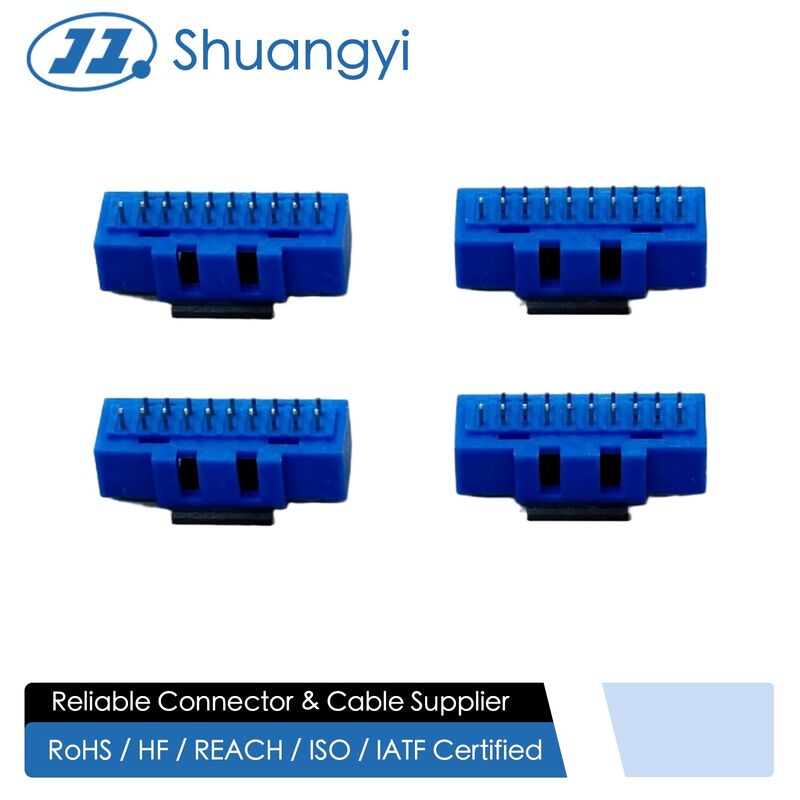

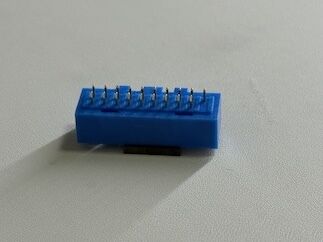

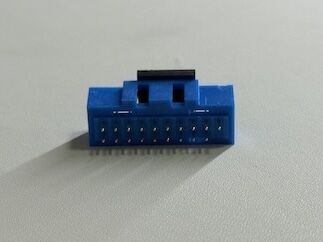

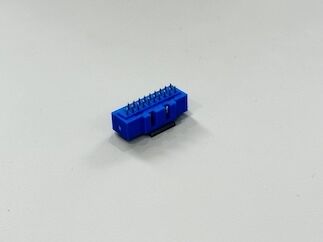

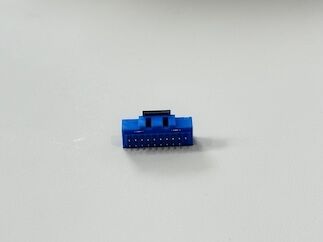

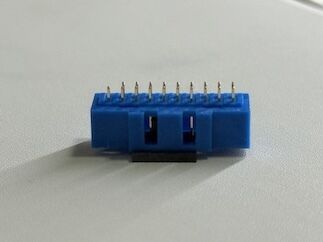

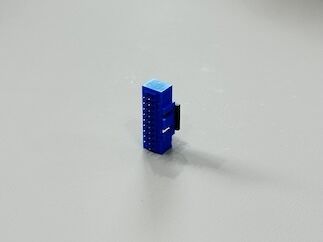

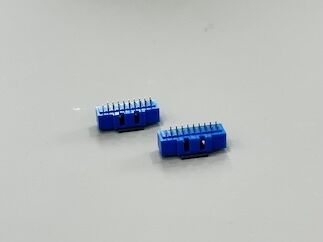

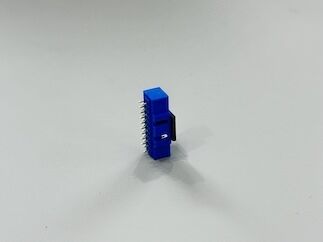

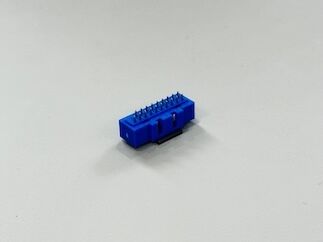

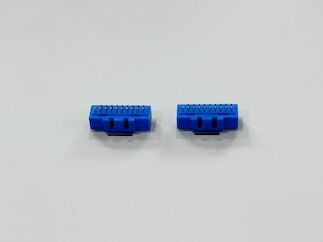

This 20-Pin IDC Dual-Row Enclosed Male Connector is designed for high-reliability electronic and signal-transmission applications. Built with a fully enclosed housing and 3.2mm exposed pins, it offers secure alignment, stable mating force, and enhanced durability for PCB mounting.
The reinforced pin-header structure ensures excellent conductivity, while the high-temperature thermoplastic housing guarantees long-term resistance to heat, vibration, and mechanical stress.
Engineered for modern electronics, this connector supports precise PCB signal routing and offers stable electrical performance for multi-pin wiring harnesses. Custom plating and configuration options allow seamless integration into automotive, industrial, and server-grade systems.
| Connector Type |
IDC Dual-Row Fully-Enclosed Male Connector |
| Number of Pins |
20 Pins (2×10) |
| Pitch |
2.54 mm (standard IDC pitch) |
| Contact Type |
Pin-Header, Through-Hole |
| Exposure Length |
3.2 mm exposed pins |
| Mounting Style |
PCB Through-Hole |
| Insulator Material |
High-temperature thermoplastic |
| Contact Material |
Copper Alloy |
| Plating |
Tin / optional Gold-Flash |
| Rated Voltage |
250V AC / DC |
| Rated Current |
1A per contact |
| Operating Temperature |
−40°C to +105°C |
| Packaging |
Tape & reel packaging (as shown in file) |
| Application Fields |
Automotive electronics, industrial control, servers, consumer devices, PCB wiring systems, signal transmission modules |
| Customization |
Pin count, pitch, cable type, plating thickness, and housing color customizable |
Applications
PCB-mounted signal transmission modules
Industrial automation equipment
Automotive electronic control units
Consumer electronic devices
Server and storage hardware
Communication interface boards
Customized wiring harness assemblies
Precautions
Ensure correct pin alignment before insertion to avoid bent contacts.
Suitable for PCB through-hole soldering; verify pad layout before assembly.
Keep connectors away from excessive moisture, dust, or corrosive environments.
Follow recommended operating temperature for stable long-term performance.
For high-current or high-frequency requirements, select enhanced plating options.
Reel packaging is optimized for automated pick-and-place; handle with care to maintain tape integrity.
