Product Description

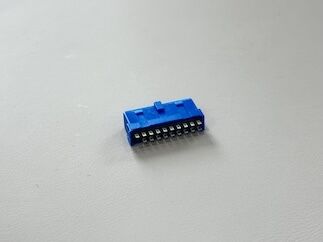

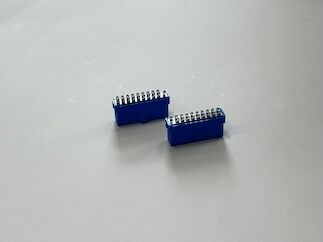

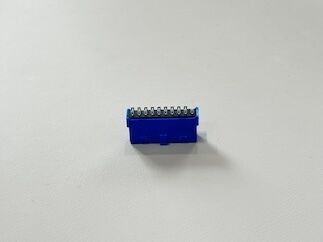

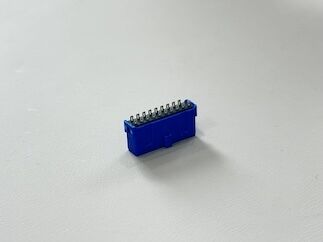

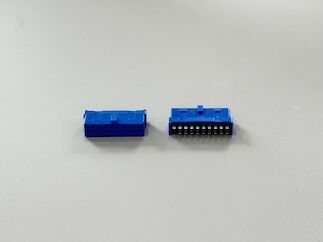

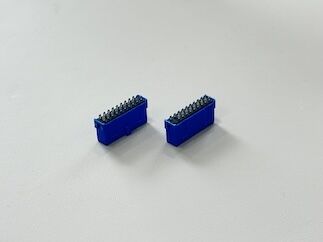

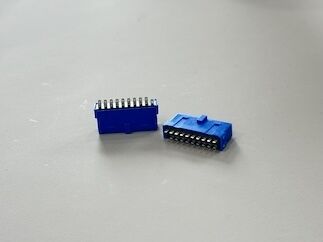

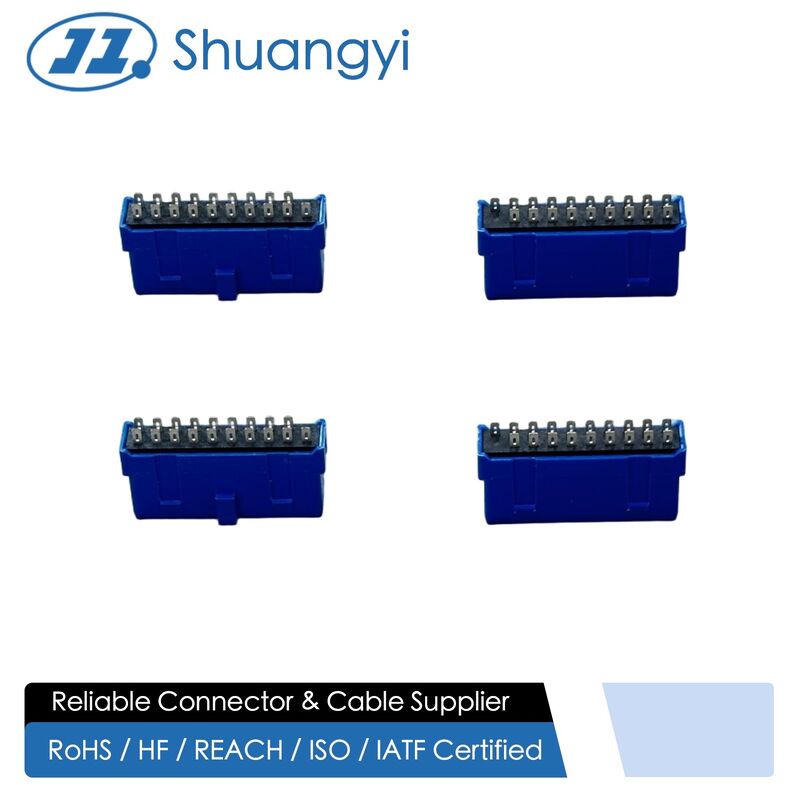

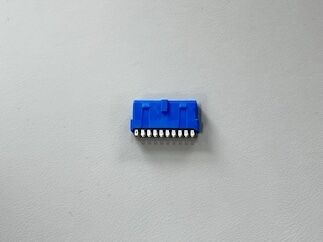

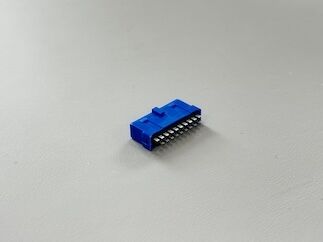

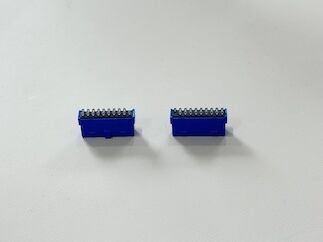

This IDC 20-Pin Dual-Row Male Connector is engineered for high-density PCB signal transmission and stable wire-to-board interconnections. The enclosed shield-type housing ensures better mechanical protection and minimizes external interference. Gold-flash terminals provide improved conductivity, corrosion resistance, and long-term reliability in various industrial and commercial environments.

The connector is suitable for IDC ribbon cables and supports automated soldering processes. Its durable thermoplastic housing withstands elevated temperatures, making it ideal for continuous use in demanding applications.

Applications

Server backplane signal connectors

Industrial control systems

Communication equipment and data transmission modules

Automotive dashboards and infotainment systems

Consumer electronics and smart devices

Embedded computing boards

Customized wire harness assemblies

Precautions

Ensure proper alignment before insertion to prevent terminal damage.

Avoid over-bending ribbon cables connected to the IDC header.

Keep terminals clean and free from dust or oxidation to maintain stable conductivity.

For high-vibration environments, consider additional mechanical fixing or locking features.

Recommended to follow standard soldering temperature curves for PCB mounting.
