Our SATA connector series is designed for stable data transmission and high reliability. With customizable pin count, pitch, materials, and plating specifications, we offer tailored solutions for diverse applications. Produced in our automated facilities with strict quality control, these connectors ensure excellent durability, heat resistance, and hot-swap performance. Widely used in computers, servers, and industrial storage devices, they deliver precision connection and long-lasting performance.
ShuangYi Precision — Powering Smarter Connections.
Why Choose Us:
• Free samples available for quality evaluation.
• Support for both OEM & ODM customization.
• Trade Terms: EXW, FOB, CIF, CPT, etc.
Notice: The displayed price is only for reference. Contact us now for the best offer and detailed quotation!

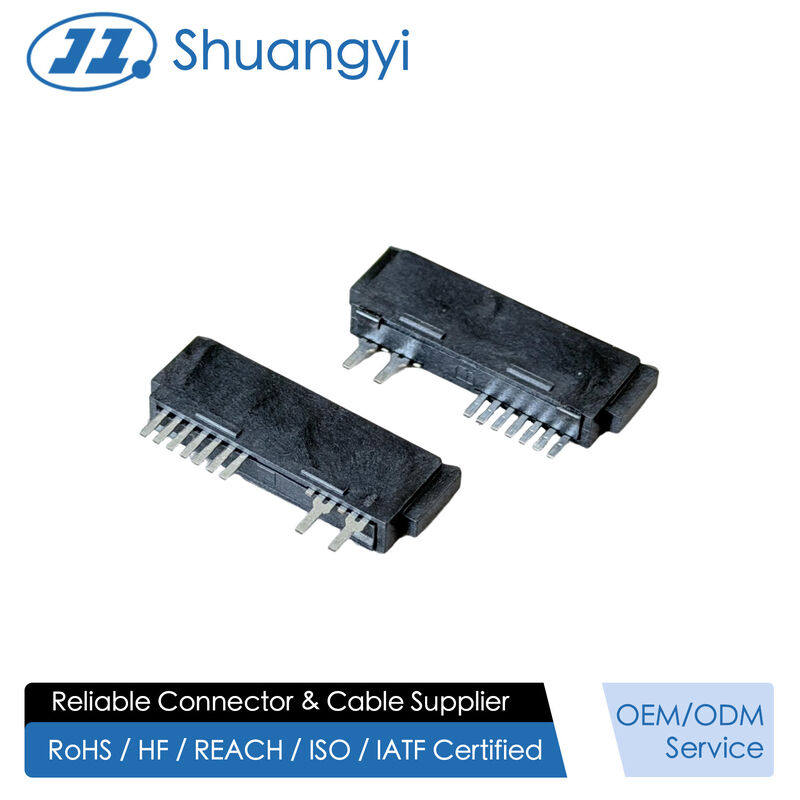

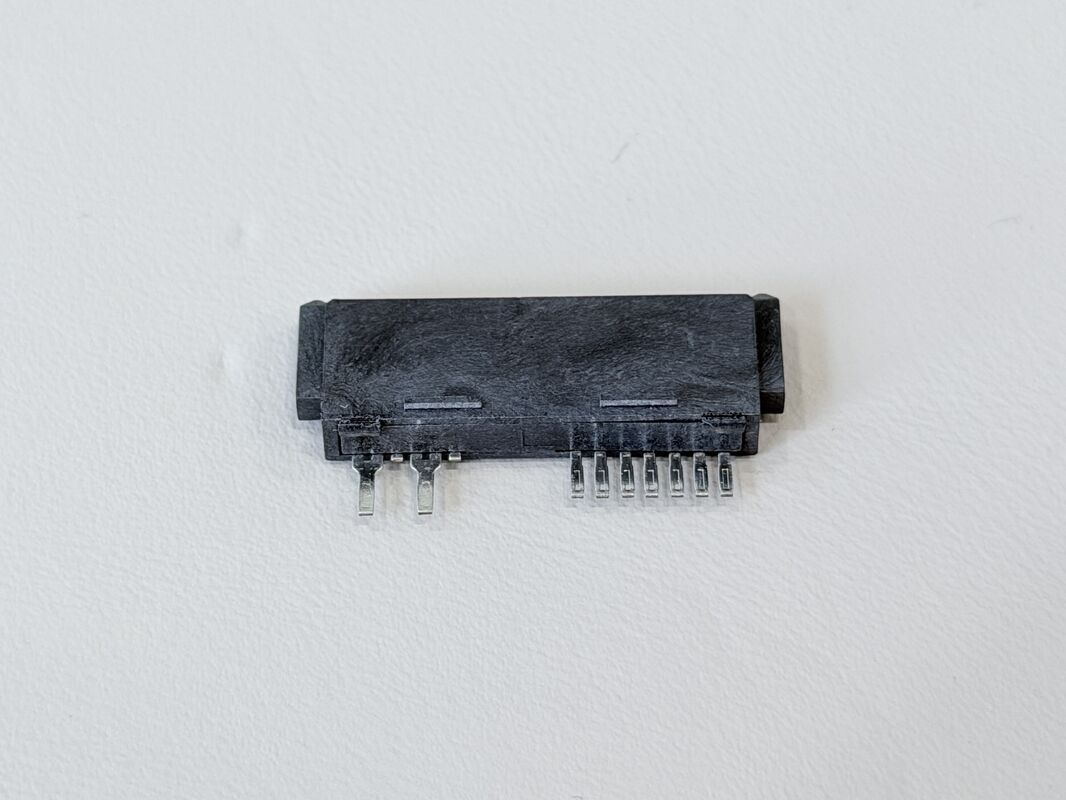

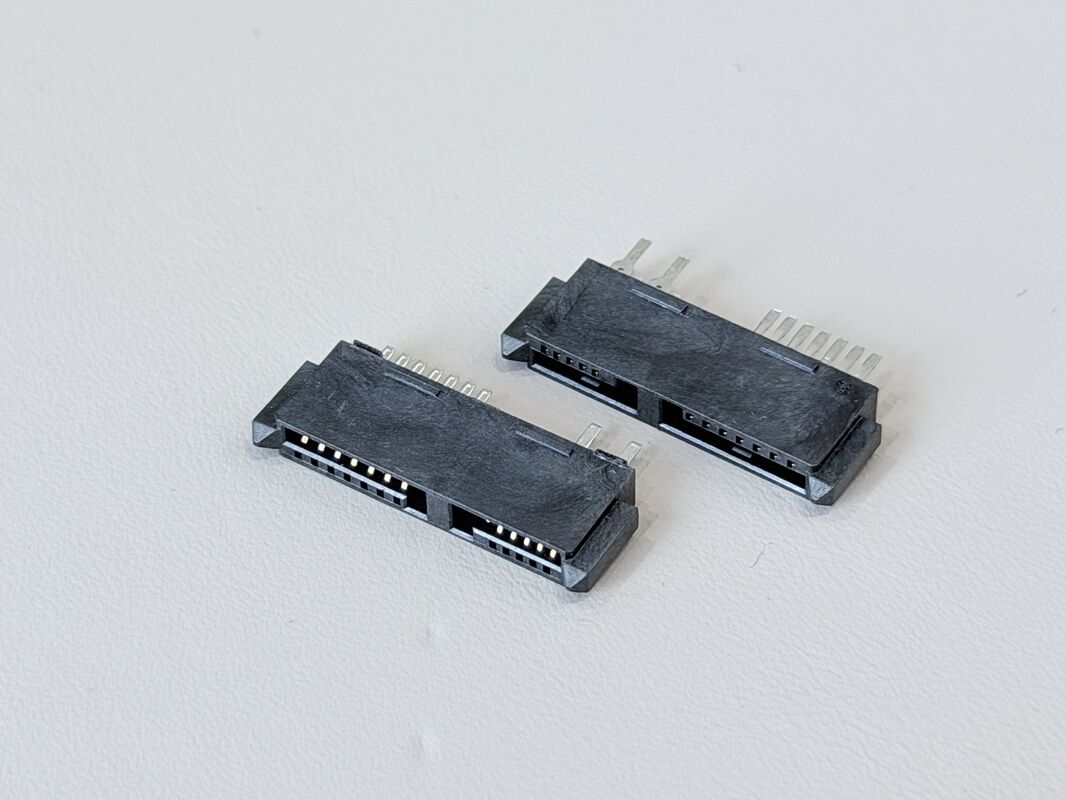

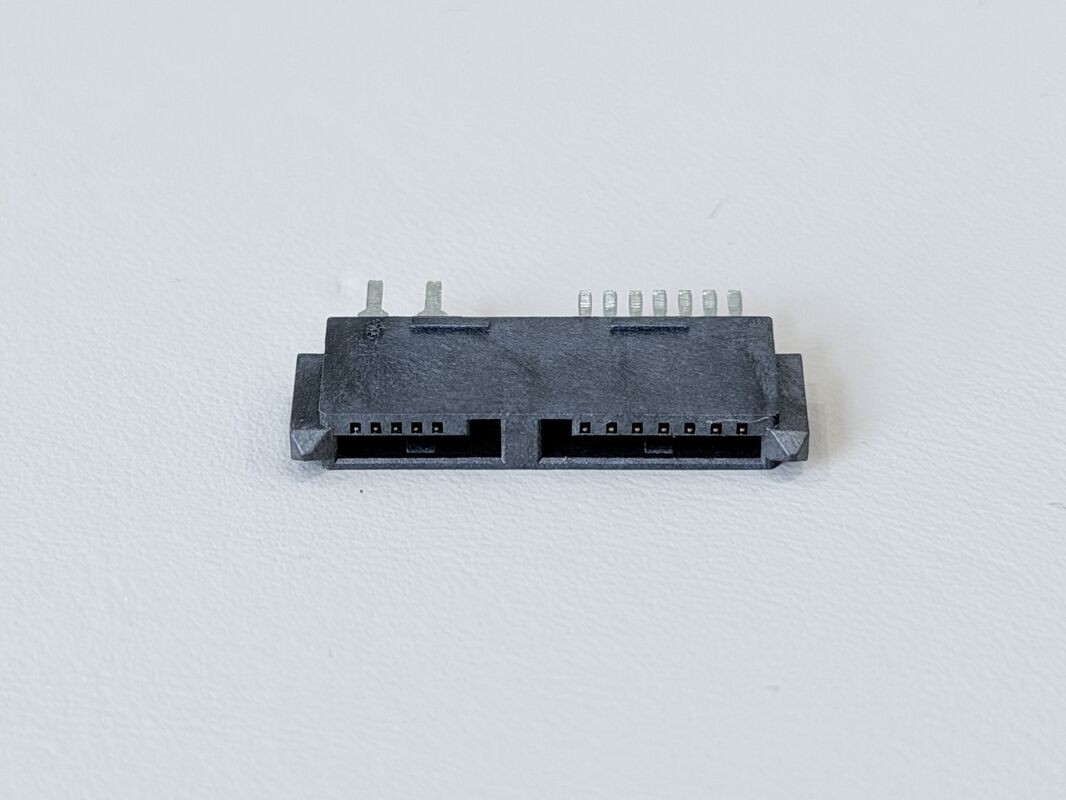

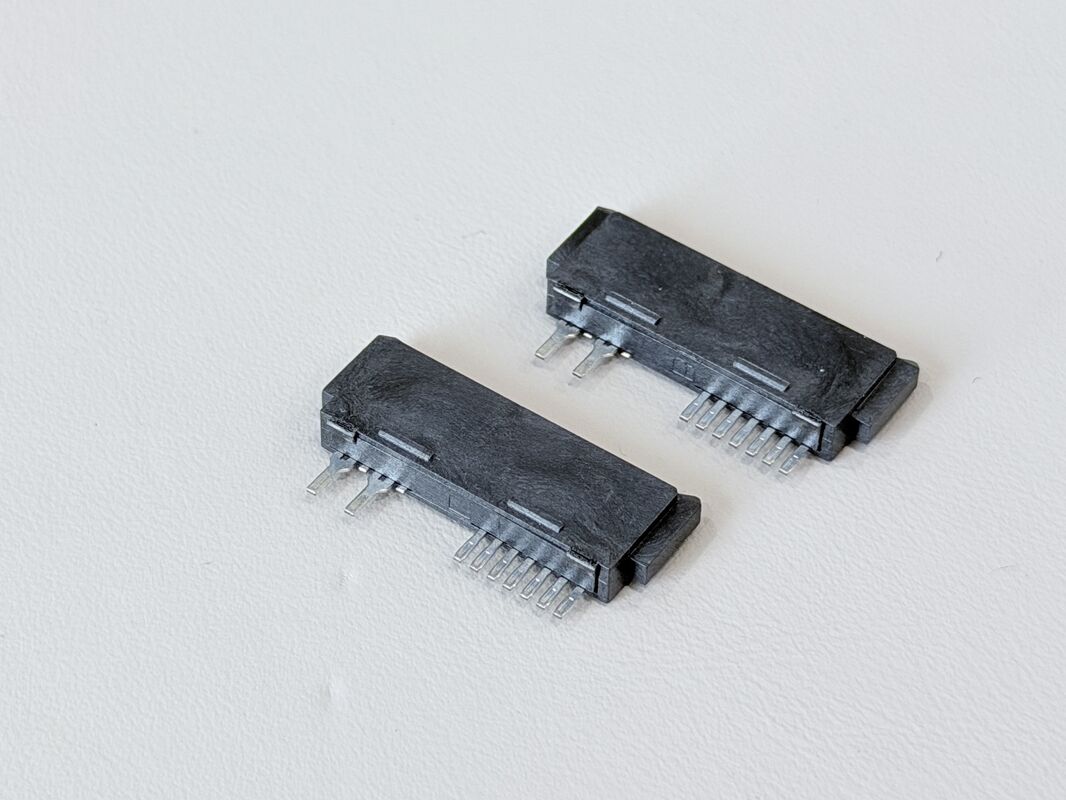

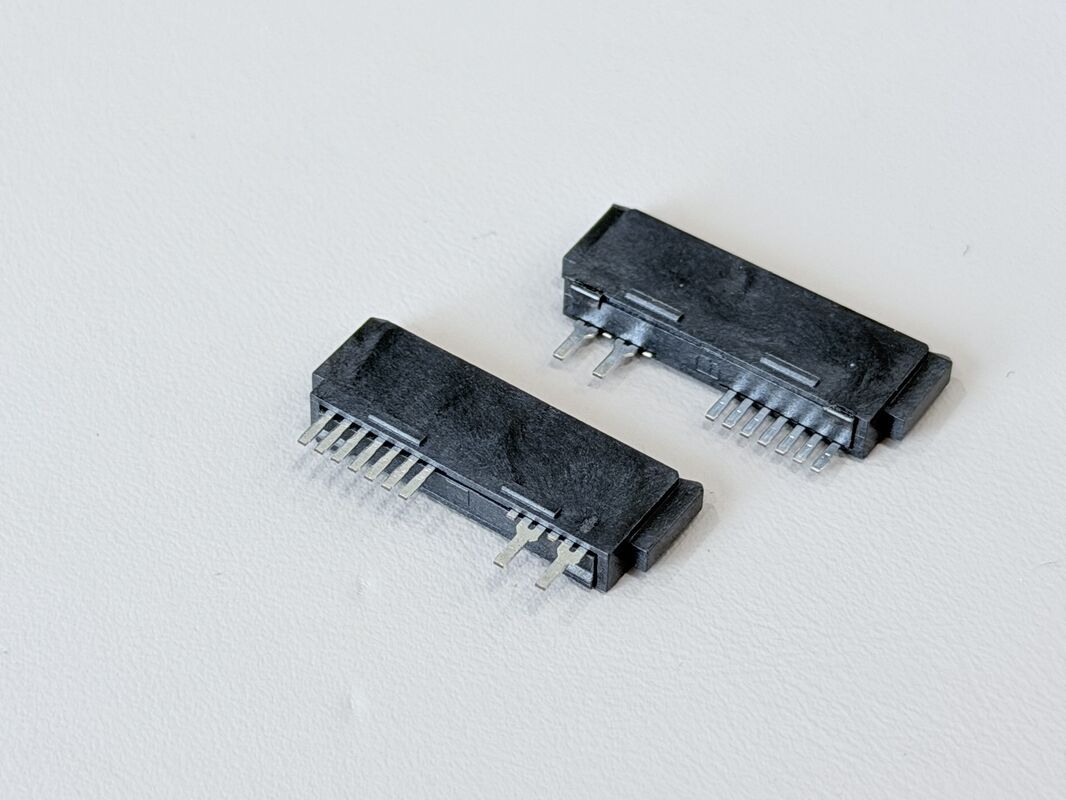

The SATA 13P 180° solder wire female connector is designed for compact, high-reliability wire cable and harness applications where stable electrical performance and secure mechanical retention are critical. With a 1.27mm pitch and 13-pin SATA interface, it supports combined electronic signal and low-power transmission in storage devices, servers, automotive modules and industrial controllers.
Terminals are made from phosphor bronze C5191-H and finished with a robust plating stack: 50µ" nickel under-layer, 15µ" gold flash (G/F) on the contact area to maintain low contact resistance, and 80µ" matte tin on the solder area for strong bonding to copper wires. The connector is rated at 1.5A @ 40VAC, with contact resistance ≤30mΩ, insulation resistance ≥1000MΩ, and withstand voltage 500VAC / minute, ensuring reliable performance in dense electrical and electronic systems.
Mechanically, the 180° solder-wire structure and reinforced housing deliver controlled mating/unmating forces and a single-pin retention force ≥0.8kgf, improving resistance to vibration and wire pull in cable assemblies. The black UL94-V0 glass-filled LCP housing offers excellent heat resistance and dimensional stability, making the connector suitable for automated soldering and crimping processes.
With RoHS-compliant materials, support for customized wire gauge, cable length and harness routing, this SATA 13Pin 180° solder wire female connector is an ideal choice for OEMs needing dependable connector-to-wire solutions for server, automotive, PCB-to-cable and other electrical transmission applications.
| Product Type |
SATA 13P 180° solder-wire female connector, Au 15µ" gold-plated |
| Interface Series |
SATA series, 13-pin female connector |
| Number of Positions |
13 pins |
| Pitch of Housing |
1.27mm (C: 1.27 pitch) |
| Termination Style |
180° solder way of terminal with wire (wire cable connection, no PCB tail) |
| Application Type |
Electrical / electronic wire cable & harness connector for signal and power transmission |
| Rated Current / Voltage |
1.5A @ 40VAC |
| Operating Temperature |
–20°C to +85°C |
| Contact Resistance |
≤ 30mΩ (Max) |
| Insulation Resistance |
≥ 1000MΩ (Min) |
| Withstand Voltage |
500VAC / minute |
| Mating Force |
≤ 45N Max |
| Unmating Force |
≥ 15N Min (1–5 cycles), ≥ 10N Min (6–50 cycles) |
| Single Pin Retention |
≥ 0.8kgf per pin |
| Terminal Material |
Phosphor Bronze C5191-H, t = 0.25mm (TS-A06F-S09, TS-C07F-S07) |
| Terminal Plating |
Ni 50µ" Min under-plating; Au 15µ" G/F on contact area; Sn 80µ" Min on solder area |
| Housing Material |
LCP G/F Black UL94-V0 (HSS-C13F-A09) |
| Environmental Compliance |
RoHS 2.0 compliant |
| Typical Uses |
Server & storage SATA cable, automotive wire harness, custom electrical wire cable assemblies, electronic signal & low-power transmission |
⚙️ Applications
- Server & Data Center Equipment – Used as SAS / SATA electronic signal and power connectors on HDD/SSD backplanes, RAID cards, JBOD/NAS and 1U/2U server boards.
- Communication & Networking Systems – For routers, switches, base stations and other networking equipment that need compact PCB connectors and reliable high-speed transmission.
- Industrial & Automation Electronics – Applied in industrial PCs, PLCs, motion controllers, data loggers and test instruments as PCB-to-wire or cable connectors.
- Automotive & New Energy Applications – Used in in-vehicle data recorders, infotainment units, EV chargers and energy-storage systems for signal and low-power transmission.
- Custom Wire Harness & Cable Assemblies – Suitable for OEM/ODM projects that require connector customization for PCB, wire and cable layouts in electrical and electronic devices.
⚠️ Notes
- Make sure the working voltage, current and temperature of your design stay within the connector’s rated values, with proper safety margin.
- Design PCB pads, holes and mechanical space according to the drawing and pitch, and avoid bending or twisting stress on the connector after soldering or assembly.
- Select appropriate wire gauge, insulation and cable structure based on current load, signal speed and bending requirements for both power and signal terminals.
- For IDC / crimp types, use matched tooling and press-force to ensure full insulation displacement; for solder types, follow a controlled soldering profile to avoid overheating the LCP housing.
- Insert and pull out the connector along the mating direction, avoid pulling on the cable itself, and do not exceed the specified mating/unmating force or durability cycles.
- Keep gold-plated contact areas clean and dry, avoid touching them with bare fingers, and store products in dry anti-static packaging before assembly.
