Product Description

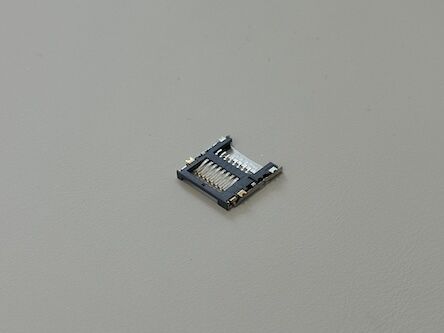

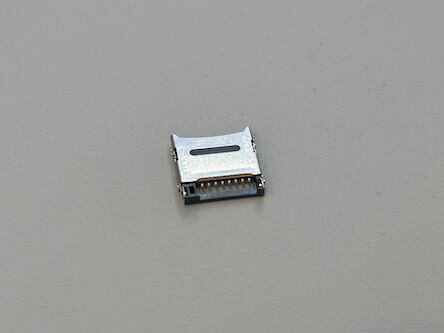

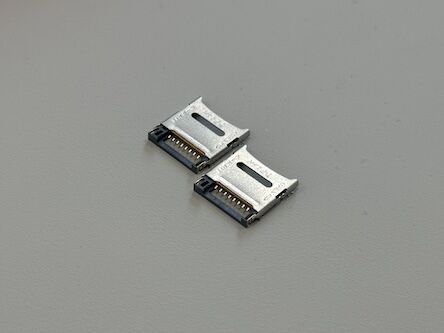

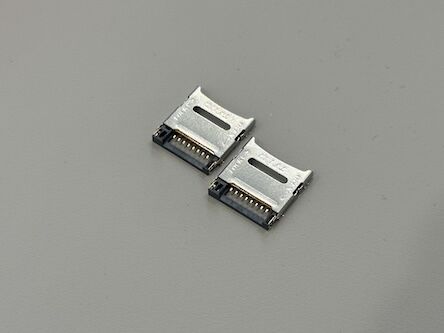

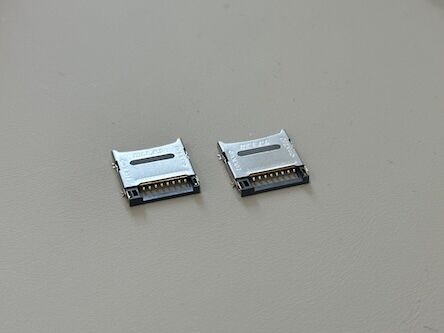

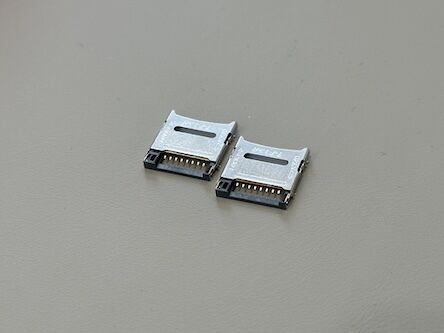

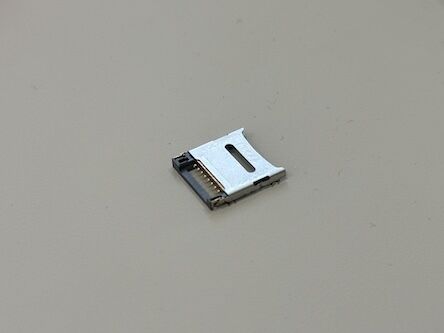

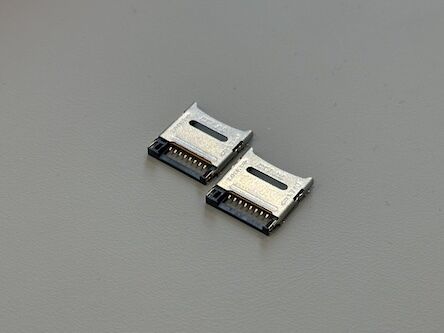

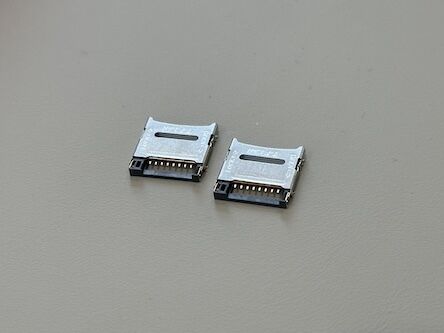

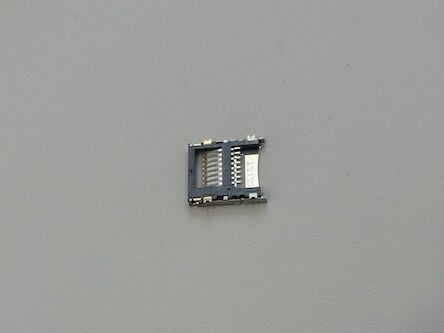

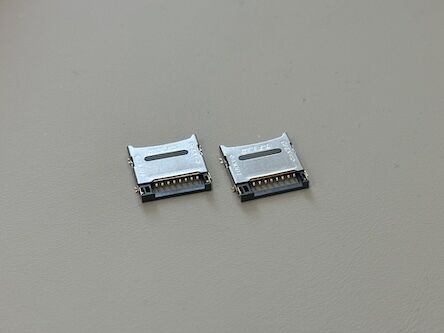

This 1.8H TF Card Socket Connector is a compact, high-reliability Micro-SD card holder designed for small-form-factor electronics requiring stable signal transmission and long insertion life. The connector features a reinforced contact structure with gold-plated terminals to ensure low contact resistance and excellent corrosion resistance. The integrated Mylar insulation layer improves durability, prevents short-circuit risks, and enhances card retention performance.

Its low-profile design provides optimal space utilization for compact PCB layouts, while the guided lock area supports smooth card insertion and secure positioning during operation. Manufactured using high-temperature LCP housing and precision-formed terminals, the connector is suitable for high-density consumer and industrial applications.

Applications

Smart wearable devices

Portable consumer electronics

IoT modules & communication products

GPS devices

Bluetooth / WIFI modules

Industrial handheld equipment

Data-logging devices

Precautions

Ensure correct PCB pad layout and reflow profile to avoid deformation.

Avoid excessive insertion force; improper angle may damage terminal contacts.

Keep the connector free from dust and debris to maintain stable contact.

Follow ESD-safe handling procedures during assembly.

Verify card thickness and dimensions to ensure compatibility.
