Product Description

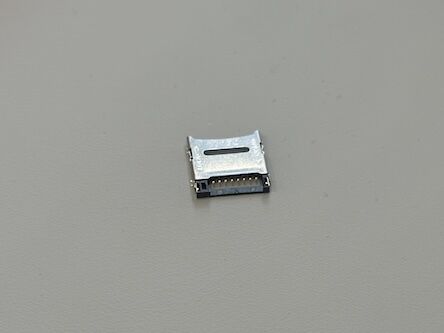

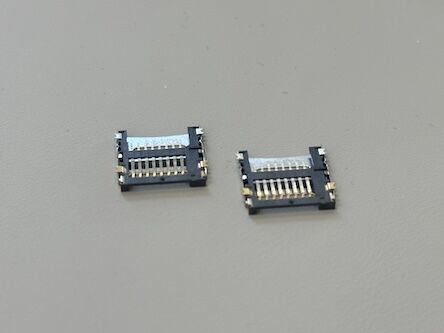

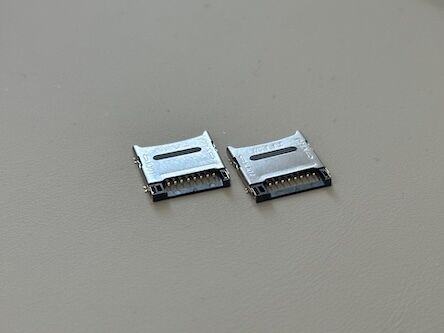

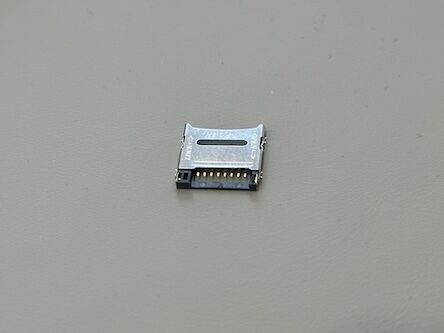

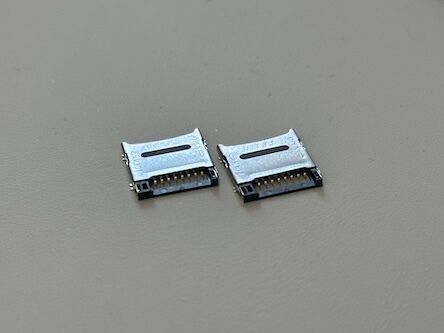

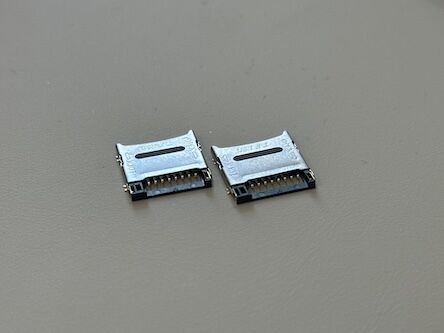

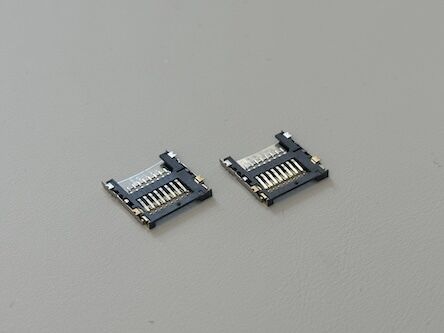

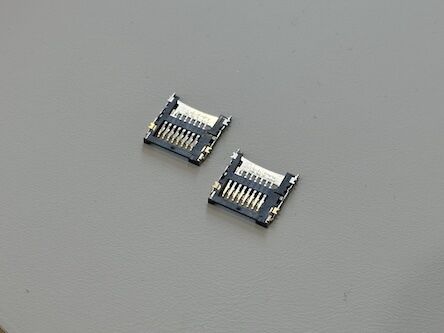

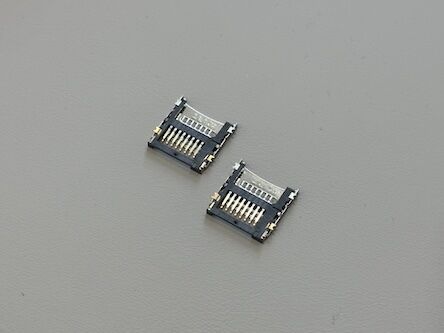

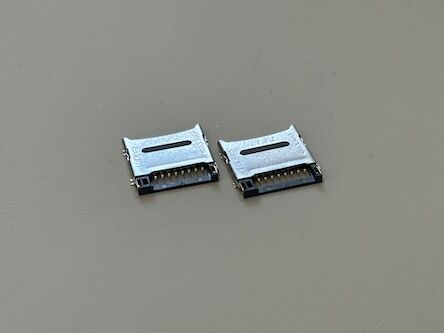

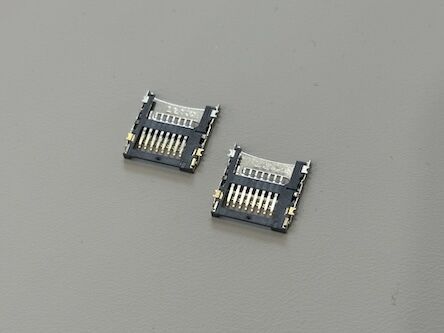

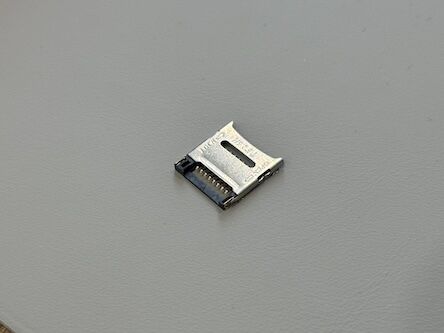

This 1.5H Old-Version TF Card Connector is engineered for compact electronic devices that require stable and high-precision Micro SD card connectivity. The push-push mechanism ensures smooth insertion and ejection, while the gold-plated contact terminals provide reliable signal transmission and long-term durability.

Its LCP high-temperature shell and reinforced tin-plated solder terminals ensure excellent PCB solderability and mechanical strength. With 5,000+ mating cycles and a compact 1.5H low-profile design, this connector is ideal for applications requiring high-density assembly and long service life.

Applications

Mobile phones and smart handheld devices

Navigation systems and vehicle electronics

Industrial controllers and IoT terminals

Consumer electronics (audio players, cameras, drones)

POS machines, data loggers, embedded modules

Any PCB design requiring TF / Micro SD storage expansion

Precautions

Ensure correct PCB pad layout based on the provided drawing to maintain stable mechanical positioning.

Avoid excessive insertion force to protect the push-push structure.

Recommended reflow soldering per standard SMT process; avoid multiple reflow cycles.

Do not expose the connector to corrosive environments to protect gold-plated terminals.

Ensure the board surface is clean before mounting to prevent poor solder joints.
