USB 2.0 AM Connector Two-Piece Metal Shell | 24.7mm Length | 2.2mm Cable OD | Electrical Wire Terminal Connector for Data & Power Transmission

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SHU-04M-023-N2H

Request A Quote

USB 2.0 AM Connector Two-Piece Metal Shell | 24.7mm Length | 2.2mm Cable OD | Electrical Wire Terminal Connector for Data & Power Transmission

Product Details

Structure:

Two-piece Stamped Iron Shell (SPCC)

Material:

Brass (C2680)

Plating:

Copper ≥100 μ″ + Nickel ≥80 μ″

Surface Treatment:

Smooth, No Scratches, Dents, Or Deformation

Orientation:

180-degree Straight Type

Application Category:

Wire-to-PCB, Power Transmission, Electronic Equipment

Compliance:

RoHS, REACH

Withstand Voltage:

AC 500V/min

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$0.01-0.02 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

High-Performance USB 2.0 AM Connector | Integrated White Housing | Gold-Flash Contacts | Bright-Nickel Shell | Wire-Solder Type

Get Best Price

USB 2.0 AM Integrated Wire Solder Connector | Gold-Plated Terminal | White Housing | Electrical Cable Connector

Get Best Price

High-Durability USB 2.0 AM Connector – Integrated Solder-Type Black Housing Gold-Flash Plated Interconnect

Get Best Price

USB 2.0 AM Male Connector Integrated Solder-Type Housing Black Gold-Plated G/F | Electrical Wire Cable Signal Terminal Connector for Customization

Get Best Price

Contact Now

Product Description

Product Description

This USB 2.0 AM connector features a durable two-piece SPCC metal shell with a 24.7 mm length and support for 2.2 mm cable OD, making it ideal for molded USB cable assemblies. The shell is plated with 100 μ″ copper and 80 μ″ nickel to ensure excellent corrosion resistance, conductivity, and long-term stability. Designed for reliable electrical and signal transmission, it is widely used in computers, peripherals, chargers, consumer electronics, and custom wire-to-cable manufacturing.

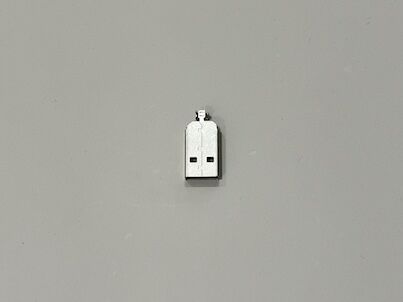

USB 2.0 AM Connector Two-Piece Metal Shell | 24.7mm Length | 2.2mm Cable OD | Electrical Wire Terminal Connector for Data & Power Transmission 0

Product Type	USB 2.0 AM 2-Piece Metal Shell Connector
Structure	Two-piece stamped iron shell (SPCC)
Overall Length	24.7 mm
Cable OD Compatibility	2.2 mm
Material Thickness	0.35 mm (SPCC)
Plating	Copper ≥100 μ″ + Nickel ≥80 μ″
Insulation / Fit	Designed for molded USB cable assembly
Salt Spray Test	24 hours minimum
Application	Data transmission & power supply cables
Compliance	RoHS2.0 + REACH

Applications

USB data and power cable manufacturing

Consumer electronics and peripheral devices

Computer accessories and charging products

Automotive infotainment wiring

Custom PCB-to-wire cable assemblies

Precautions

Name: USB 2.0 AM Connector Two-Piece Metal Shell | 24.7mm Length | 2.2mm Cable OD | Electrical Wire Terminal Connector for Data & Power Transmission
Brand: Chongqing ShuangYi Precision Electronic Co., LTD
SKU: SHU-04M-023-N2H
Price: 0.01 USD
Availability: InStock

Ensure cable OD matches the required 2.2 mm for proper molding and strain relief

Verify plating thickness requirements before mass production

Avoid deformation of the shell during assembly and crimping

Store in a dry, clean environment to maintain surface integrity

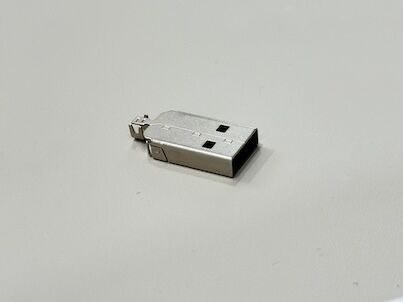

USB 2.0 AM Connector Two-Piece Metal Shell | 24.7mm Length | 2.2mm Cable OD | Electrical Wire Terminal Connector for Data & Power Transmission 3

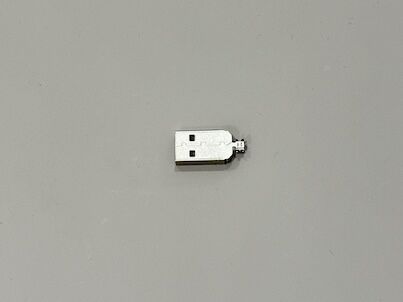

USB 2.0 AM Connector Two-Piece Metal Shell | 24.7mm Length | 2.2mm Cable OD | Electrical Wire Terminal Connector for Data & Power Transmission 4

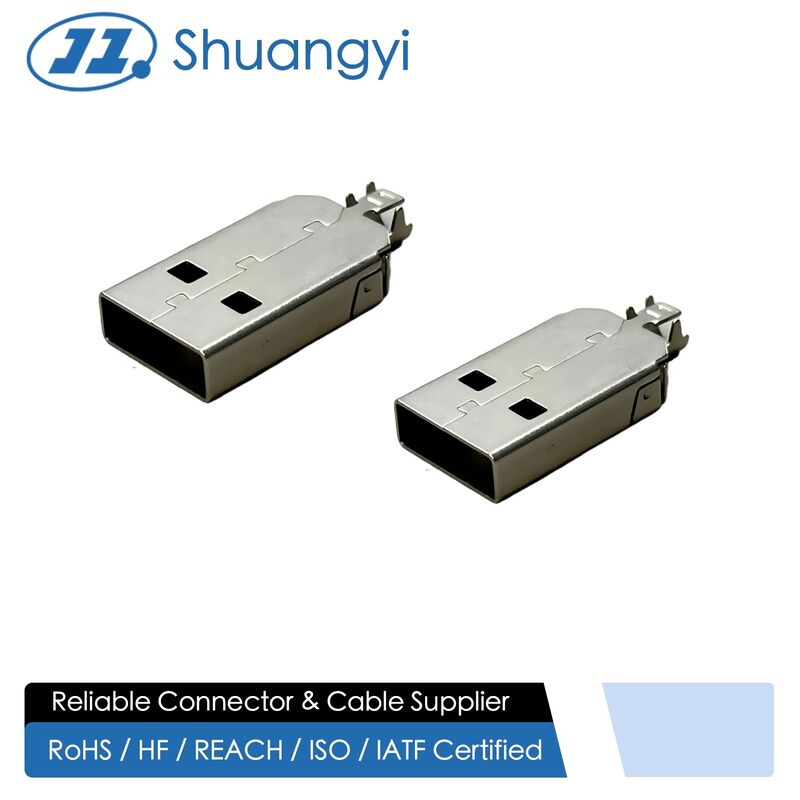

USB 2.0 AM Connector Two-Piece Metal Shell | 24.7mm Length | 2.2mm Cable OD | Electrical Wire Terminal Connector for Data & Power Transmission 5

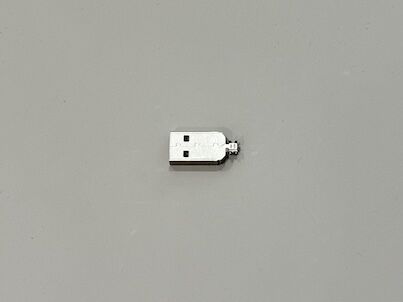

USB 2.0 AM Connector Two-Piece Metal Shell | 24.7mm Length | 2.2mm Cable OD | Electrical Wire Terminal Connector for Data & Power Transmission 6

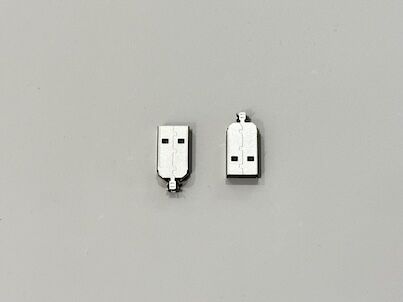

USB 2.0 AM Connector Two-Piece Metal Shell | 24.7mm Length | 2.2mm Cable OD | Electrical Wire Terminal Connector for Data & Power Transmission 7

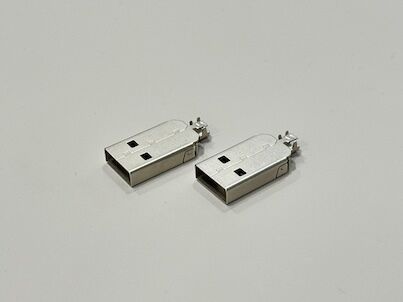

USB 2.0 AM Connector Two-Piece Metal Shell | 24.7mm Length | 2.2mm Cable OD | Electrical Wire Terminal Connector for Data & Power Transmission 8
