USB 2.0 AM Connector Two-Piece Metal Shell 24.7mm | Electrical Wire Cable Terminal Connector for Power & Data Transmission

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

SHU-04M-021-N2H

Request A Quote

USB 2.0 AM Connector Two-Piece Metal Shell 24.7mm | Electrical Wire Cable Terminal Connector for Power & Data Transmission

Product Details

Structure:

2-piece Stamped Metal Shell With Laser Engraving

Material:

SPCC Steel, SD Surface (120°–150°)

Plating:

Cu ≥150u" + Ni ≥150u"

Surface Treatment:

Smooth, No Scratches, Dents, Or Deformation

Orientation:

180-degree Straight Type

Application Category:

Power Cable, Charging Cable, Data Transmission Cable

Compliance:

USB 2.0 Type-A Plugs, Wire Harness Assembly

Withstand Voltage:

AC 500V/min

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$0.01-0.02 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

High-Performance USB 2.0 AM Connector | Integrated White Housing | Gold-Flash Contacts | Bright-Nickel Shell | Wire-Solder Type

Get Best Price

USB 2.0 AM Integrated Wire Solder Connector | Gold-Plated Terminal | White Housing | Electrical Cable Connector

Get Best Price

High-Durability USB 2.0 AM Connector – Integrated Solder-Type Black Housing Gold-Flash Plated Interconnect

Get Best Price

USB 2.0 AM Male Connector Integrated Solder-Type Housing Black Gold-Plated G/F | Electrical Wire Cable Signal Terminal Connector for Customization

Get Best Price

Contact Now

Product Description

Product Description

This USB 2.0 AM two-piece metal shell connector is engineered for high-strength cable assembly and stable signal transmission. The SPCC steel housing with 150u" copper and 150u" nickel plating delivers enhanced corrosion resistance and durability. Its 24.7mm compact design supports secure crimping and improves cable mechanical strength. The shell is suitable for power, charging, and data-transmission wire harness production in consumer electronics, automotive accessories, and industrial devices.

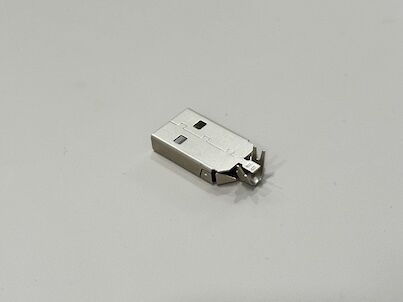

USB 2.0 AM Connector Two-Piece Metal Shell 24.7mm | Electrical Wire Cable Terminal Connector for Power & Data Transmission 0

Product Type	USB 2.0 AM Two-Piece Metal Shell Connector
Structure	2-piece stamped metal shell with laser engraving
Length	24.7 mm (±0.1 mm)
Material	SPCC Steel, SD surface (120°–150°)
Thickness	0.35 mm ± 0.01
Plating	Cu ≥150u" + Ni ≥150u"
Color	Silver (metal finish)
Salt Spray Test	≥48 hours
Compatibility	USB 2.0 Type-A plugs, wire harness assembly
Application	Power cable, charging cable, data transmission cable
Compliance	RoHS 2.0 + HF

Applications

USB power and charging cable manufacturing

Data transmission wire harness for computers, adapters, and peripherals

Automotive electronic cable assemblies

Industrial equipment requiring robust USB connectors

Precautions

Name: USB 2.0 AM Connector Two-Piece Metal Shell 24.7mm | Electrical Wire Cable Terminal Connector for Power & Data Transmission
Brand: Chongqing ShuangYi Precision Electronic Co., LTD
SKU: SHU-04M-021-N2H
Price: 0.01 USD
Availability: InStock

Ensure proper crimping to maintain structural strength.

Avoid excessive bending during assembly to protect plating integrity.

Keep connectors dry and clean before installation.

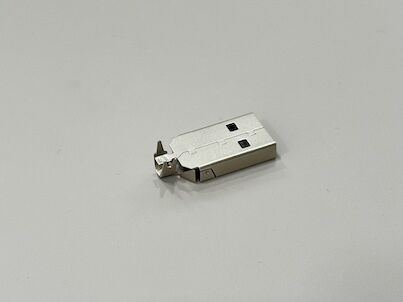

USB 2.0 AM Connector Two-Piece Metal Shell 24.7mm | Electrical Wire Cable Terminal Connector for Power & Data Transmission 3

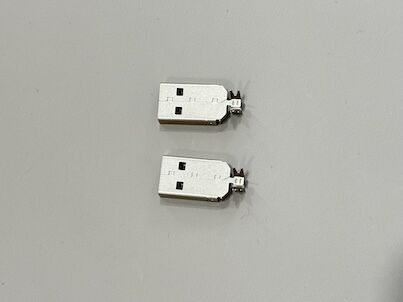

USB 2.0 AM Connector Two-Piece Metal Shell 24.7mm | Electrical Wire Cable Terminal Connector for Power & Data Transmission 4

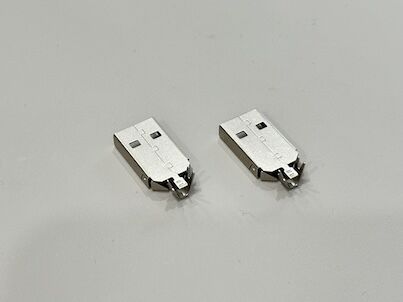

USB 2.0 AM Connector Two-Piece Metal Shell 24.7mm | Electrical Wire Cable Terminal Connector for Power & Data Transmission 5

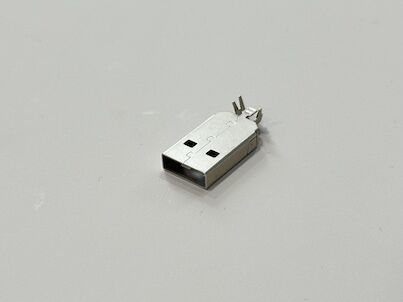

USB 2.0 AM Connector Two-Piece Metal Shell 24.7mm | Electrical Wire Cable Terminal Connector for Power & Data Transmission 6

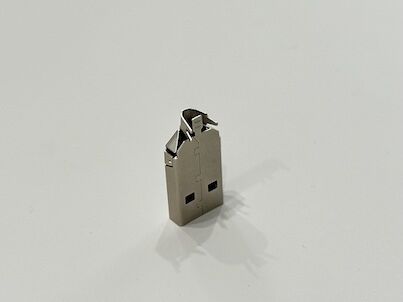

USB 2.0 AM Connector Two-Piece Metal Shell 24.7mm | Electrical Wire Cable Terminal Connector for Power & Data Transmission 7

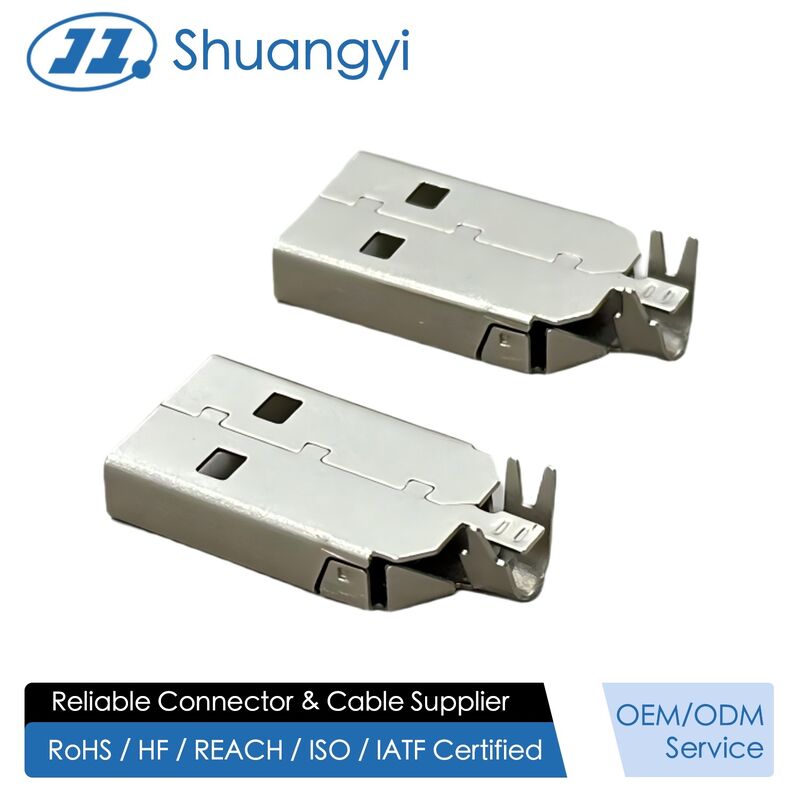

USB 2.0 AM Connector Two-Piece Metal Shell 24.7mm | Electrical Wire Cable Terminal Connector for Power & Data Transmission 8
