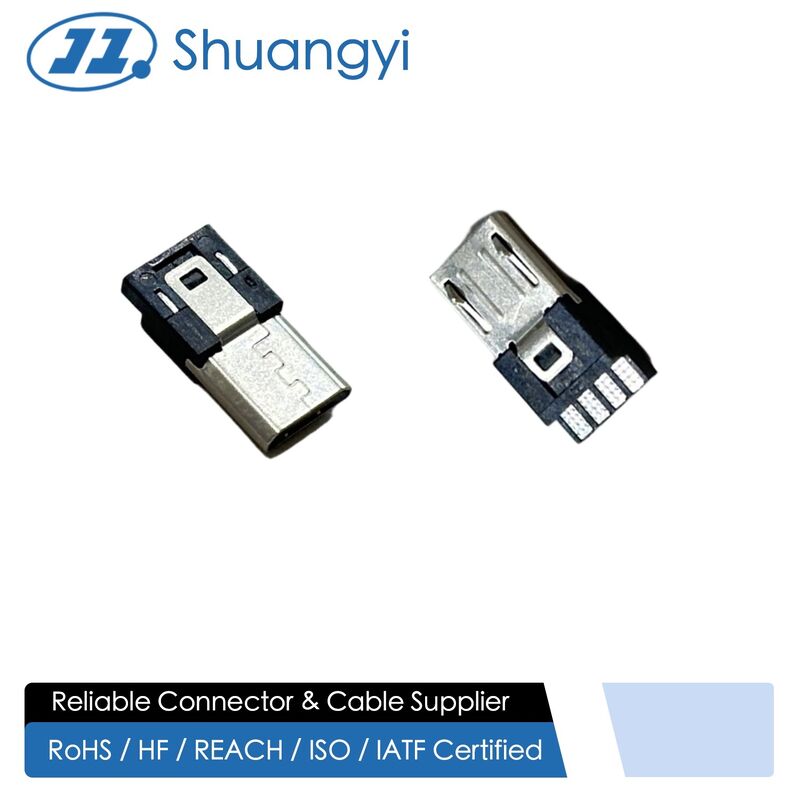

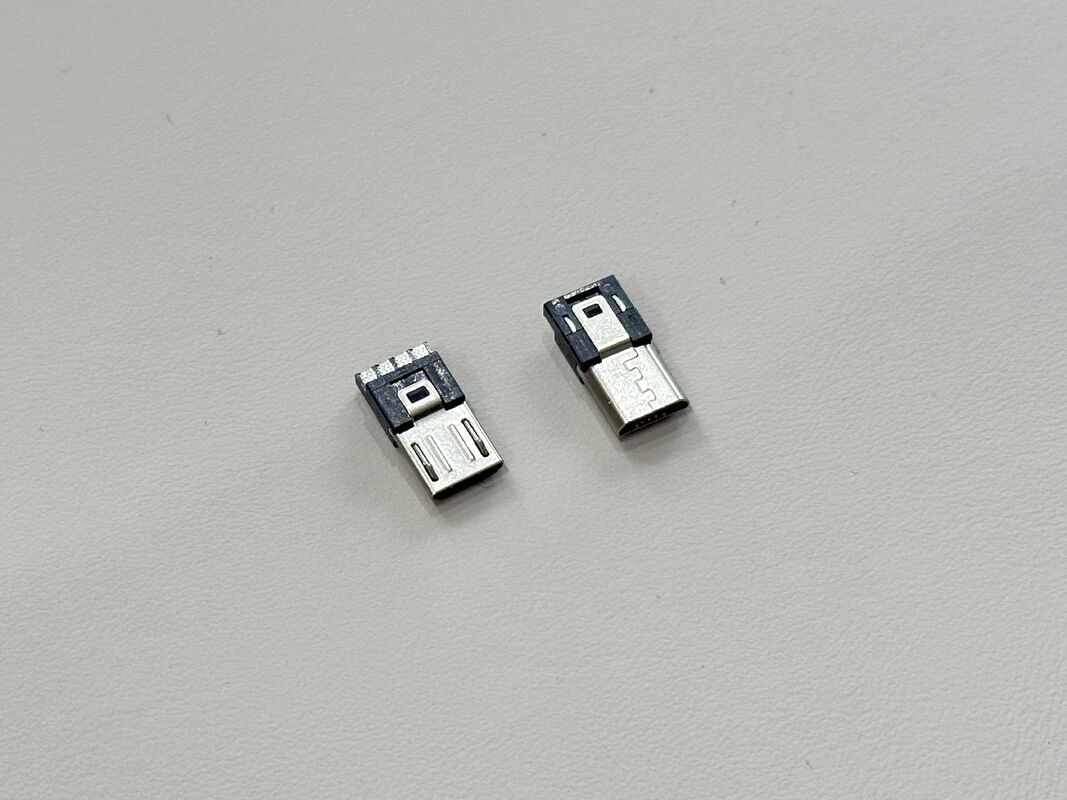

Name: Micro-USB Male Molding Cable-End Connector | 5-Pin to 4-Pin Cut Wire | Gold-Plated G/F | Electrical Wire Terminal Cable Connector
Brand: Chongqing ShuangYi Precision Electronic Co., LTD
SKU: MC-04F-A7S3A2-02LH
Price: 0.03 USD
Availability: InStock

Home > Products > USB/Type C >

Micro-USB Male Molding Cable-End Connector | 5-Pin to 4-Pin Cut Wire | Gold-Plated G/F | Electrical Wire Terminal Cable Connector

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

MC-04F-A7S3A2-02LH

Request A Quote

Micro-USB Male Molding Cable-End Connector | 5-Pin to 4-Pin Cut Wire | Gold-Plated G/F | Electrical Wire Terminal Cable Connector

Product Details

Parameter Specification Product Name:

USB Micro-B Male Wire Connector (4Pin Gold-Plated)

Pin Count:

4 Pin (Front 5/Rear 4 Structure Per Drawing)

Plating:

Contact Area Gold-plated G/F; Terminal Ni ≥50u''; Solder Area Sn ≥80u''

Housing Material:

LCP 30% G/F, Black, UL94-V0

Shell Material:

SUS304 Stainless Steel, Nickel Plated ≥50u''

Rated Current:

1A (Pin 2/3/4), 1.8A (Pin 1 & 5)

Withstand Voltage:

500VAC / 1 Minute

Insulation Resistance:

≥1000MΩ @ 500VDC

Operating Temperature:

-20°C ~ +85°C

Wire Compatibility:

Suitable For Micro-USB Data/power Cable Assembly

Environmental:

HF Compliant

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$0.03-0.05 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month
