Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SHUANG YI
Certification:
ISO9001/SGS/UL/ROHS/Reach
Model Number:
Quick terminal
Description:

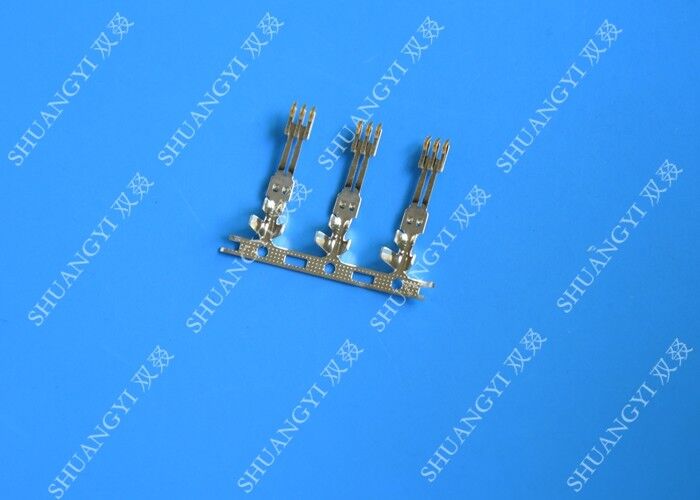

1. Terminals are stamped by Phosphor Bronze, E-Stamping before Tin-plated ,Tin-plated we calling A2005-TPe , Minimum packing quantity is 20,000pcs/Reel. The daily production capacity is 300 to 400 KPCS.
2. Terminals' wire range :AWG #22--#28,insulation OD is1.450mm(Max).
Test Description | Procedure | Requirement |
Contact Resistance | Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) | 20mΩ (Max.) |
Insulation Resistance | Mate connectors, apply 500V DC between adjacentterminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) | 1000MΩ (Min.) |
Dielectric Withstanding Voltage | Mate connectors, apply 800V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301)) | No Breakdown. |
Contact Resistance on Crimped Portion | Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA. | 5mΩ (Max.) |
Current rated | 3A AC/DC maximum |
Voltage rated | 250V AC/DC |
Withstand voltage | 650V AC/minute |
Insulation resistance | 1000MΩ min |
Contact resistance | 30MΩ max |
Operating temperature | -25 - 85°C |
Quality:
To provide customers with high efficiency service responsibility, forge ahead, the endess pursuit
Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the
step are doing by ourself. So we can control the quality.
1. Manufactured under strict controls.
2. ISO 9001:2015
3. RoHS compliance
4. OEM for PULSE
5. Active Environmental policy
6. Every module tested 3times (not just batch tested)
Service:
Our company for the purpose of "arduous pioneering, pure devotees of" "scientific management ,quality first ,service ,reputation first" ,and continuously improve product quality and perfect service , high-efficiency business management ,to provide customer with quality products and satisfactory service .
HRT Offer good pre-sales & after-sales service &Strong technical support
1. New Project: Strong technical and ideal support your new design
2. Existing projects: Try to help customer to save the cost to offer the good quality product and save
3. time.
4. Free Samples:10~20 PCS of each part number
5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
6. Customer complaint:24-48 hours reply 8D report
7. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement, or repair
8. kits if customers are not satisfied)
