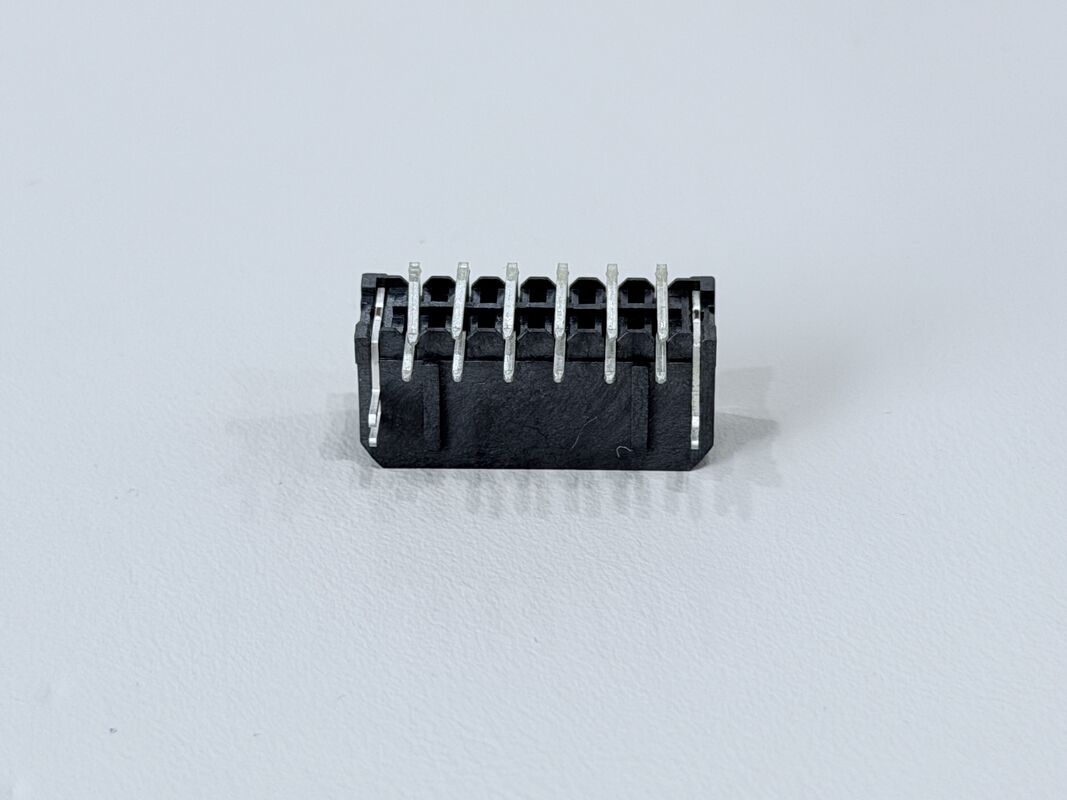

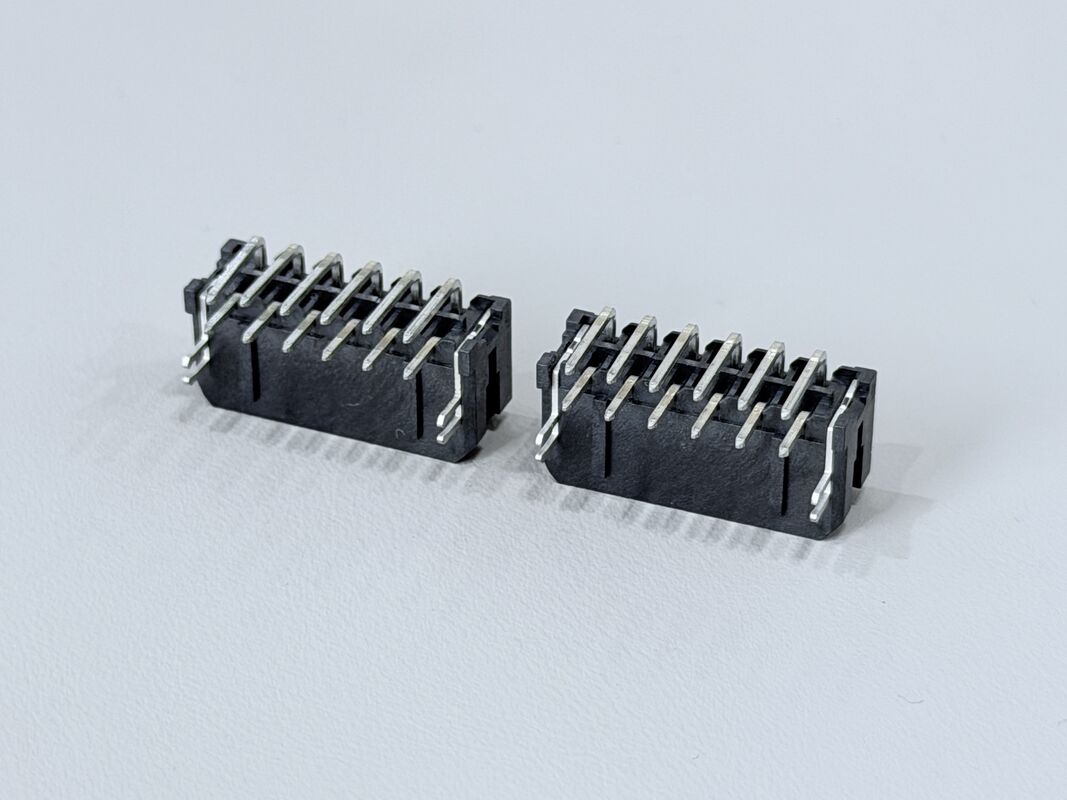

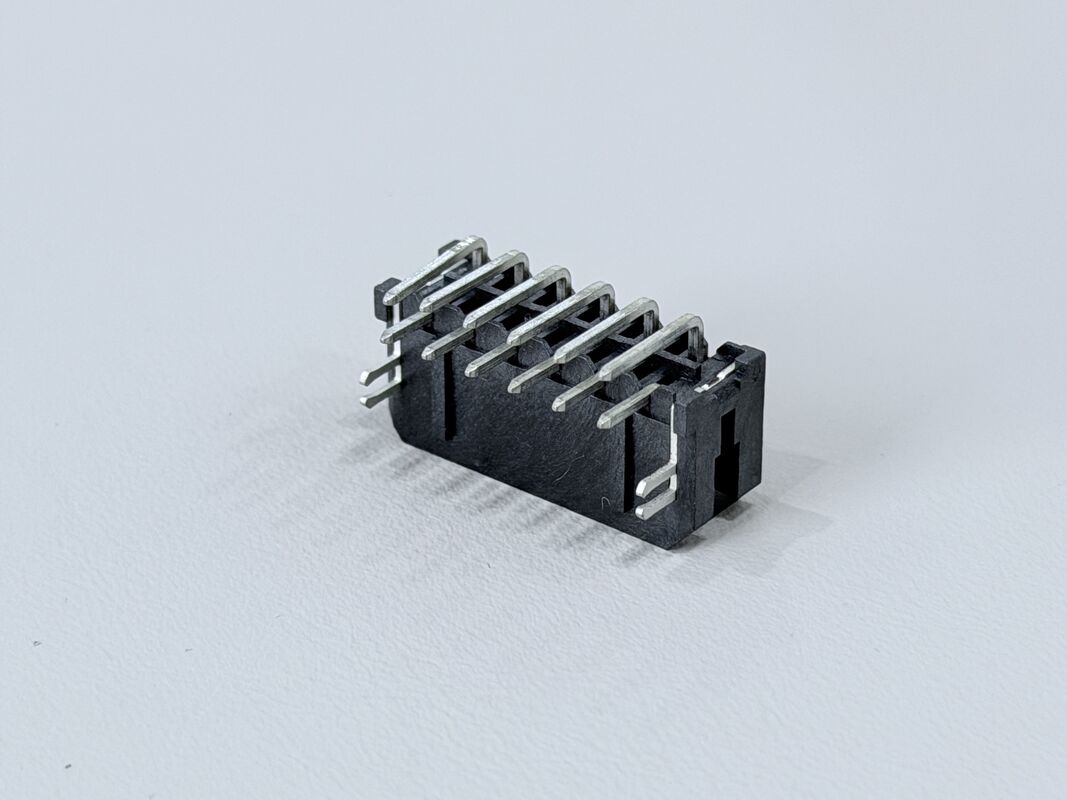

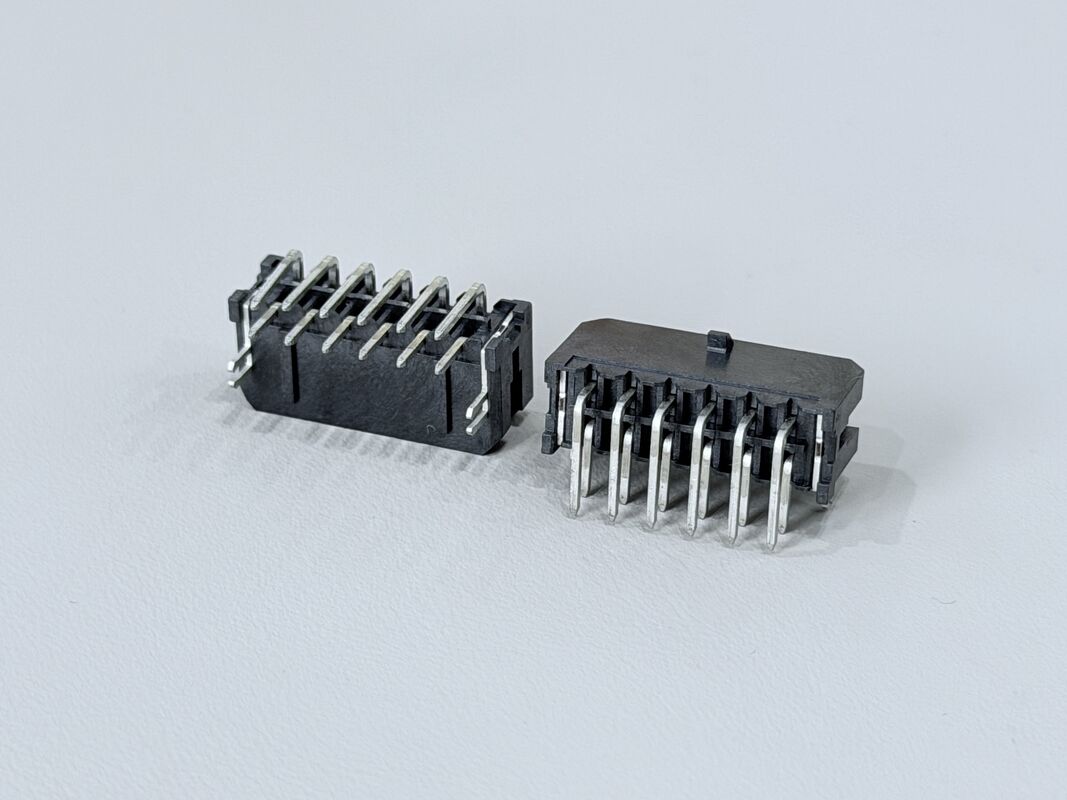

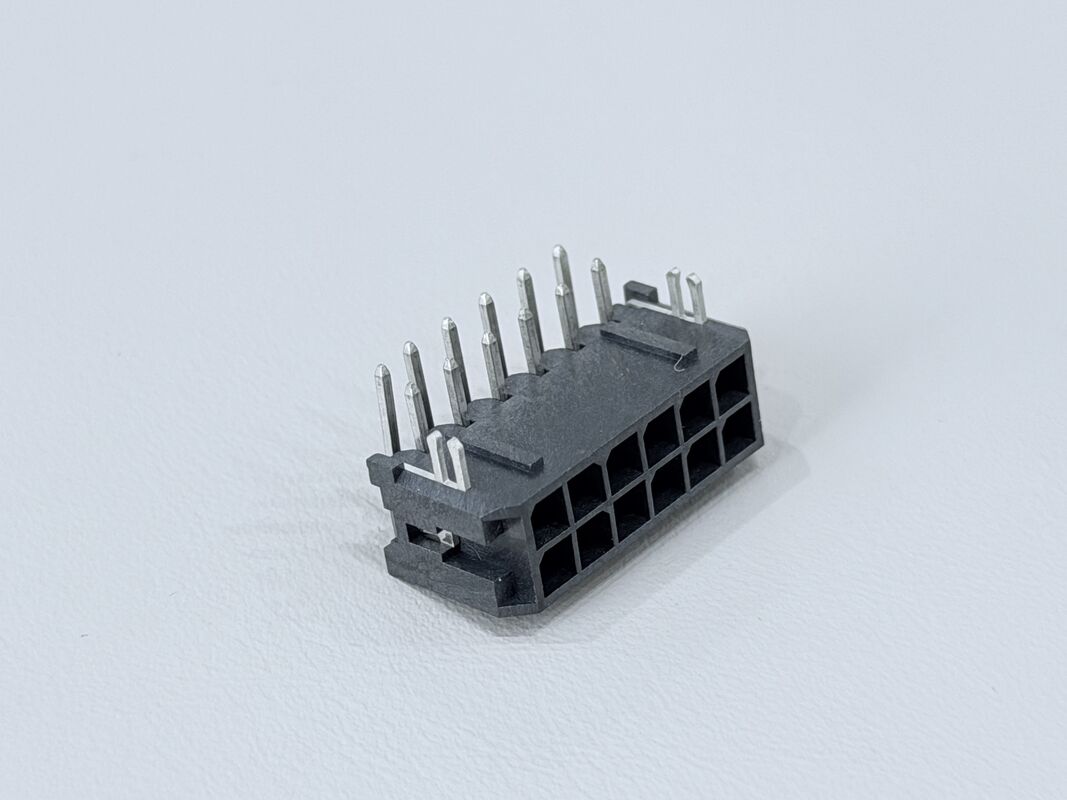

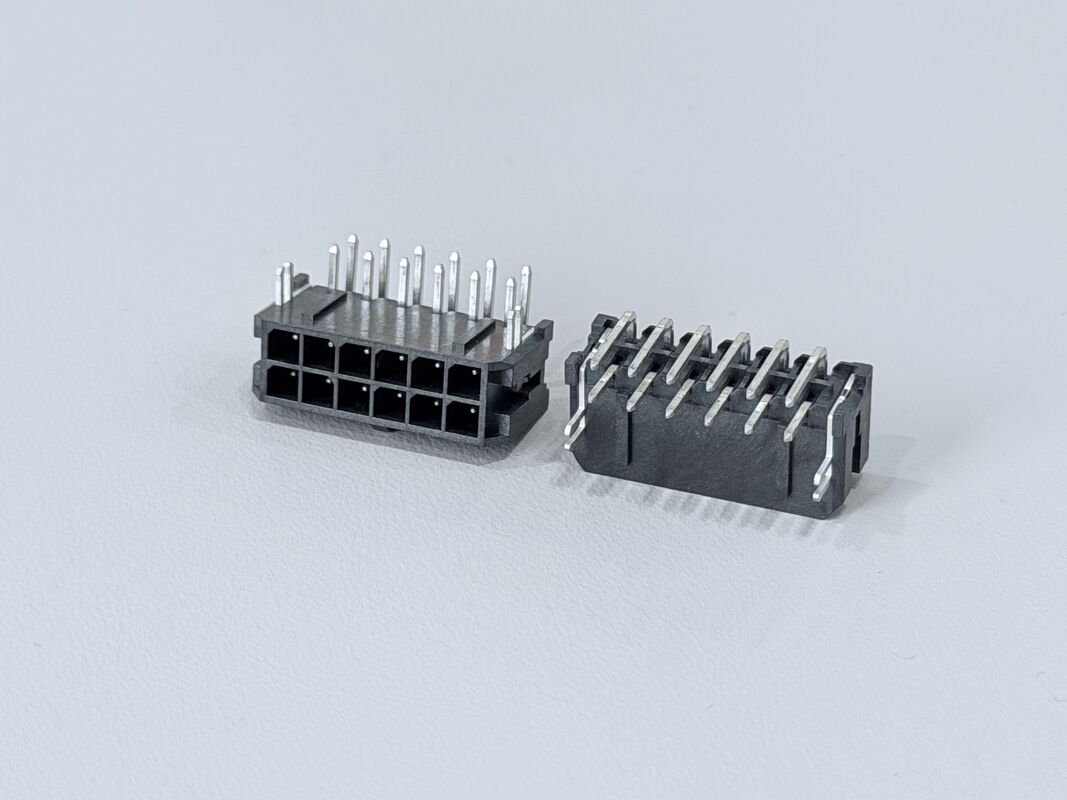

This product is a Micro Fit 3.0 2×6 pin side-entry header connector designed for dense power and signal routing on printed circuit boards. With a compact 3.00 mm pitch and dual-row layout, it offers a high contact count while maintaining a small footprint, ideal for modern compact control units and power modules.
The housing is molded from black glass-filled LCP with UL94-V0 flammability and halogen-free properties, ensuring dimensional stability and safety during wave or selective soldering. Copper-alloy terminals with nickel plus matte tin plating provide excellent solderability, low contact resistance and improved corrosion resistance in harsh environments.
Electrical characteristics include contact resistance not exceeding 20 mΩ, insulation resistance of at least 1,000 MΩ and a dielectric withstand capability of 1500 VAC for one minute, delivering dependable performance for both low-voltage power rails and mixed signal lines. The 2.1 mm protruding tails form strong solder joints and add mechanical strength, while the minimum 1.5 kgf pin retention after reflow helps the connector survive vibration and shock.
The series supports customization for pin counts, plating thickness, housing color and matching cable assemblies, making it suitable for OEM projects or as a cost-effective alternative to branded Micro-Fit-style headers.
| Series |
Micro Fit 3.0 board interface family |
| Product type |
Side-entry, dual-row PCB header, male connector |
| Function |
Wire-to-board power and signal interface |
| Pitch |
3.00 mm |
| Positions |
2×6 pins (12 contacts) |
| Rows |
2 |
| Mounting style |
Through-hole, right-angle / side entry |
| Mating direction |
Horizontal engagement to PCB |
| Housing material |
LCP, black, glass-filled, UL94-V0 |
| Housing features |
High-temperature resistant, rigid, halogen-free (HF) |
| Main pin material |
Copper alloy C1100 |
| Fork / side terminal material |
Copper alloy C2680 |
| Contact plating |
Nickel 50 μ" min + matte tin 100 μ" min over copper |
| Contact resistance |
≤ 20 mΩ |
| Insulation resistance |
≥ 1,000 MΩ |
| Dielectric withstanding voltage |
1500 VAC / 1 minute |
| Salt spray performance |
24 h |
| Operating temperature |
−40 °C to +105 °C |
| Pin retention force |
≥ 1.5 kgf per pin after soldering |
| Tail length below PCB |
Approx. 2.1 mm protruding leads |
| Environmental compliance |
HF; RoHS/REACH-compatible versions available |
| Customization |
Positions, plating system, housing color, matched wire harness, alternatives to Tyco / Amphenol solutions |
