USB 3.0 20-Pin Internal Header Connector Cable, Right-Angle to Straight, Blue Electronic Wire Harness for PC Case Front Panel, Server Signal and Power Transmission Customization

Place of Origin:

China

Brand Name:

ShuangYi

Certification:

ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Model Number:

USB 3.0 20P L = 850MM

Request A Quote

USB 3.0 20-Pin Internal Header Connector Cable, Right-Angle to Straight, Blue Electronic Wire Harness for PC Case Front Panel, Server Signal and Power Transmission Customization

Product Details

Product Type:

USB Type-C Male Connector To USB Type-C Male Right-angle Connector

Application:

Power Charging And Electronic Signal Transmission Cable

Rated Voltage:

30 V Max (signal Use)

Characteristic Impedance:

100 Ω Differential (typical SAS Channel)

Wire Gauge:

22/28 AWG Combined (power/signal), Other Gauges Customizable

Insulation:

PVC Electronic Wire, 80 °C / 300 V Rating

Max Data Rate:

Up To 6 Gb/s Transmission

Conductor Material:

Oxygen-free Copper For Low-loss Power And Signal Paths

Housing Material:

Flame-retardant PA / PBT, UL94V-0 Compatible

Operating Voltage:

Low-voltage Electronic Signal Application

Operating Temperature:

-20 °C To +80 °C

Compliance:

RoHS / REACH

Custom Options:

Length, Color, Straight/right-angle Mix, PCB Side Plug, Label Printing And Bundled Harness Customization

Connector Housing:

High-temperature Plastic Over-mold With Strain Relief

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

$1.44-2.21 PCS FOB

Packaging Details

Tape and Reel, 1500 per case, 10KG

Delivery Time

8-15 working days

Payment Terms

T/T

Supply Ability

500000 pcs per month

USB 3.0 A to B connector cable high speed electronic wire harness for printer scanner external HDD power and signal transmission customization industrial devices applications

Get Best Price

USB 3.0 20-Pin Internal Header Connector Cable, Right-Angle to Straight, Blue Electronic Wire Harness for PC Case Front Panel, Server Signal and Power Transmission Customization

Get Best Price

High-speed USB Type A to Type B connector cable for printer, scanner, server, and industrial equipment signal transmission with ferrite core and reliable power supply

Get Best Price

Power test cable connector with dual safety banana plugs to DC power socket, electrical wire harness for battery charger, inverter, solar system and lab equipment

Get Best Price

Contact Now

Product Description

Product Description

This USB 3.0 20-pin internal header connector cable is designed for high-speed data and stable power transmission between a motherboard and front-panel USB modules or custom PCB boards. The right-angle connector side saves space near the motherboard, helping cable routing in compact PC and server chassis. Stranded tinned-copper conductors and matched impedance design support up to 5 Gbps SuperSpeed USB performance with low signal loss.

The molded housings protect the terminals from mechanical stress, while the flexible blue PVC jacket makes the cable easy to route around other components. Consistent pin pitch and precise terminal alignment ensure reliable mating with standard USB 3.0 header sockets. Custom wiring, different lengths and harness integration with other connectors can be provided according to project needs.

USB 3.0 20-Pin Internal Header Connector Cable, Right-Angle to Straight, Blue Electronic Wire Harness for PC Case Front Panel, Server Signal and Power Transmission Customization 0

Product type	USB 3.0 internal header connector cable

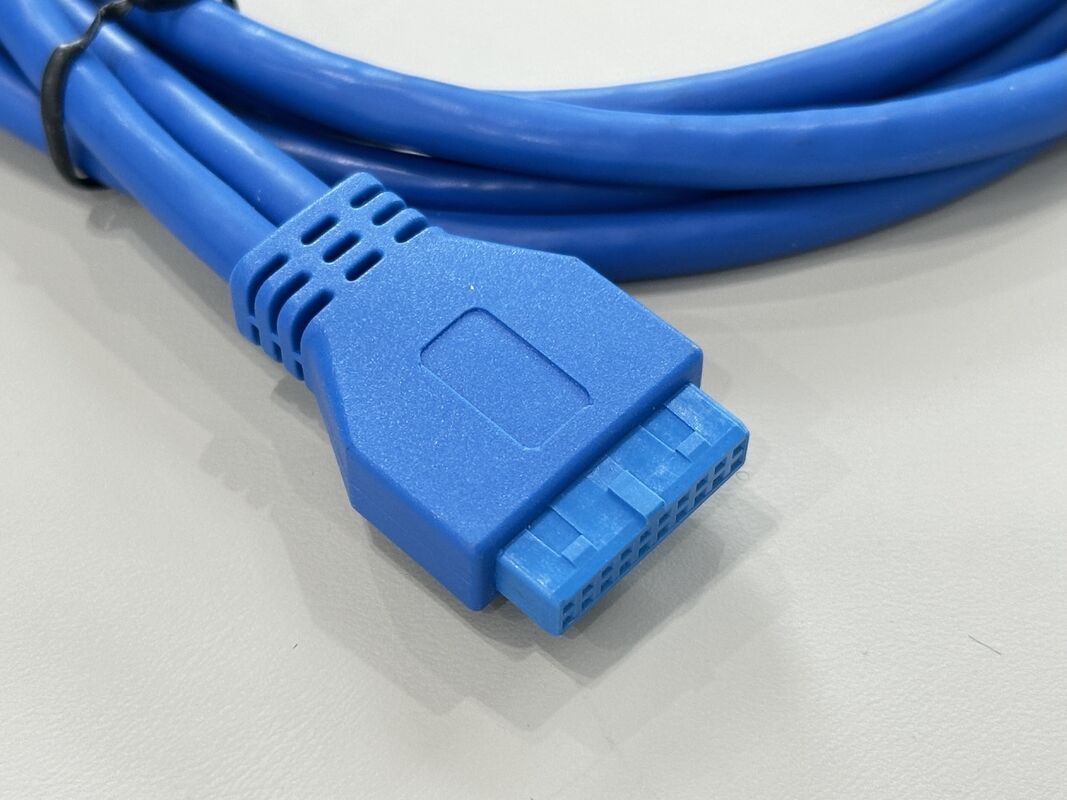

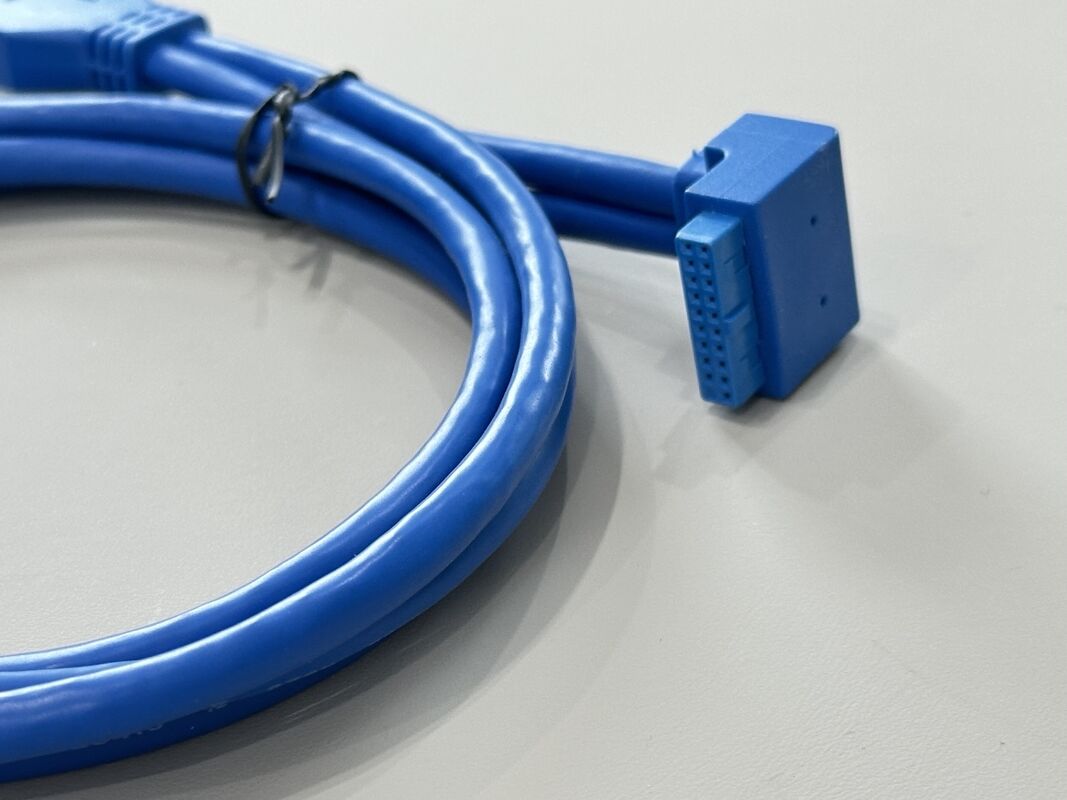

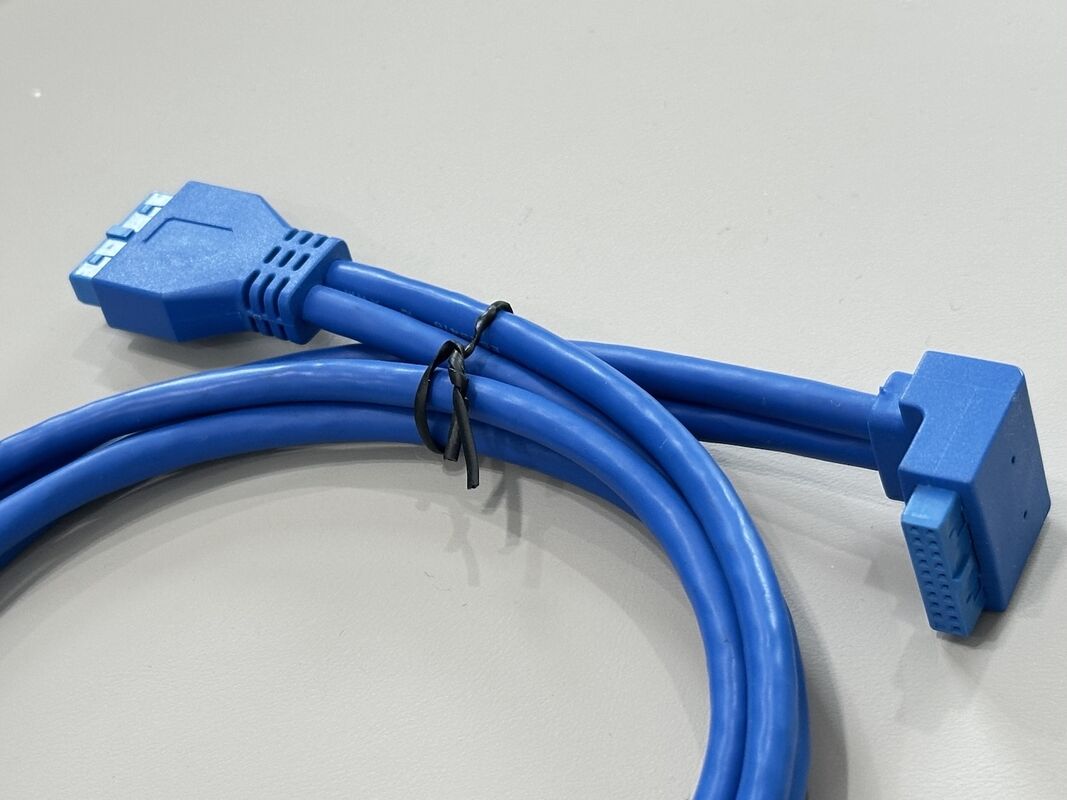

Connector A	20-pin USB 3.0 header connector, right-angle type
Connector B	20-pin USB 3.0 header connector, straight type
Pin count	20 pins per connector
Interface standard	USB 3.0 / USB 2.0 backward compatible
Data rate	Up to 5 Gbps SuperSpeed transmission
Cable length	1.0 m (custom length available)
Conductor	Tinned copper wire, stranded
Wire gauge	26–28 AWG (per design)
Insulation & jacket	PVC insulation, outer jacket blue
Operating voltage	30 V DC max
Operating temperature	-20 °C to +80 °C
Flame rating	UL-style cable, RoHS compliant
Application	PC motherboard to front-panel PCB, server chassis, industrial controller I/O
Customization	Length, pin-out, color, labeling and over-molding available

Applications

Connecting PC or workstation motherboard USB 3.0 headers to front-panel USB ports

Internal USB link for servers, storage systems and embedded computers

Cable harnesses between USB expansion cards and custom I/O boards

OEM integration in industrial controllers, test equipment and communication devices

Precautions

Name: USB 3.0 20-Pin Internal Header Connector Cable, Right-Angle to Straight, Blue Electronic Wire Harness for PC Case Front Panel, Server Signal and Power Transmission Customization
Brand: ShuangYi Precision Electronic Co., LTD
SKU: USB 3.0 20P L = 850MM
Price: 1.44 USD
Availability: InStock
